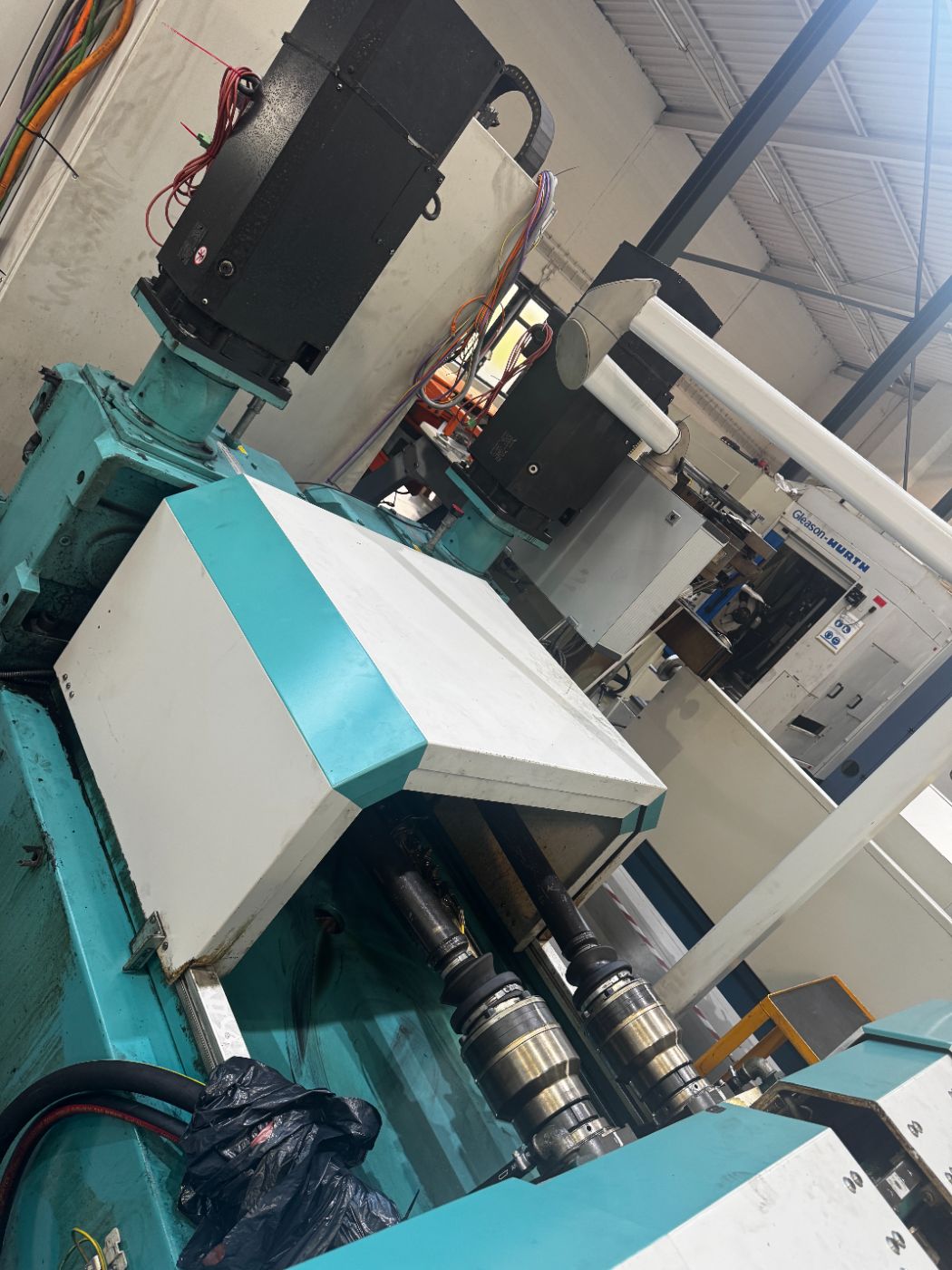

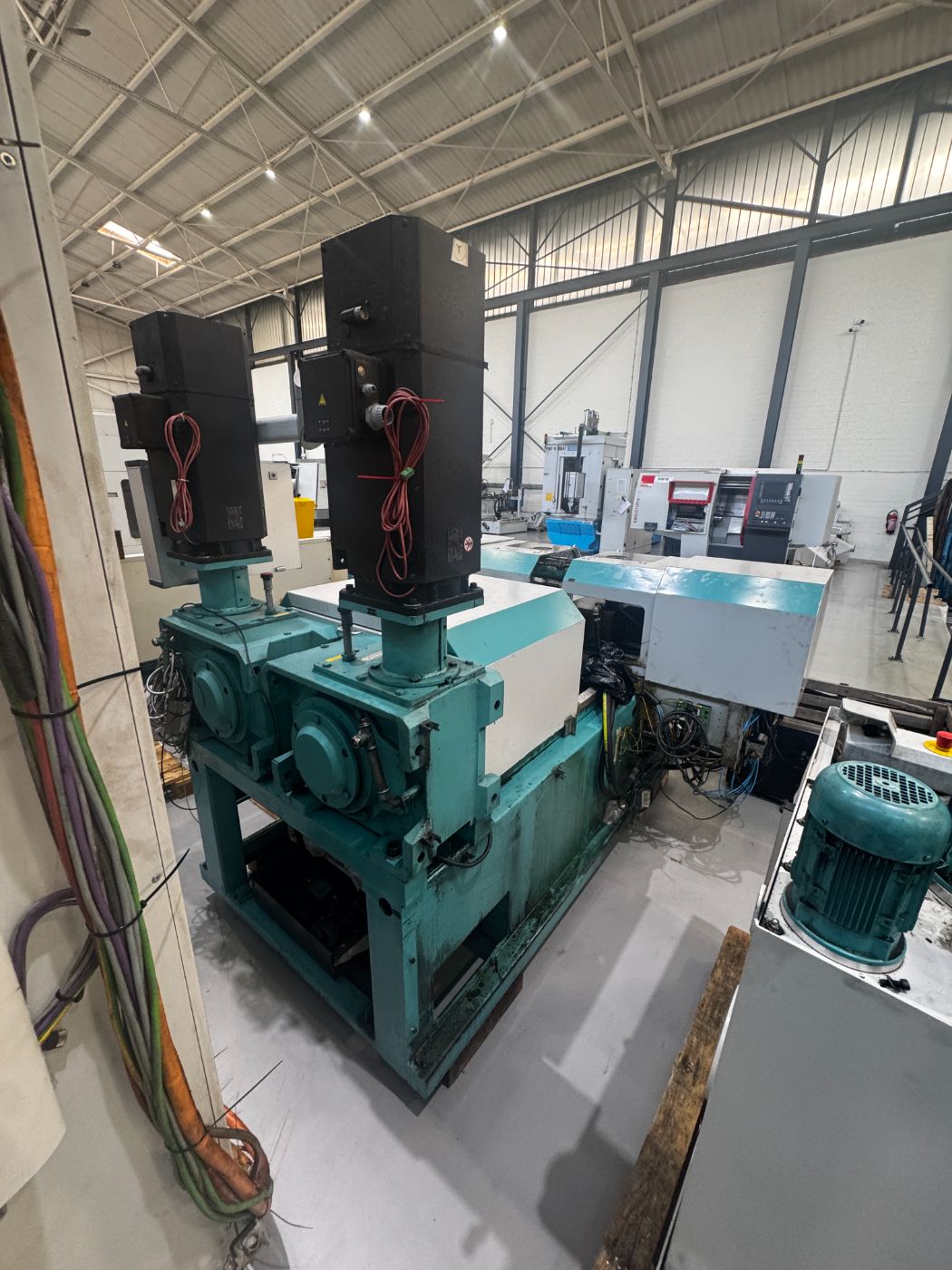

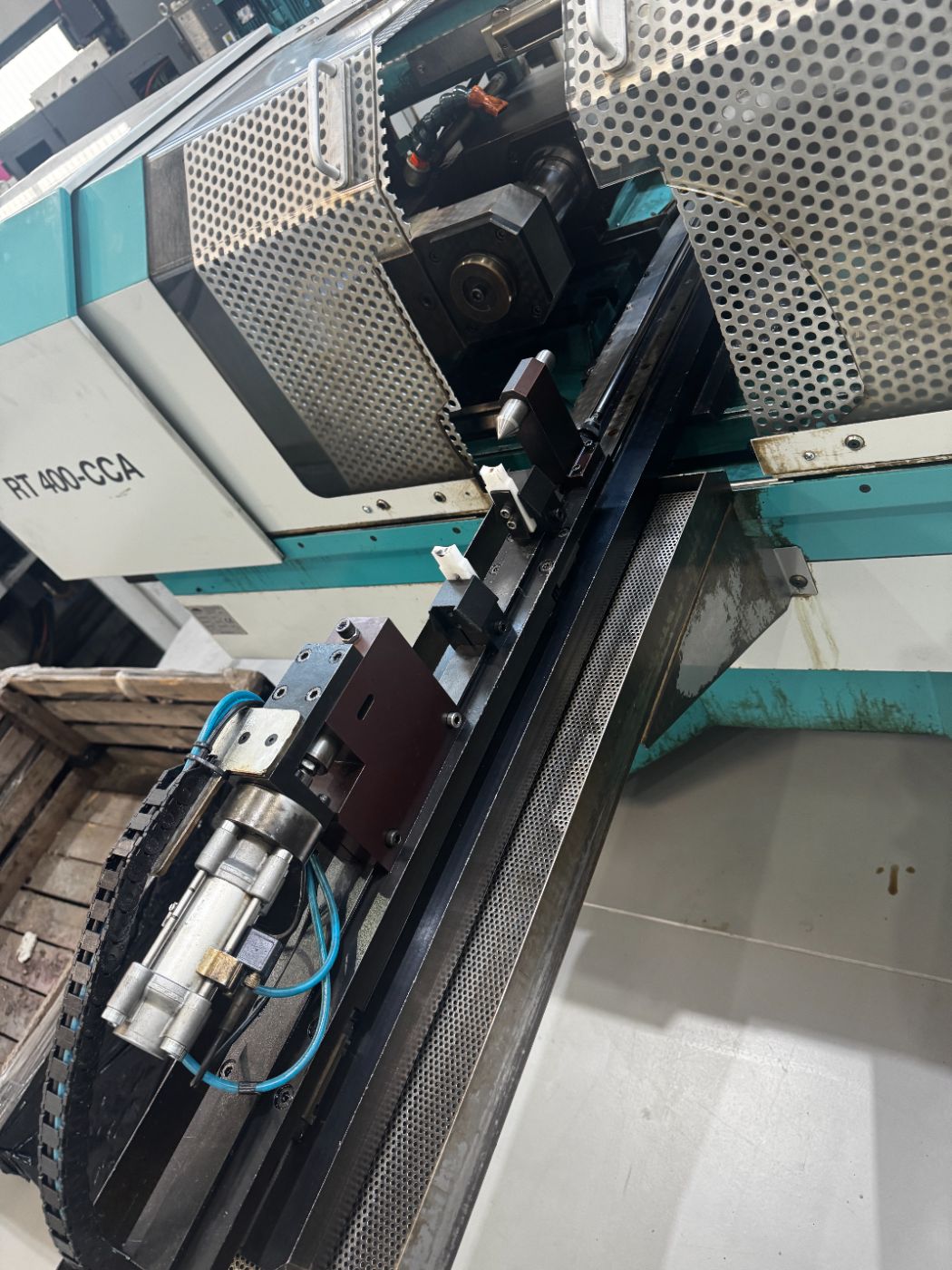

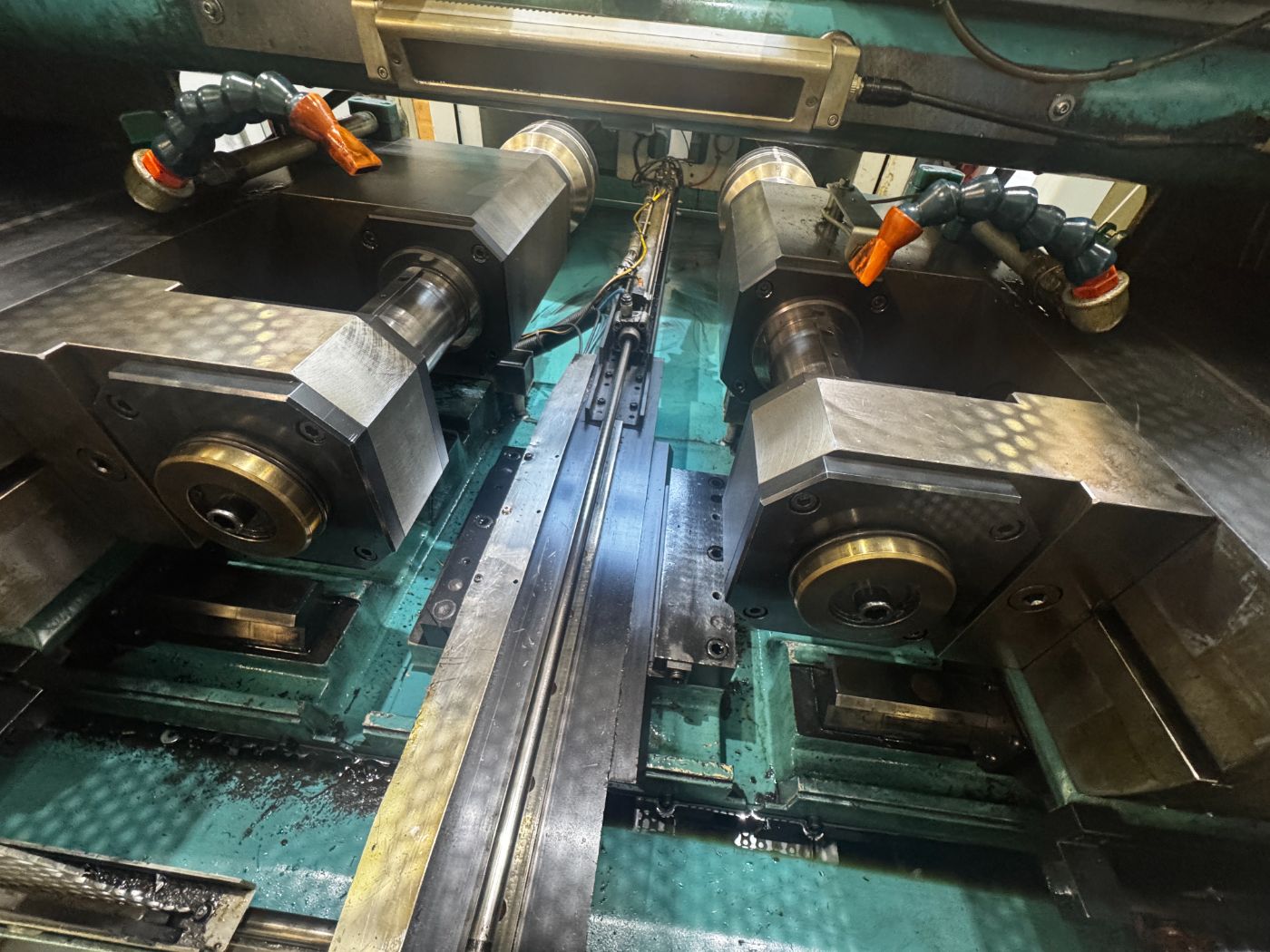

Leistritz RT400 CCA, model RT 400 CCA, year of manufacture 2004. Technical data: Manufacturer Leistritz Thommen GmbH, Switzerland, Model RT 400-CCA, Machine Type Thread Rolling Machine, Year of Manufacture 2004, Serial Number 1028, Country of Manufacture Switzerland, - Maximum rolling force 40 tons, - Minimum shaft length 125 mm. Used thread rolling machine offered by BIA GmbH, Düsseldorf, location Germany. Inspection possible, worldwide shipping.
available
Leistritz RT400 CCA
| Manufacturer | Leistritz |
| Model | RT 400 CCA |
| Year | 2004 |
| Location | Germany |

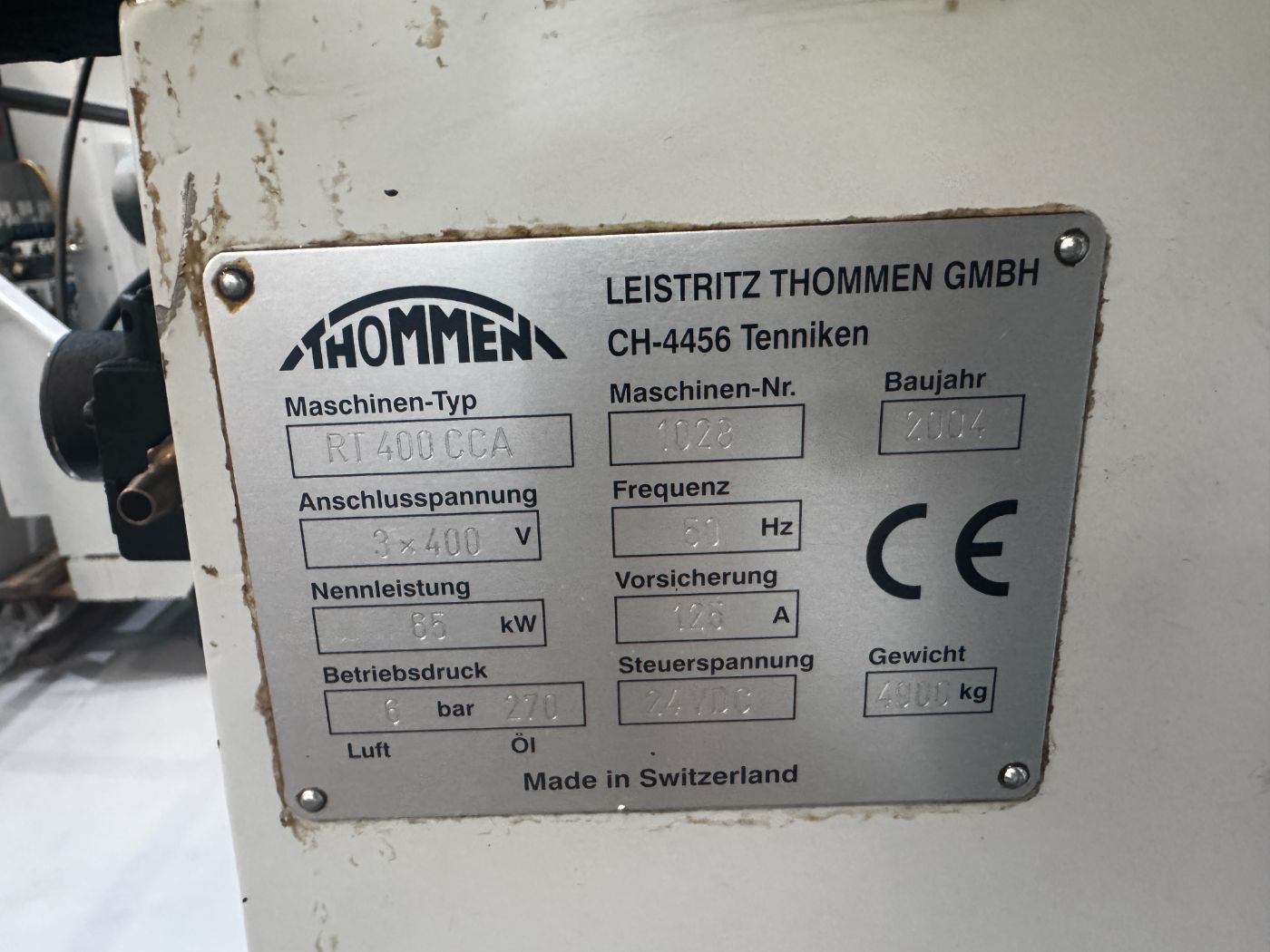

| Manufacturer | Leistritz Thommen GmbH, Switzerland |
| Model | RT 400-CCA |
| Machine Type | Thread Rolling Machine |
| Year of Manufacture | 2004 |
| Serial Number | 1028 |
| Country of Manufacture | Switzerland |
| - Maximum rolling force | 40 tons |
| - Minimum shaft length | 125 mm |
| - Maximum shaft length | 275 mm |
| For Ø69.85 mm tooling | |
| - Minimum rolling die diameter | 176–178 mm |
| - Maximum rolling die diameter | 215 mm |
| For Ø80 mm tooling | |
| - Minimum rolling die diameter | 176 mm |
| - Maximum rolling die diameter | 210 mm |
| - Power supply | 3 × 400 V |
| - Frequency | 50 Hz |
| - Rated power | 65 kW |
| - Main fuse | 125 A |
| - Control voltage | 24 V DC |
| - Spindle power | 22 / 20.5 kW |
| - Hydraulic operating pressure | 270 bar |
| - Compressed air pressure | 6 bar |

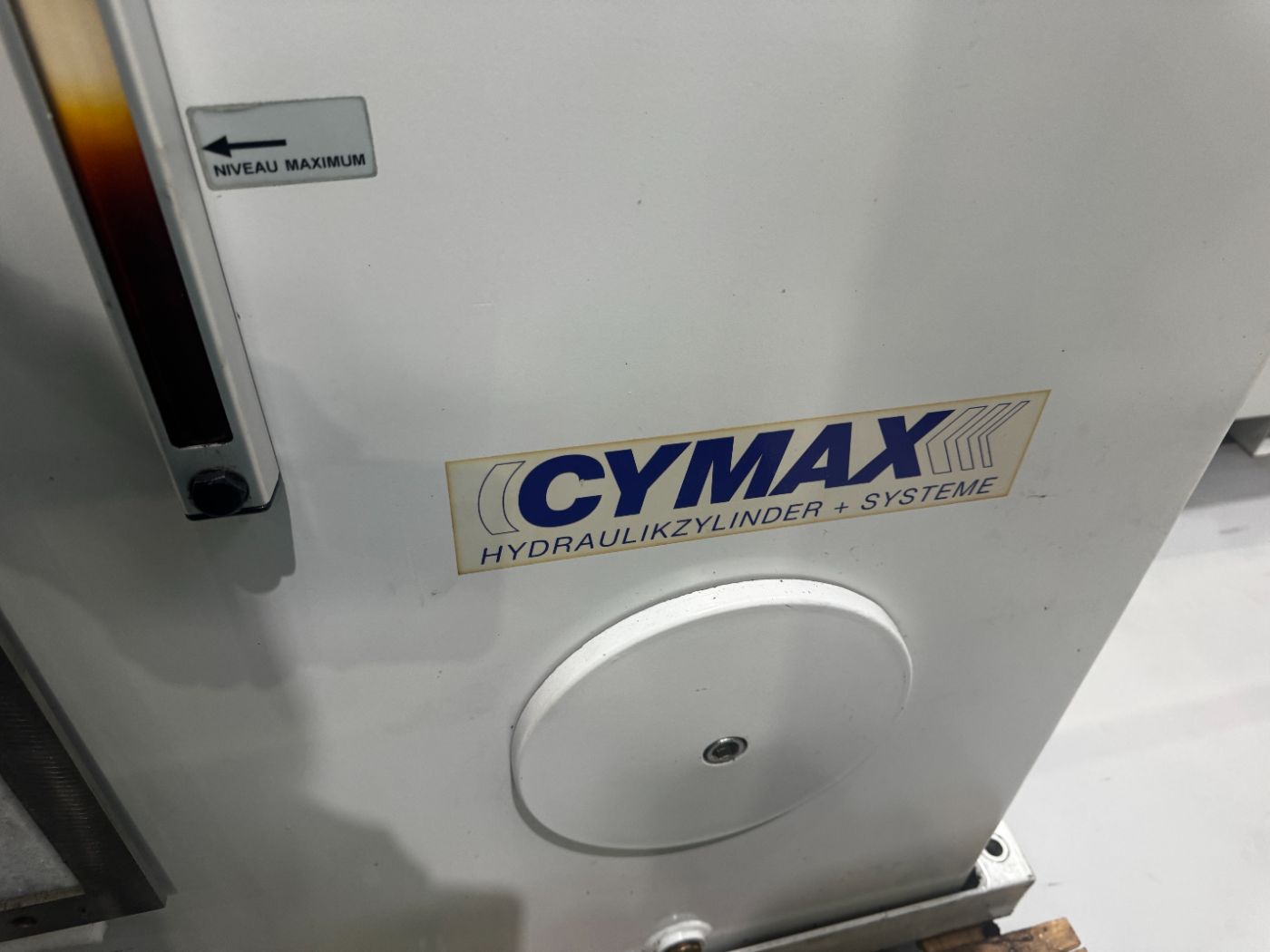

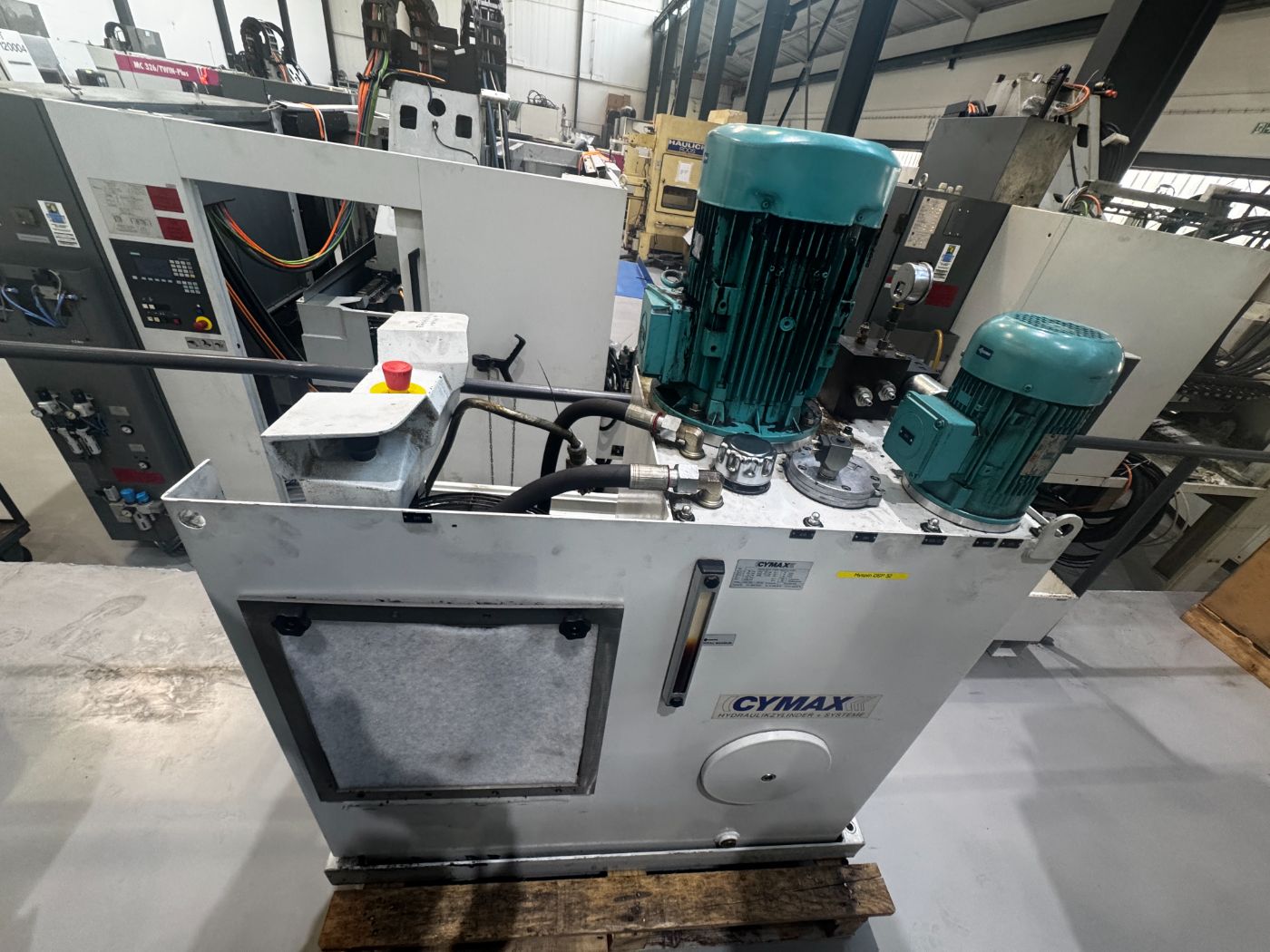

| - Hydraulic unit manufacturer | CYMAX AG, Switzerland |

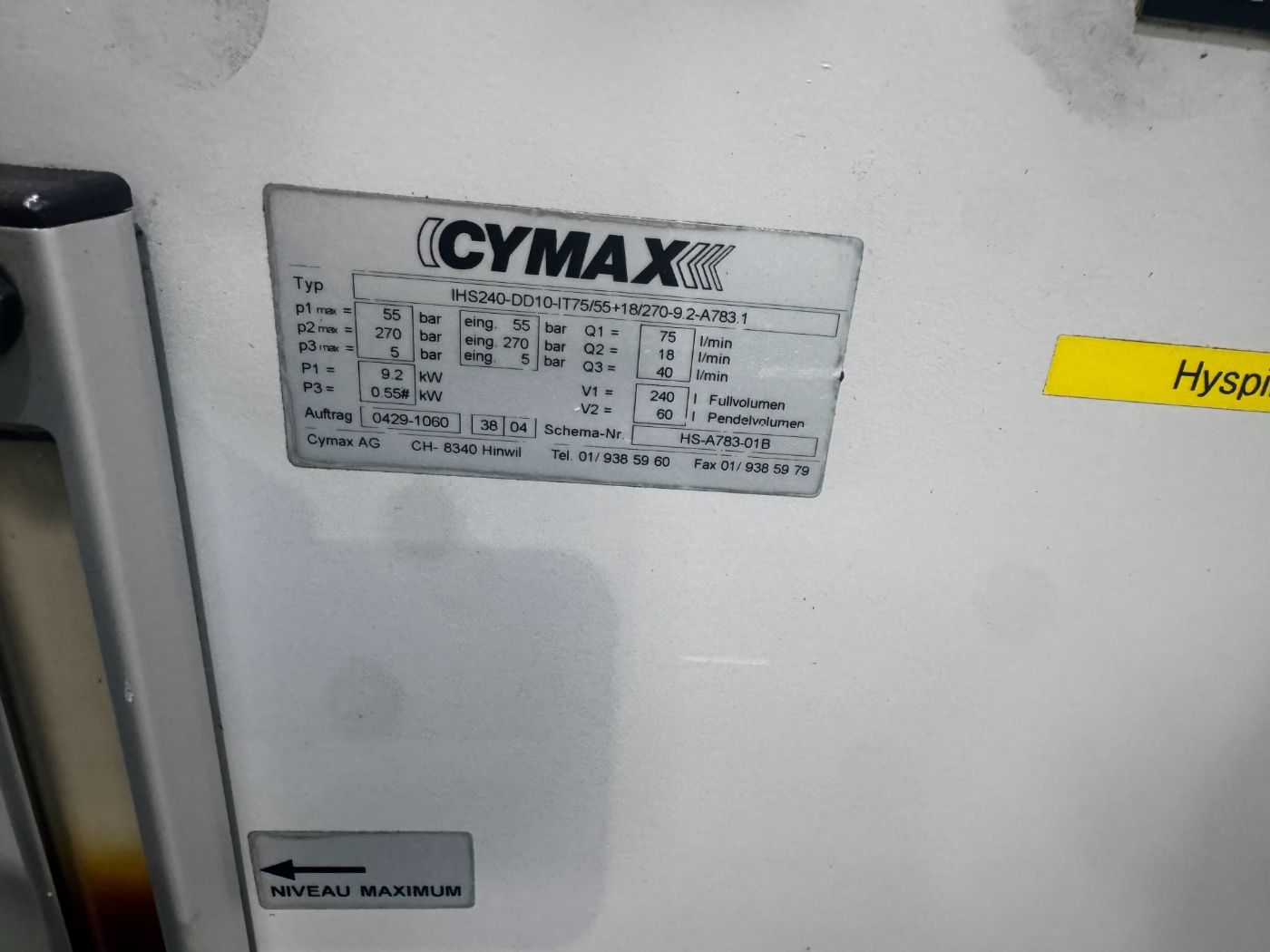

| - Hydraulic unit type | IHS240-DD10-IT75/55+18/270-9.2-A783.1 |
| - Hydraulic oil tank capacity | 240 liters |
| - Hydraulic reservoir capacity (auxiliary) | 60 liters |
| - Hydraulic pump flow rates | 75 / 18 / 40 l/min |
| - Approximate dimensions (L × W × H) | 3,400 × 2,900 × 2,200 mm |
| - Machine weight | 4,900 kg |
€ 28,000 · Inspection possible
