Liebherr LFS 223 gear shaping machine, year 2002. Full technical data available by email — contact bd@berk-ia.com.
sold

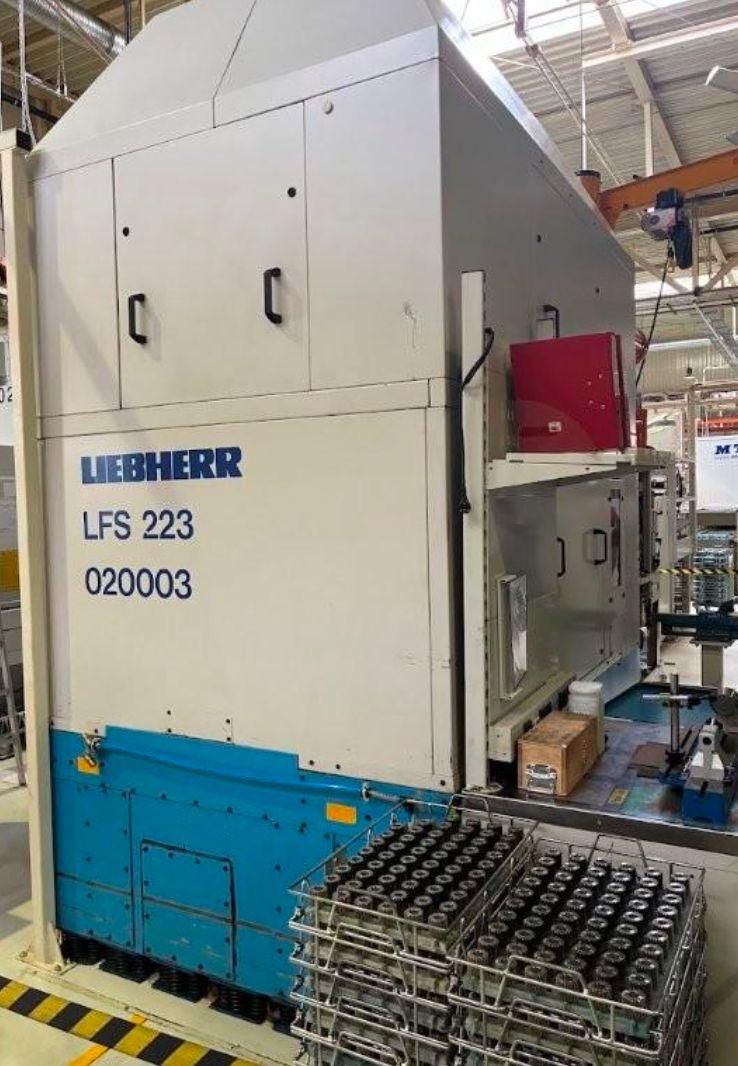

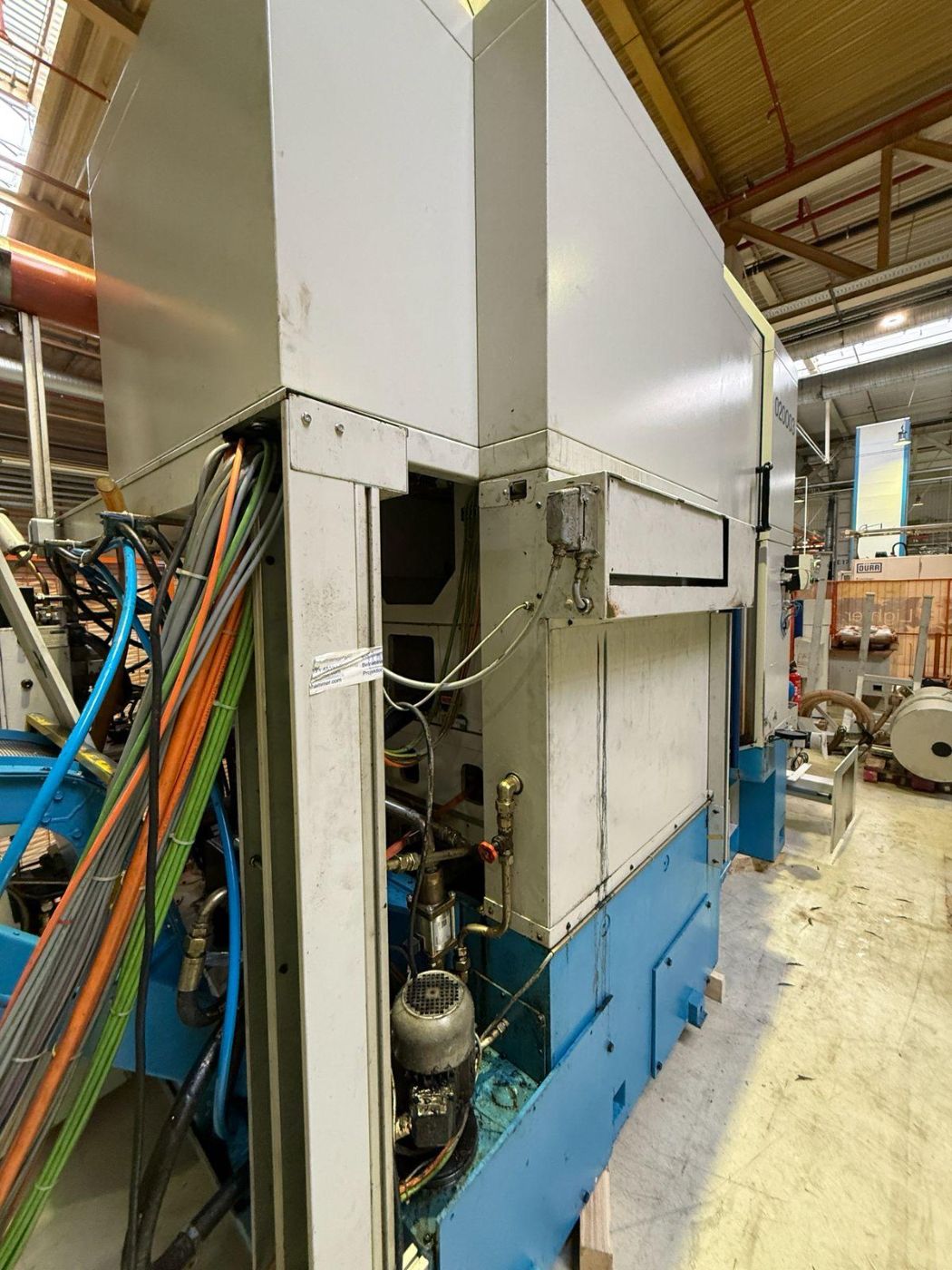

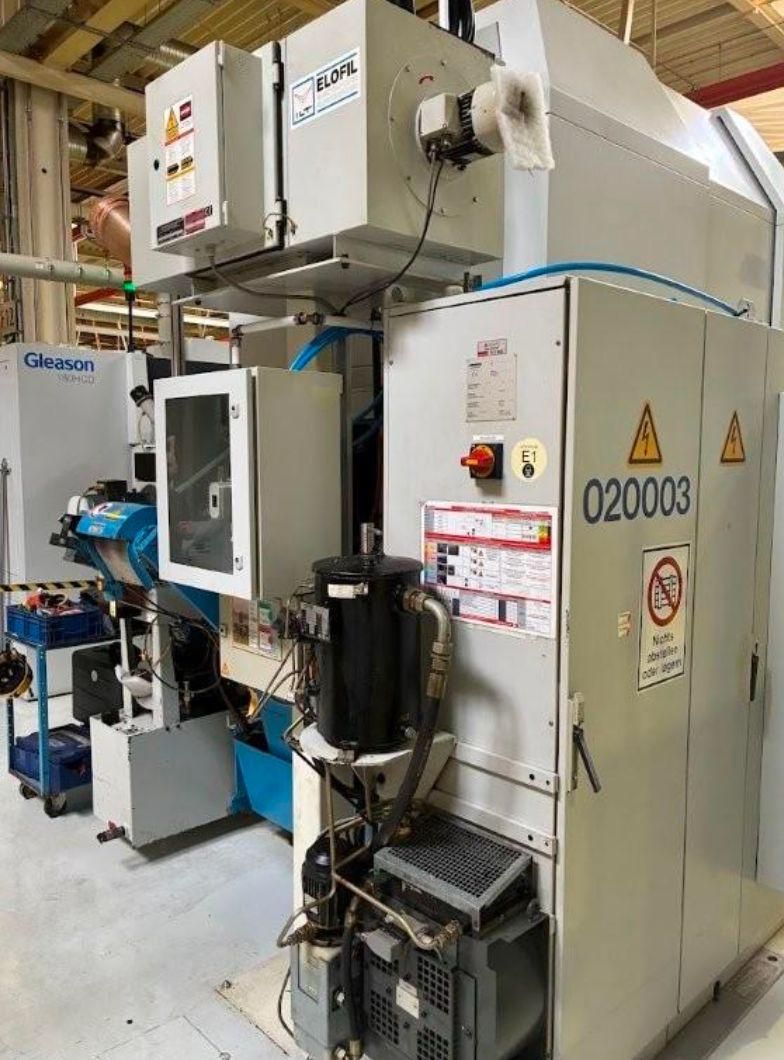

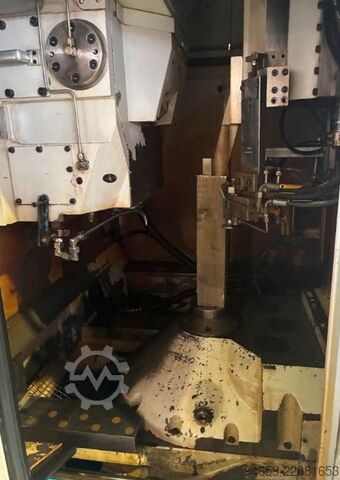

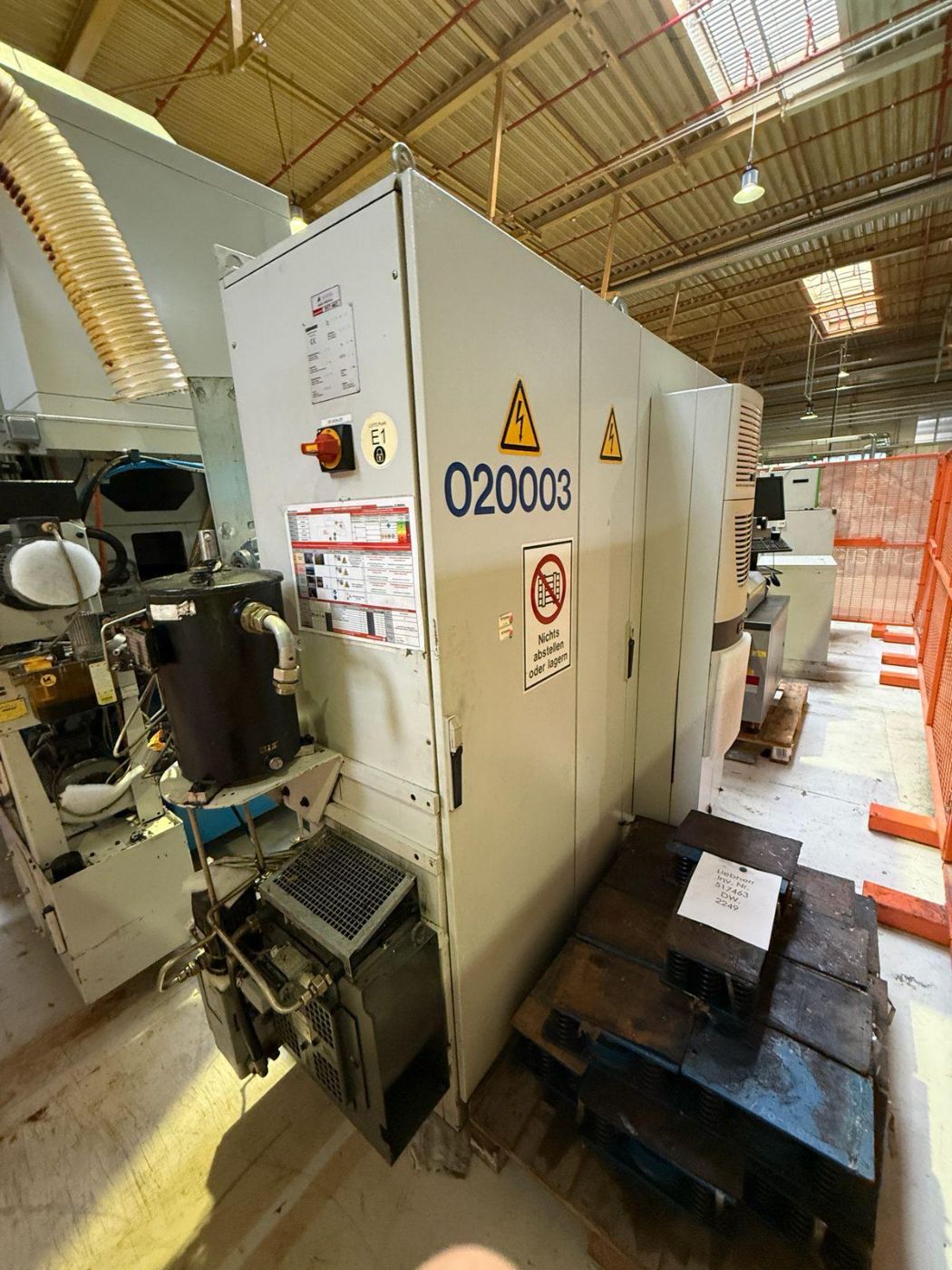

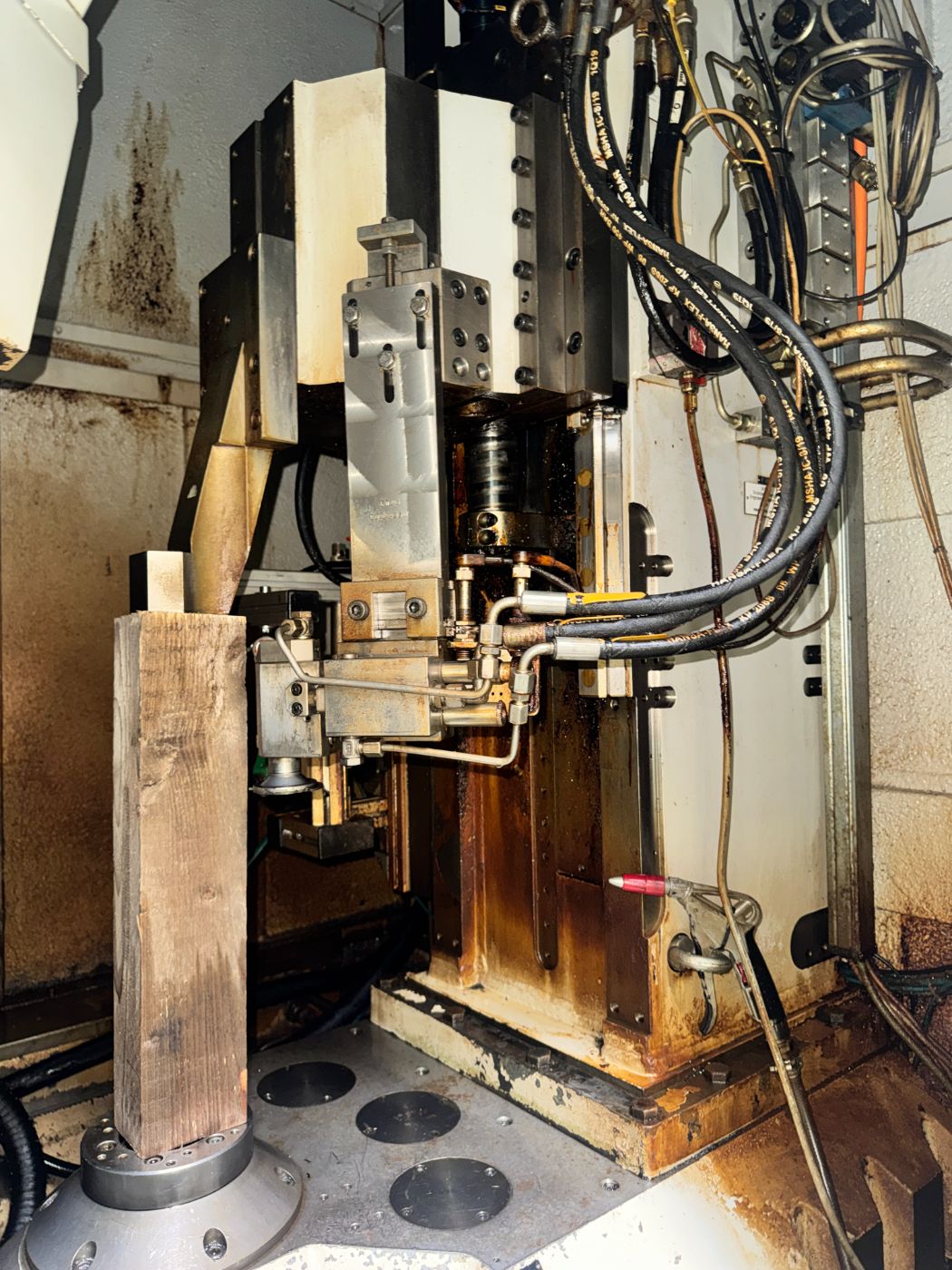

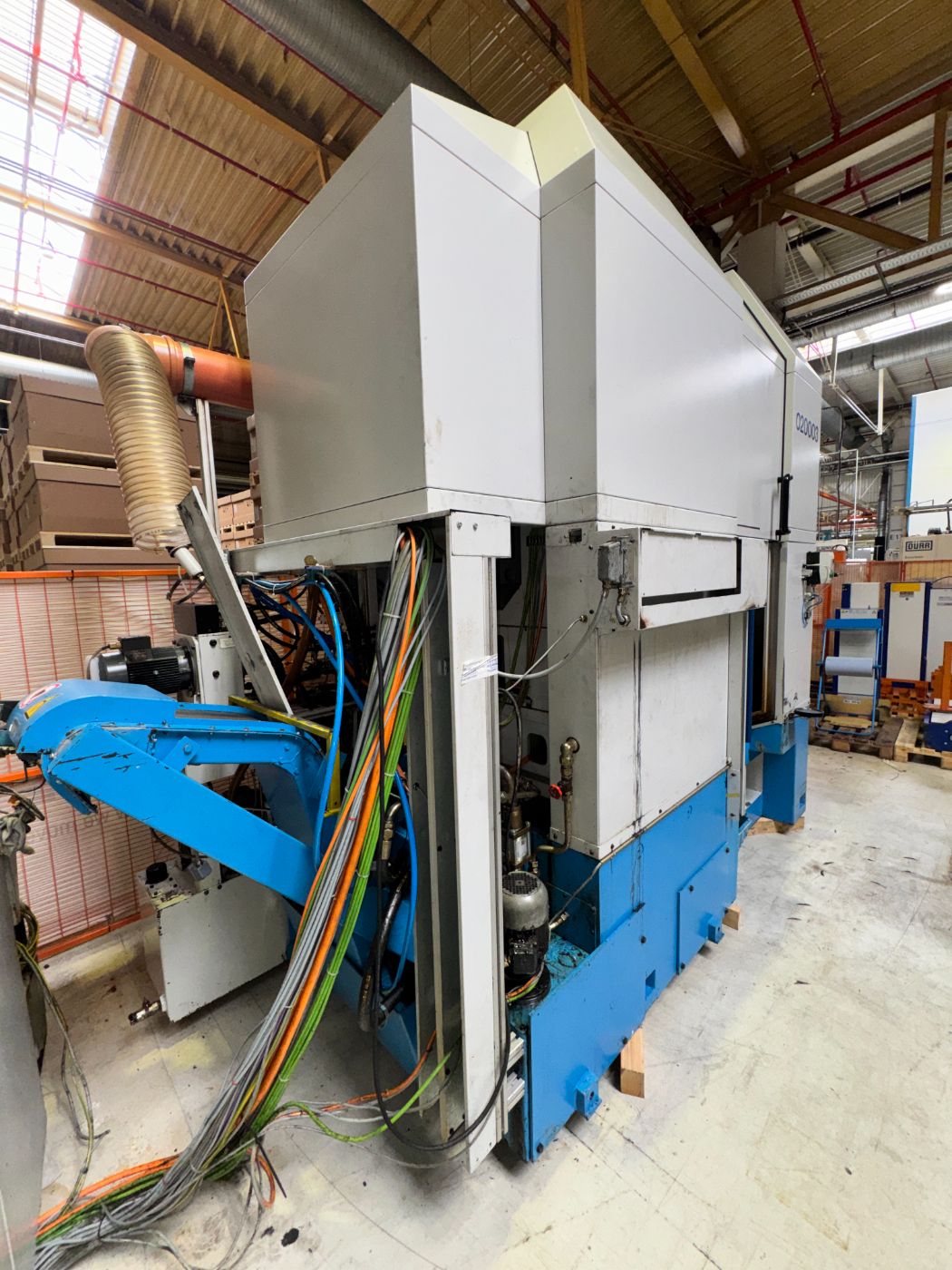

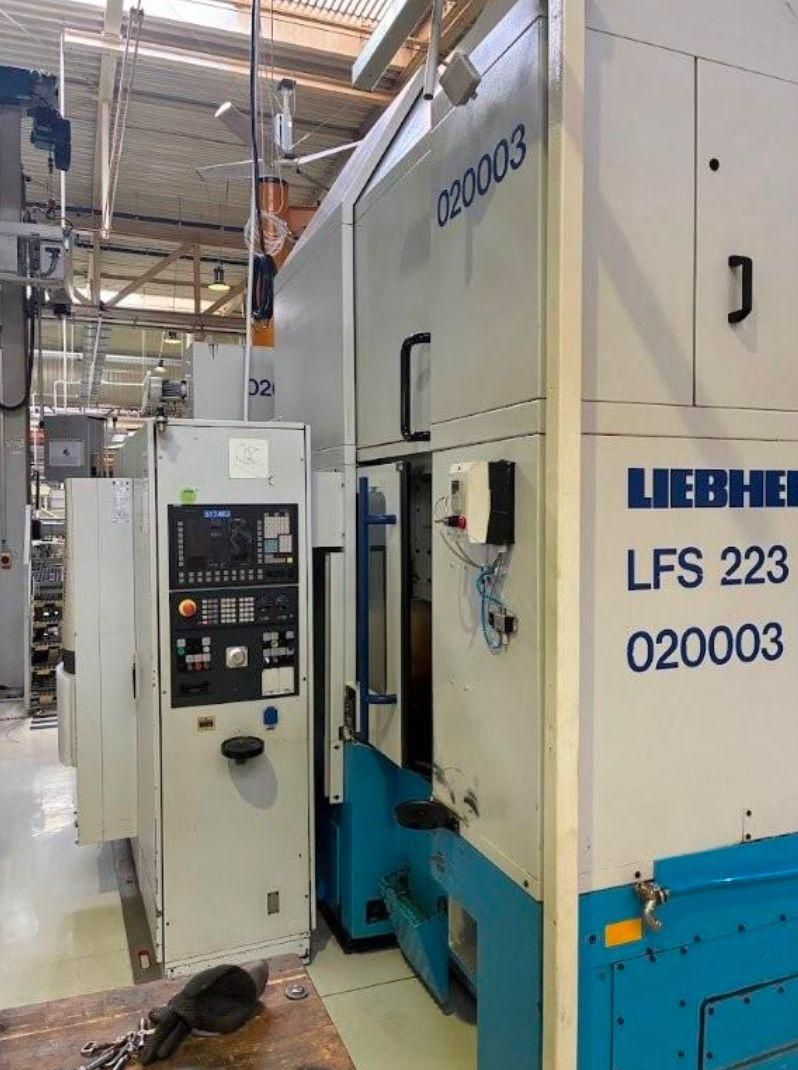

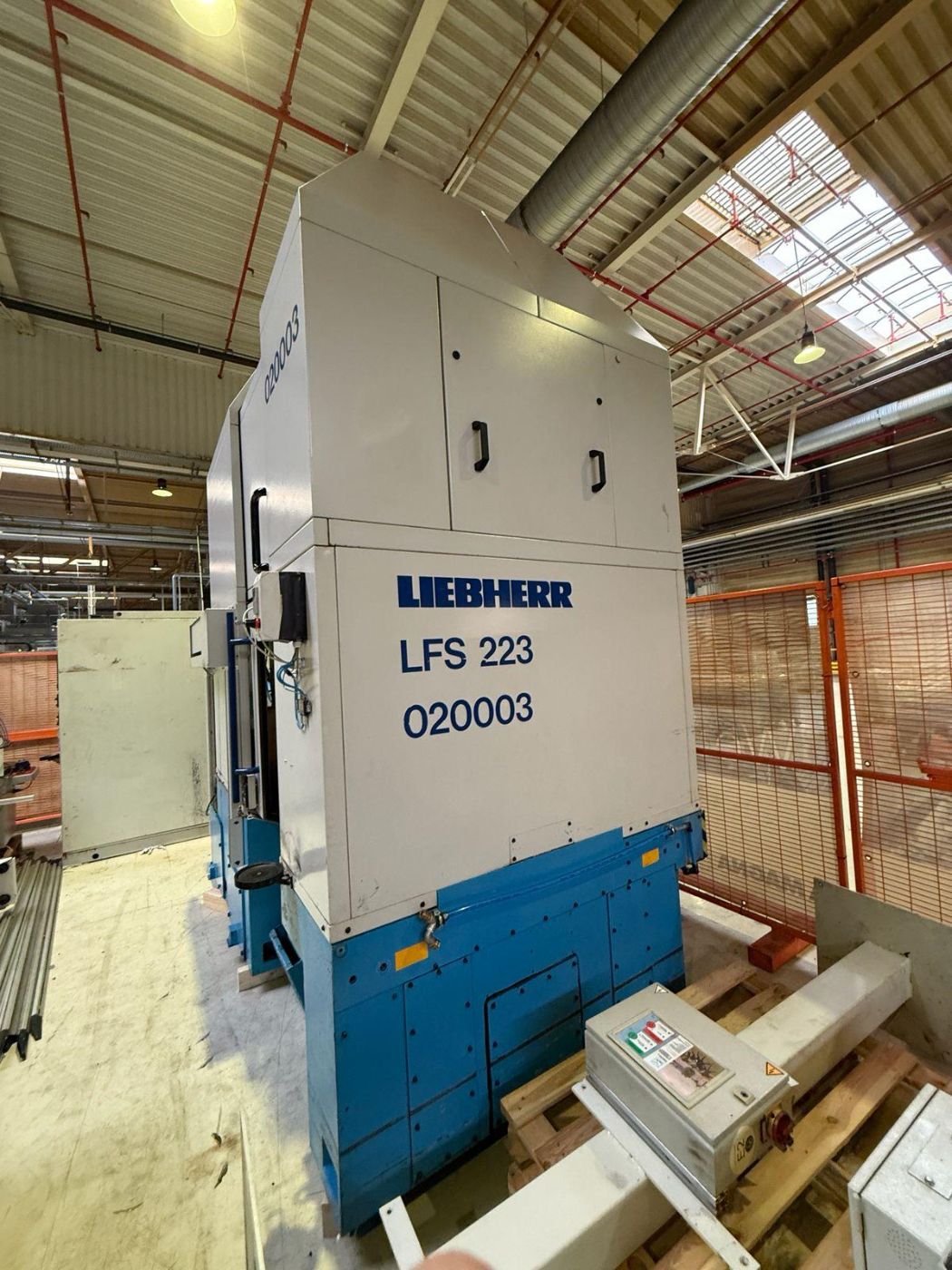

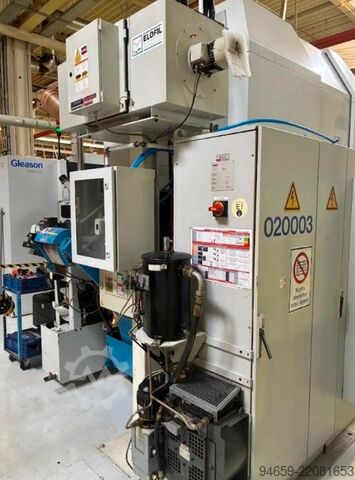

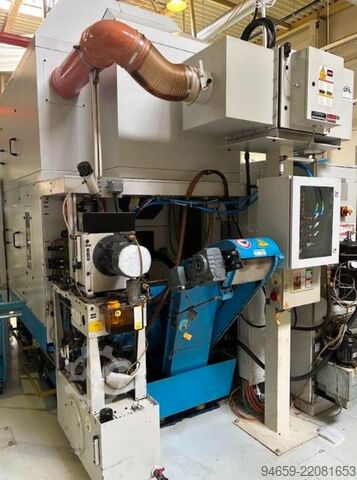

Liebherr LFS 223 Gear Shaping Machine
| Manufacturer | Liebherr |
| Model | LFS 223 |
| Year | 2002 |
| Location | Düsseldorf, Germany |
| Model | LFS 223 |
| Machine Type | CNC Vertical Gear Shaping Machine |
| Year of Manufacture | 2002 |
| Serial Number | 7055 |

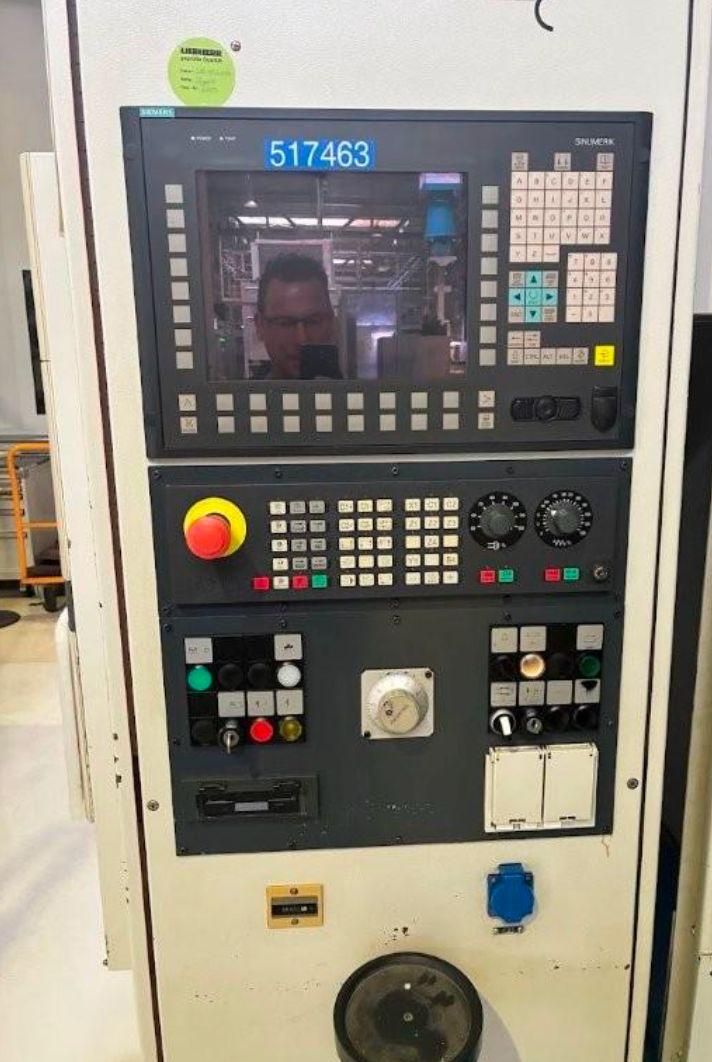

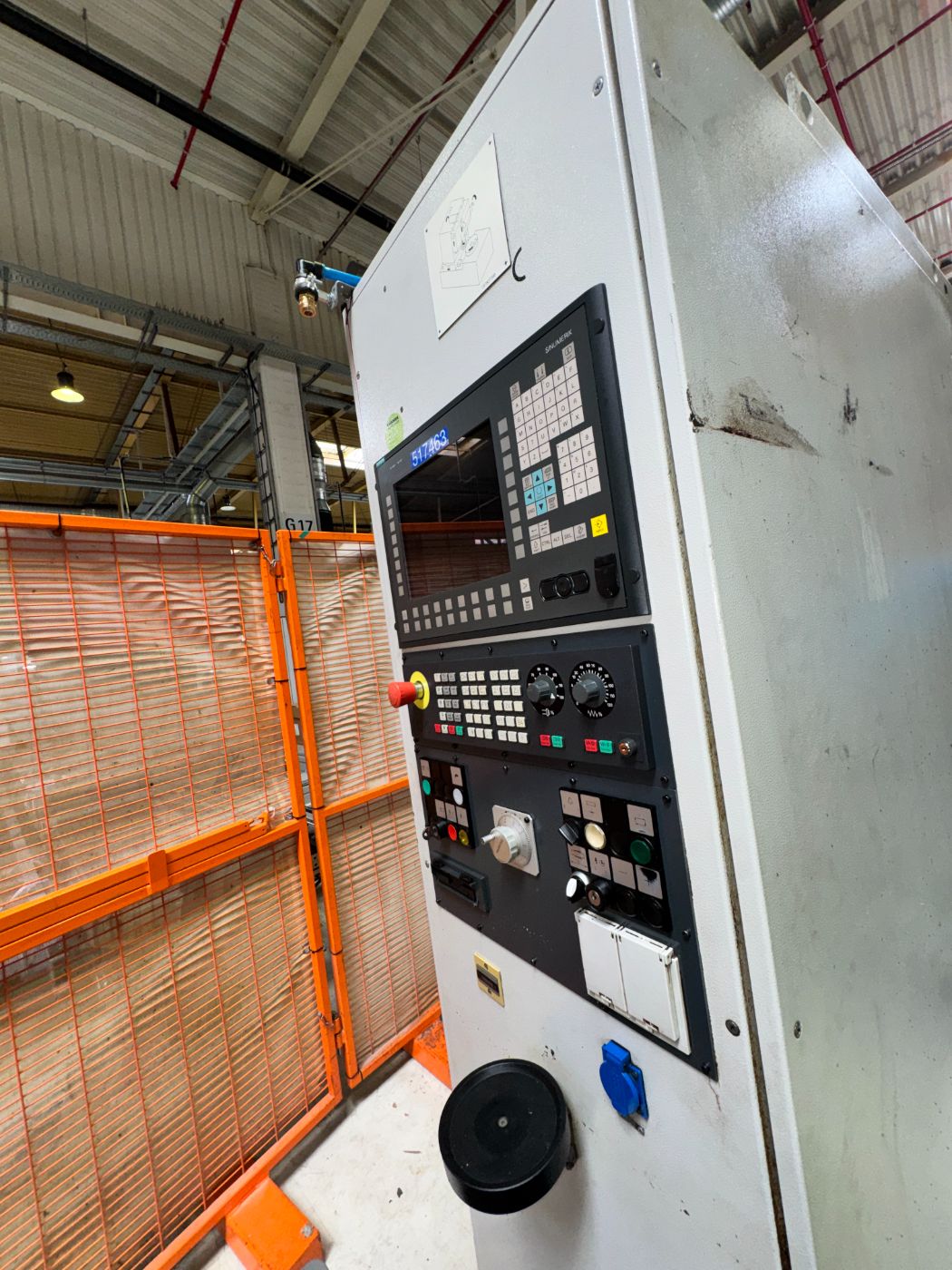

| CNC Control | Siemens SINUMERIK |

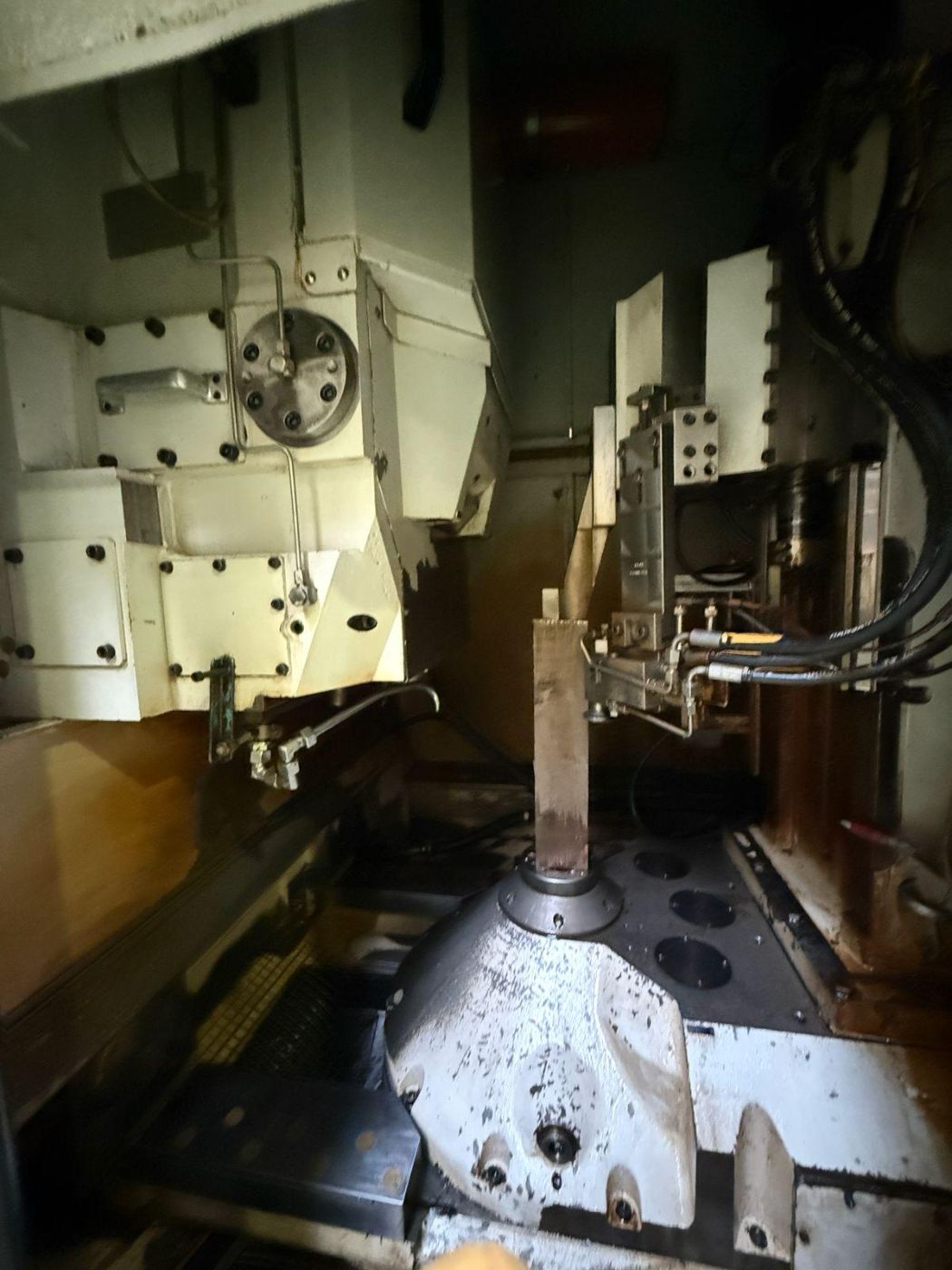

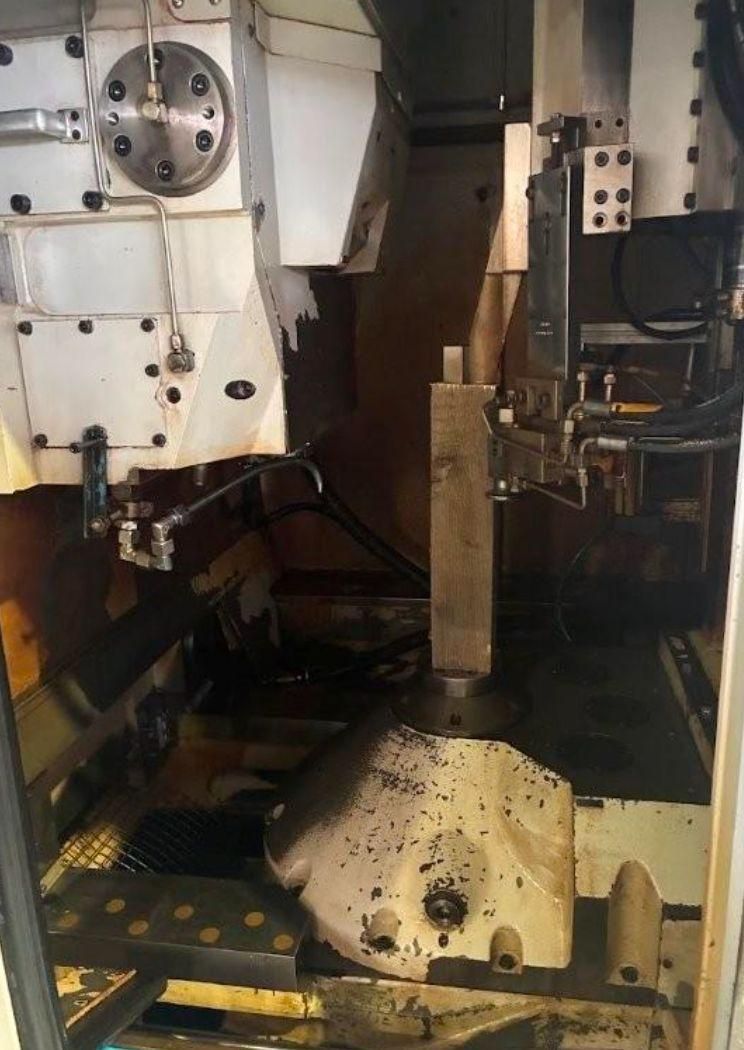

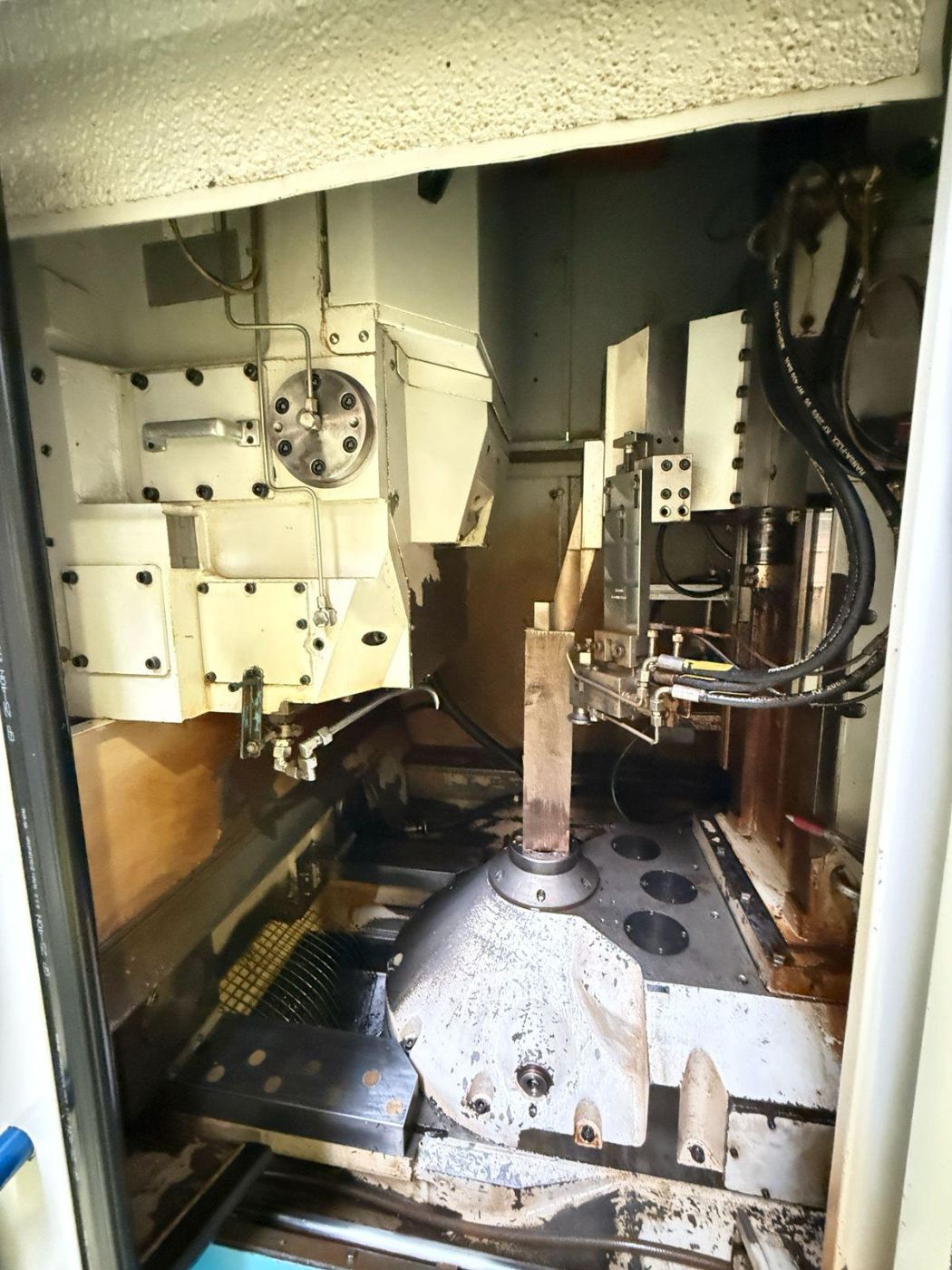

| Process | Vertical gear shaping |
| Gear types | Internal and external spur & helical gears |
| Maximum workpiece / cutting diameter | approx. 200 mm |
| Maximum module | 5 mm (SK 1.70 shaping head) |
| Maximum stroke length / face width | 70 mm |
| Maximum stroke speed | 1,500 strokes/min |
| Centre distance (cutter to table) | -50 to +450 mm |
| Stroke position range | 400 mm |
| Column swivel axis (B5) | -1° to +12° |
| Helical guide | Change guide / electronic (depending on machine configuration) |
| Tooling | Disc cutters, bell cutters, shank cutters and wafer cutters |

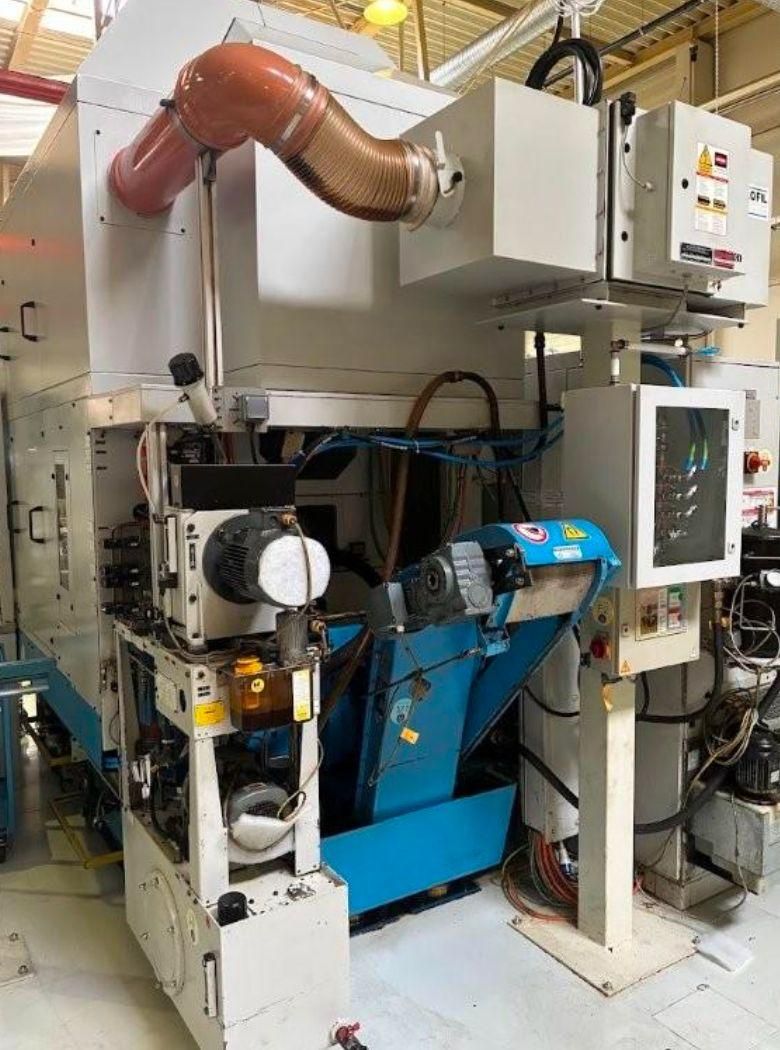

| Automation | Ring loader / conveyor cell |

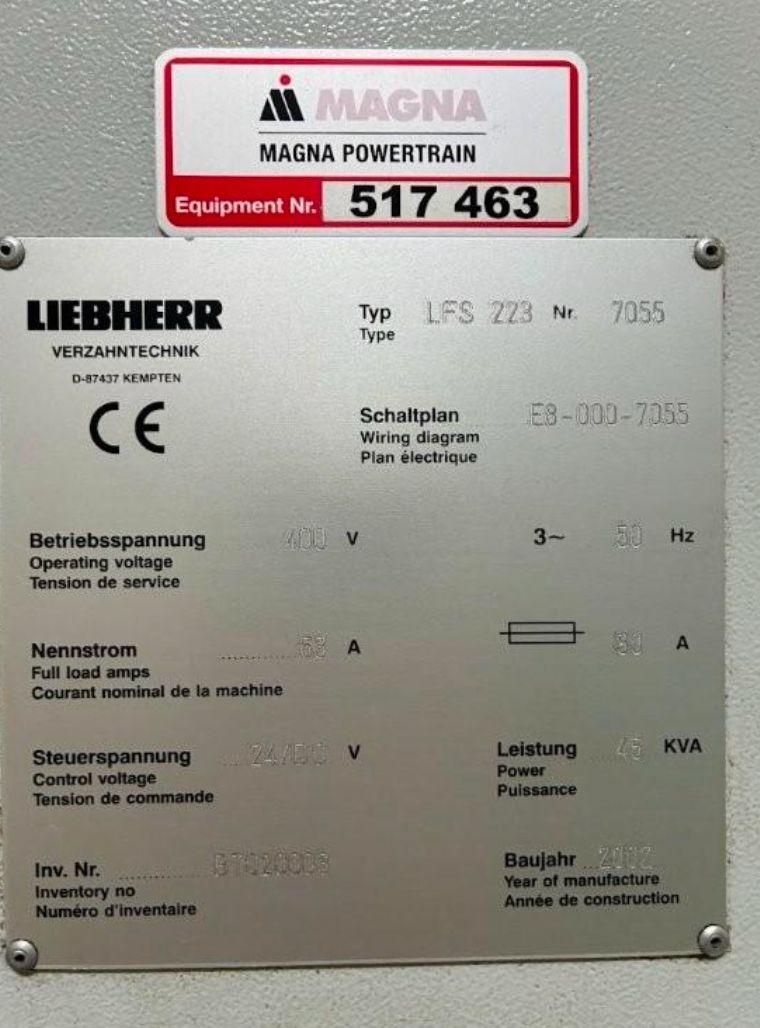

| Supply voltage | 400 V, 3~, 50 Hz |
| Full load current | 63 A |
| Pre-fuse rating | 80 A |
| Control voltage | 24 / 110 V |
| Connected load | 45 kVA |
| Swivel range | -1° to +12° |
| Manufacturer | Liebherr-Verzahntechnik GmbH |
| Country of Origin | Germany |

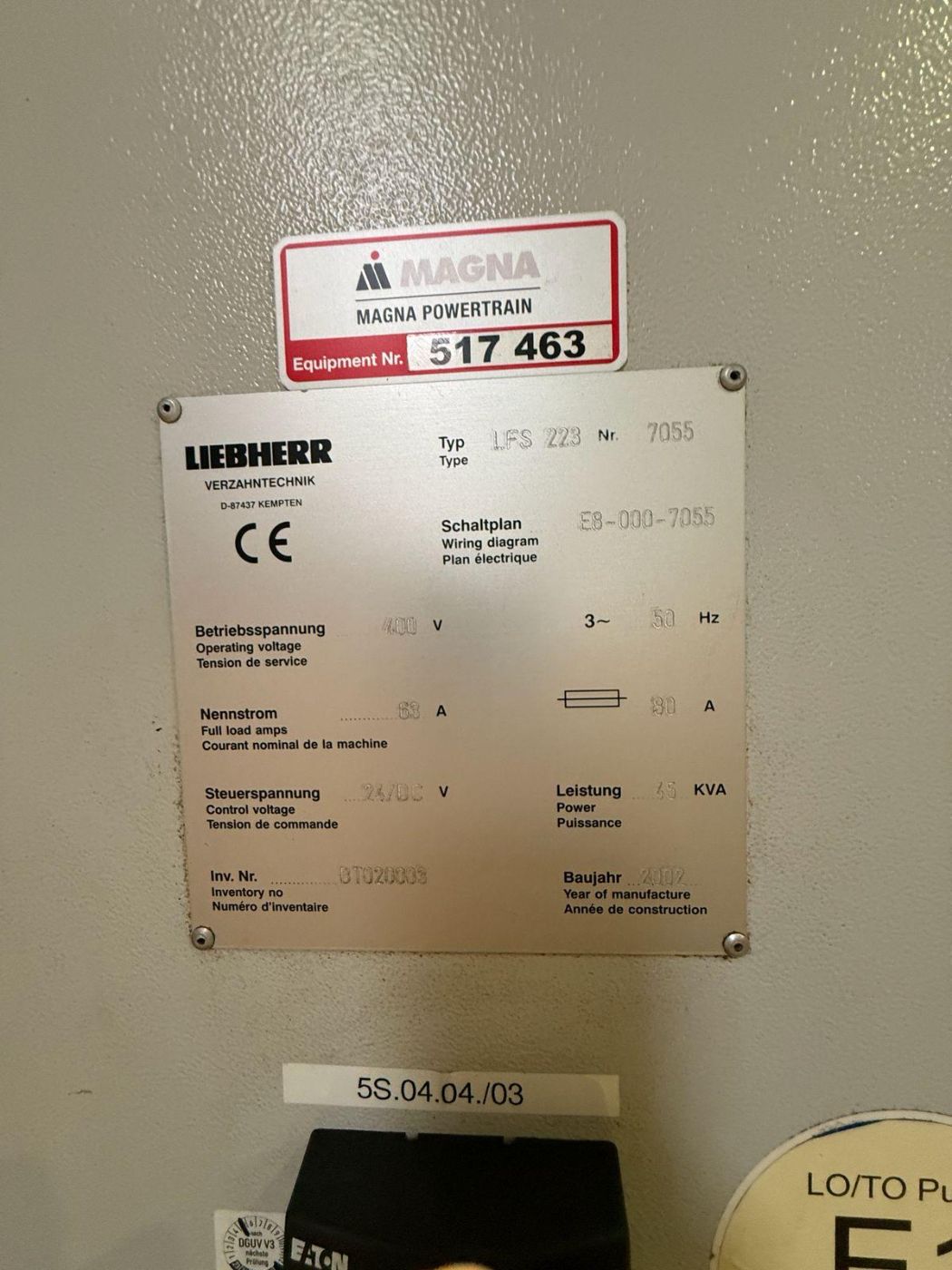

| Wiring diagram | E8-000-7055 |
| Previous owner | Magna Powertrain (Equipment No. 517463) |
€ 26000 · Inspection possible
