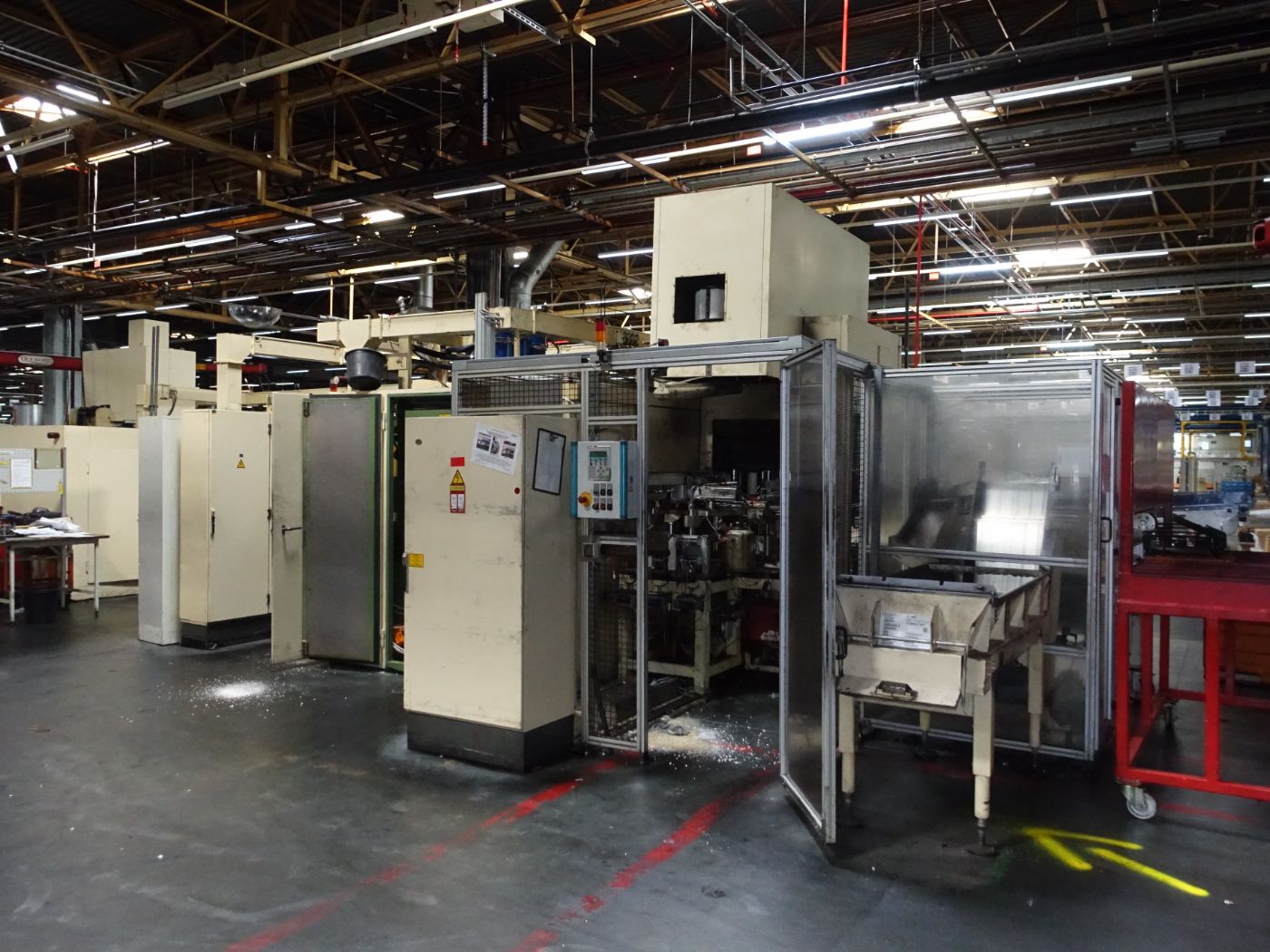

Schmid T3-400 3 hydraulic nutation / orbital forming press (Taumelpresse), built 1997 in Rapperswil, Switzerland, CE marked. Nominal press force 4,000 kN (approx. 408 t), vertical four-column construction, upper and lower tooling on circular tool mountings, enclosed working area, integrated automatic workpiece handling, Siemens SIMATIC PLC with automatic and parameter-controlled operation. Hydraulic oil capacity 1,500 l, max. hydraulic pressure 250 bar, lubrication system 350 l at up to 315 bar, connected load 170 kW at 3 x 400 V 50 Hz. Location Germany, inspection possible.
available
SCHMID PRESS T3-400 3
| Manufacturer | Schmid |
| Model | t3-400 |
| Year | 1997 |
| Location | Germany |
| Manufacturer | SCHMID |
| Manufacturer location | Rapperswil, Switzerland |
| Model / Type | T3-400 3 |
| Machine No. | T3-400 3 |
| Year of manufacture | 1997 |
| Country of manufacture | Switzerland |
| Machine type | Hydraulic nutation / orbital forming press (Taumelpresse) |
| CE marked | Yes |
| Nominal press force | 4,000 kN |
| Equivalent press force | approx. 408 metric tons |
| Operation | Hydraulic |
| Working direction | Vertical |
| Press construction | Four-column press |
| Number of columns | 4 |
| Forming process | Nutation / orbital forming |
| Tool arrangement | Upper and lower tooling |
| Operation mode | Automatic / PLC controlled |
| Press force | 4,000 kN |
| Hydraulic oil capacity | 1,500 litres |
| Lubricating oil capacity | 350 litres |
| Maximum hydraulic pressure | 250 bar |
| Maximum lubrication pressure | 315 bar |
| Connection voltage | 3 × 400 V |
| Frequency | 50 Hz |
| Connected load | 170 kW |
| Minimum mains fuse | 400 A |
| Control voltage | 230 V AC / 24 V DC |
| Lighting voltage | 230 V AC |
| Electrical schematic No. | 21.10.4060 |
| Control | Siemens PLC |
| PLC system | Siemens SIMATIC |
| Power supply | Siemens SITOP |
| Operator panel | Machine-mounted control panel |
| Electrical cabinet | Integrated/separate machine electrical cabinet |
| Automatic operation | Yes |
| Parameter-controlled operation | Yes |
| Emergency stop | Yes |
| Press frame | Four-column construction |
| Working area | Enclosed |
| Lower tooling | Circular die/tool mounting arrangement |
| Upper tooling | Circular tool arrangement |
| Automatic workpiece handling | Integrated |
| Hydraulic lubrication | Yes |
| Hydraulic power unit | Integrated |
| Pressure monitoring | Yes |
