Schmid T3-400 2 nutation press (Taumelpresse, orbital forming press), machine no. MK20166, built 1997 in Rapperswil, Switzerland. Nominal press capacity approx. 4,000 kN (400 t), double station configuration, vertical four-column construction with upper and lower tooling, fully enclosed working area with front access door, integrated automatic workpiece handling and hydraulic lubrication, Siemens SIMATIC PLC control with SITOP PSU8200 power supply. Connected load 170 kW at 3 x 400 V 50 Hz, minimum mains fuse 400 A. Stroke counter shows 19,304,255 strokes. Location Germany, inspection possible.
available
SCHMID T3-400 2
| Manufacturer | SCHMID |
| Model | T3-400-2/ MK 20166 |
| Year | 1997 |
| Location | Germany |
| Manufacturer | SCHMID |
| Manufacturer location | Rapperswil, Switzerland |
| Model / Type | T3-400 2 |
| Machine No. | T3-400 2 / MK20166 |
| Year of manufacture | 1997 |
| Country of manufacture | Switzerland |
| Machine type | Nutation press / Taumelpresse |
| Control | Siemens PLC |
| Operation | Automatic / PLC controlled |
| Press type | Nutation press / orbital forming press |
| Nominal press capacity | 400 t / approx. 4,000 kN * |
| Number of pressing stations | 2 / double station configuration * |
| Working direction | Vertical |
| Press construction | Four-column press |
| Tool / die arrangement | Upper and lower tooling |
| Operation | Hydraulic |
| Machine cycle | Automatic / programmable |
| Control system | Siemens PLC |
| PLC hardware | Siemens SIMATIC |
| Power supply module | Siemens SITOP PSU8200 |
| Operator control | Machine-mounted control panel |
| Electrical cabinet | Separate integrated electrical cabinet |
| Connection voltage | 3 × 400 V |
| Frequency | 50 Hz |
| Total connected load | 170 kW |
| Minimum mains fuse | 400 A |
| Control voltage | 230 V AC / 24 V DC |
| Lighting voltage | 230 V AC |

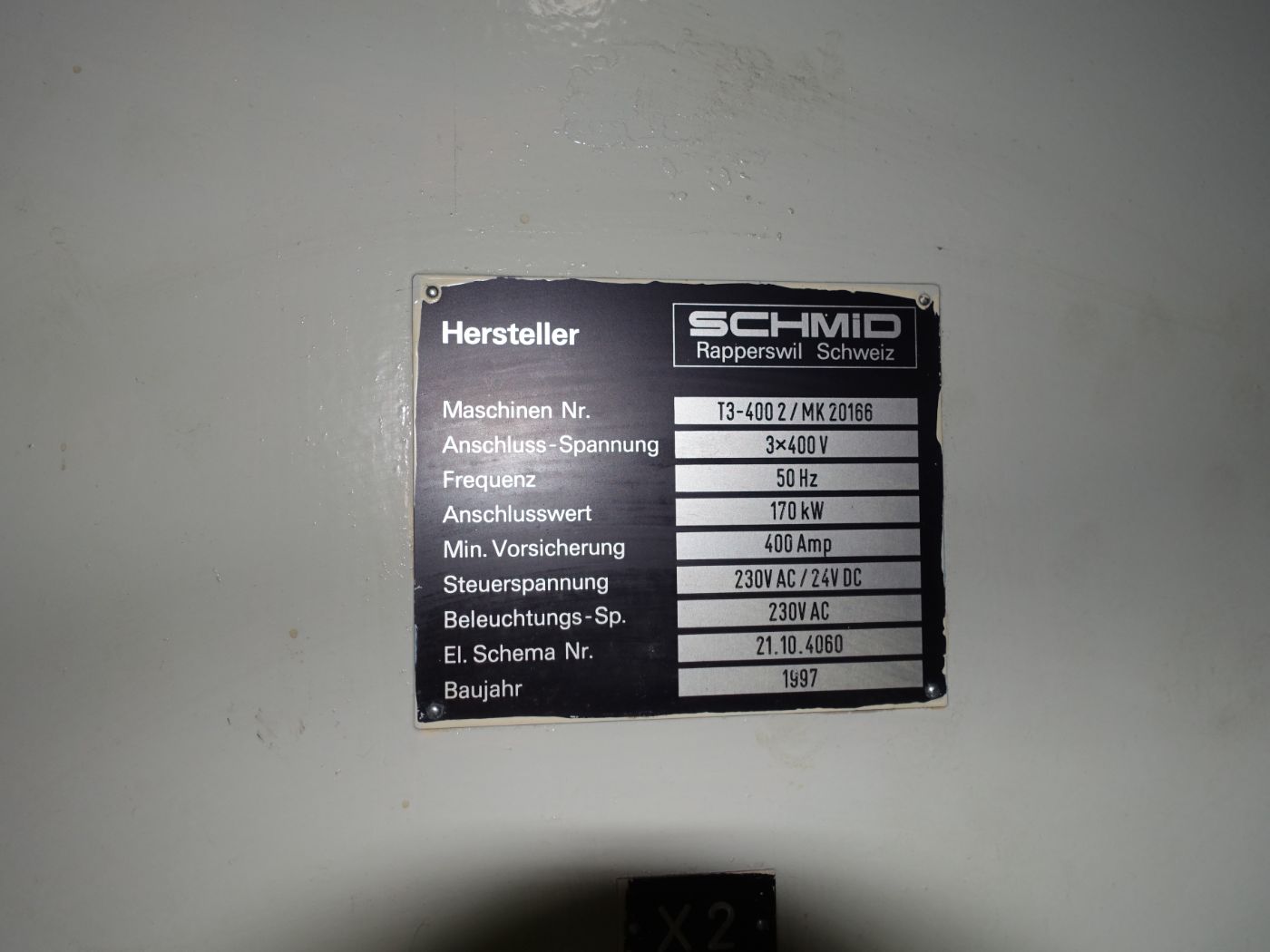

| Electrical schematic No. | 21.10.4060 |
| Press frame | Four-column construction |
| Number of columns | 4 |
| Lower tool table | Circular tooling / die mounting arrangement |
| Upper tool holder | Circular tooling arrangement |
| Machine enclosure | Fully enclosed working area |
| Access | Front access door |
| Automatic workpiece handling | Integrated |
| Hydraulic lubrication system | Yes |

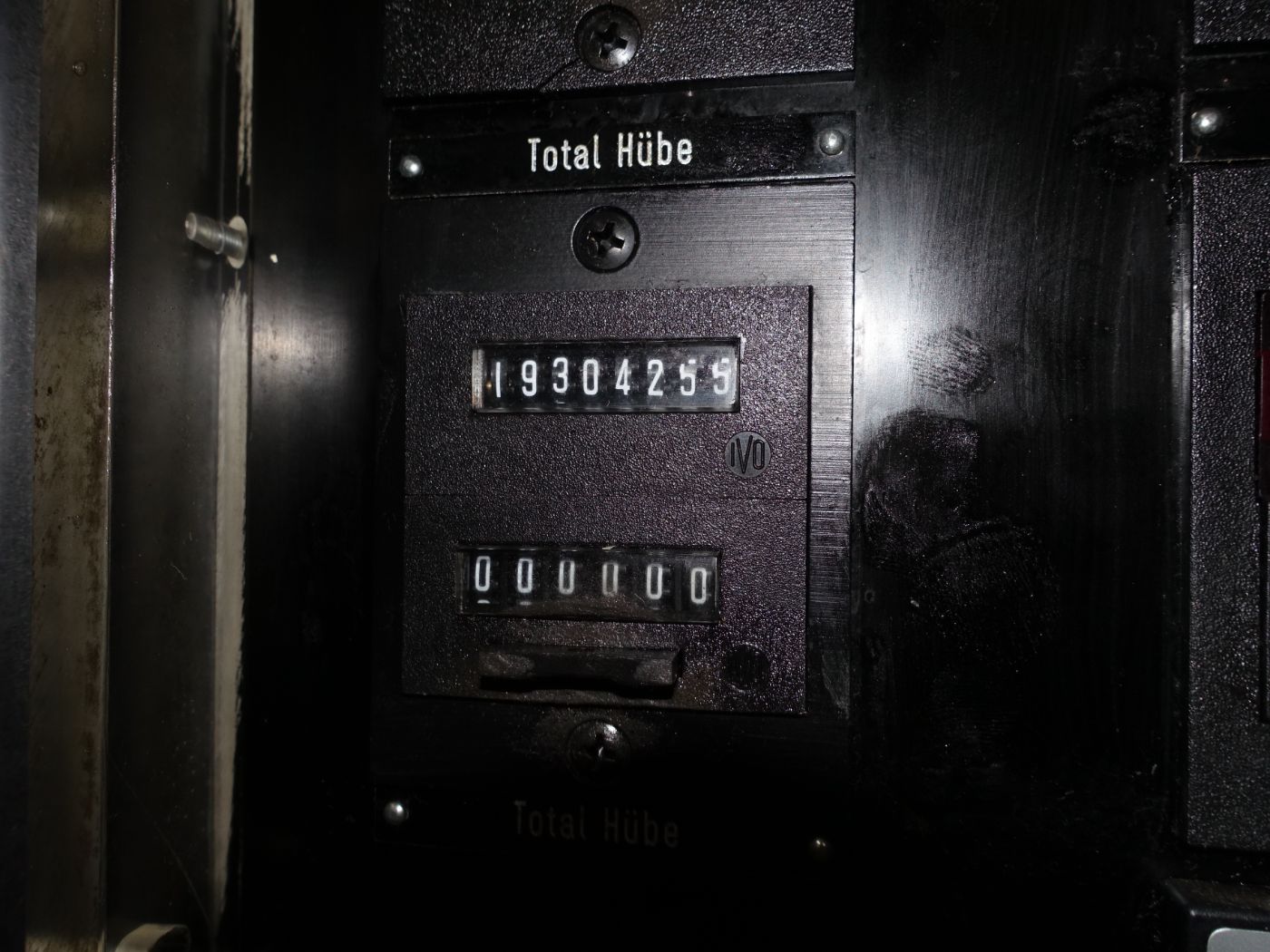

| Total strokes displayed | 19,304,255 strokes |
€86,000 · Inspection possible
