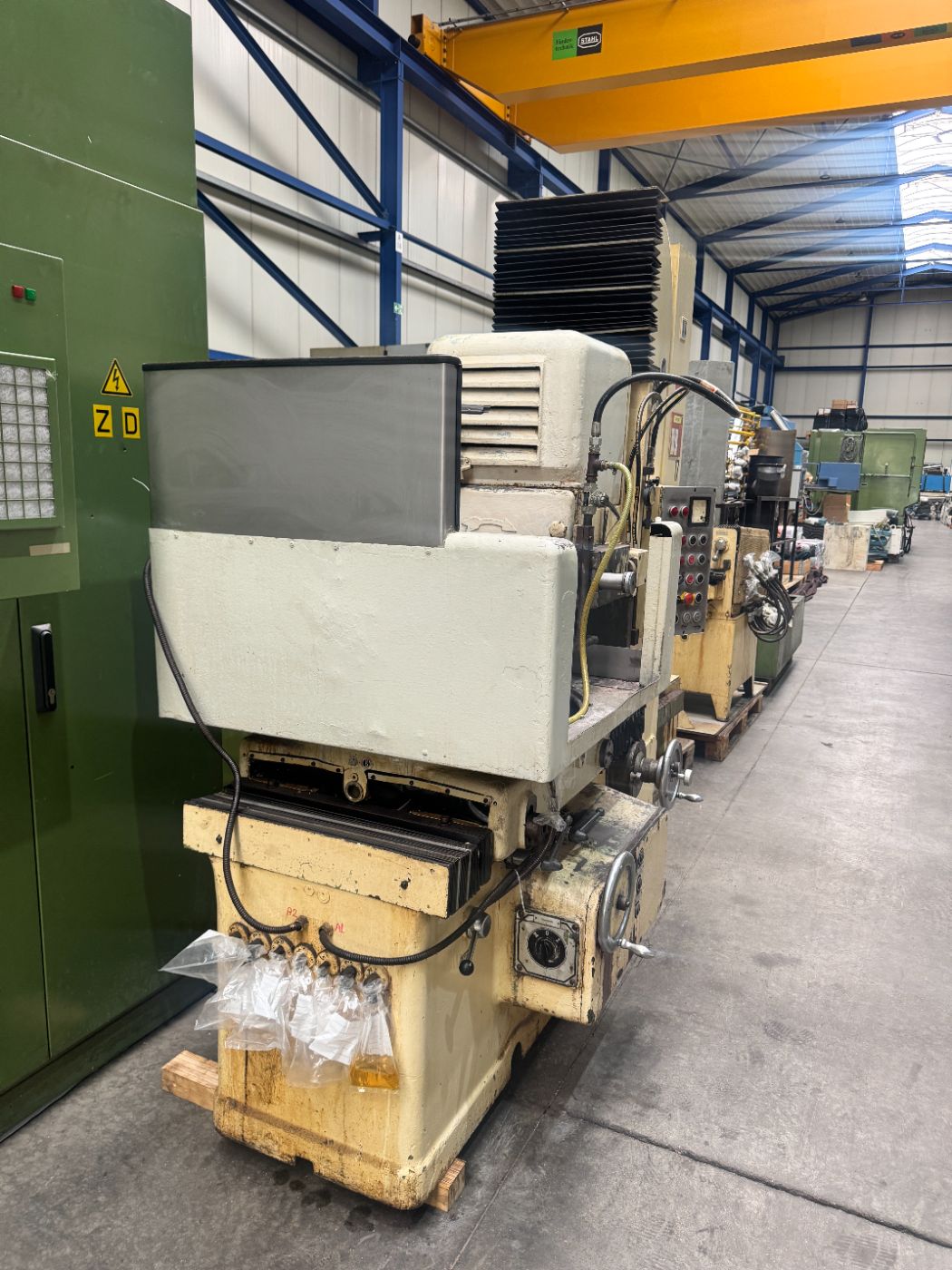

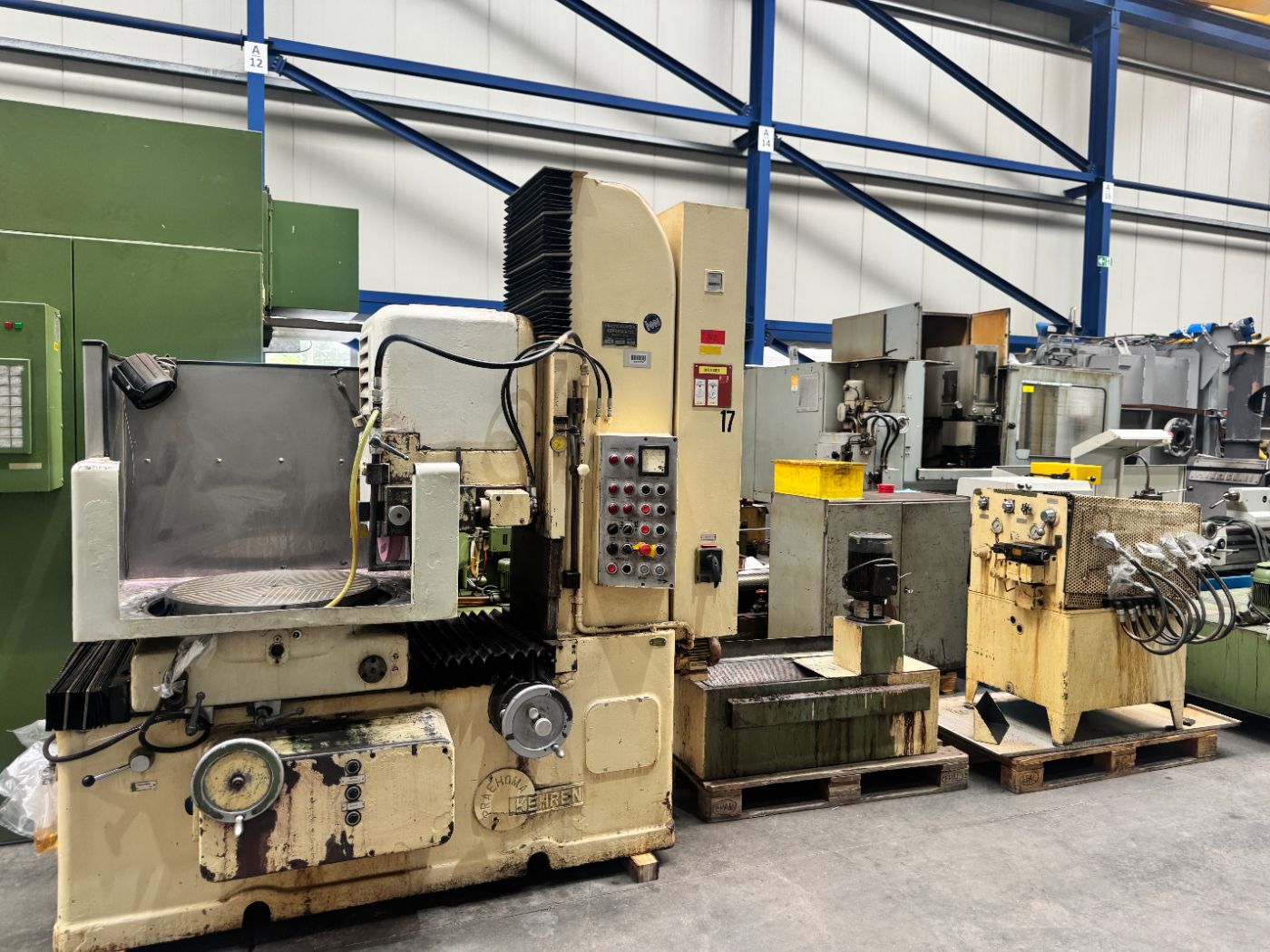

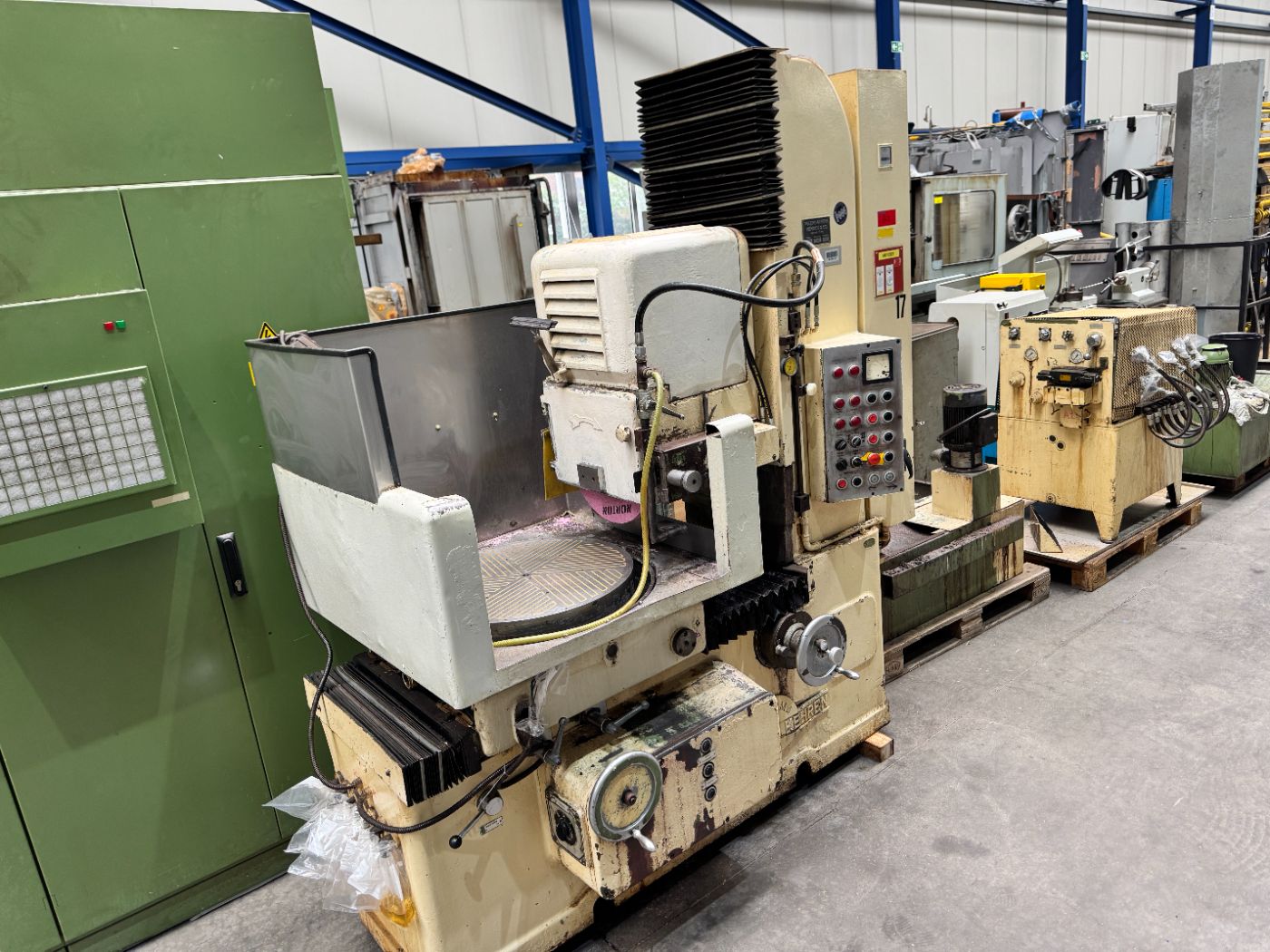

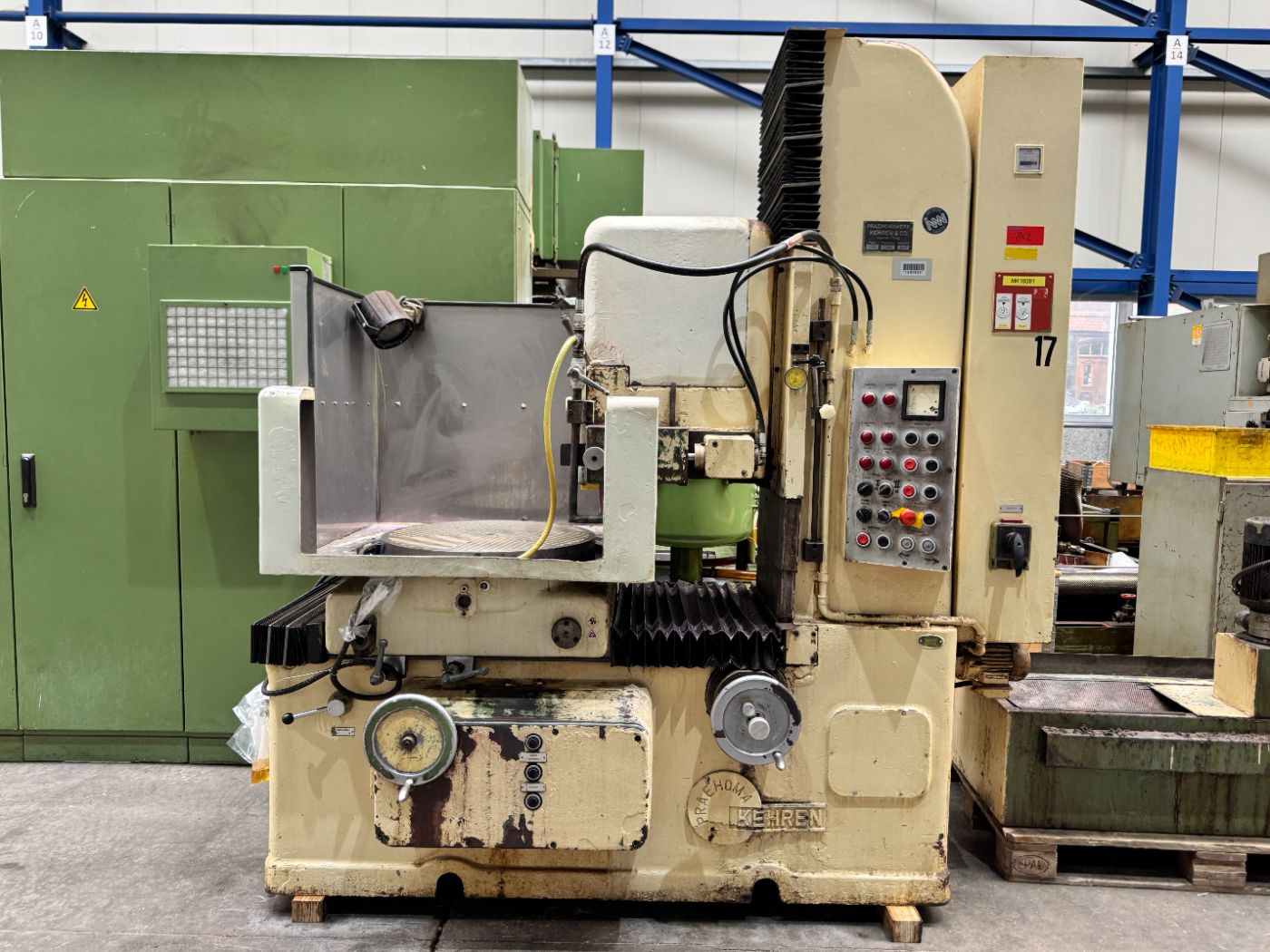

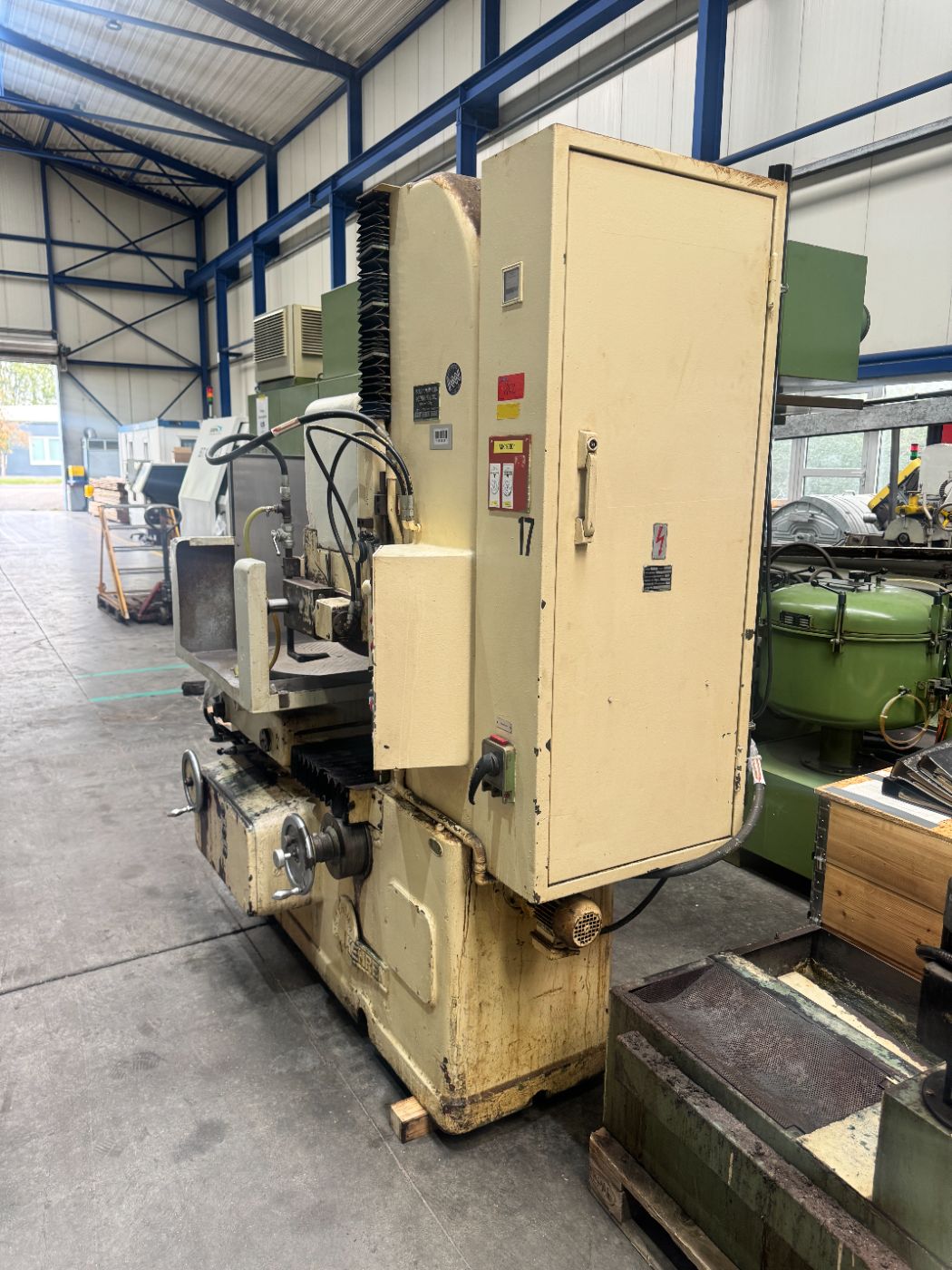

Kehren & Co. (Praehomawerk, Hennef/Sieg) RW 6 rotary table surface grinding machine with horizontal grinding spindle, built 1967, serial no. 72882, conventional push-button control. Electromagnetic rotary table Ø600 mm, workpiece diameter up to approx. 650 mm, grinding height approx. 350 mm, grinding wheel Ø approx. 400 mm, spindle up to approx. 3,000 rpm with approx. 5.5 to 7.5 kW, powered table rotation, manual dressing arrangement, coolant system included. Operating hours shown approx. 11,350 h, weight approx. 3,500 kg. In our warehouse: can be loaded right away or inspected at any time.
sold
Kehren & Co Rotary table surface grinding machine
| Manufacturer | Kehren & Co. |
| Model | RW6 |
| Year | 1967 |
| Location | Germany |
| Year of Manufacture | 1967 |

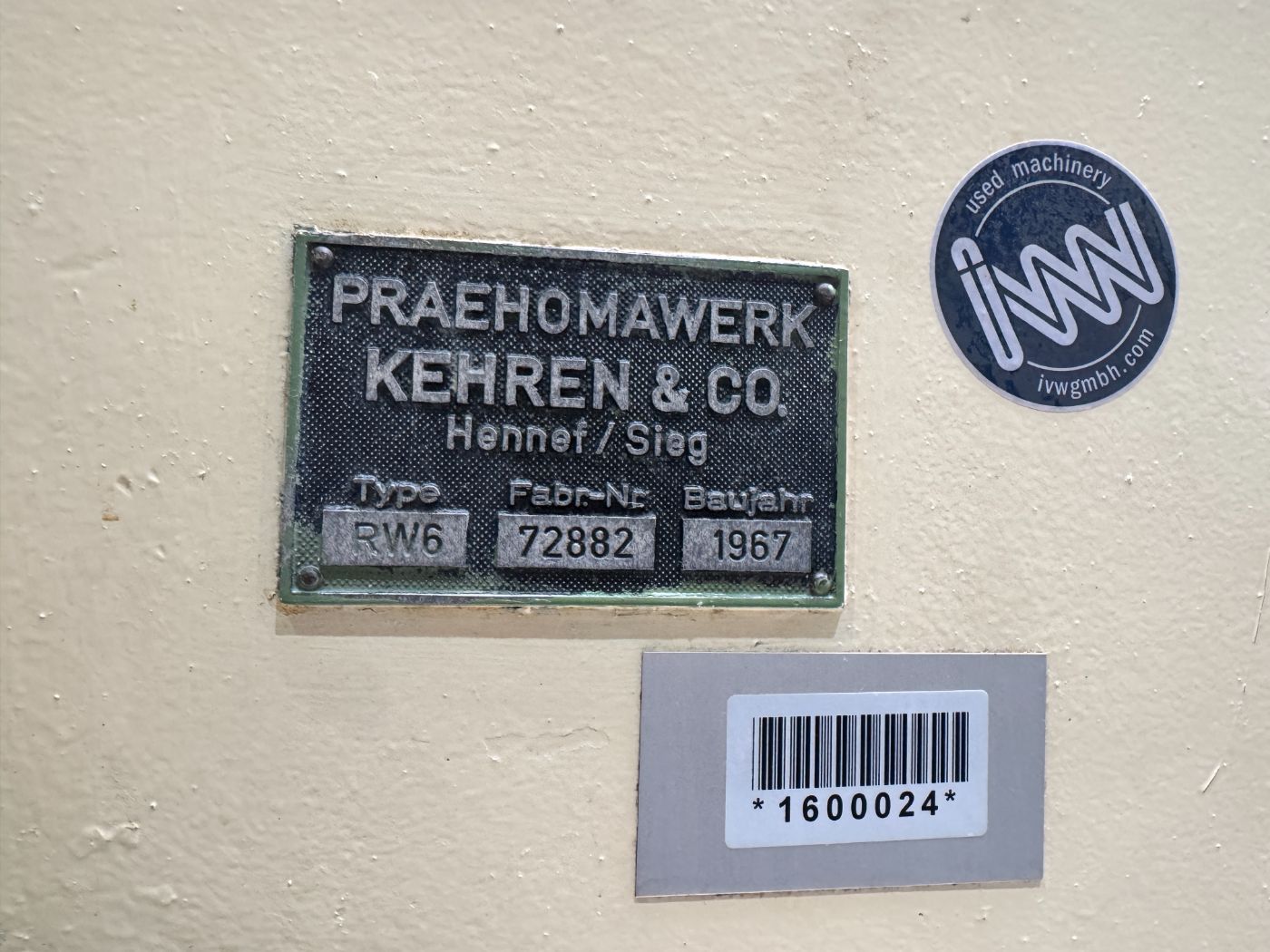

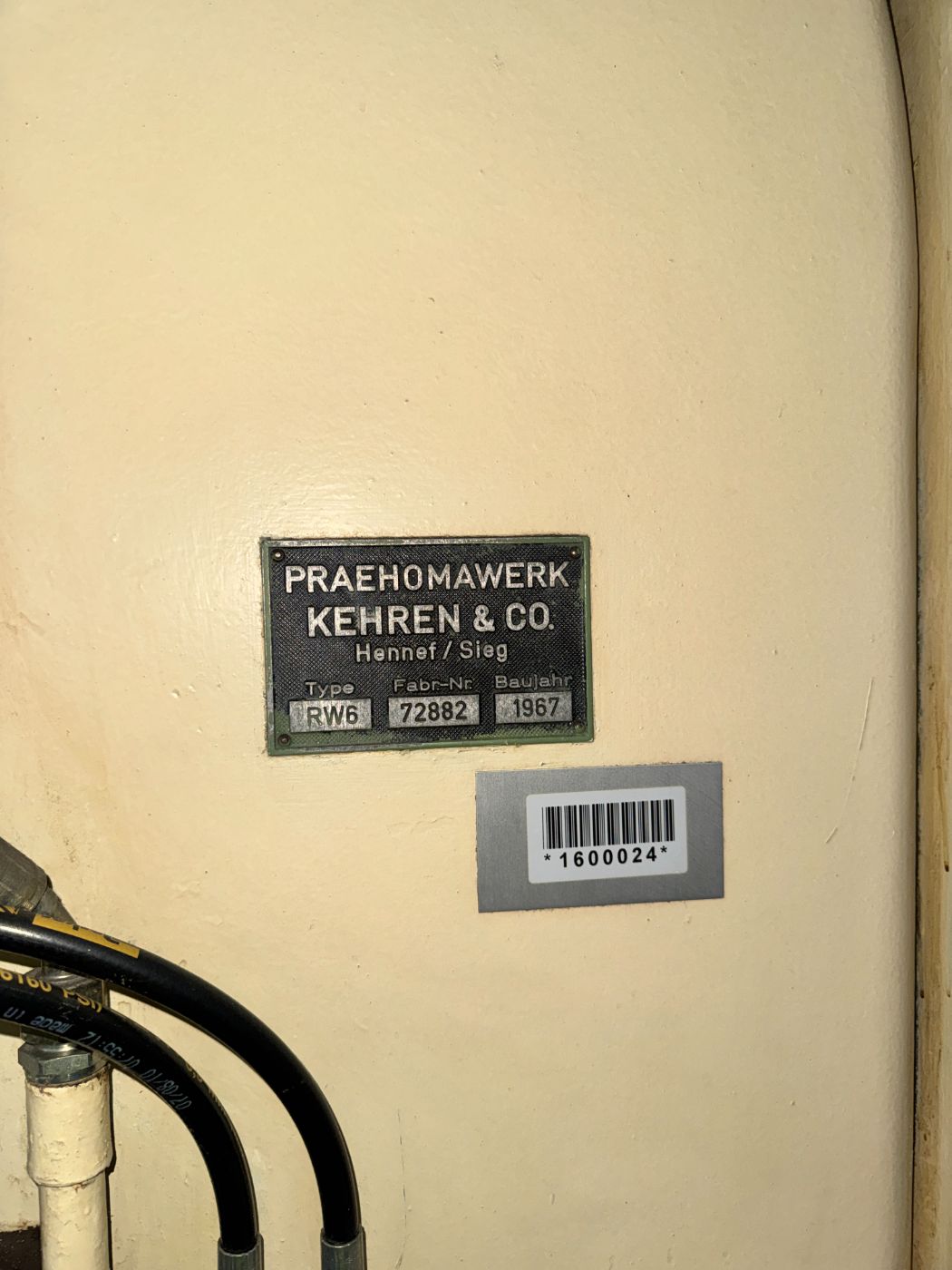

| Machine / Serial No. | 72882 |
| Country of Manufacture | Germany |
| Manufacturer | Praehomawerk Kehren & Co., Hennef/Sieg |
| Model | RW 6 |
| Machine type | Rotary table surface grinding machine |
| Grinding method | Surface grinding with rotary table |
| Grinding spindle arrangement | Horizontal spindle |
| Control | Conventional / manual |
| Rotary table diameter | 600 mm |

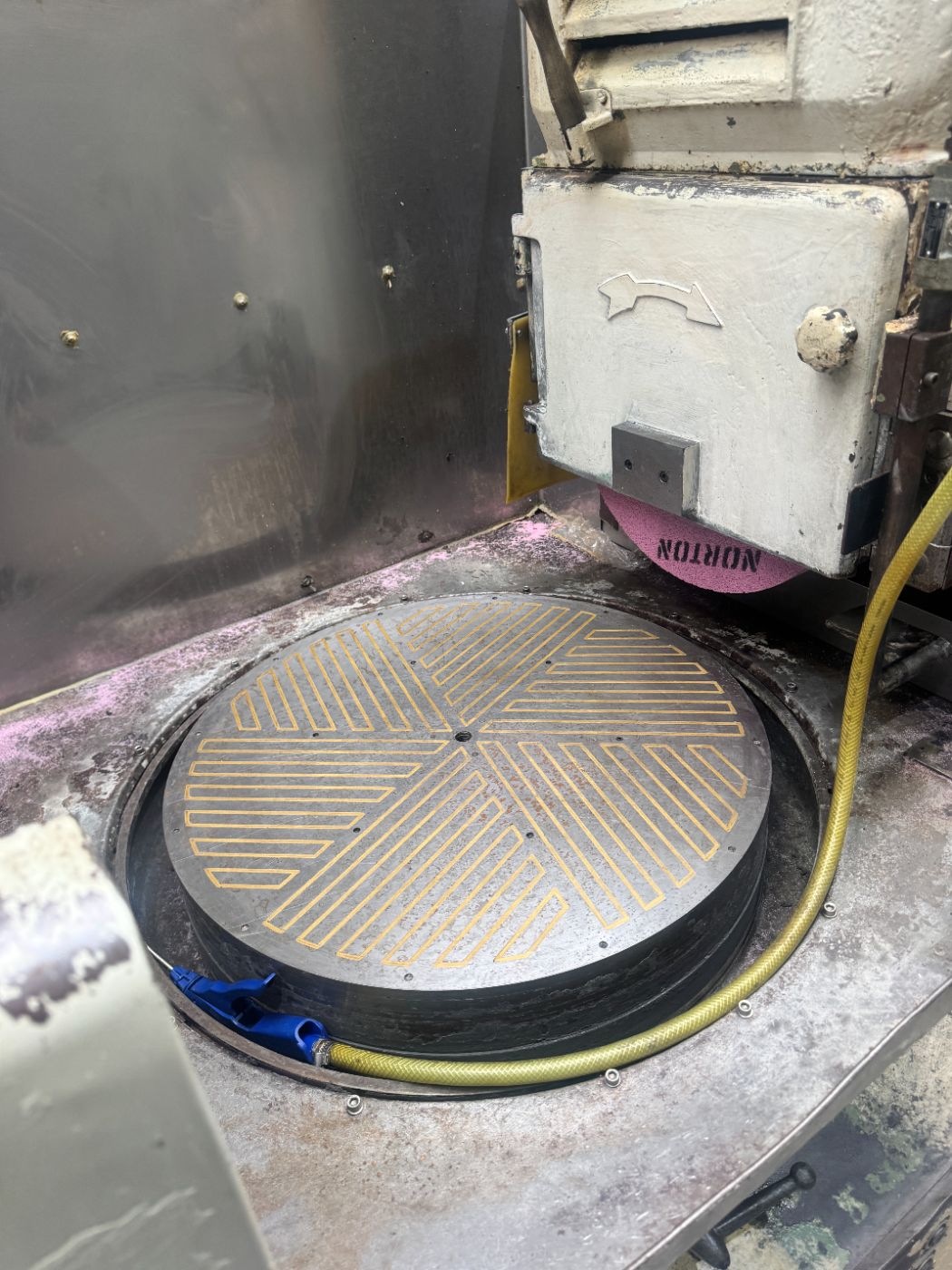

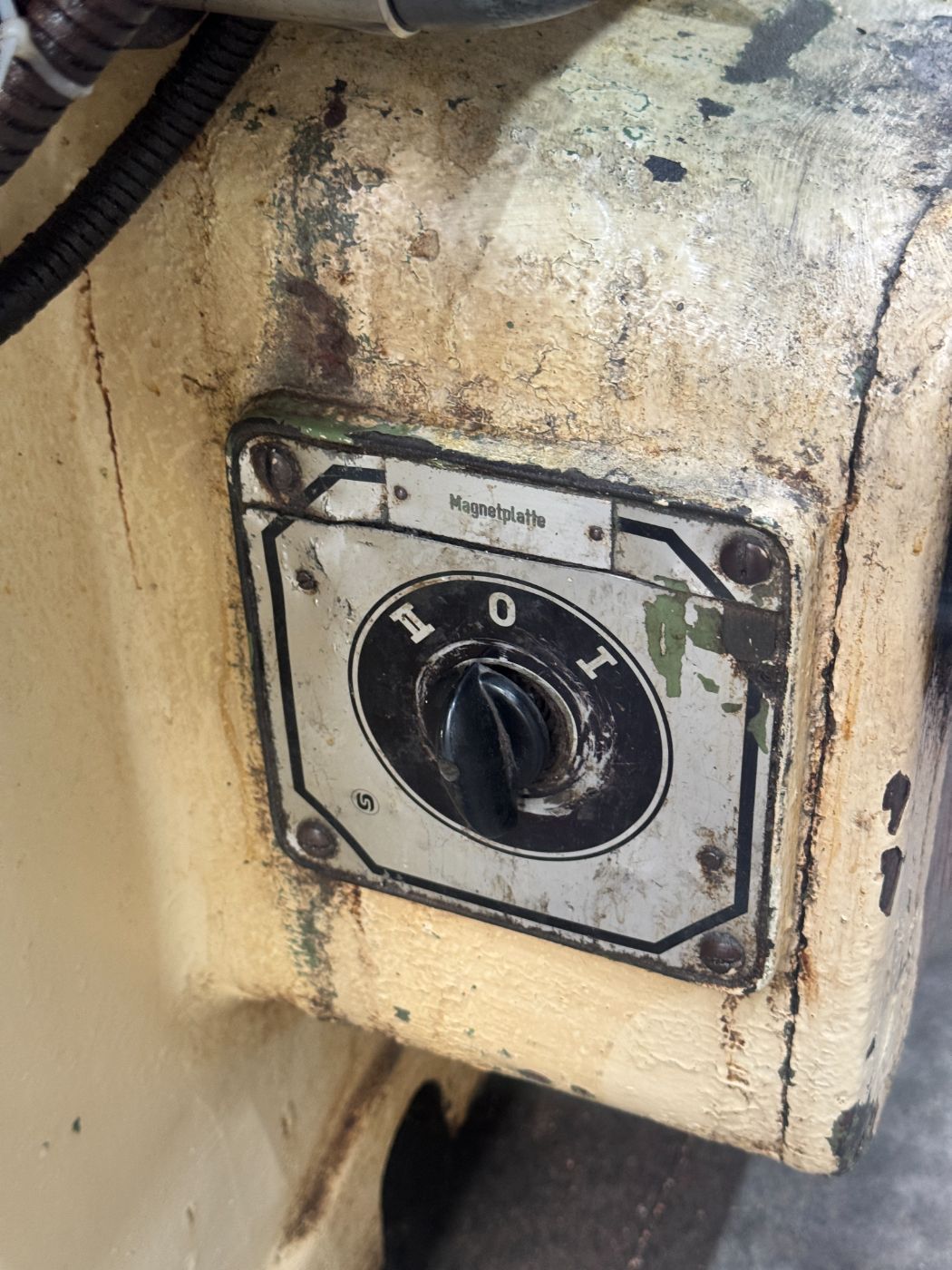

| Magnetic chuck | Electromagnetic rotary table |
| Grinding height | approx. 350 mm |
| Maximum workpiece diameter | approx. 650 mm |

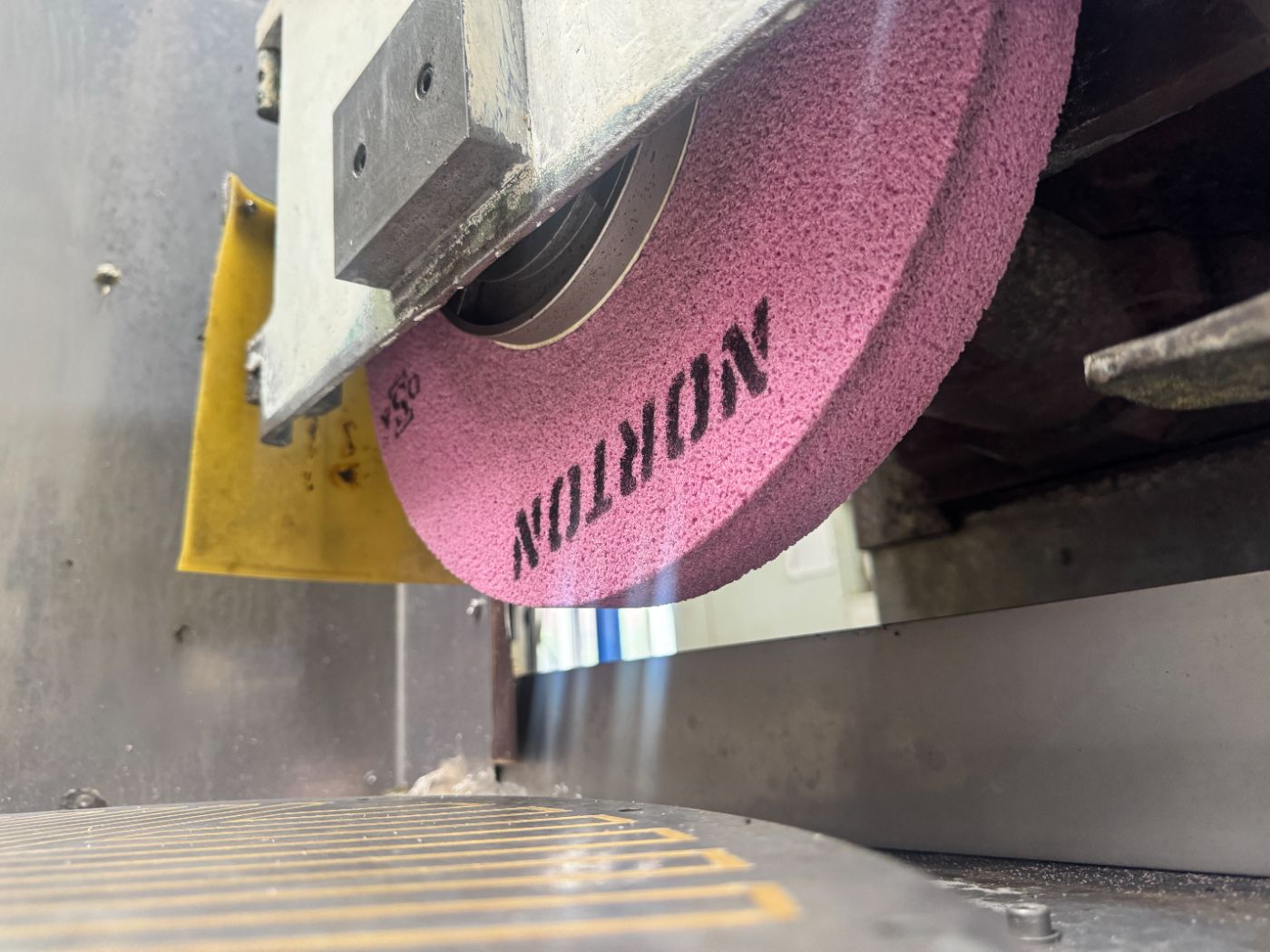

| Grinding wheel diameter | approx. 400 mm |
| Grinding spindle speed | up to approx. 3,000 rpm |
| Grinding spindle motor power | approx. 5.5–7.5 kW |
| Vertical adjustment | Manual / powered vertical adjustment |
| Table rotation | Powered rotary table |

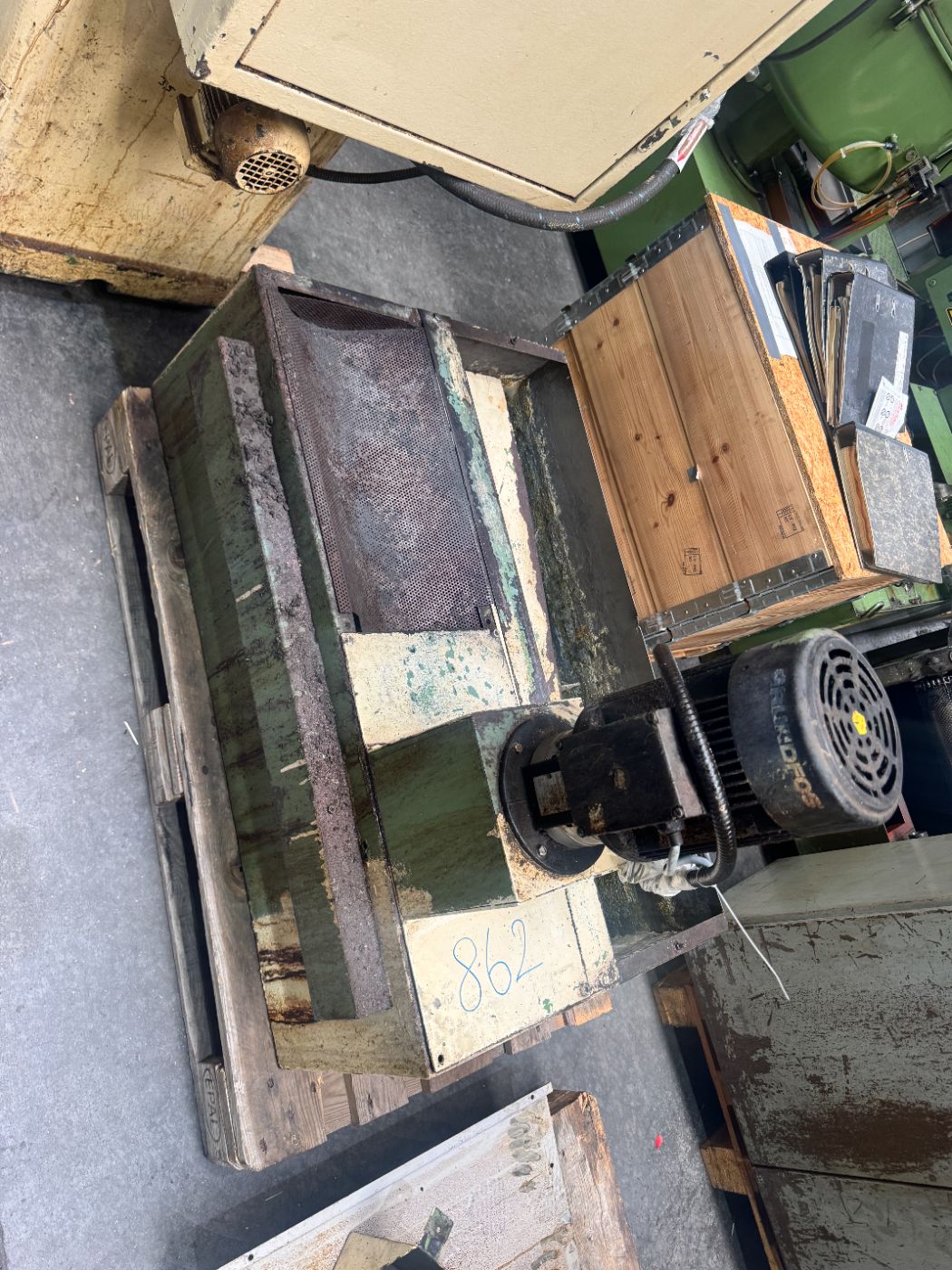

| Coolant system | Included |
| Grinding wheel dressing | Manual dressing arrangement |

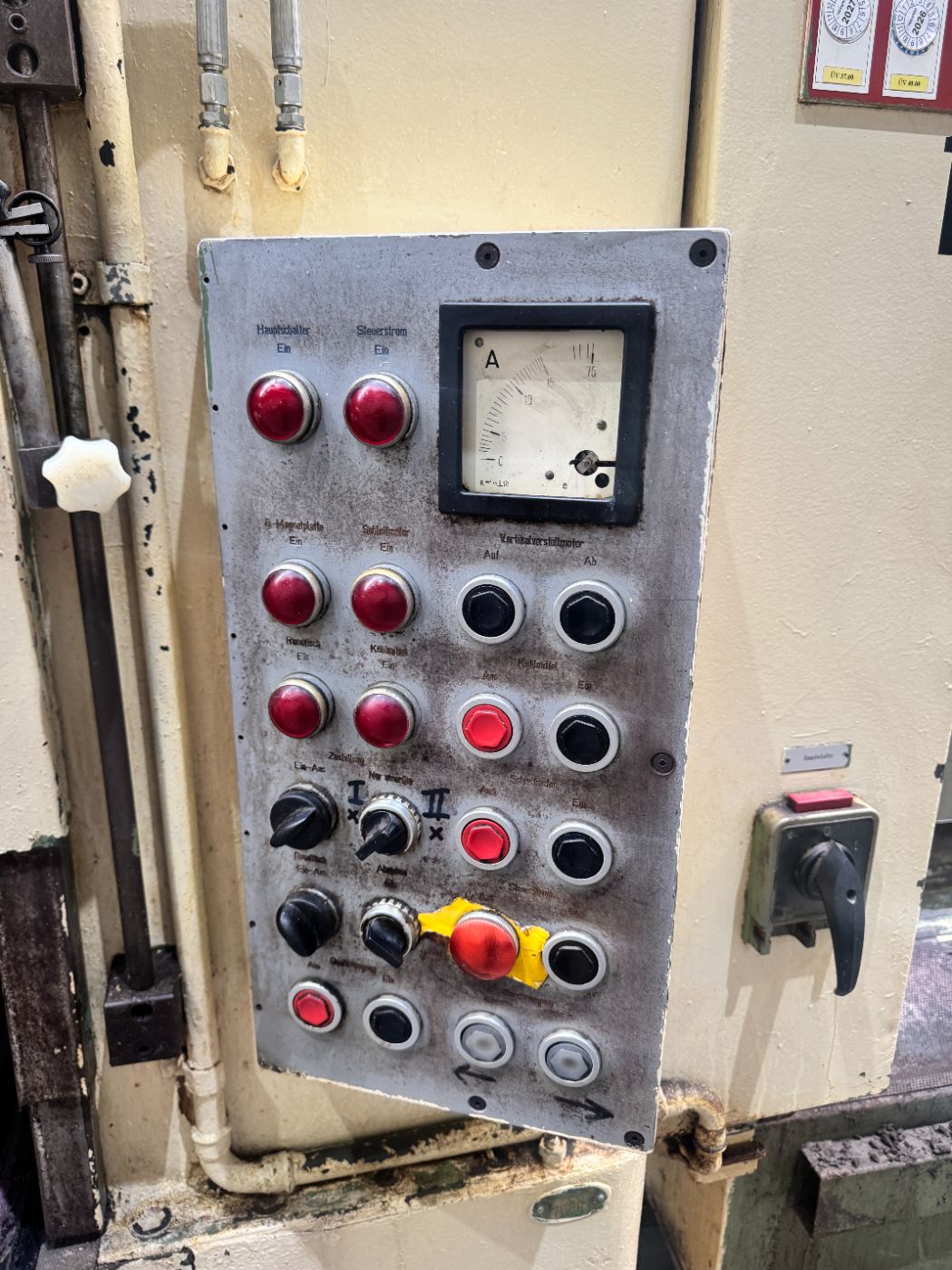

| Machine operation | Conventional push-button control |

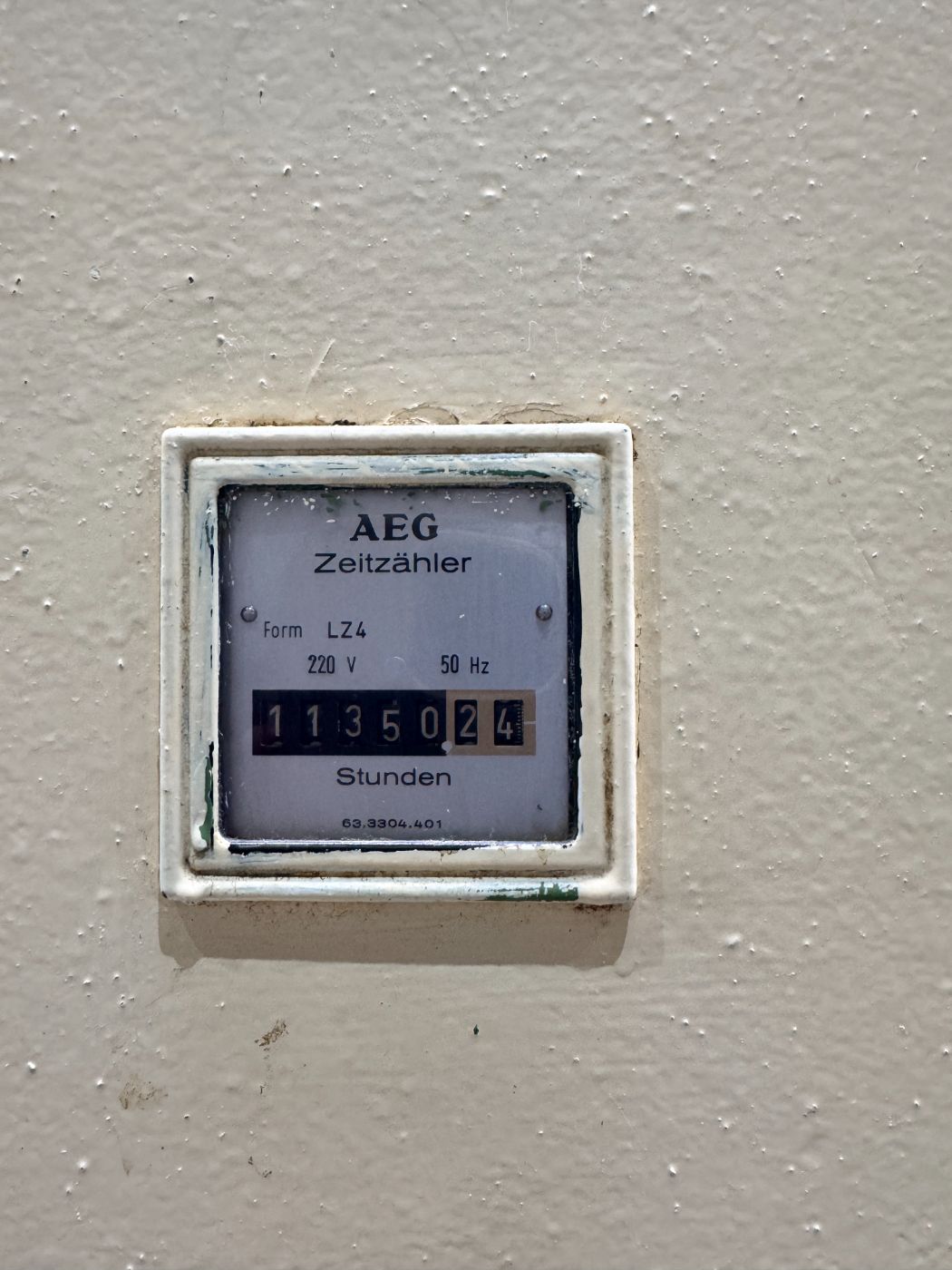

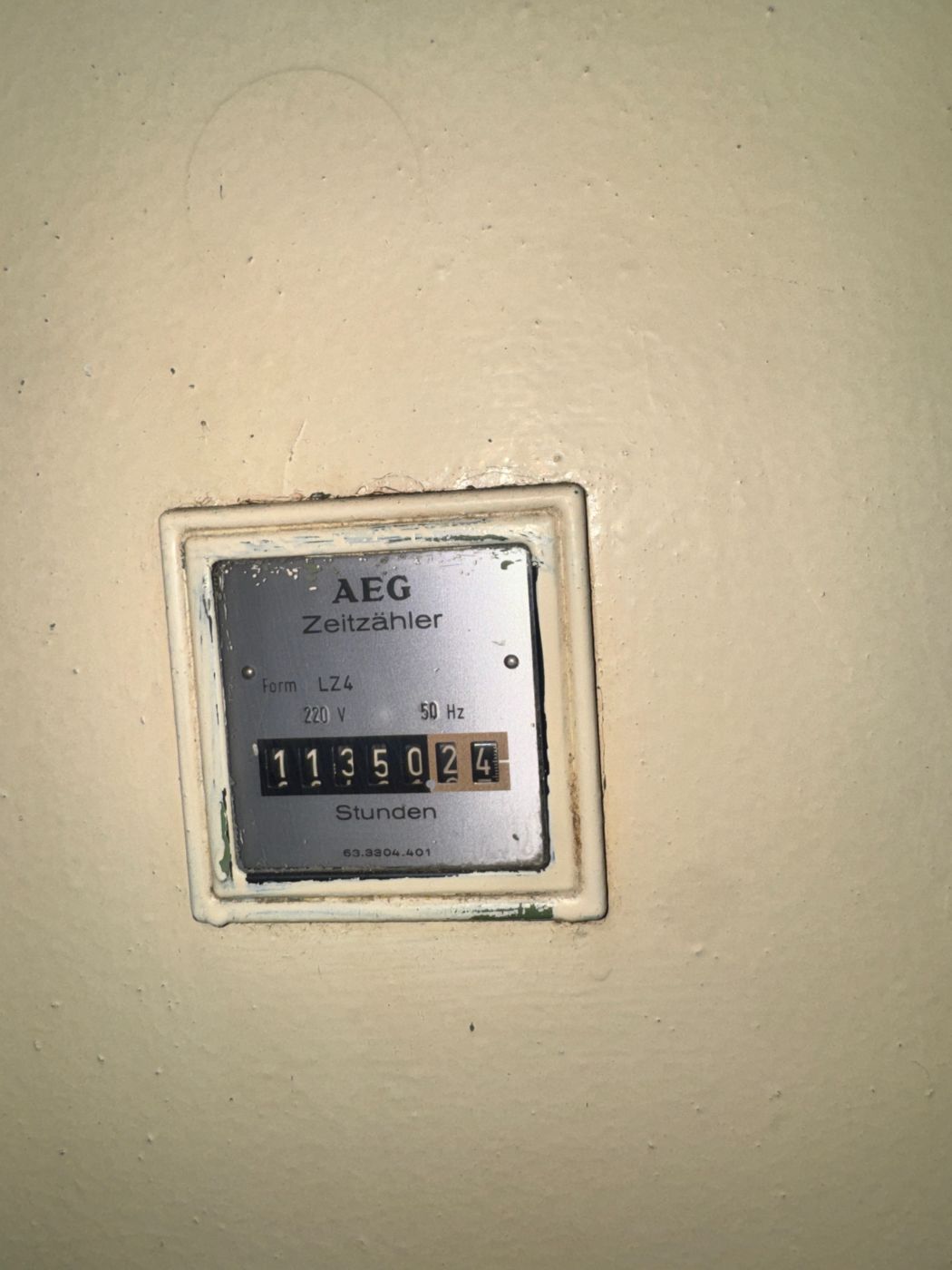

| Operating hours shown | approx. 11,350 h |
| Machine length | approx. 2,500–3,000 mm |
| Machine width | approx. 2,000–2,300 mm |
| Machine height | approx. 2,700–3,000 mm |
| Machine weight | approx. 3,500 kg |
€ 6,500 · Inspection possible
