5-axis universal machining center with Heidenhain TNC 430 control. Travels 710 / 520 / 520 mm, NC swivel-rotary table Ø 700 × 500 mm (350 kg load), B-axis -10°/+95°, C-axis 360°. Motor spindle 12,000 rpm, 15/10 kW, SK 40 (DIN 69871). 30-position tool changer, max. tool Ø 80/160 mm, rapid traverse 30 m/min, feed up to 20,000 mm/min. Machine weight approx. 5,500 kg.
available

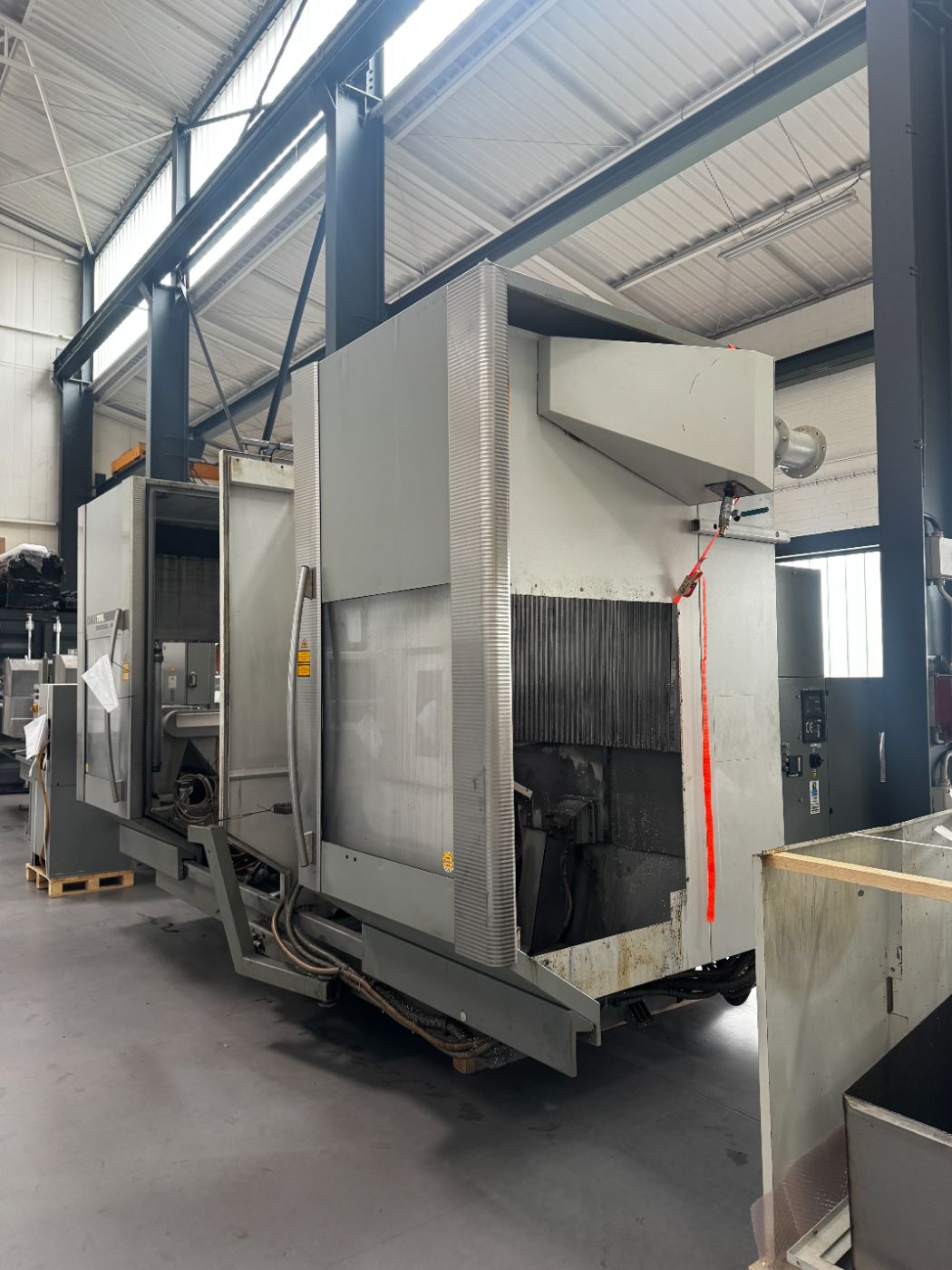

Deckel Maho DMU 70 VL 5-Axis Universal Machining Center
| Manufacturer | Deckel Maho (DMG) |
| Model | DMU 70 VL |
| Year | 2001 |
| Location | Düsseldorf, Germany |

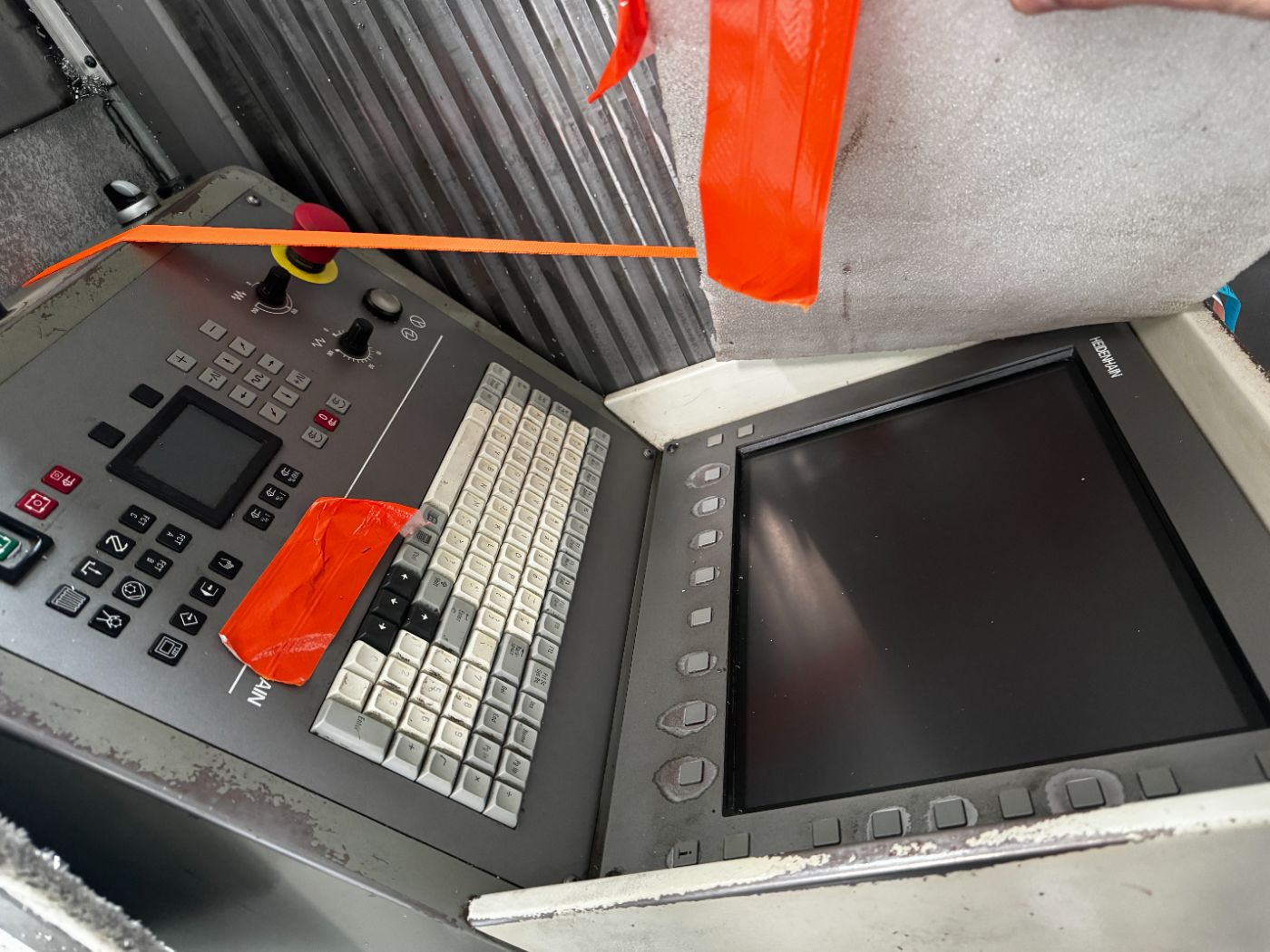

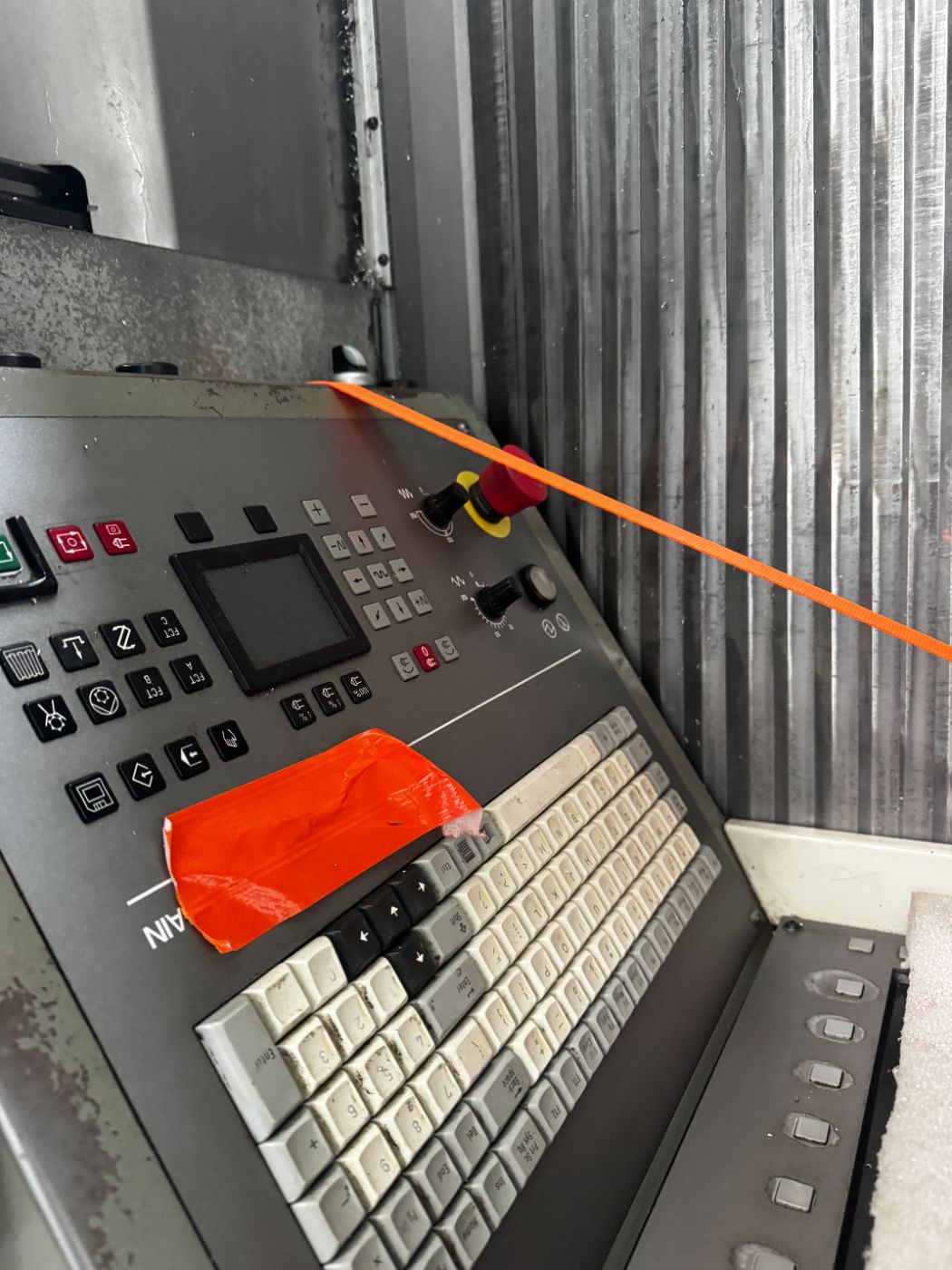

| Control | Heidenhain TNC 430 |

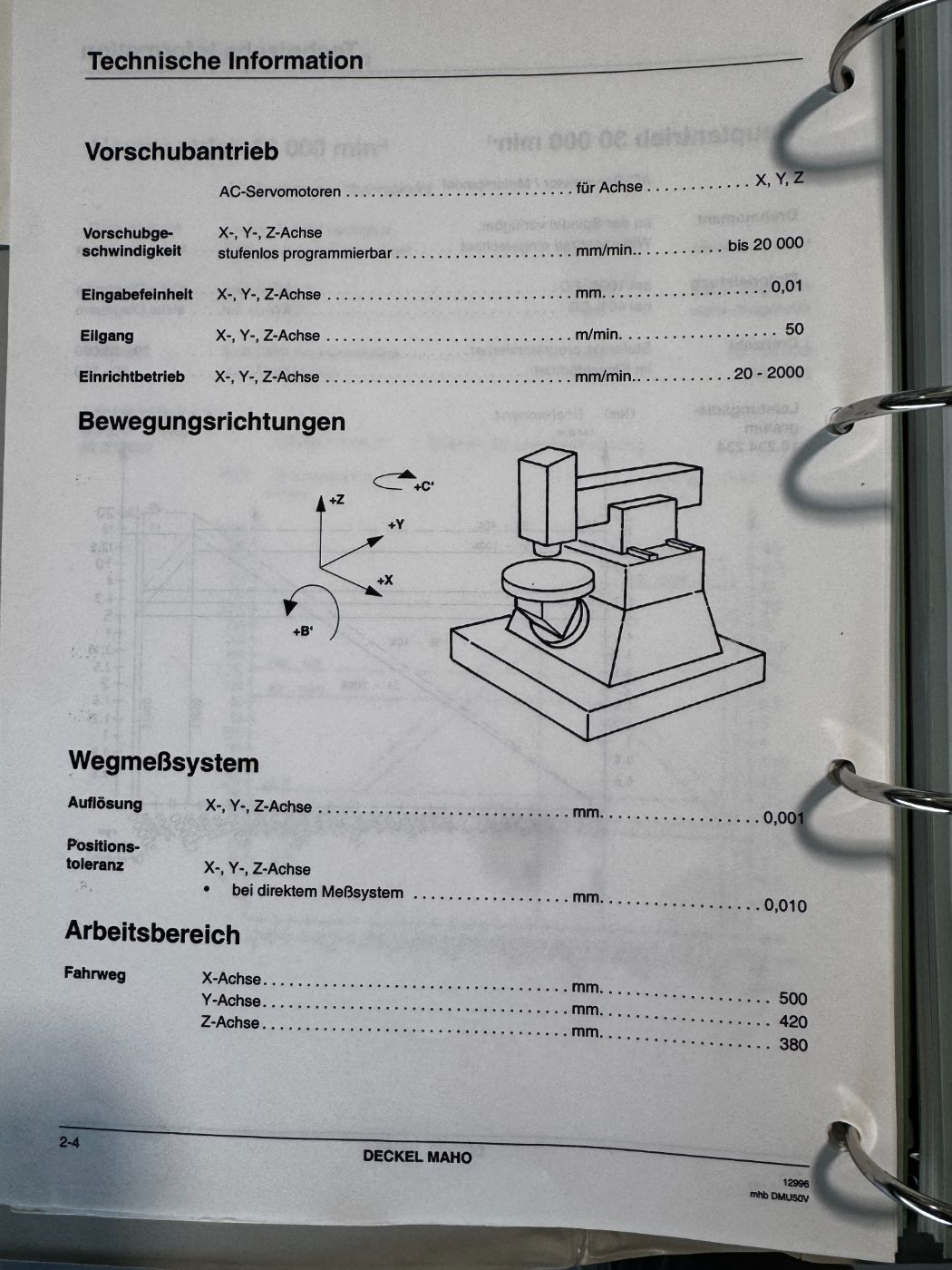

| Travels X/Y/Z | 710 / 520 / 520 mm |
| B-axis / C-axis | -10°/+95° swivel, 360° rotary (NC) |

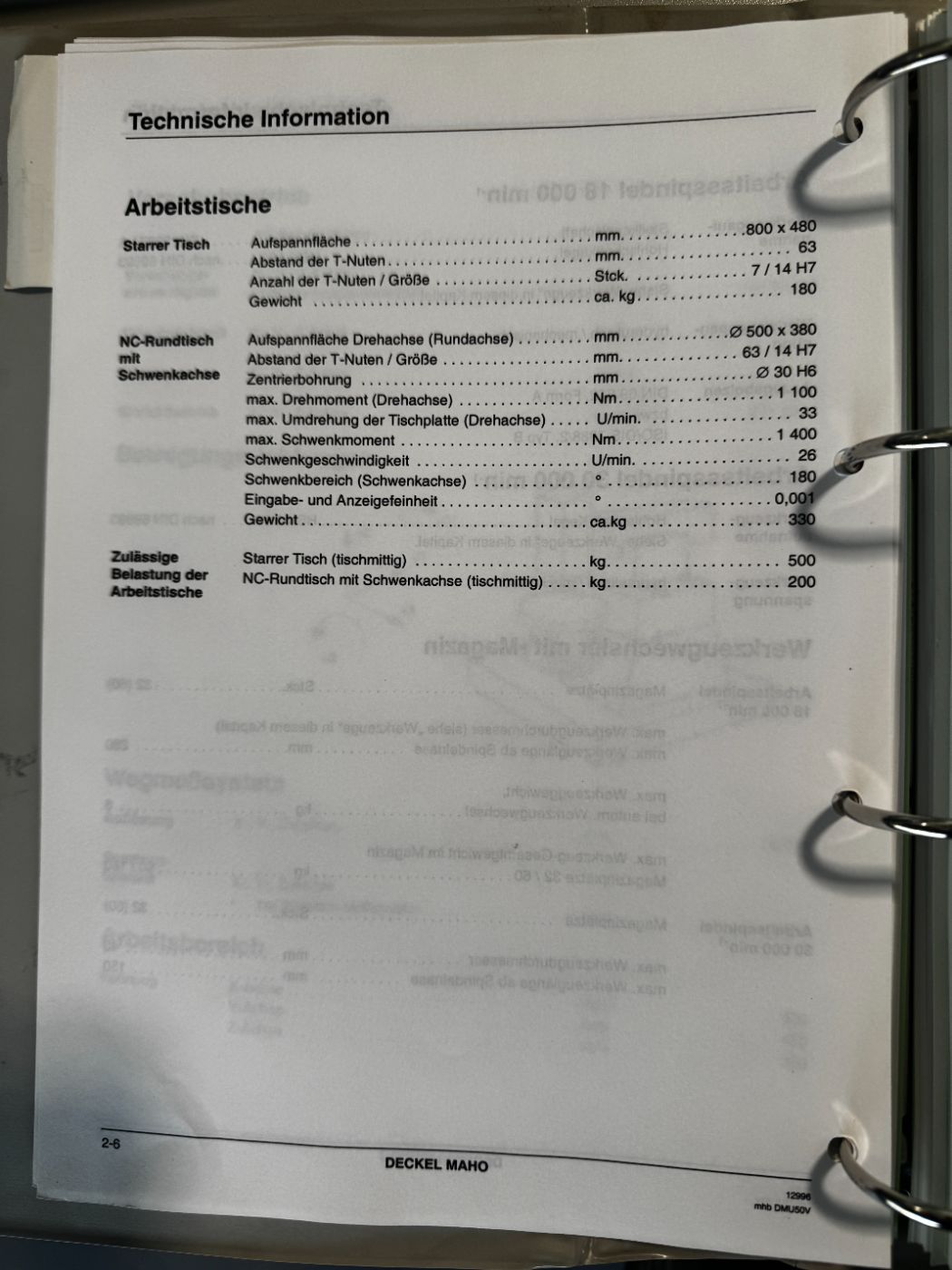

| Table | NC swivel-rotary, Ø 700 × 500 mm, 350 kg |
| Max. spindle speed | 12,000 rpm, 15 kW, SK 40 |

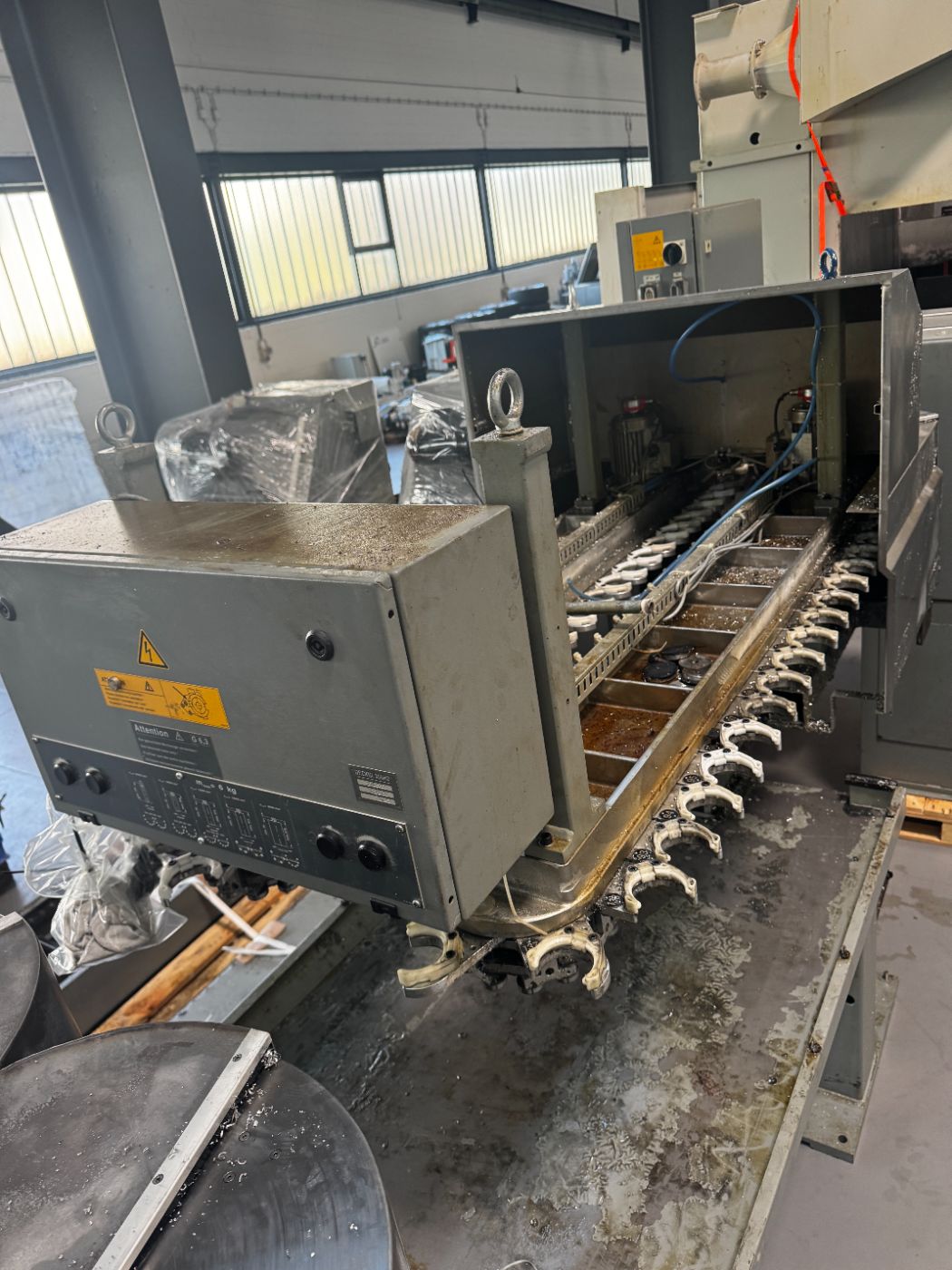

| Tool magazine | 30 slots |
| Condition | used |
€ 11,800 · Inspection possible
