SW BA W06-22 horizontal twin-spindle machining centre in monoblock design, built 2010, Siemens SINUMERIK 840D, CE marked. Two horizontal HSK-A63 spindles with independent Z axes (Z1 / Z2), 600 mm spindle distance, 1 to 17,500 rpm, 2 x 35 kW and 2 x 80 Nm (40 % duty), linear motors in X / Y / Z with 100 m/min rapid traverse, double swivel workpiece carrier (A axis) with counter bearing and two rotary workpiece stations, 2 x 42-pocket tool magazine (84 tools), chip-to-chip time approx. 2.25 s. Weight approx. 16,300 kg, transport dimensions approx. 3.70 x 3.25 x 5.20 m. Location Germany, inspection possible.
available

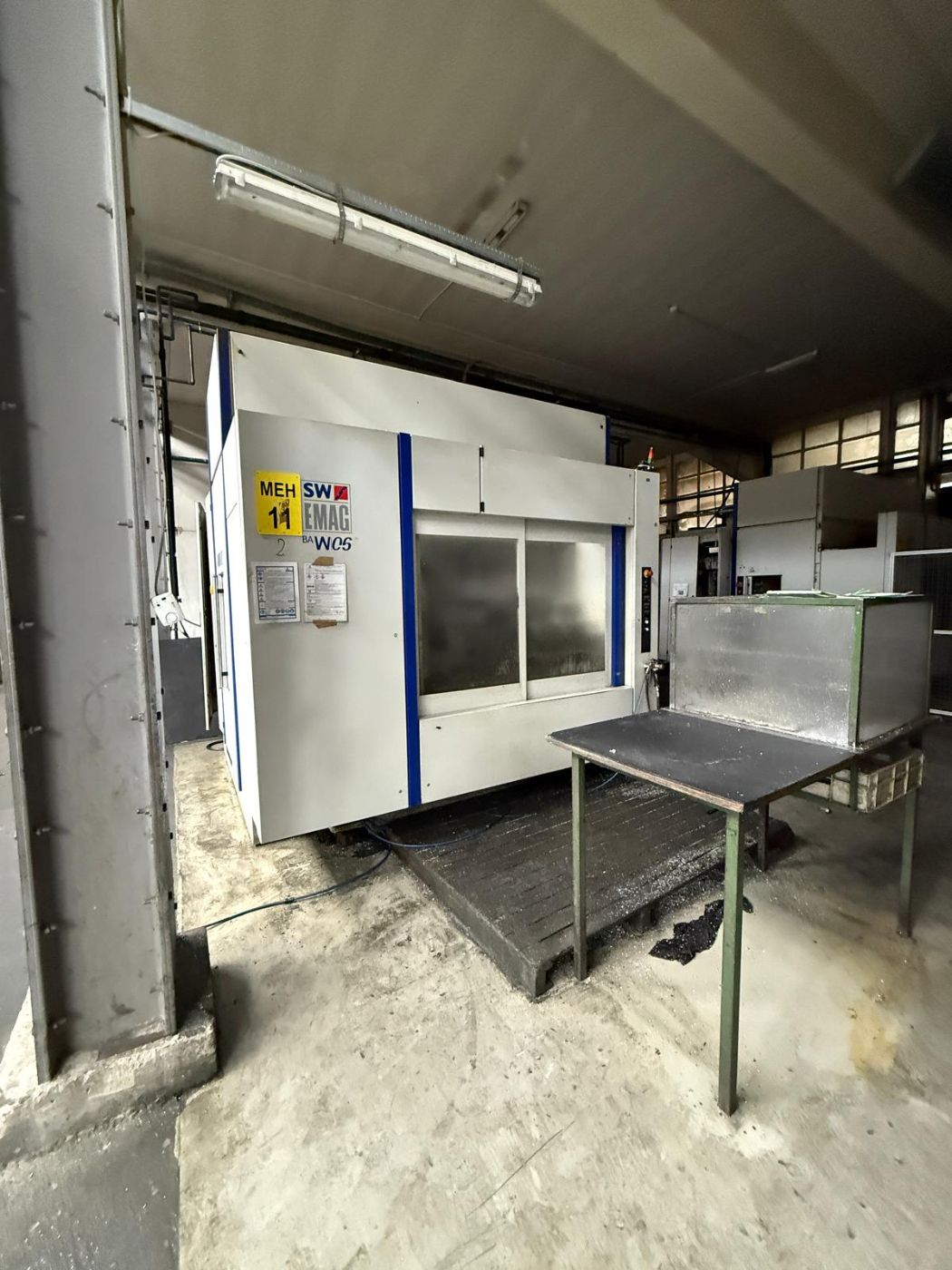

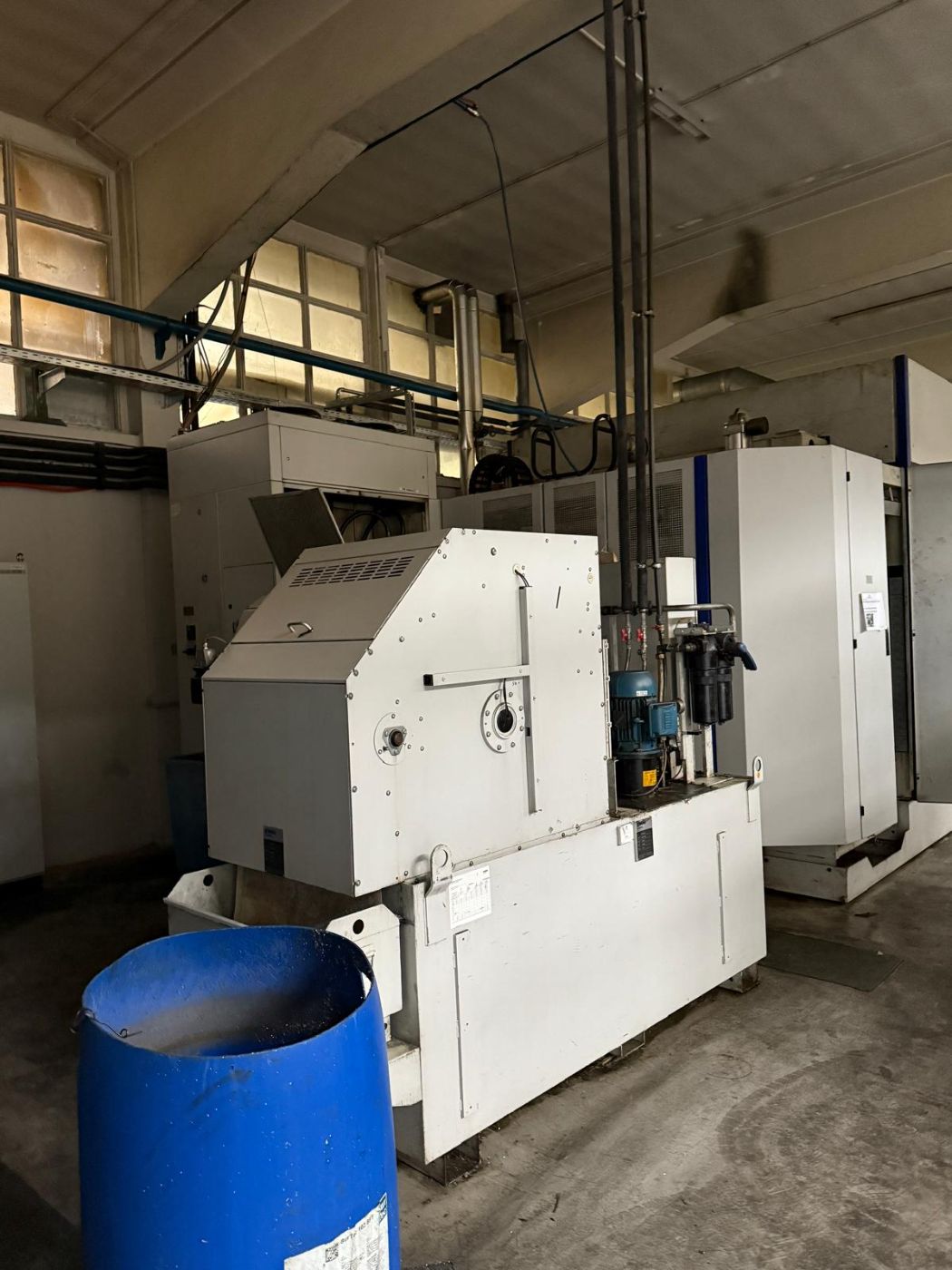

SW EMAG BAW06-22
| Manufacturer | SW EMAG |
| Model | BAW06-22 |
| Year | 2010 |
| Location | Germany |
| Manufacturer | SW Schwäbische Werkzeugmaschinen GmbH (SW / EMAG) |
| Type | BA W06-22 |
| Machine type | Horizontal machining centre, twin spindle, monoblock design |
| Machine no. | 2080082 |
| Year of manufacture | 2010 |
| CE marking | Yes |
| Wiring diagram no. | 205-000-11332-97 |

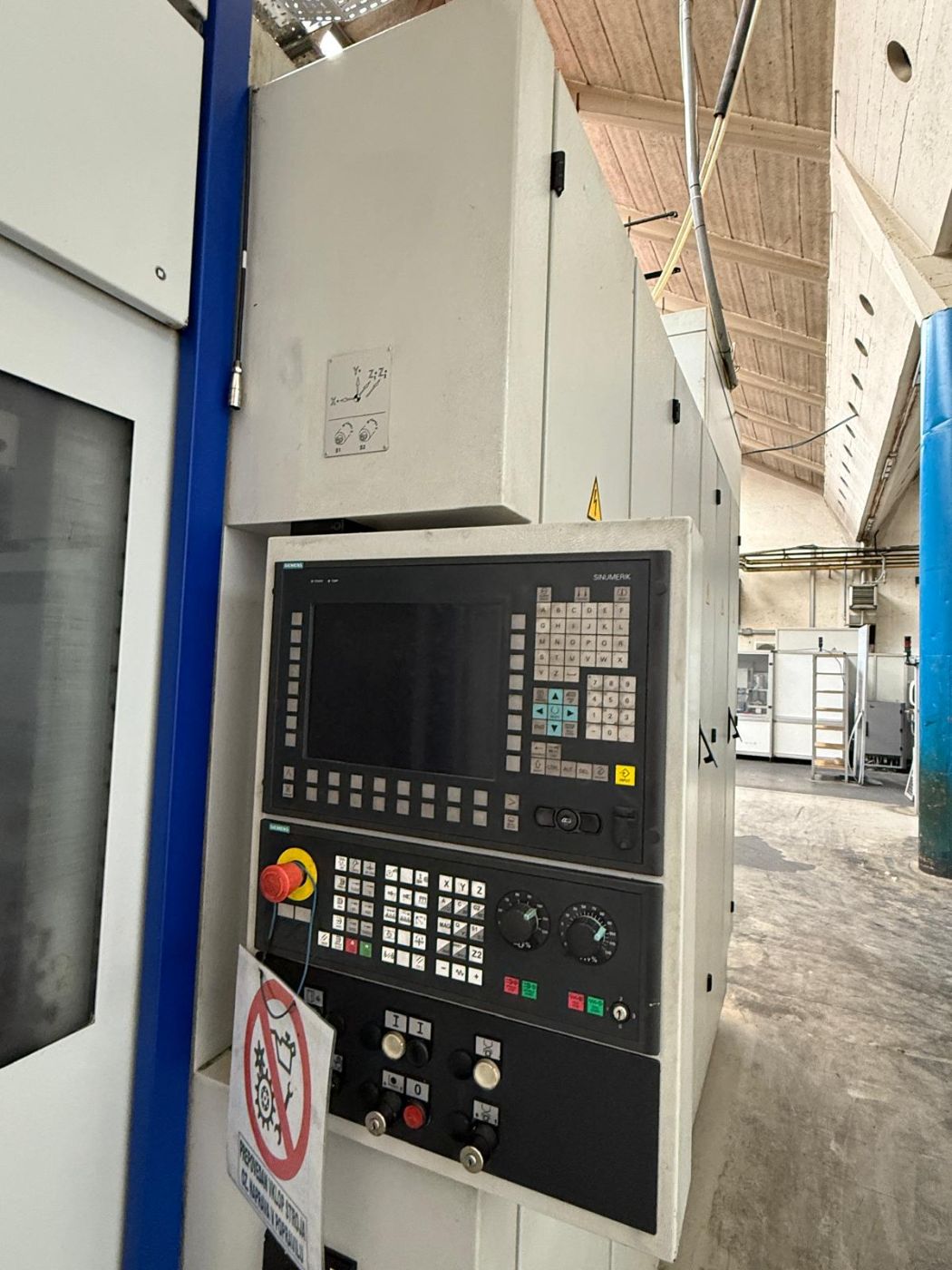

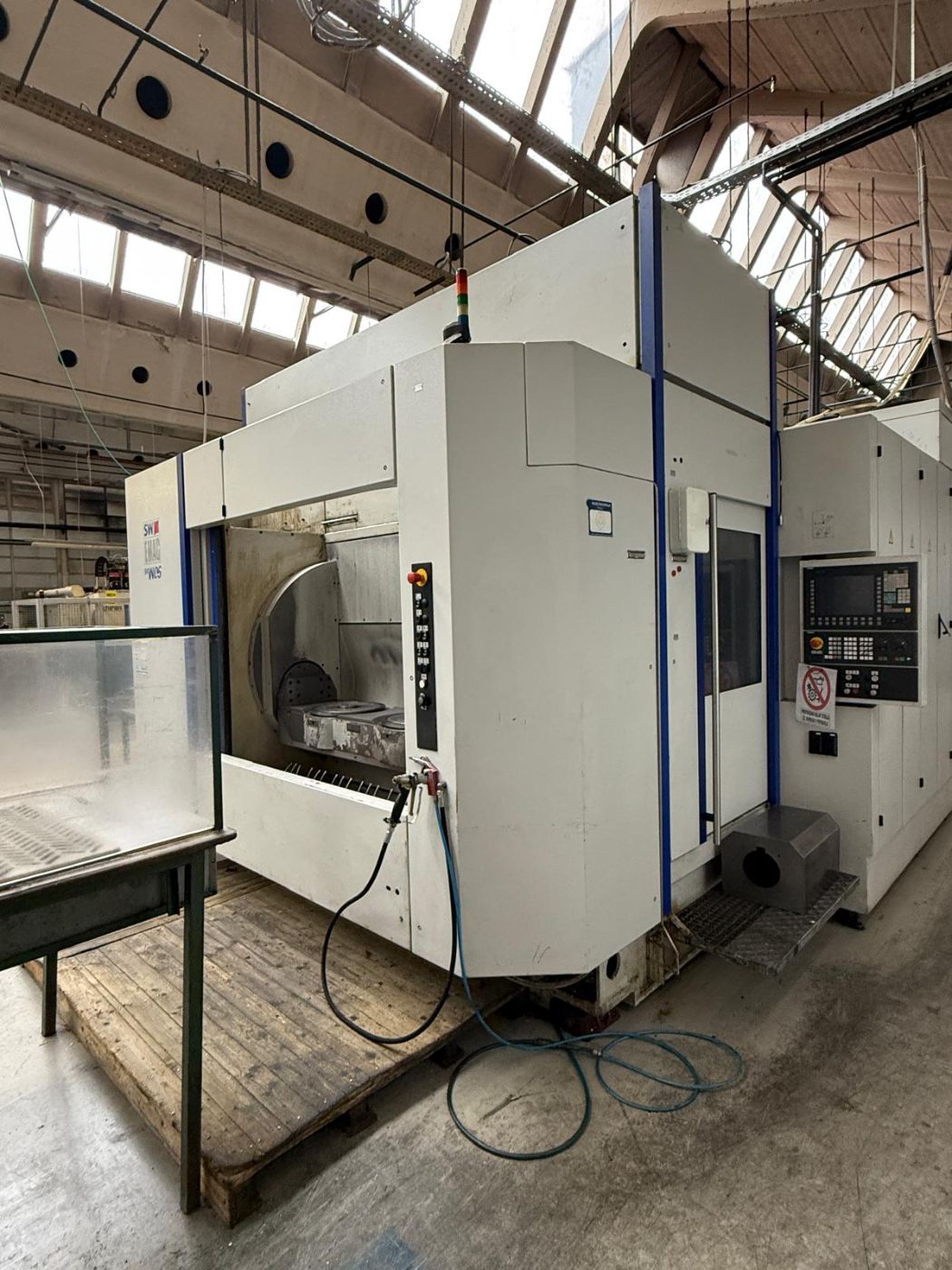

| Control | Siemens SINUMERIK 840D |
| Axes | X, Y, Z1, Z2 (two independent Z-axes, one per spindle) |
| Spindles | 2 × horizontal, S1 / S2 |
| Spindle distance | 600 mm* |
| Working range X (per spindle) | 600 mm* |
| Working range Y | 600 mm* |
| Working range Z | 500 mm* |
| Tool holder | HSK-A63* |
| Spindle speed | 1 – 17,500 rpm* |
| Spindle power | 2 × 35 kW (40 % duty)* |
| Spindle torque | 2 × 80 Nm (40 % duty)* |
| Spindle run-up time 0 – max | < 0.65 s* |
| Axis drives | linear motors in X / Y / Z, torque motors in rotary axes* |
| Rapid traverse X / Y / Z | 100 m/min* |
| Axis acceleration X / Y / Z | up to 12 / 10 / 24 m/s²* |
| Max. feed thrust | 10,000 N* |

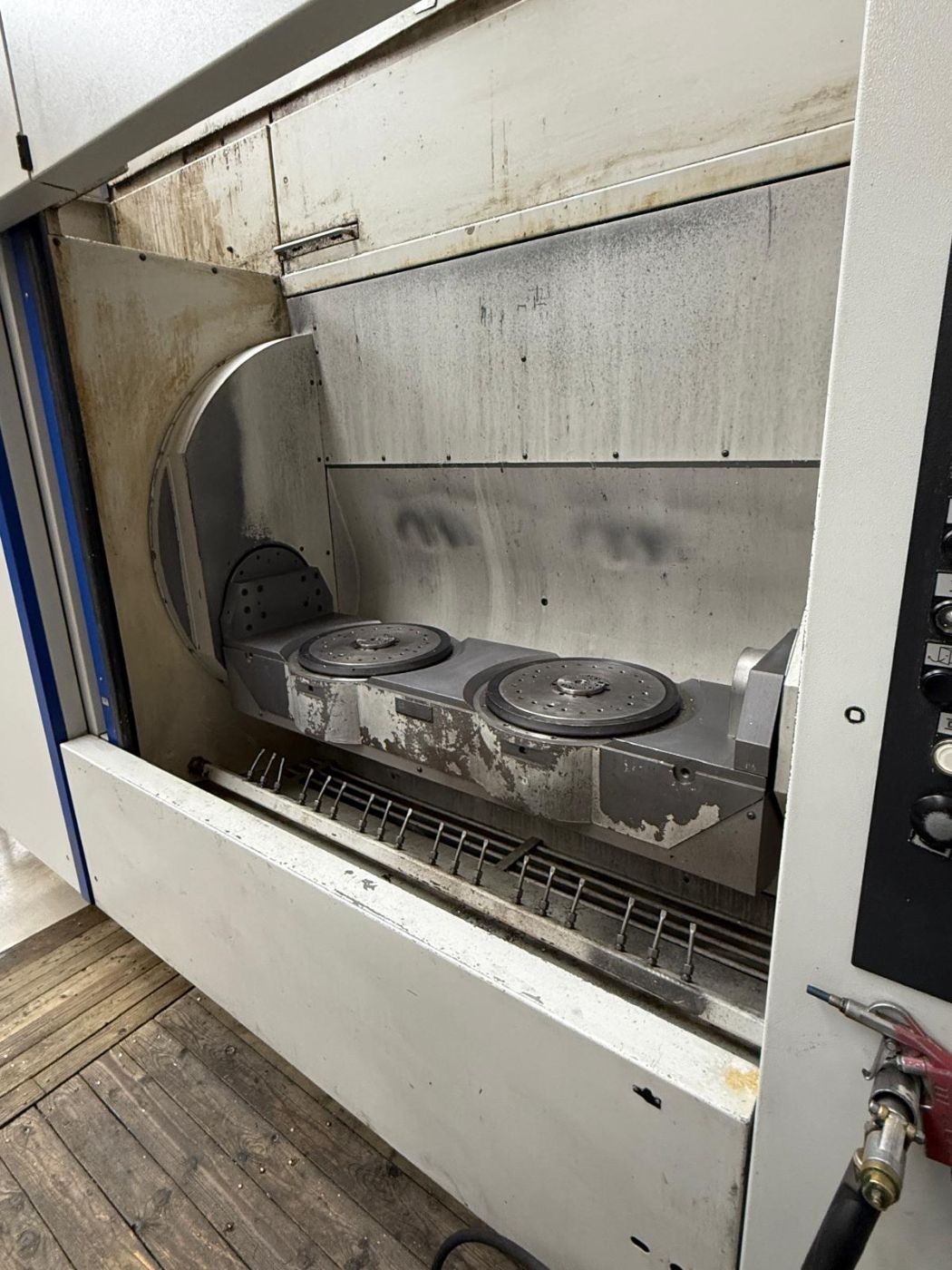

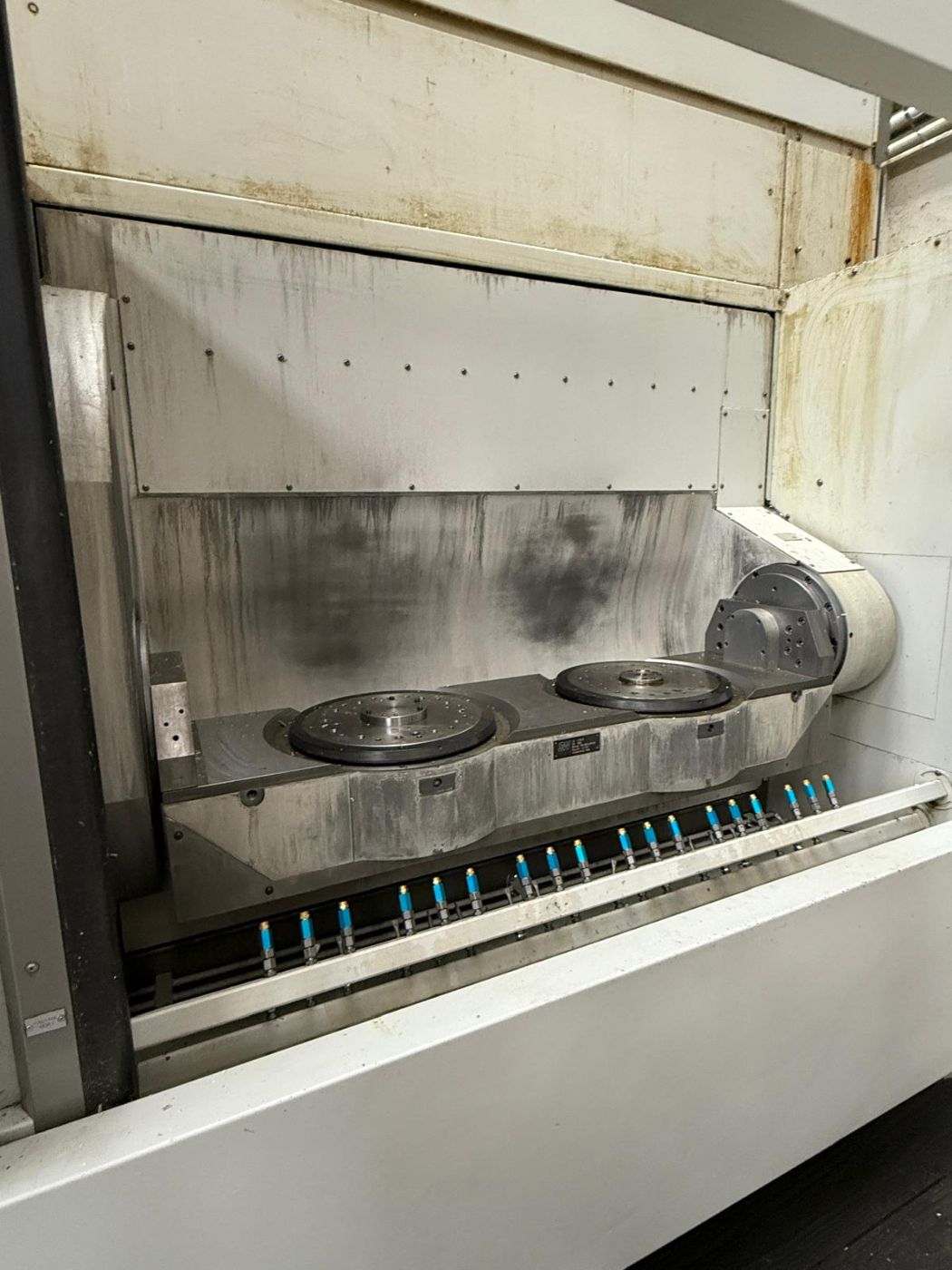

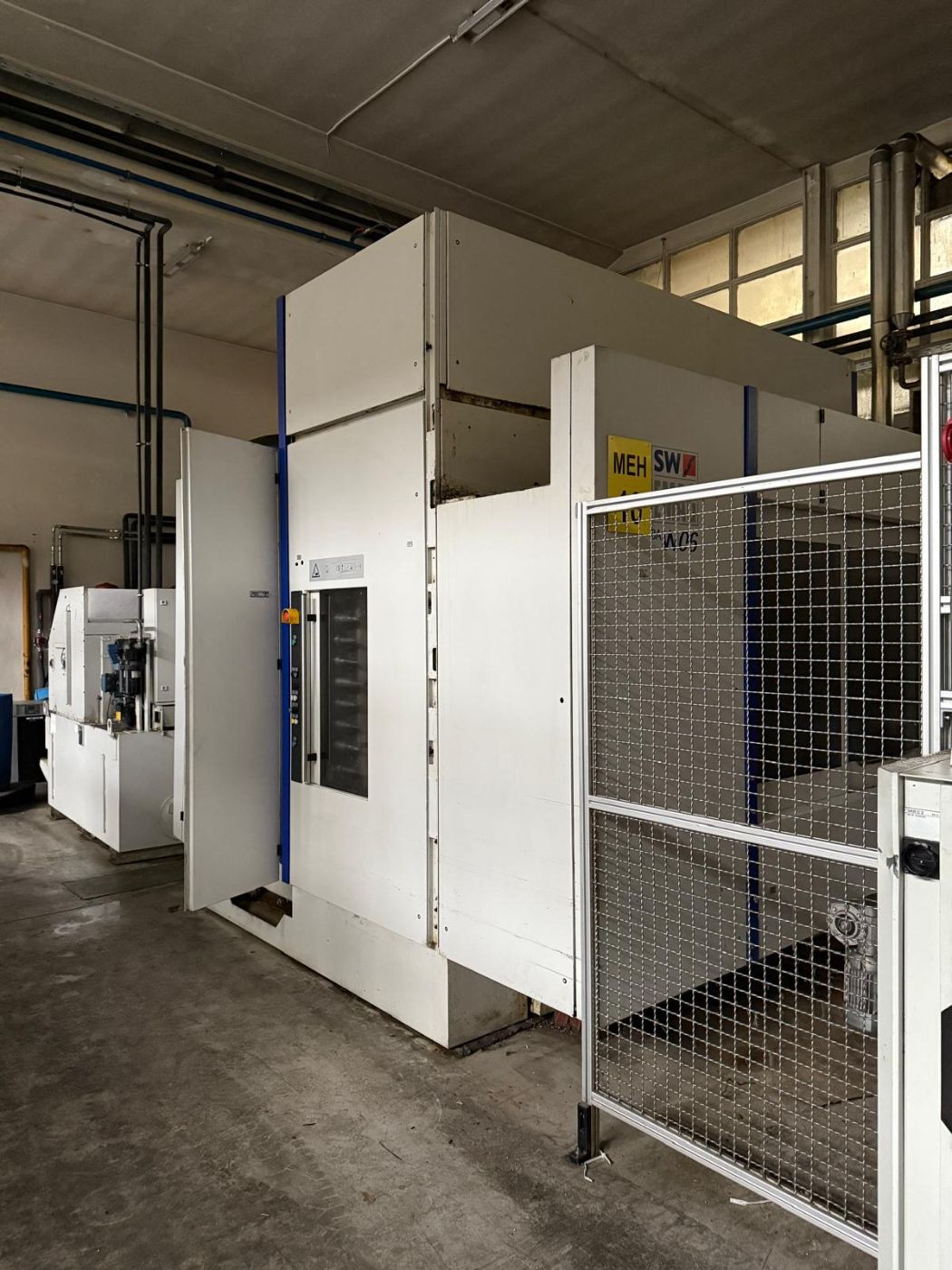

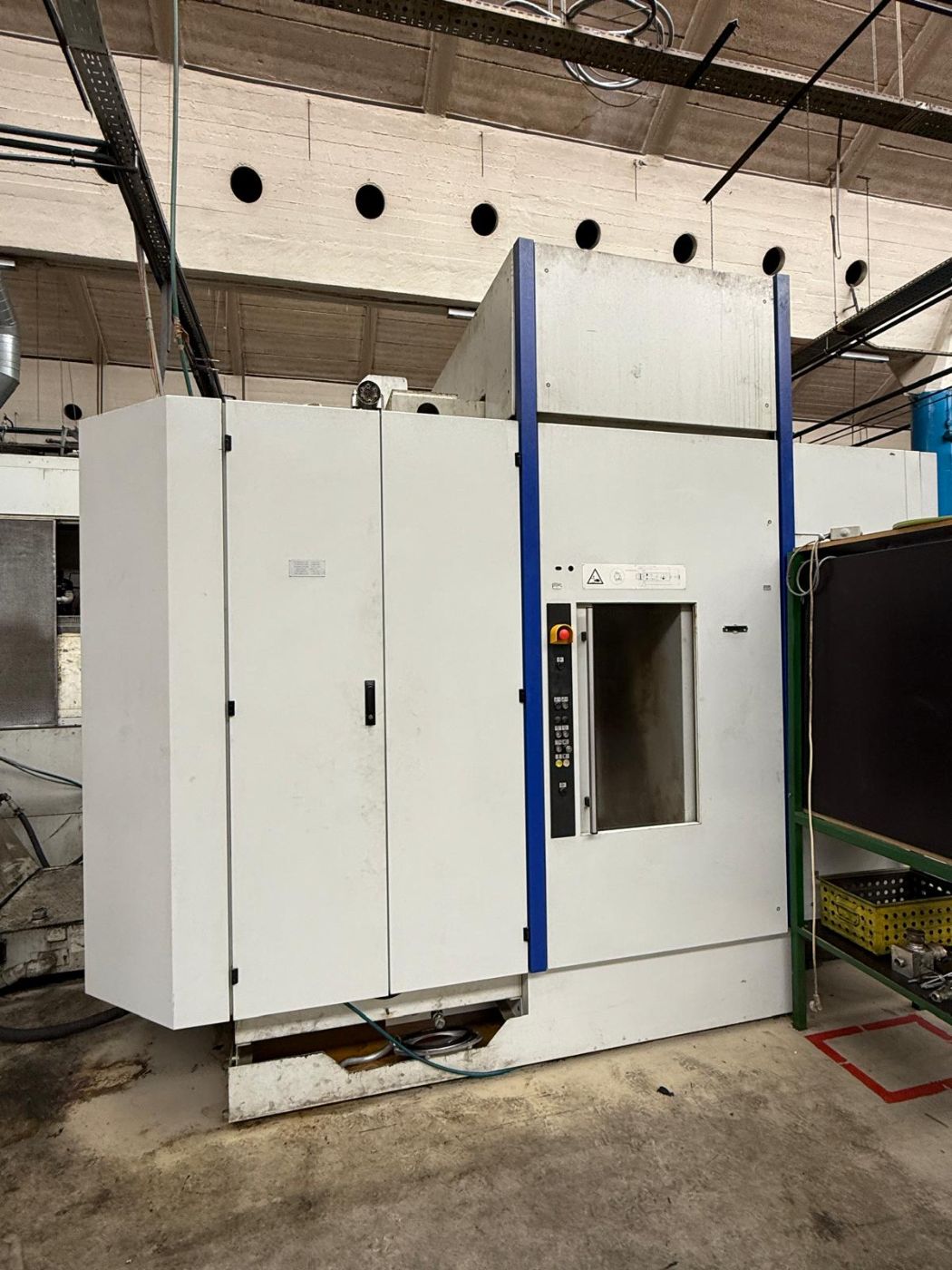

| Workpiece carrier | double swivel carrier (A-axis) with counter bearing, two rotary workpiece stations |
| Tool magazine | 2 × 42 pockets (84 tools)* |
| Chip-to-chip time | approx. 2.25 s* |
| Max. tool length | 425 mm* |
| Rated voltage | 3/PE 400 V, 50 Hz |
| Full-load current | 190 A |
| Back-up fuse | 200 A |
| Pneumatic supply pressure | 7.0 bar |
| Air consumption | 1 Nm³/min |

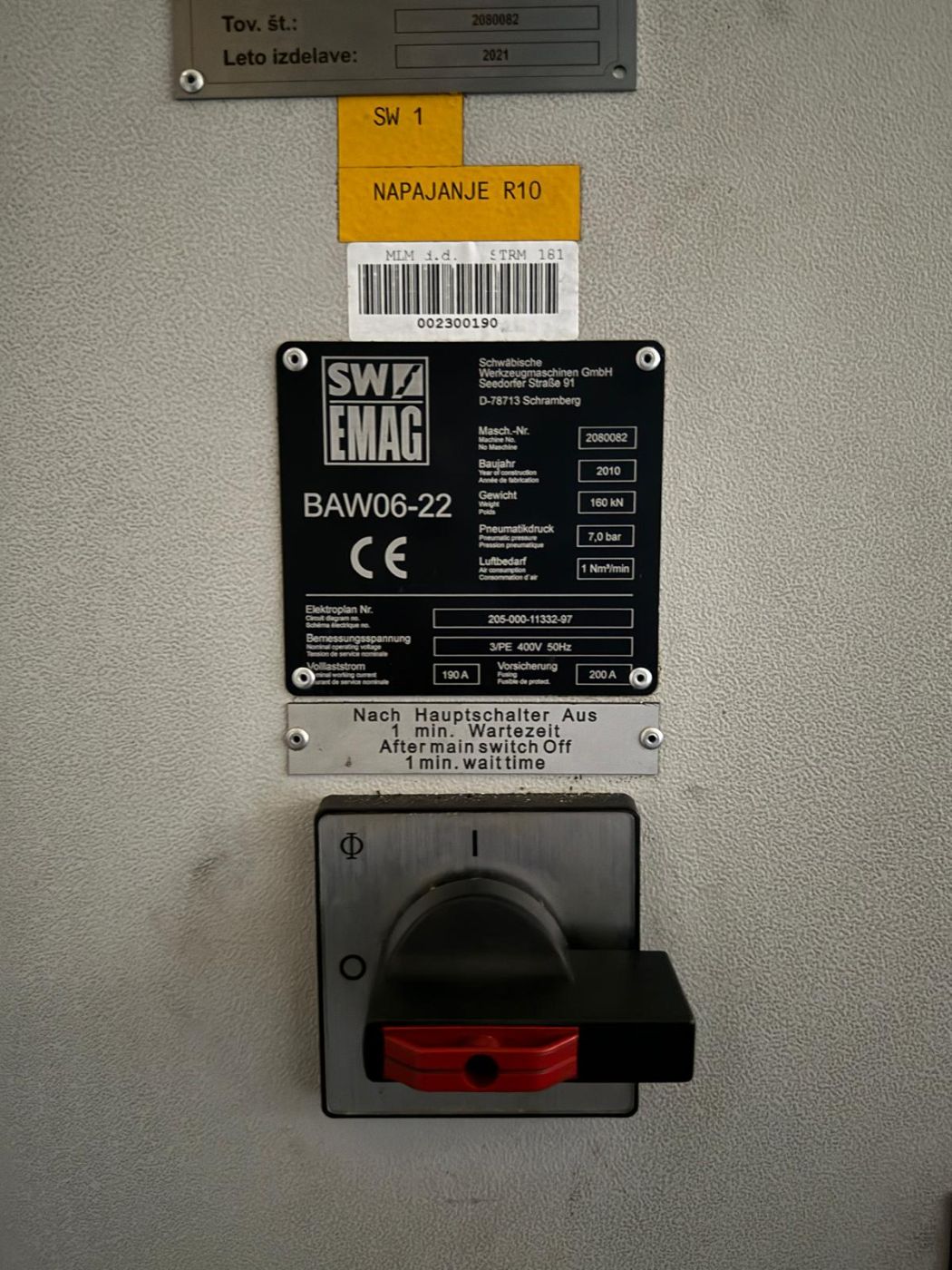

| Machine weight | 160 kN (≈ 16,300 kg) per type plate |
| Transport dimensions W × H × L | approx. 3.70 × 3.25 × 5.20 m* |
€168,000 · Inspection possible
