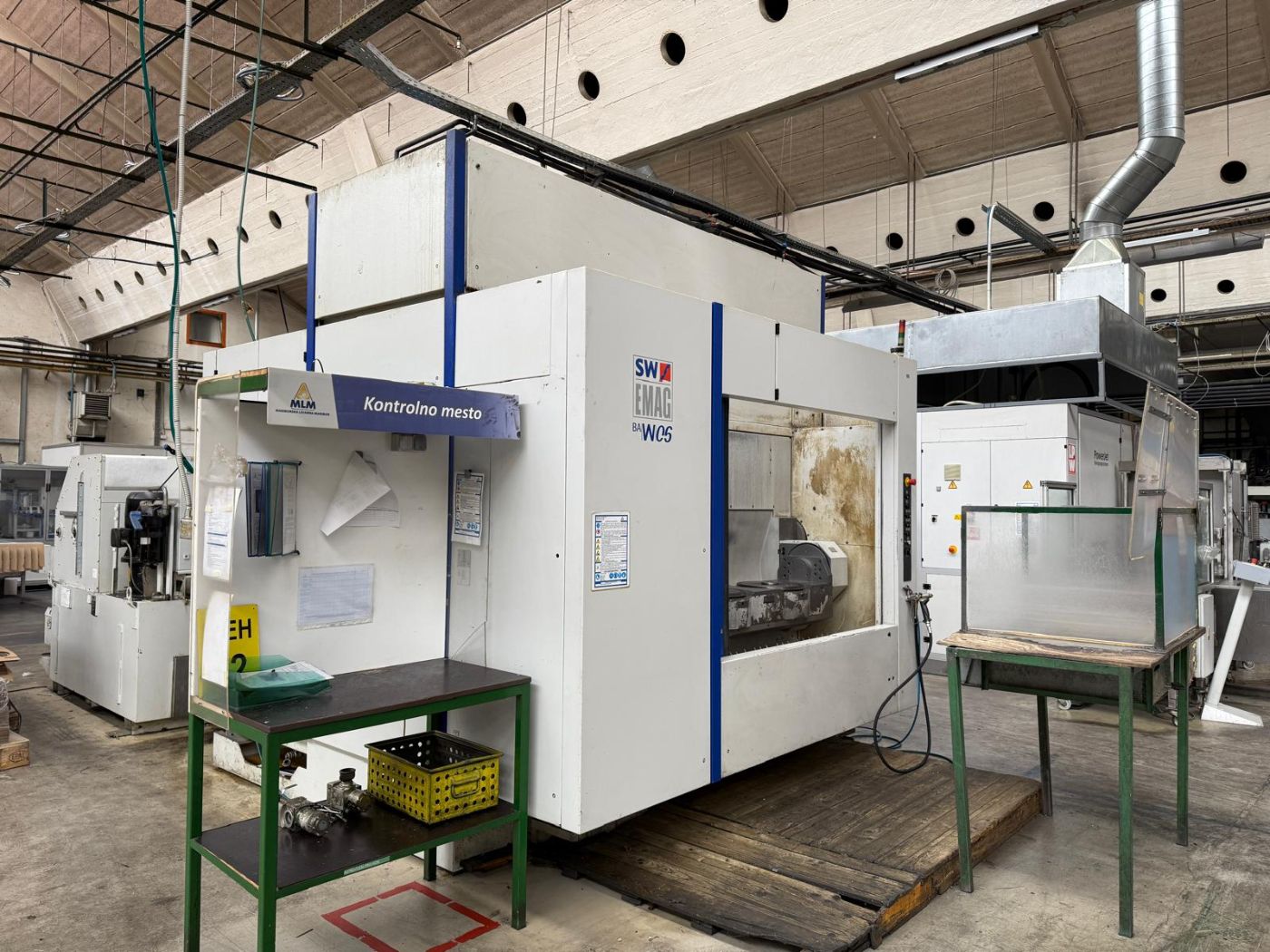

SW BA W06-22 twin-spindle horizontal machining centre from Schwäbische Werkzeugmaschinen (SW / EMAG), year of construction 2011, Siemens SINUMERIK CNC, CE marked. Two horizontal spindles with HSK-A63 interface, 600 mm centre distance, speed range 1 to 17,500 rpm, 2 x 35 kW, 80 Nm, working travels X 600 / Y 630 / Z 510 mm, rapid traverse up to 120 m/min, axis acceleration up to 24 m/s² in Z, max. tool length 425 to 450 mm. Location Germany, inspection possible.
available
SW EMAG BAW06-22
| Manufacturer | SW EMAG |
| Model | BAW06-22 |
| Year | 2011 |
| Location | Germany |
| Manufacturer | SW EMAG |
| Model | BA W06-22 |

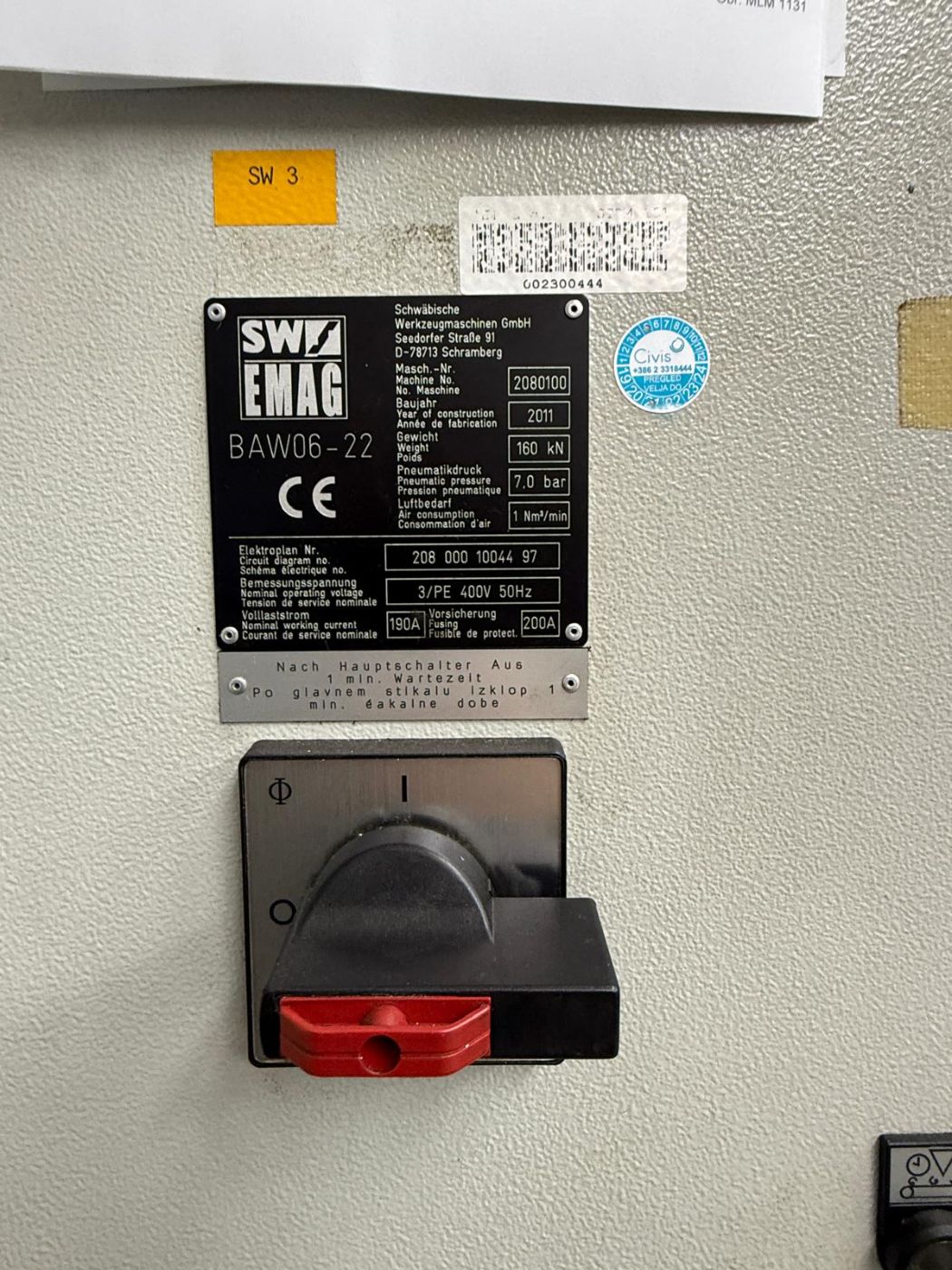

| Machine Serial No. | 2080100 |
| Year of Construction | 2011 |

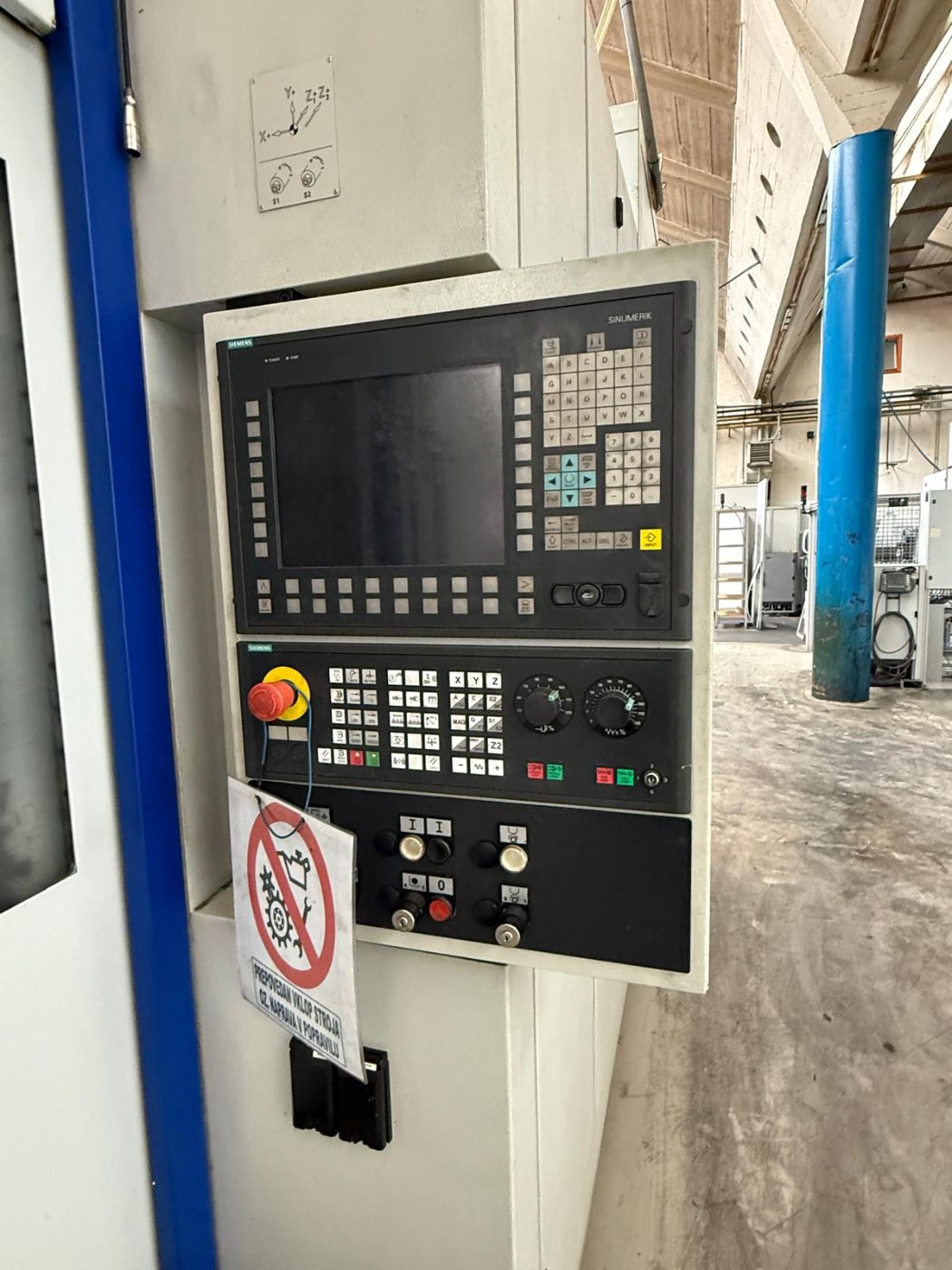

| CNC Control Unit | Siemens SINUMERIK |
| Certifications | CE Marked WORKING RANGE & AXES TRAVELNumber of Spindles: 2 Horizontal SpindlesX-Axis Travel: 600 mmY-Axis Travel: 630 mm (Tool change position: 920 mm)Z-Axis Travel: 510 mmSpindle Distance: 600 mm (Center-to-Center)SPINDLE & TOOLING SPECIFICATIONSTool Taper Interface: HSK-A63Spindle Speed Range: 1 – 17,500 RPMDrive Power (40% ED): 2 x 35 kWSpindle Torque: 80 NmMax. Tool Length: 425 mm – 450 mmChip-to-Chip Time: approx. 2.25 secondsFEED DRIVES & DYNAMICSRapid Traverse (X/Y/Z): Up to 120 m/minAxis Acceleration: X: 12 m/s² / Y: 10 m/s² / Z: 24 m/s²ELECTRICAL & PNEUMATIC UTILITIES |
| Operating Voltage | 3/PE 400V ~ 50 Hz |
| Nominal Working Current | 190 A |
| Main Fusing | 200 A |
| Circuit Diagram No. | 208 000 10044 97 |
| Pneumatic Pressure | 7.0 bar |
| Air Consumption | 1.0 Nm³/min |
€175,000 · Inspection possible
