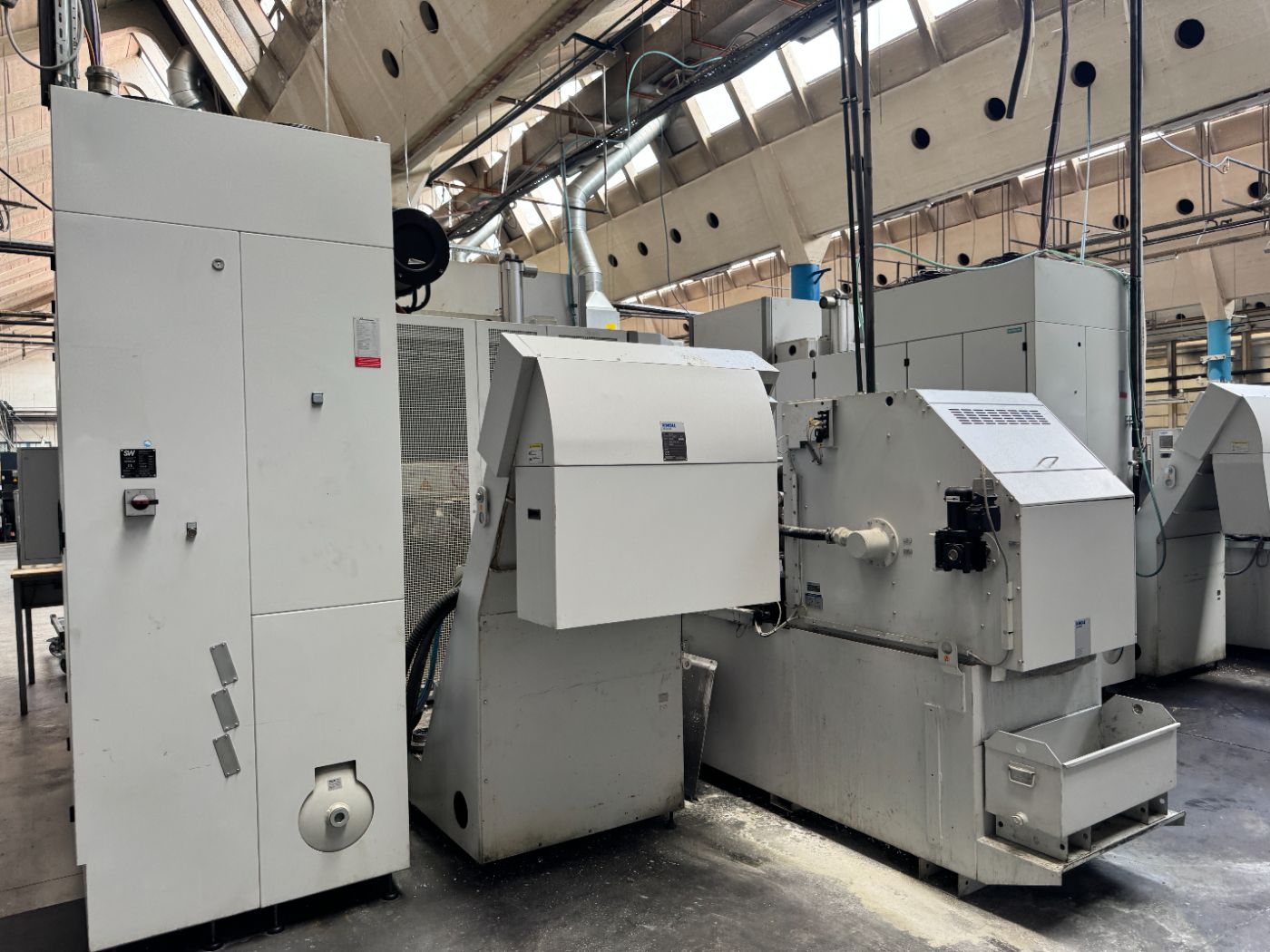

SW BAW06-22 CNC horizontal twin-spindle machining centre from Schwäbische Werkzeugmaschinen, year of manufacture 2017, Siemens SINUMERIK control. Two horizontal HSK-A63 spindles, 600 mm spindle distance, up to 17,500 rpm, up to 2 x 35 kW and 2 x 80 Nm, working travels X 600 / Y 600 / Z approx. 400 to 500 mm, rapid traverse up to 100 m/min, automatic tool changer with up to 84 magazine positions (2 x 42). Connection 3/PE 400 V 50 Hz, 190 A, pneumatic supply 7 bar. Machine weight approx. 16,000 kg. Currently reserved, please enquire for availability. Location Germany.
reserved
SW MACHINE
| Manufacturer | SW |
| Model | BAW06-22 |
| Year | 2017 |
| Location | Germany |
| Manufacturer | SW – Schwäbische Werkzeugmaschinen GmbH |
| Model | BAW06-22 |
| Year of manufacture | 2017 |
| Machine No. | 2080519 |

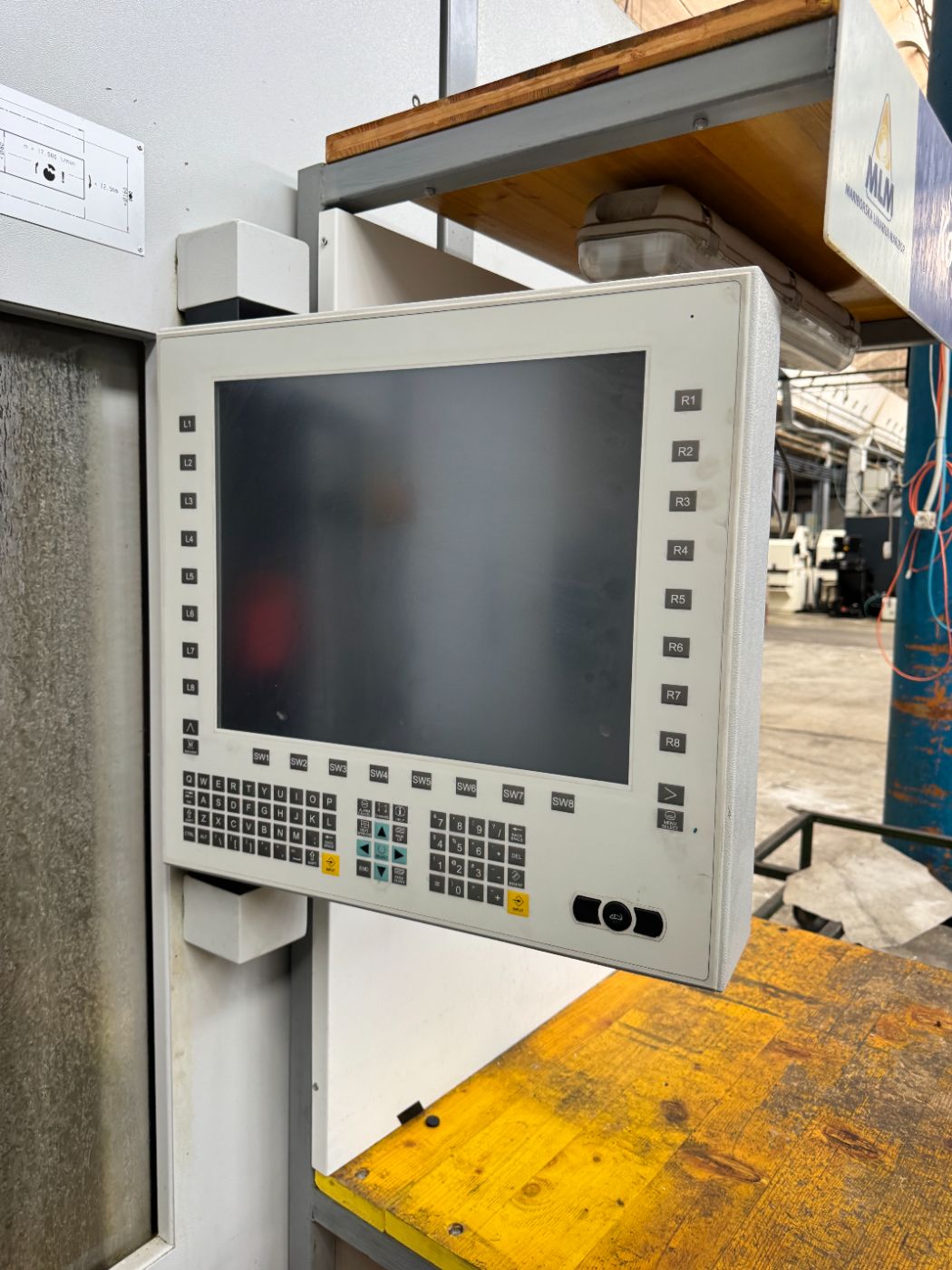

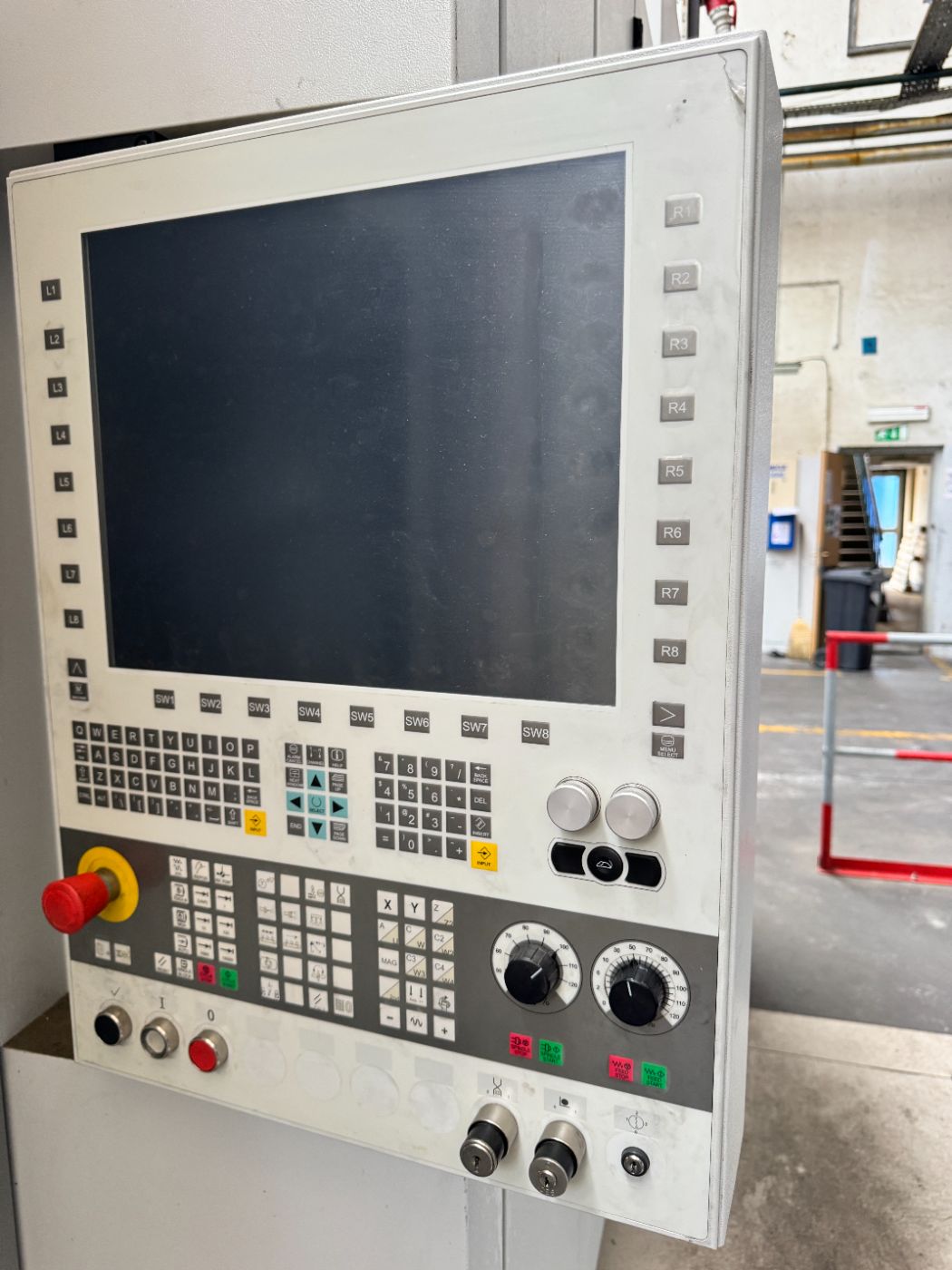

| Control | Siemens SINUMERIK |
| Machine type | CNC horizontal twin-spindle machining center |
| Country of origin | Germany |
| Working travels | |
| X-axis | 600 mm |
| Y-axis | 600 mm |
| Z-axis | approx. 400–500 mm* |
| Number of machining spindles | 2 |
| Spindle arrangement | horizontal, twin spindle |
| Spindle distance | 600 mm |
| Maximum spindle speed | 17,500 rpm |
| Tool holder | HSK-A63 |
| Spindle power | up to 2 x 35 kW* |
| Spindle torque | up to 2 x 80 Nm* |
| Rapid traverse X/Y/Z | up to 100 m/min* |
| Automatic tool changer | Yes |

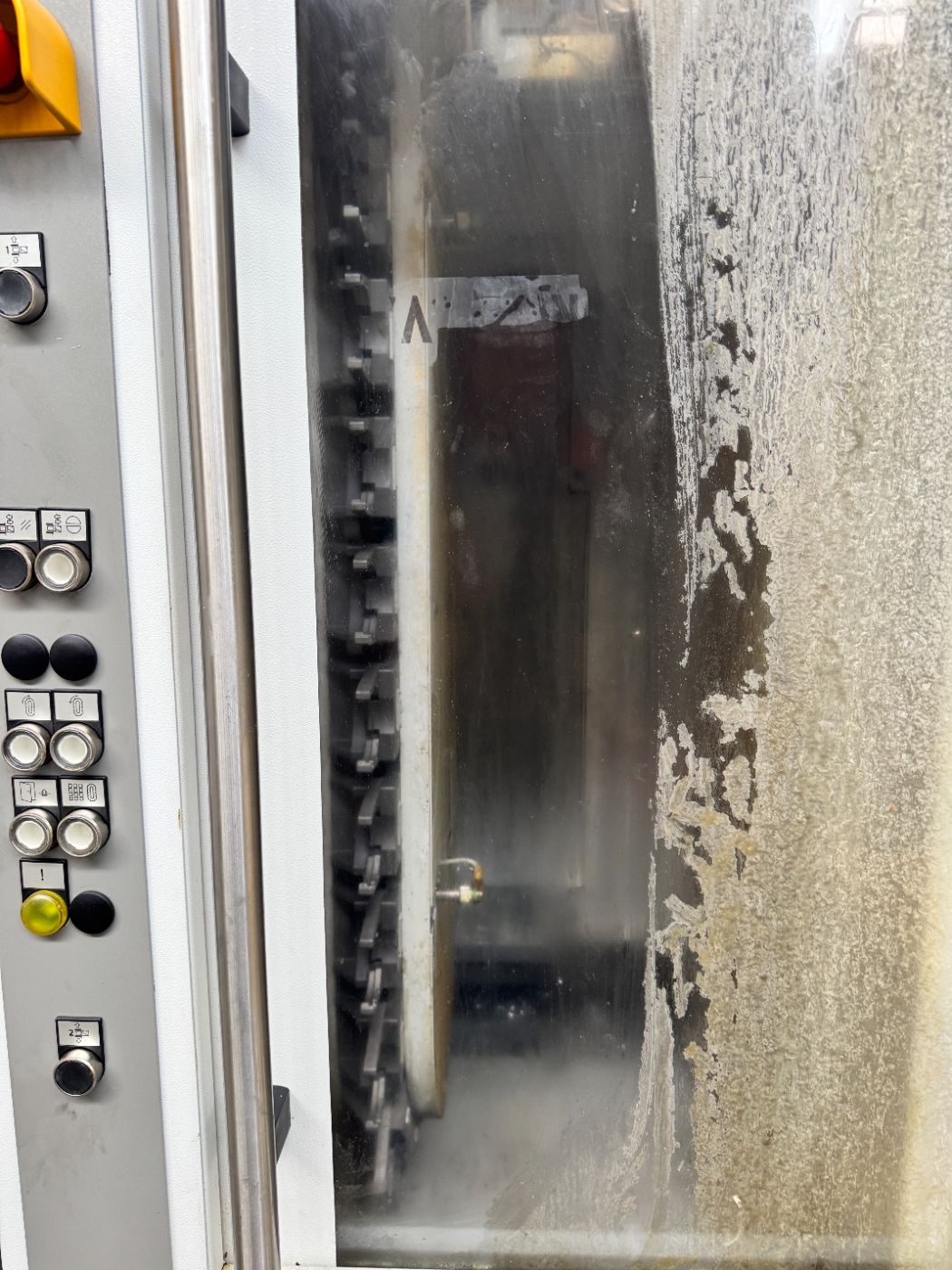

| Tool magazine | up to 84 positions / 2 x 42 tools* |
| Operating voltage | 3/PE / 400 V / 50 Hz |
| Full-load current | 190 A |
| Pre-fuse | 200 A |
| Pneumatic pressure | 7.0 bar |
| Air consumption | 1.0 Nm³/min |
| Electrical diagram No. | 205-000-20678-97 |
| Machine weight | approx. 16,000 kg |
| Nameplate specification | 160 kN |
€ 245,000 · Inspection possible
