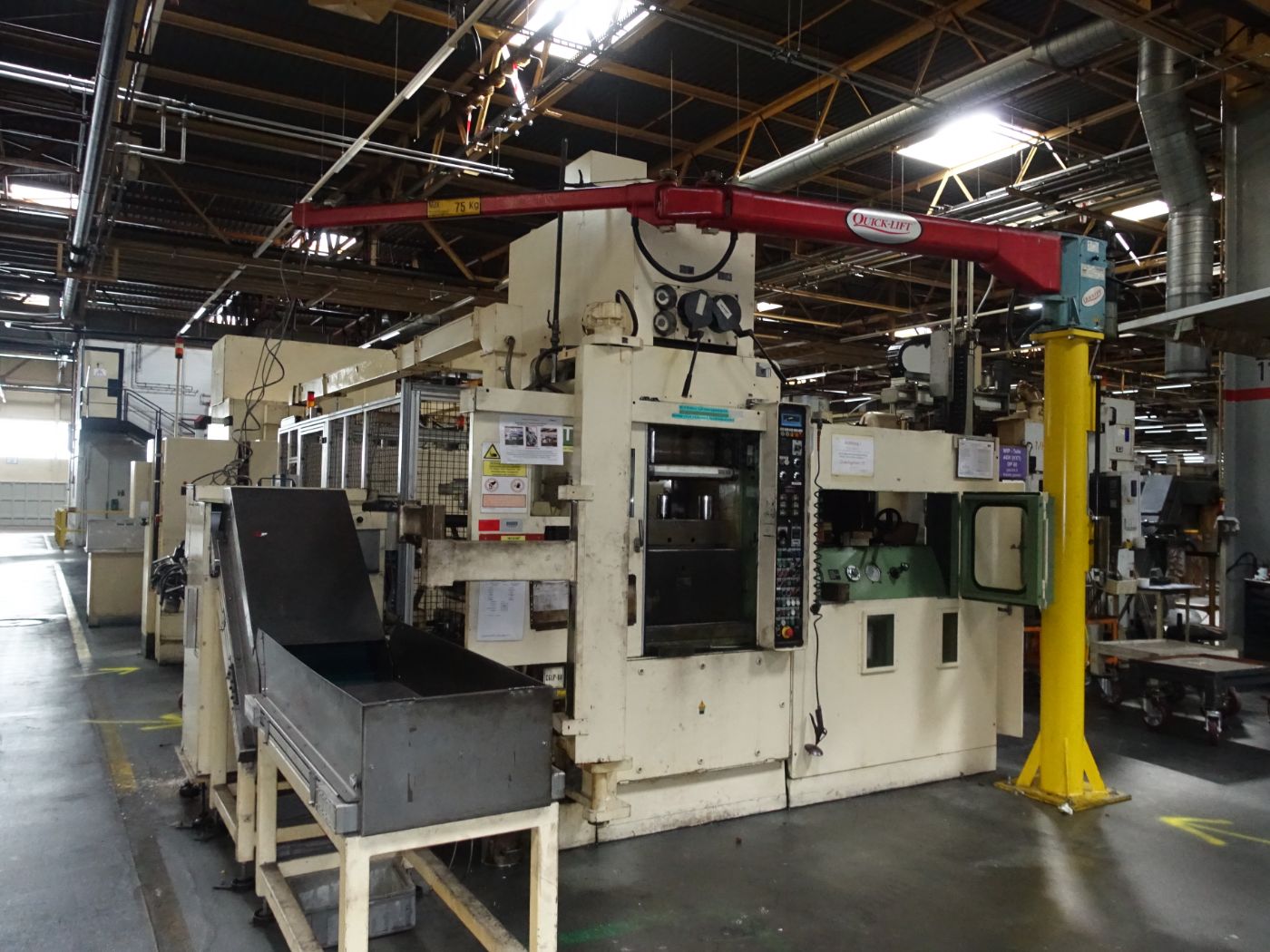

Schmid (Feintool Schmid) T6-200 2 orbital forming press, built 1984, serial no. 20-1200, CE compliant, inspected by TÜV Rheinland. Nominal press force 2,000 kN (approx. 204 t), downward ejection force 400 kN, lower ejector stroke 60 mm, max. slide stroke 200 mm, rapid approach and return 240 mm/s, max. forming speed approx. 26 mm/s, wobble frequency up to 340 cycles per minute, hydraulic pressure up to 320 bar. 110,777 operating hours and 19,333,830 strokes on the counters. Net weight approx. 10,200 kg. This machine has been sold.
sold
SCHMID T6-200 2

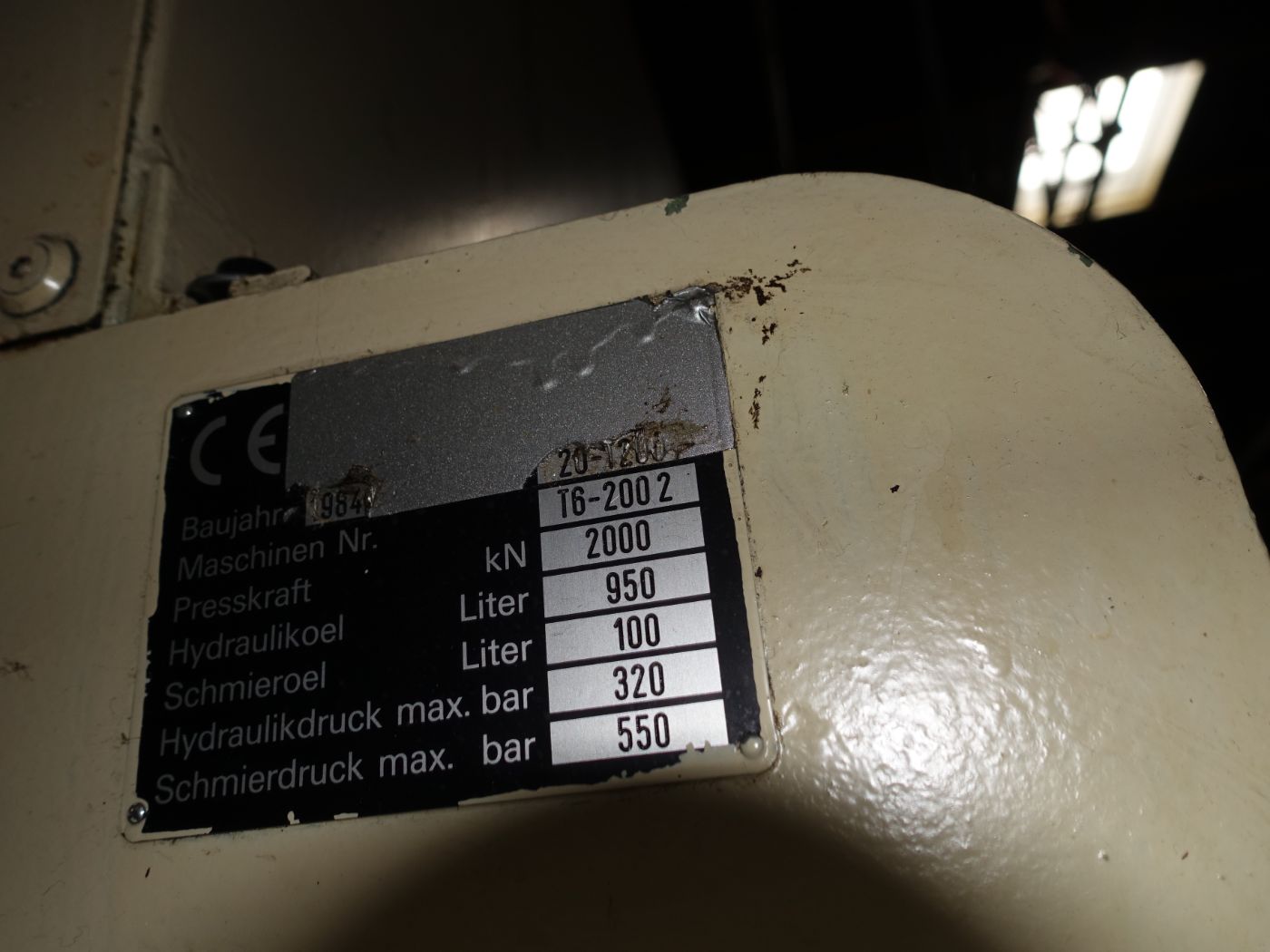

| Manufacturer | SCHMID |
| Model | T6-200 2 |
| Year | 1984 |
| Location | Germany |
| Manufacturer | Schmid (Feintool Schmid) |
| Model / Type | T6-200 2 |
| Year of Manufacture | 1984 |
| Machine Serial Number | 20-1200 |

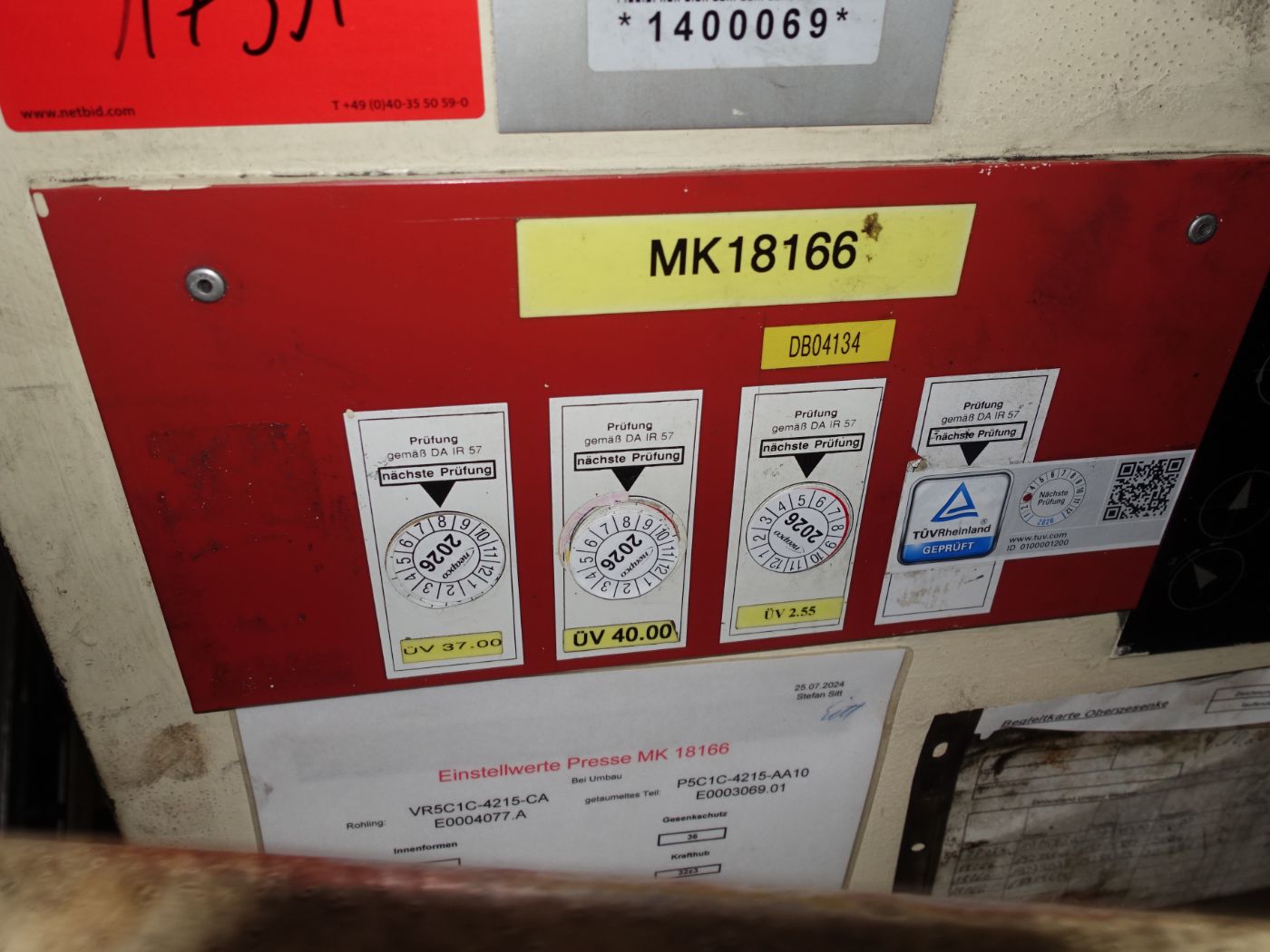

| Internal Plant Asset ID | MK18166 / DB04134 |

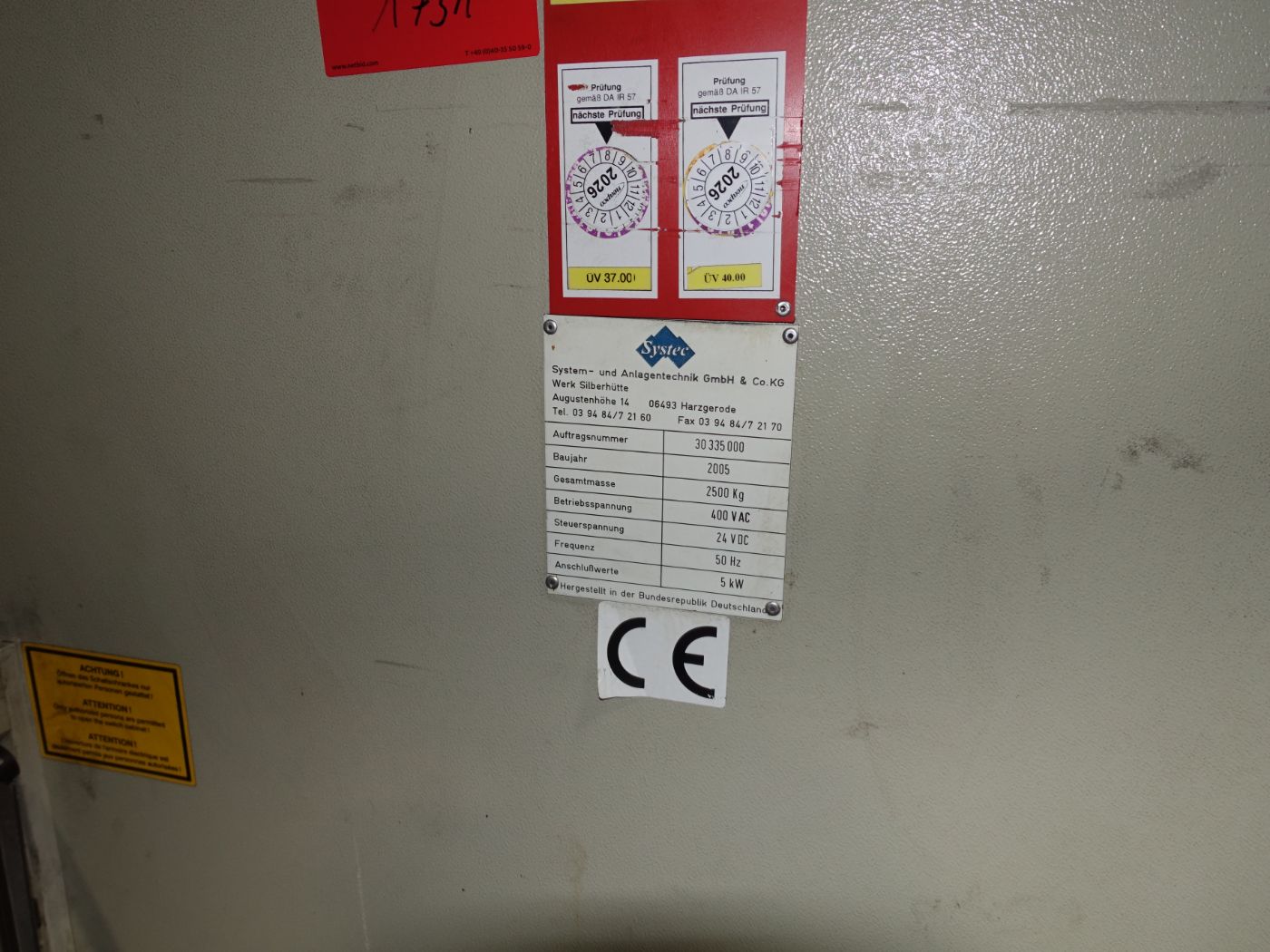

| Safety Certifications | CE Compliant |
| Inspection Authority | TÜV Rheinland |

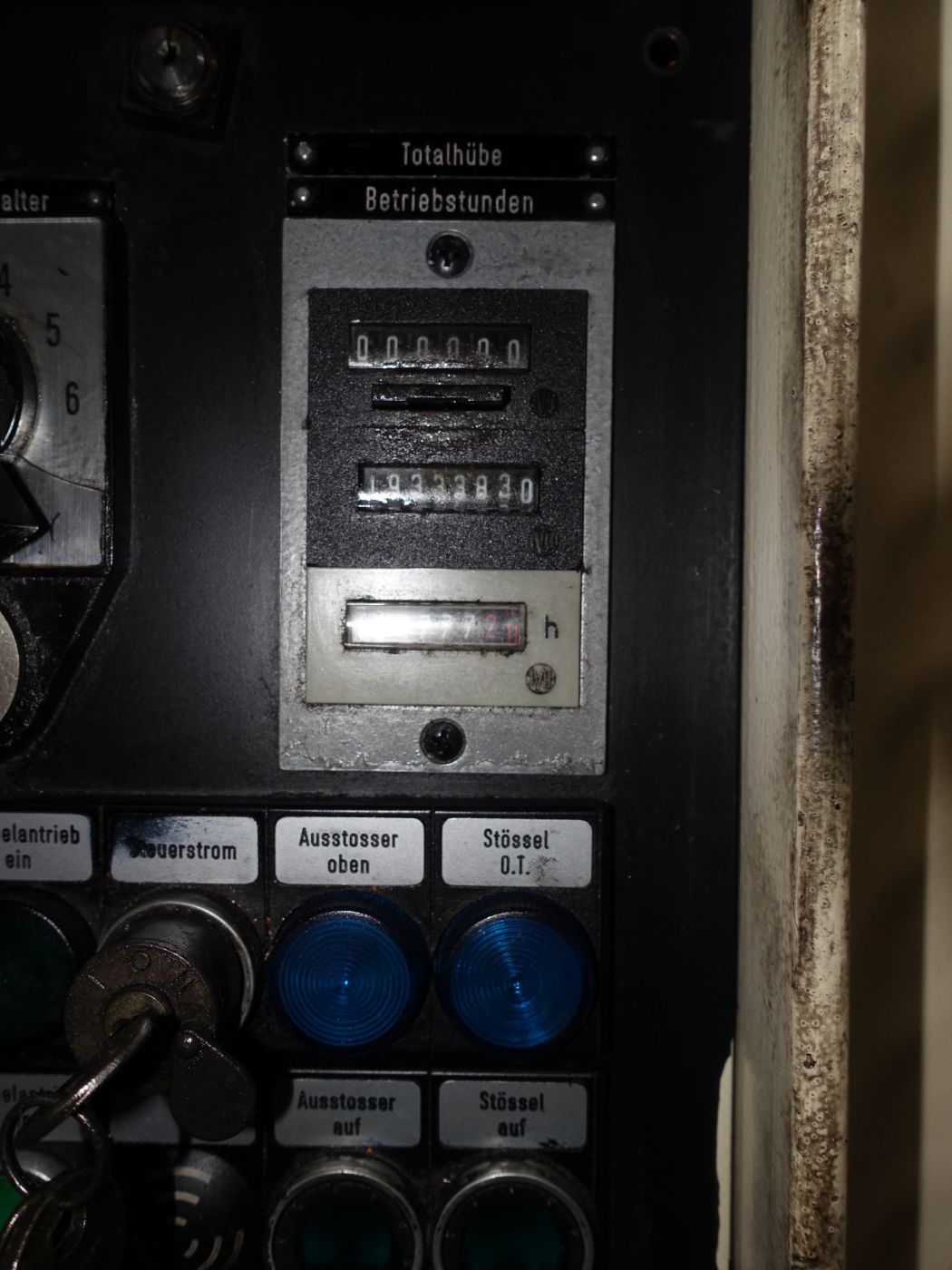

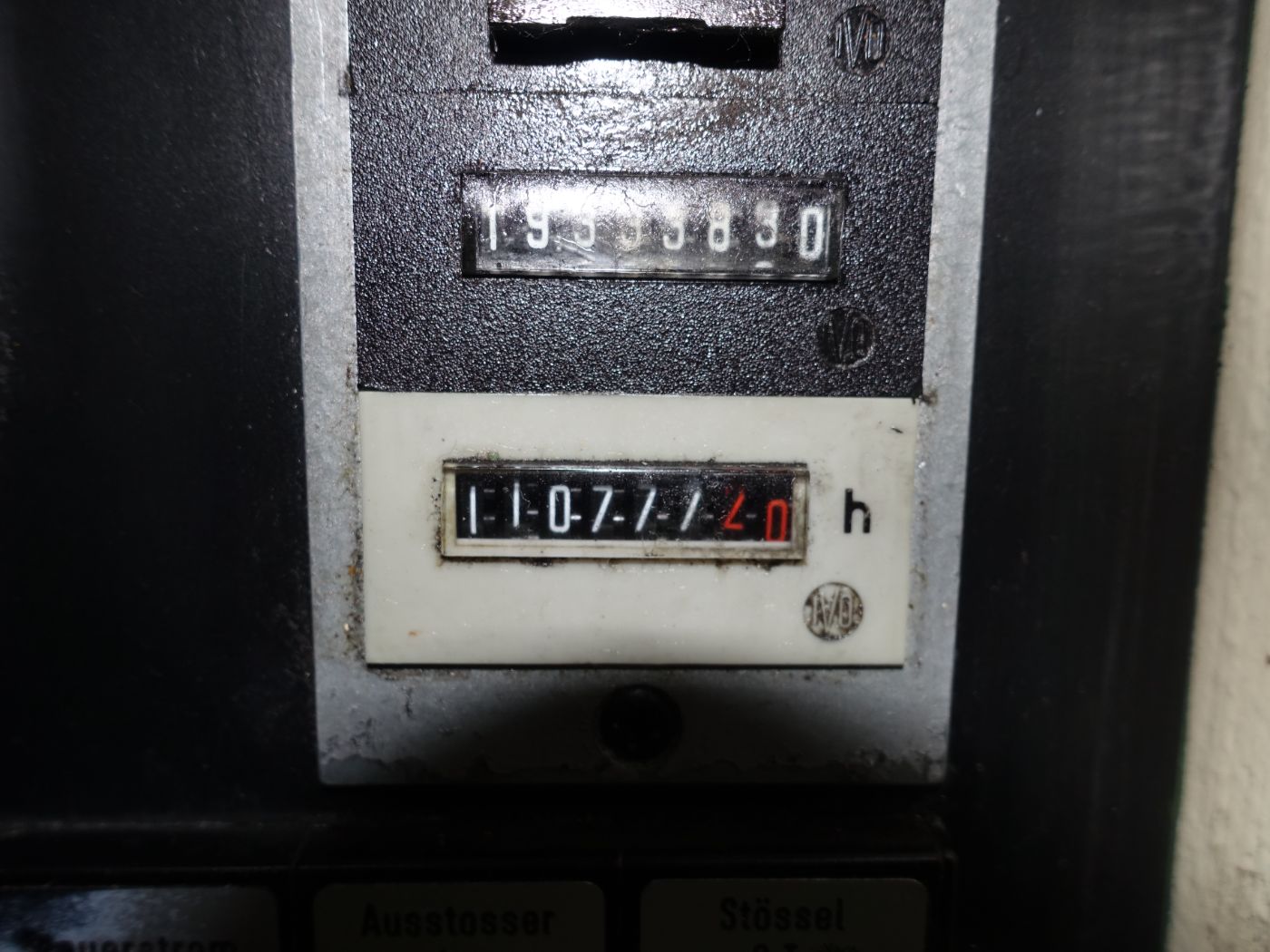

| Total Operating Hours | 110,777.4 Hours |
| Total Stroke Count | 19,333,830 Total Strokes (Totalhübe) |
| Total Nominal Press Force | 2,000 kN (Approx. 204 Metric Tons) |
| Downward Ejection Force | 400 kN |
| Lower Ejector Stroke | 60 mm |

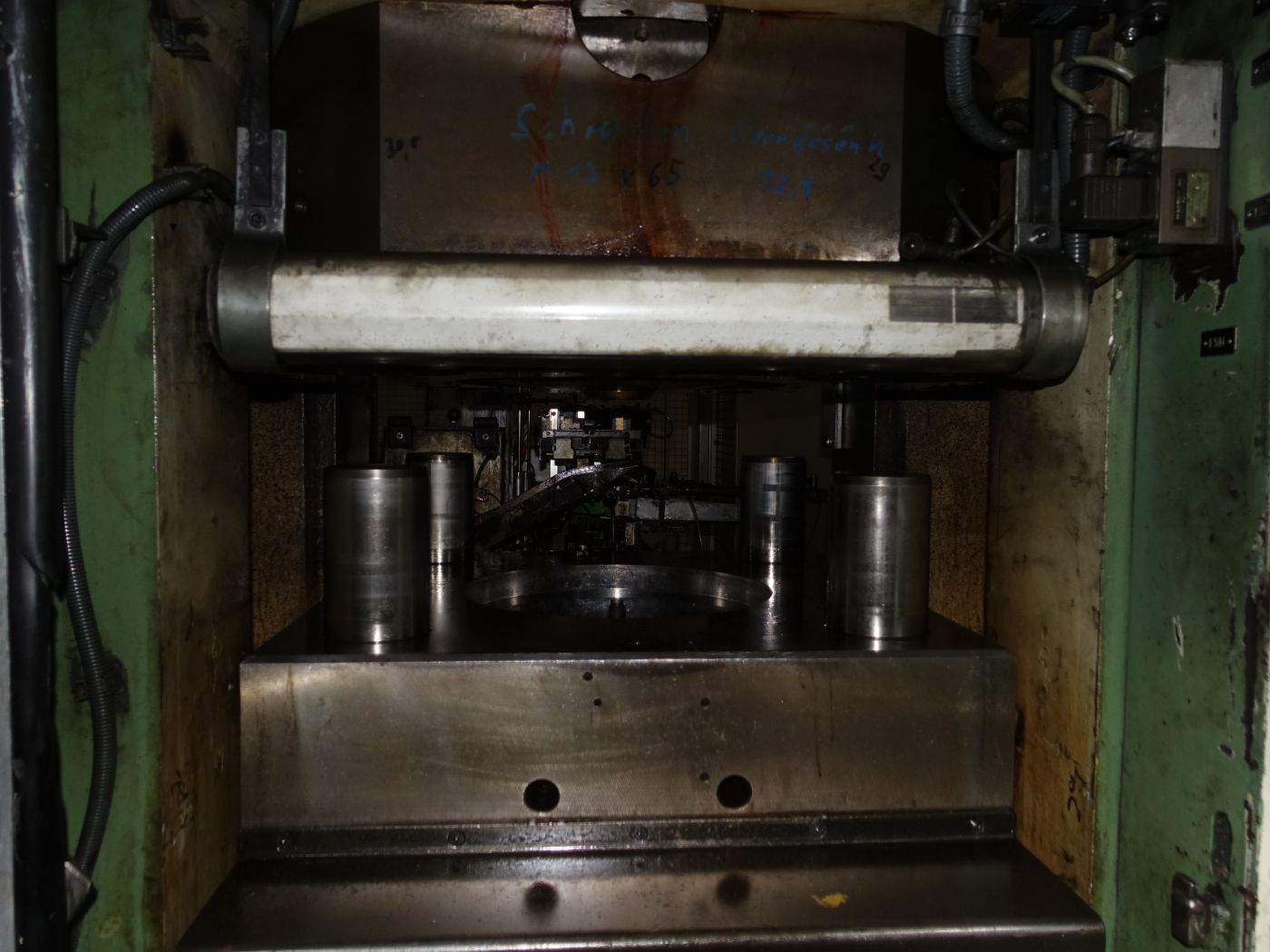

| Maximum Slide Stroke | 200 mm |
| Slide Range (Max Forming) | 195 mm |
| Slide Stop Adjustment Range | 75 mm |
| Rapid Approach Speed | 240 mm/s |
| Return Stroke Speed | 240 mm/s |
| Maximum Forming Speed | Approx. 26 mm/s |
| Max Wobble Frequency | 340 cycles per minute (1/min) |
| Hydraulic Oil Capacity | 950 Liters |
| Maximum Hydraulic Pressure | 320 bar |
| Lubricating Oil Capacity | 100 Liters |
| Maximum Lubrication Pressure | 550 bar |

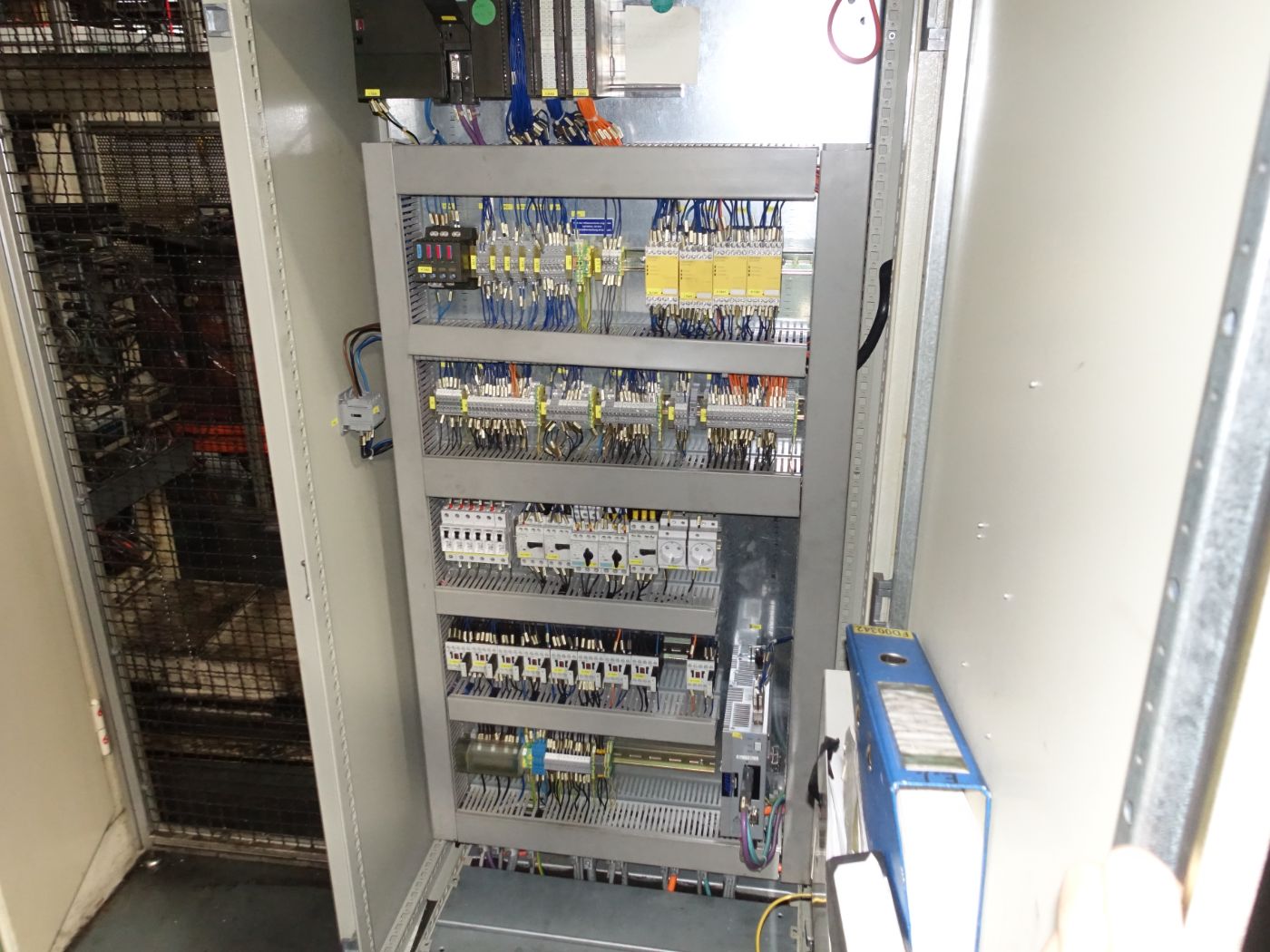

| Electrical Supply | 3-Phase / 400 V / 50 Hz |
| Net Machine Weight | Approx. 10,200 kg (10.2 Metric Tons) |
€ 68,000 · Inspection possible
