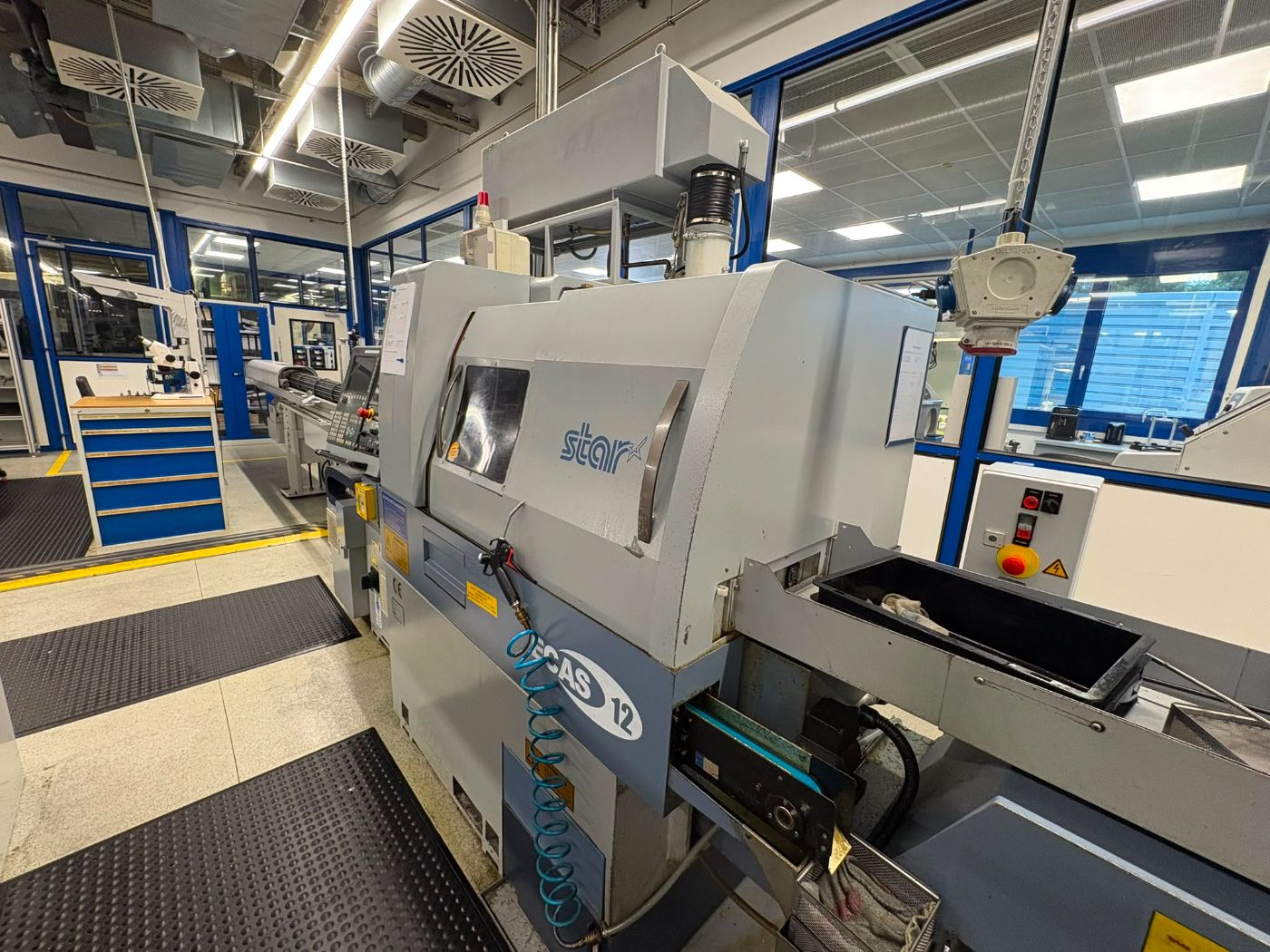

Star Micronics ECAS-12 CNC sliding-headstock (Swiss-type) automatic lathe, year of manufacture 2007, Siemens 840Di control with 10 controlled axes (X1, Y1, Z1, X2, Z2, X3, Y3, Z3, C1, C2). Maximum machining diameter 13 mm, headstock stroke 205 mm, main and counter spindle each up to 12,000 rpm with approx. 3.7 kW, C axis on both spindles, driven tools up to 8,000 rpm (approx. 0.75 kW), 4 counter-spindle tool positions, rapid traverse 18,000 mm/min. Connected load 8.0 kVA at AC 200 V. Machine weight 3,500 kg, dimensions approx. 2,590 x 1,140 x 1,830 mm. Location Germany, inspection possible.
available
STAR MICRONICS ECAS-12
| Manufacturer | Star Micronics |
| Model | Ecas-12 |
| Year | 2007 |
| Location | Germany |

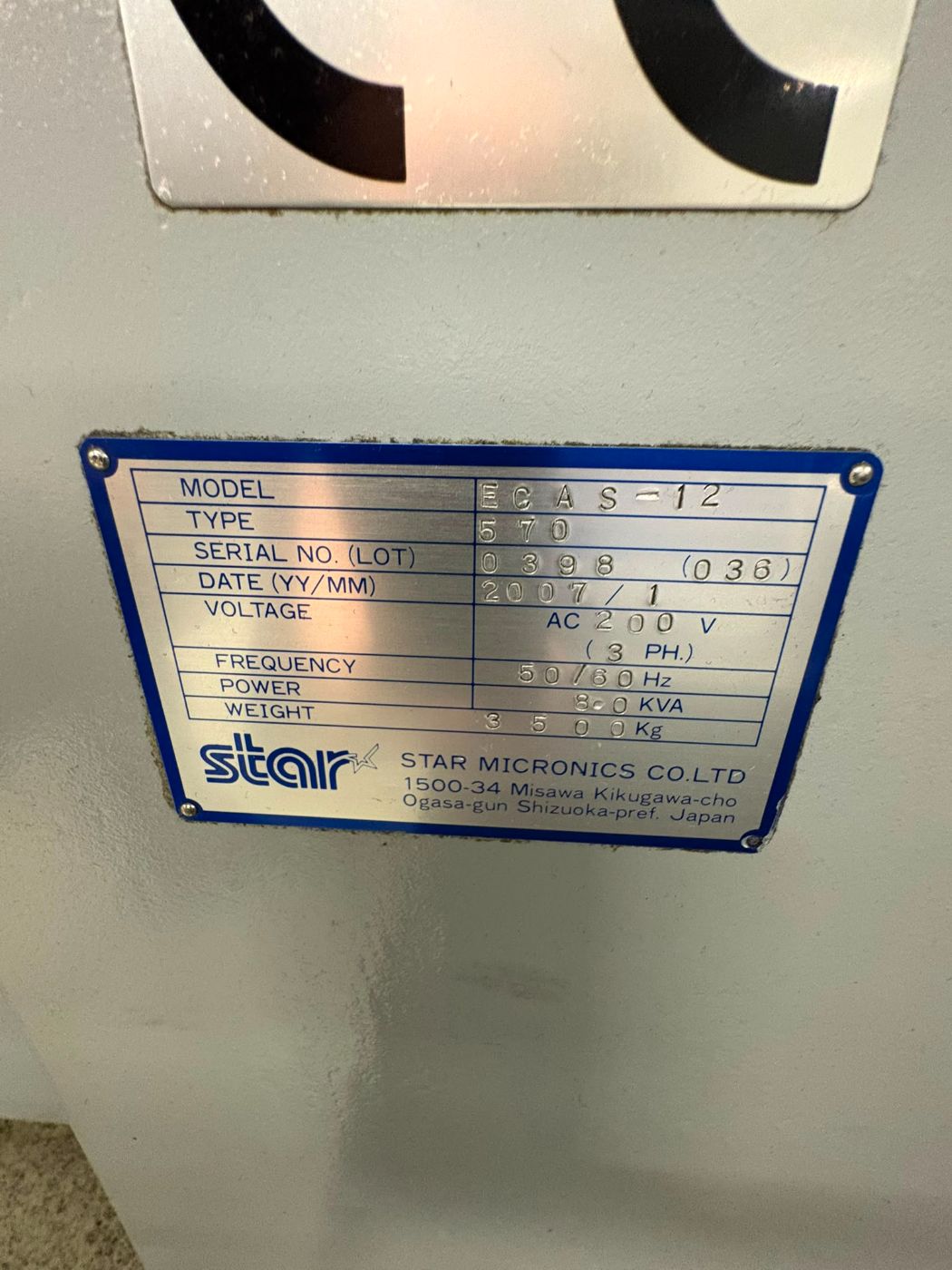

| Manufacturer | Star Micronics Co., Ltd., Japan |
| Model | ECAS-12 |
| Type | 570 |
| Year of manufacture | 2007 |
| Serial/Lot number | 0398 (036) |
| Machine type | CNC sliding-headstock / Swiss-type automatic lathe |

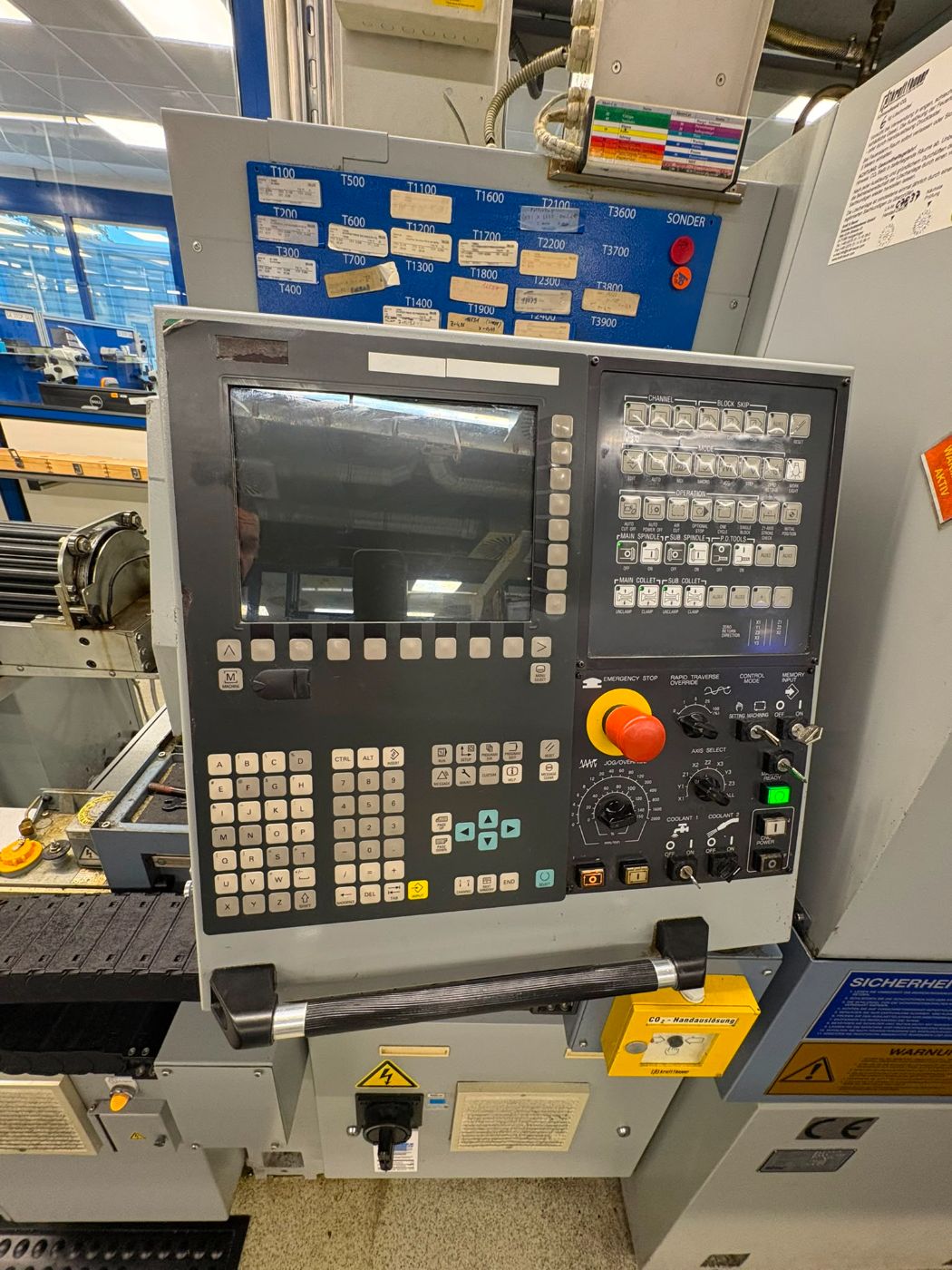

| CNC control | Siemens 840Di |
| Number of controlled axes | 10 |
| Main and counter spindle | Yes |
| C-axis on main and counter spindle | Yes |
| Maximum machining diameter | 13 mm |
| Maximum headstock stroke | 205 mm |
| Maximum stationary drilling diameter | 10 mm |
| Maximum driven-tool drilling diameter | 8 mm |
| Maximum stationary tapping capacity | M8 × P1.25 |
| Maximum driven-tool tapping capacity | M6 × P1.0 |
| Maximum milling diameter | 10 mm |
| Maximum die-cutting capacity | M8 × P1.25 |
| Maximum slotting capacity | 1.5 × 4 mm |
| Maximum spindle speed | 12,000 rpm |
| Minimum C-axis indexing increment | 0.01° |
| Main spindle motor output | Approximately 3.7 kW / 5 hp |
| Maximum clamping diameter | 13 mm |
| Maximum counter-spindle speed | 12,000 rpm |
| Minimum C-axis indexing increment | 0.01° |
| Counter-spindle motor output | Approximately 3.7 kW / 5 hp |
| Number of counter-spindle tool positions | 4 |
| Maximum driven-tool speed | 8,000 rpm |
| Driven-tool motor output | Approximately 0.75 kW / 1 hp |

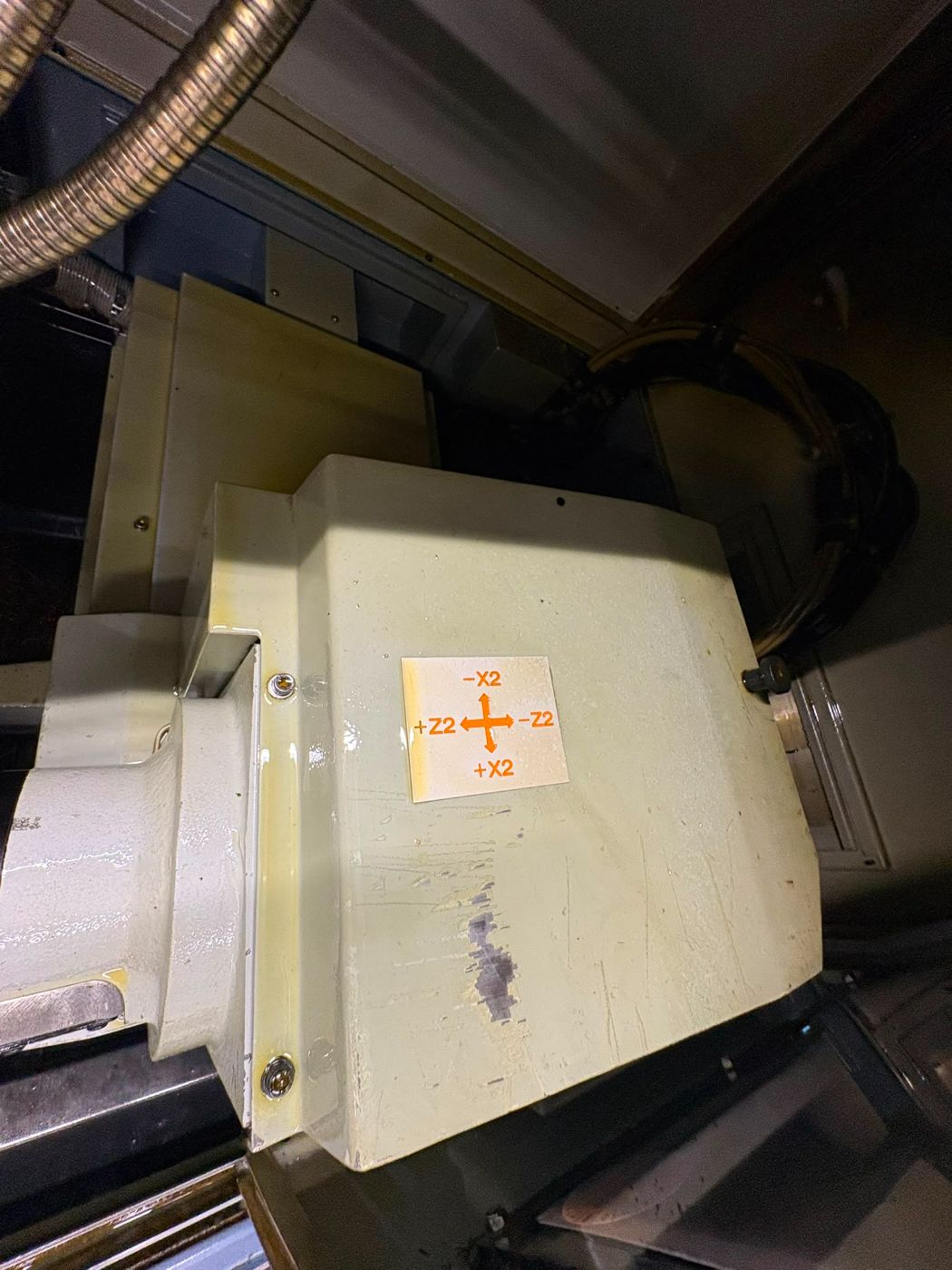

| Linear axes | X1, Y1, Z1, X2, Z2, X3, Y3 and Z3 |
| Rotary axes | C1 and C2 |
| Maximum rapid traverse on linear axes | 18,000 mm/min |
| Maximum rotary-axis feed | 194,400°/min |
| Minimum programmable linear increment | 0.001 mm |
| Minimum programmable C-axis increment | 0.001° |
| Operating voltage | AC 200 V |
| Power supply | Three-phase |
| Frequency | 50/60 Hz |
| Connected load | 8.0 kVA |
| Approximate machine dimensions | 2,590 × 1,140 × 1,830 mm |
| Machine weight | 3,500 kg |
€ 18,000 · Inspection possible
