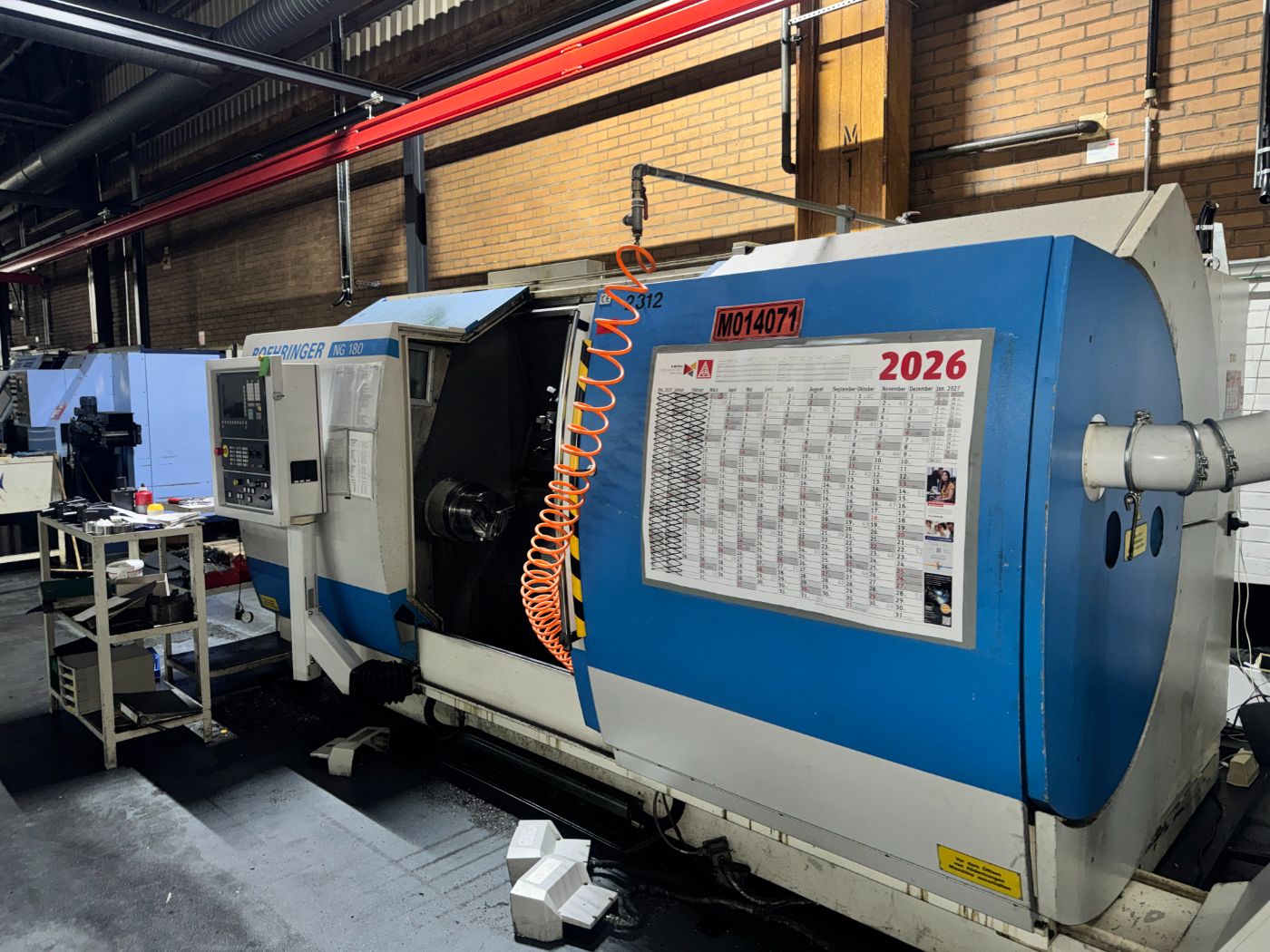

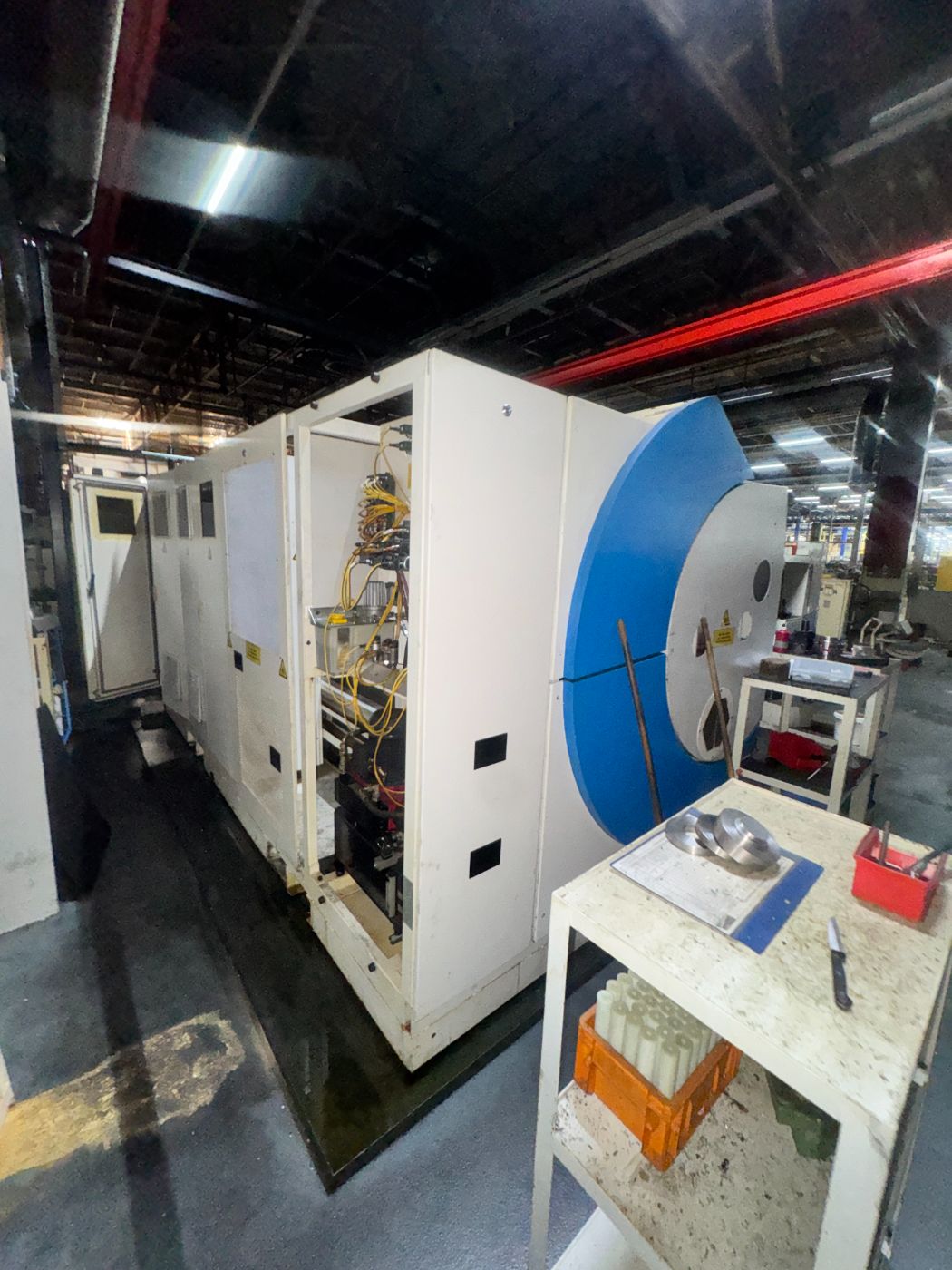

VDF Boehringer NG 180-2 CNC turning machine, built 2002 in Germany, machine no. 1130.2601-30, Siemens SINUMERIK 840D control with SIMODRIVE 611 drives. Turning diameter 290 mm, turning length approx. 850 to 900 mm, swing over bed 600 mm, spindle bore 80 mm, main spindle 10 to 4,000 rpm with 56 kW and 605 Nm (40 % ED), direct spindle drive suitable for CBN hard turning, 12-position turret with driven tools, 3-jaw Autoblok chuck. Connection 400 V 3 AC 50 Hz, main fuse 125 A. Dimensions approx. 5,949 x 2,300 x 2,230 mm, weight approx. 10,000 kg. Location Germany, inspection possible.
available
VDF Boehringer NG 180 -2 Turning Machine
| Manufacturer | VDF Boehringer |
| Model | NG 180-2 |
| Year | 2002 |
| Location | Germany |
| Year of manufacture | 2002 |
| Machine No. | 1130.2601-30 |
| Country of manufacture | Germany |

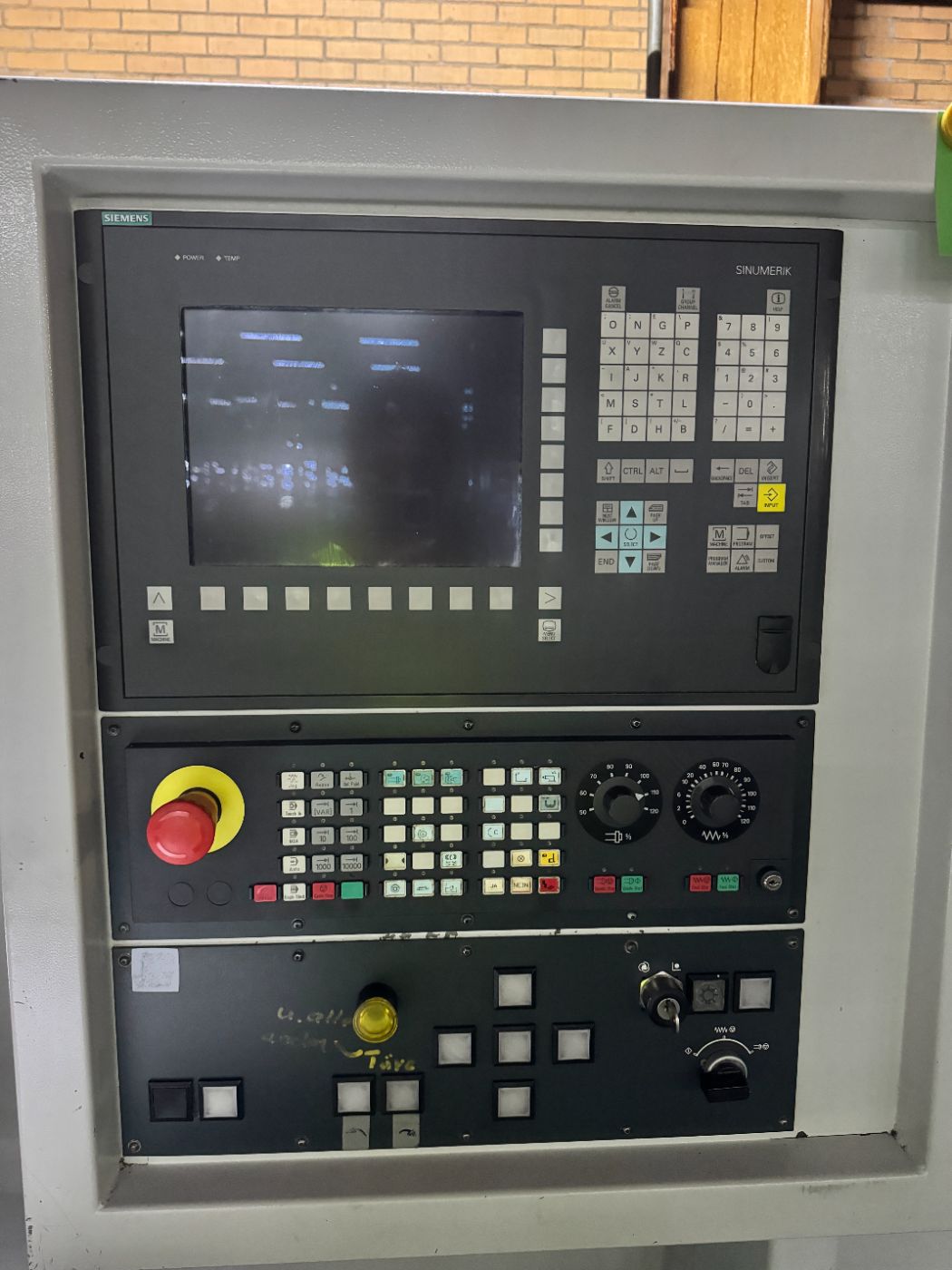

| Control | Siemens SINUMERIK 840D |

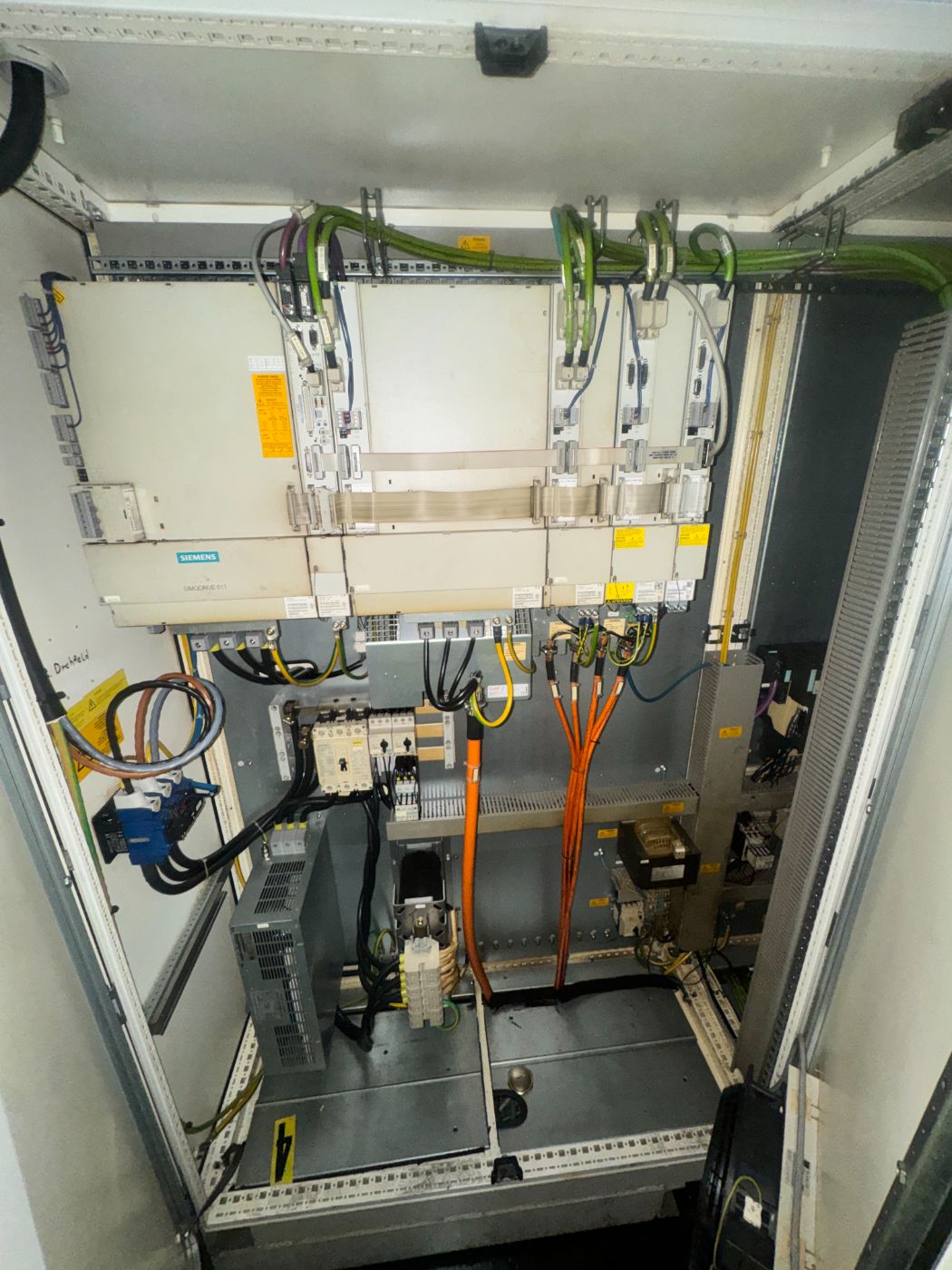

| Drive system | Siemens SIMODRIVE 611 |
| Turning diameter | 290 mm |
| Turning length / distance between centers | approx. 850–900 mm |
| Swing diameter over bed | 600 mm |
| Spindle bore | 80 mm |
| Main spindle speed | 10–4,000 rpm |

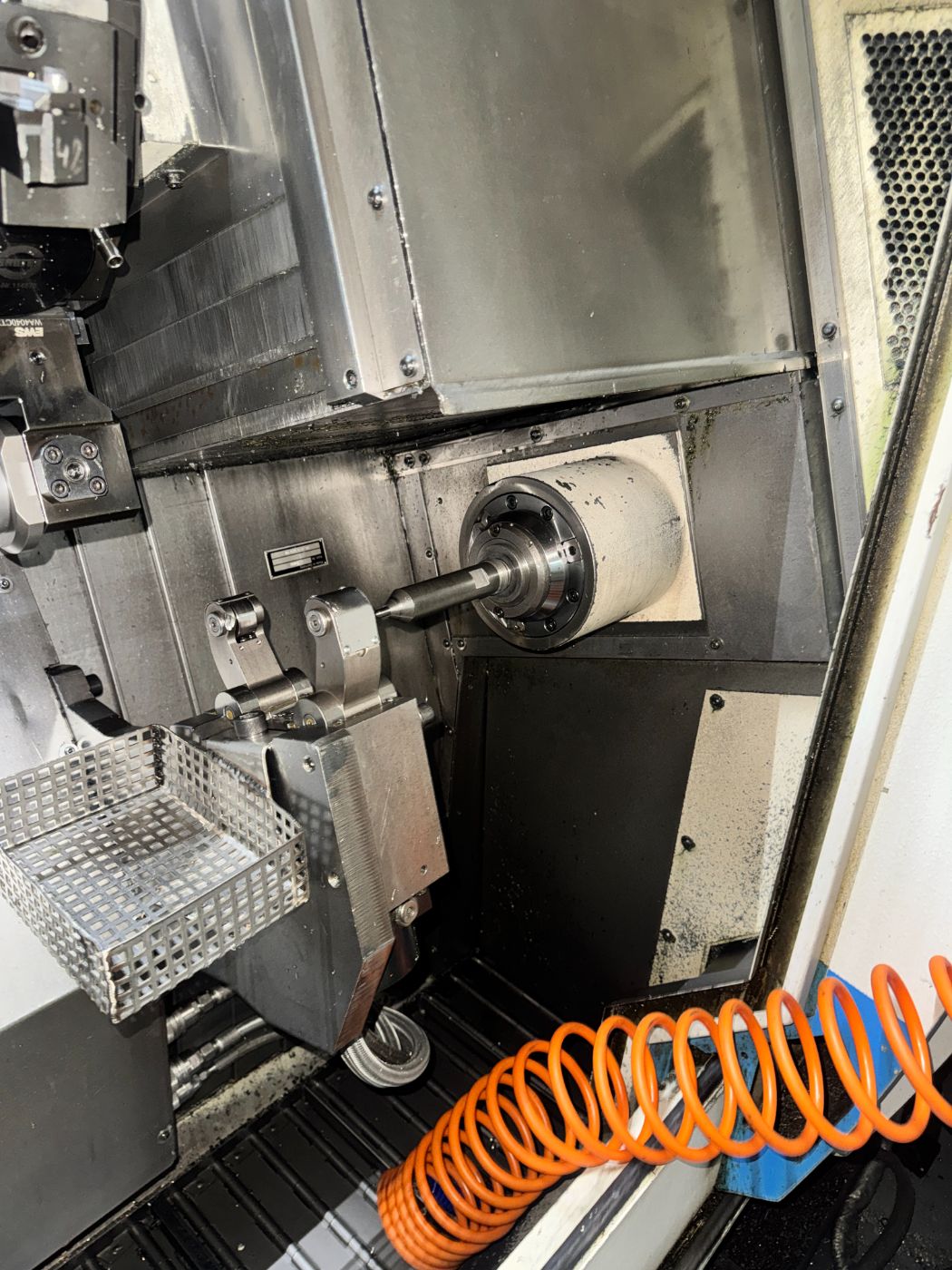

| Main spindle drive | Direct drive, suitable for CBN hard turning |
| Spindle drive power at 40% ED | 56 kW |
| Maximum spindle torque at 40% ED | 605 Nm |

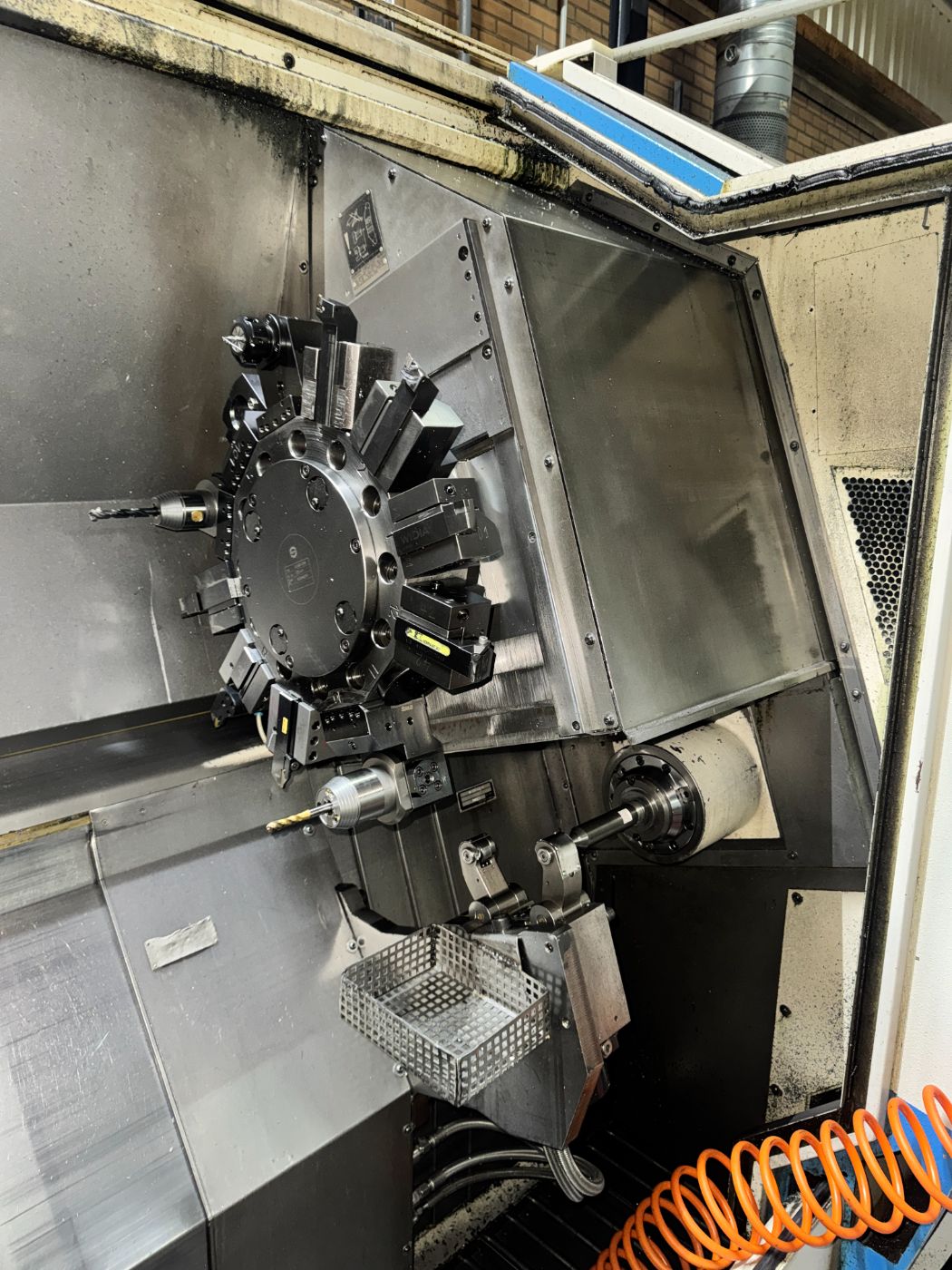

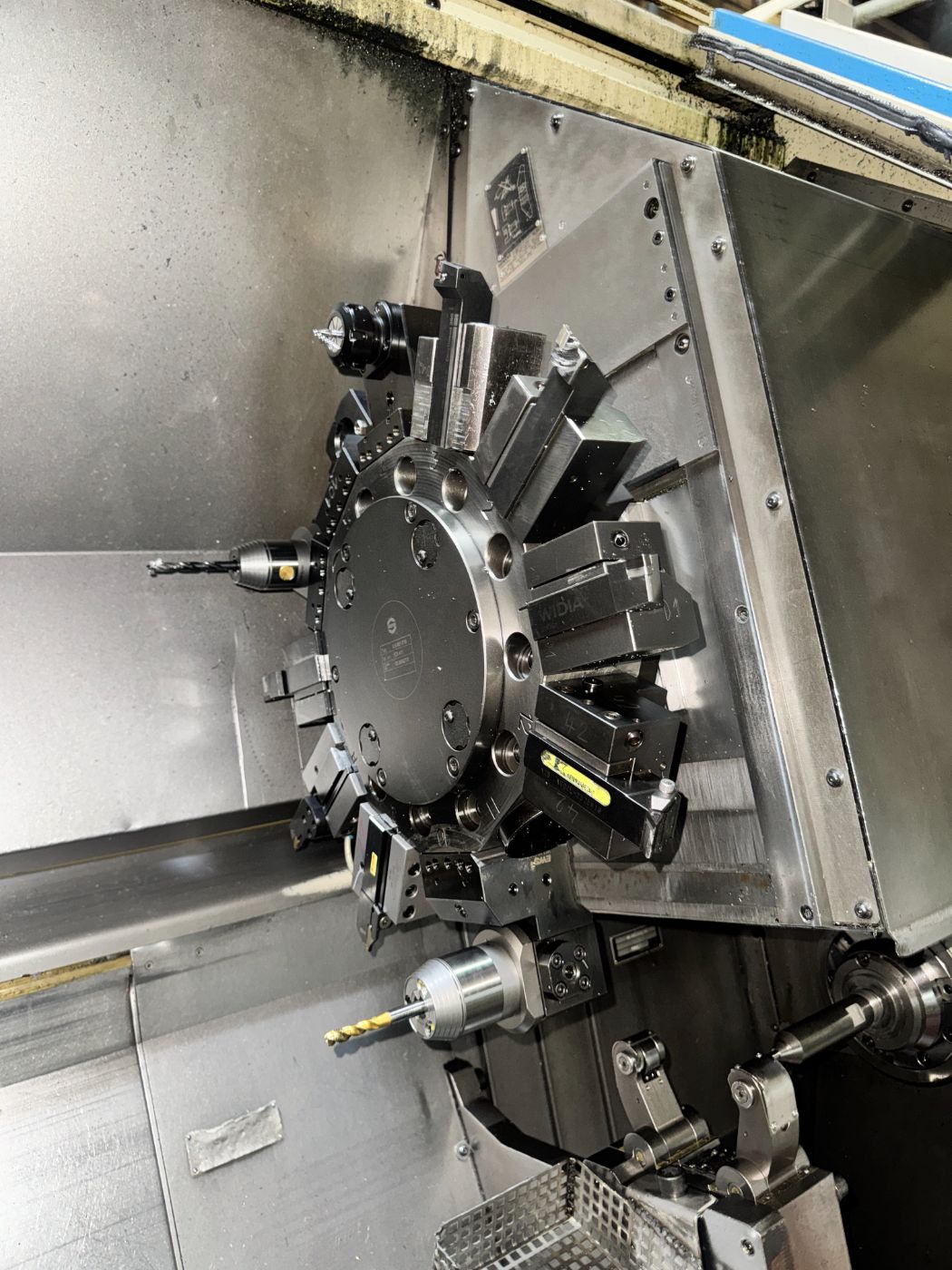

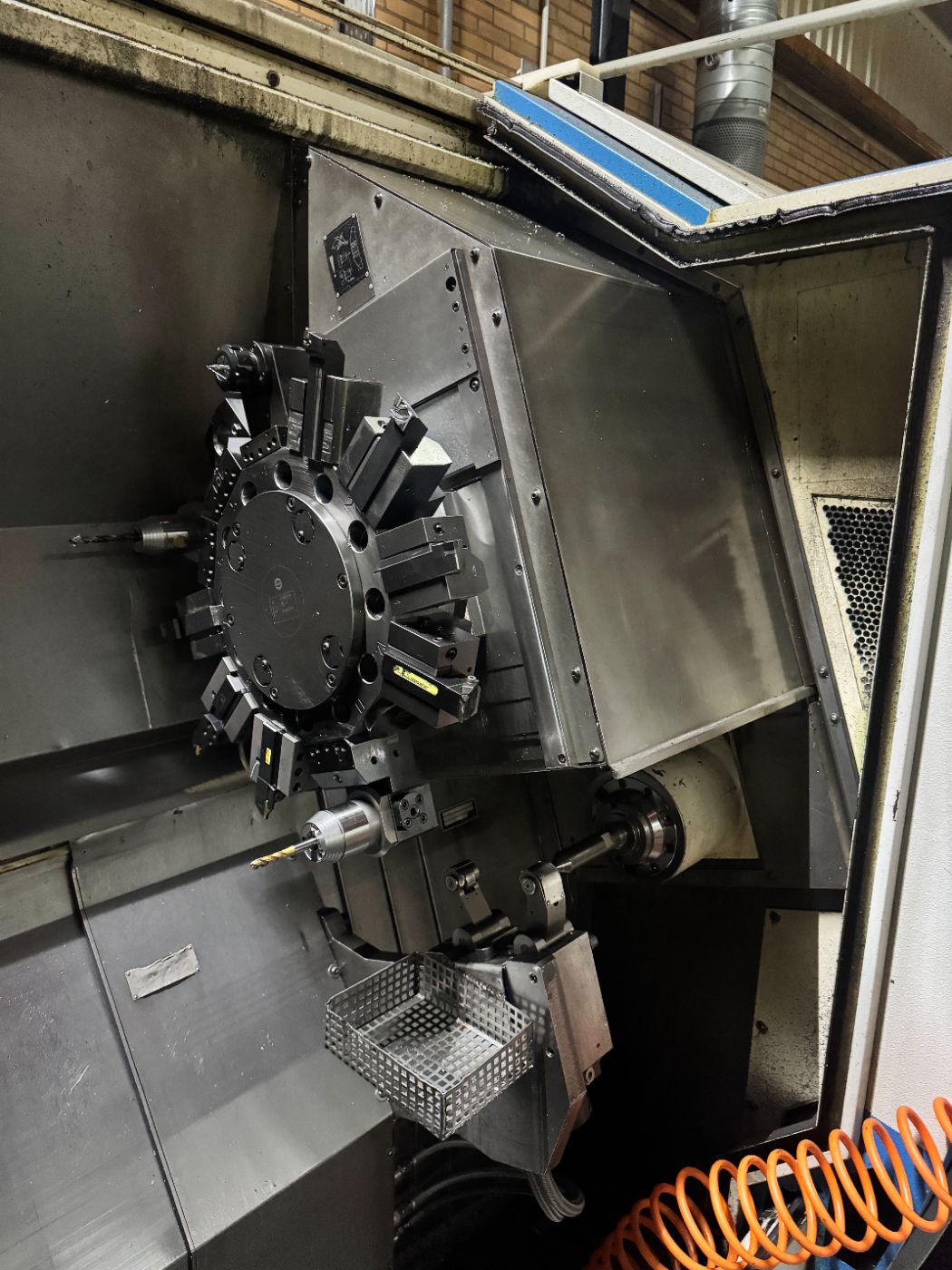

| Tool turret | 12 positions |
| Number of turrets | 1 |
| Driven/live tool capability | 12 stations |
| Tool holders | Included / fitted as shown |

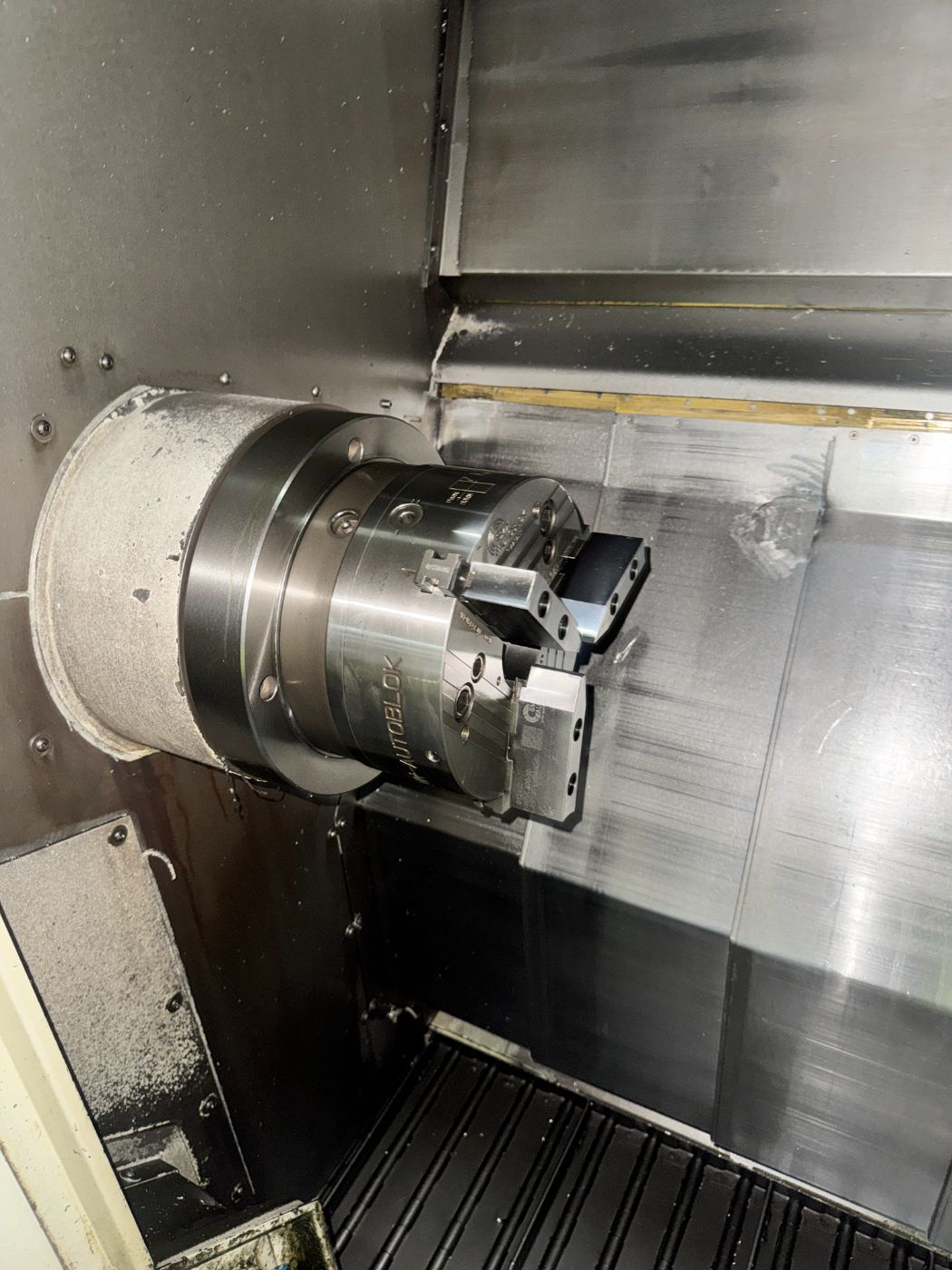

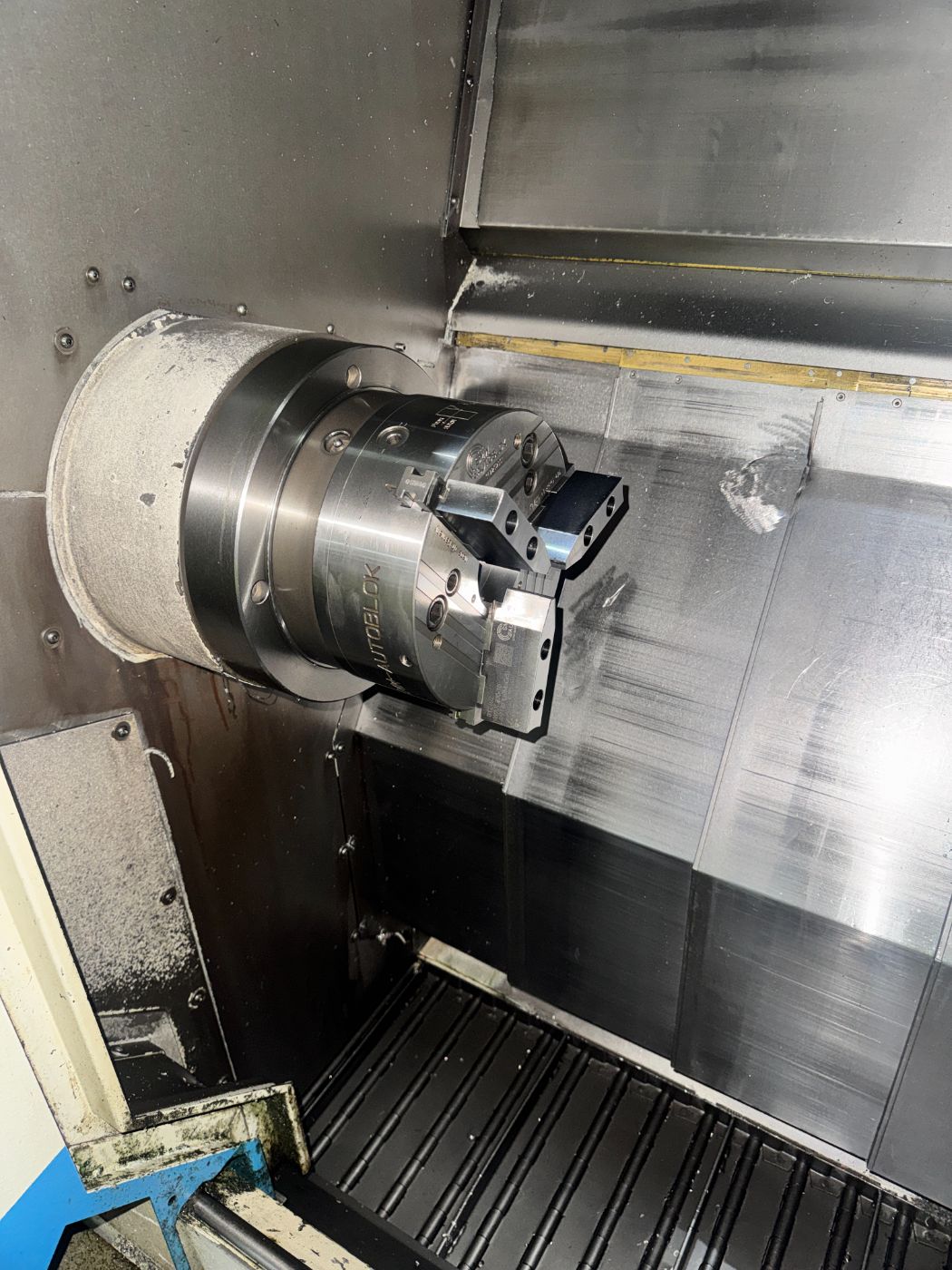

| Main spindle chuck | 3-jaw Autoblok chuck |

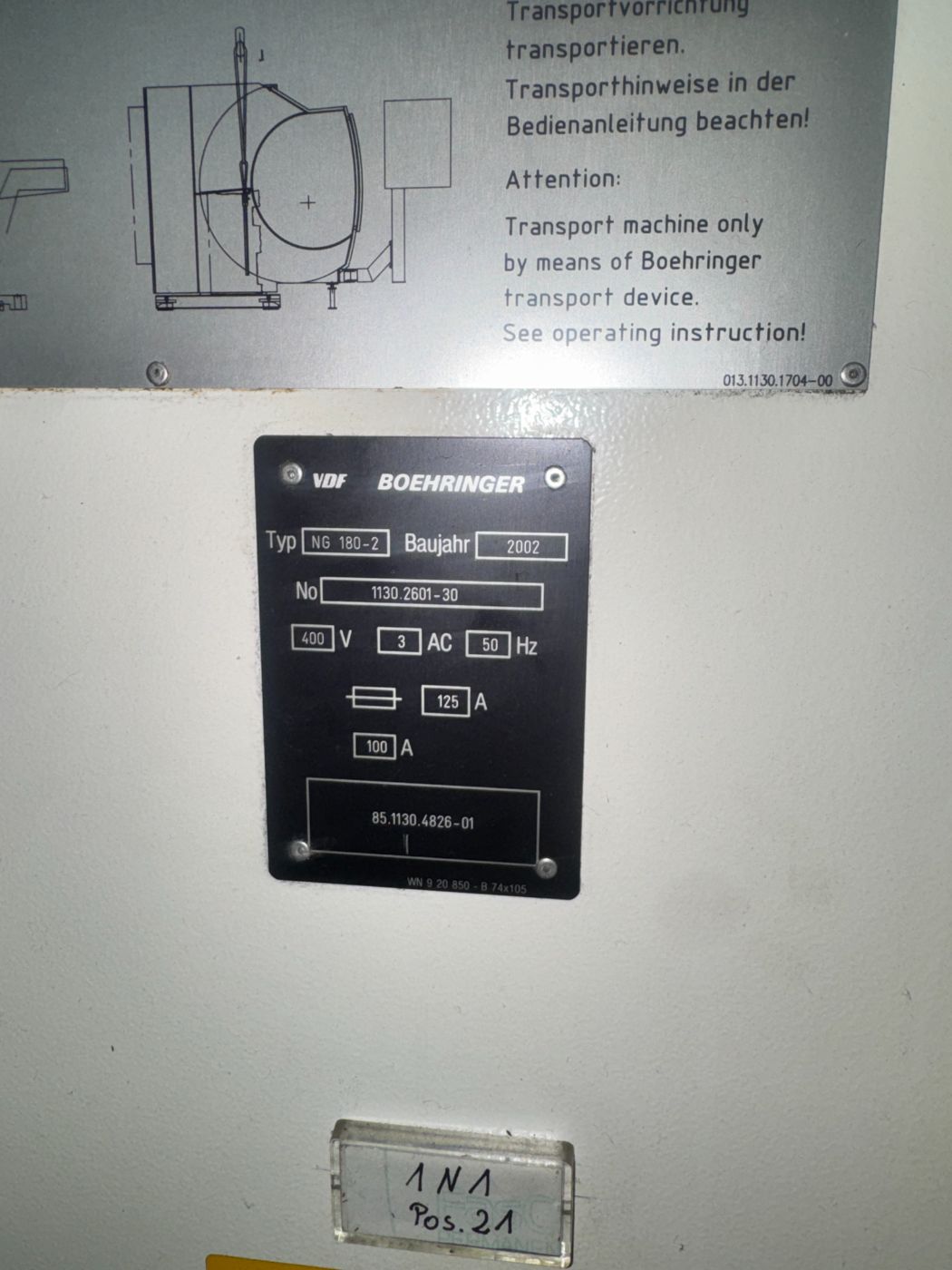

| Supply voltage | 400 V |
| Phases | 3 AC |
| Frequency | 50 Hz |
| Main fuse rating | 125 A |
| Rated current indicated on machine | 100 A |
| Length | approx. 5,949 mm |
| Width | approx. 2,300 mm |
| Height | approx. 2,230 mm |
| Machine weight | approx. 10,000 kg |
| Machine | VDF BOEHRINGER NG 180-2 |
| Year | 2002 |
| Serial No. | 1130.2601-30 |
| Control | Siemens SINUMERIK |
| Max. turning diameter | 290 mm |
| Turning length | approx. 850–900 mm |
| Spindle bore | 80 mm |
| Spindle speed | 10–4,000 rpm |
| Spindle power | 56 kW |
| Turret | 12 positions |
| Dimensions | approx. 5,949 × 2,300 × 2,230 mm |
| Weight | approx. 10,000 kg |
€ 19,000 · Inspection possible
