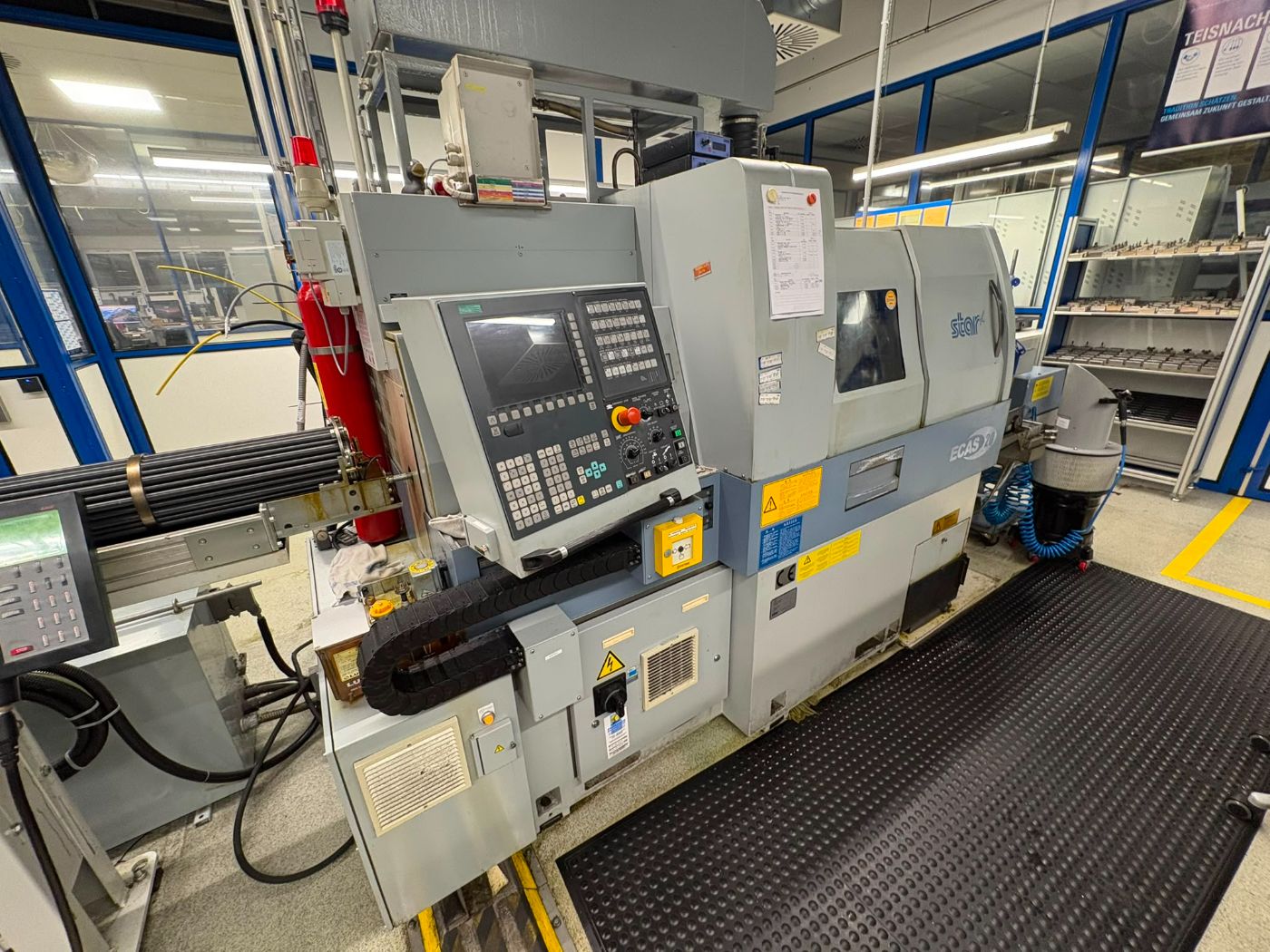

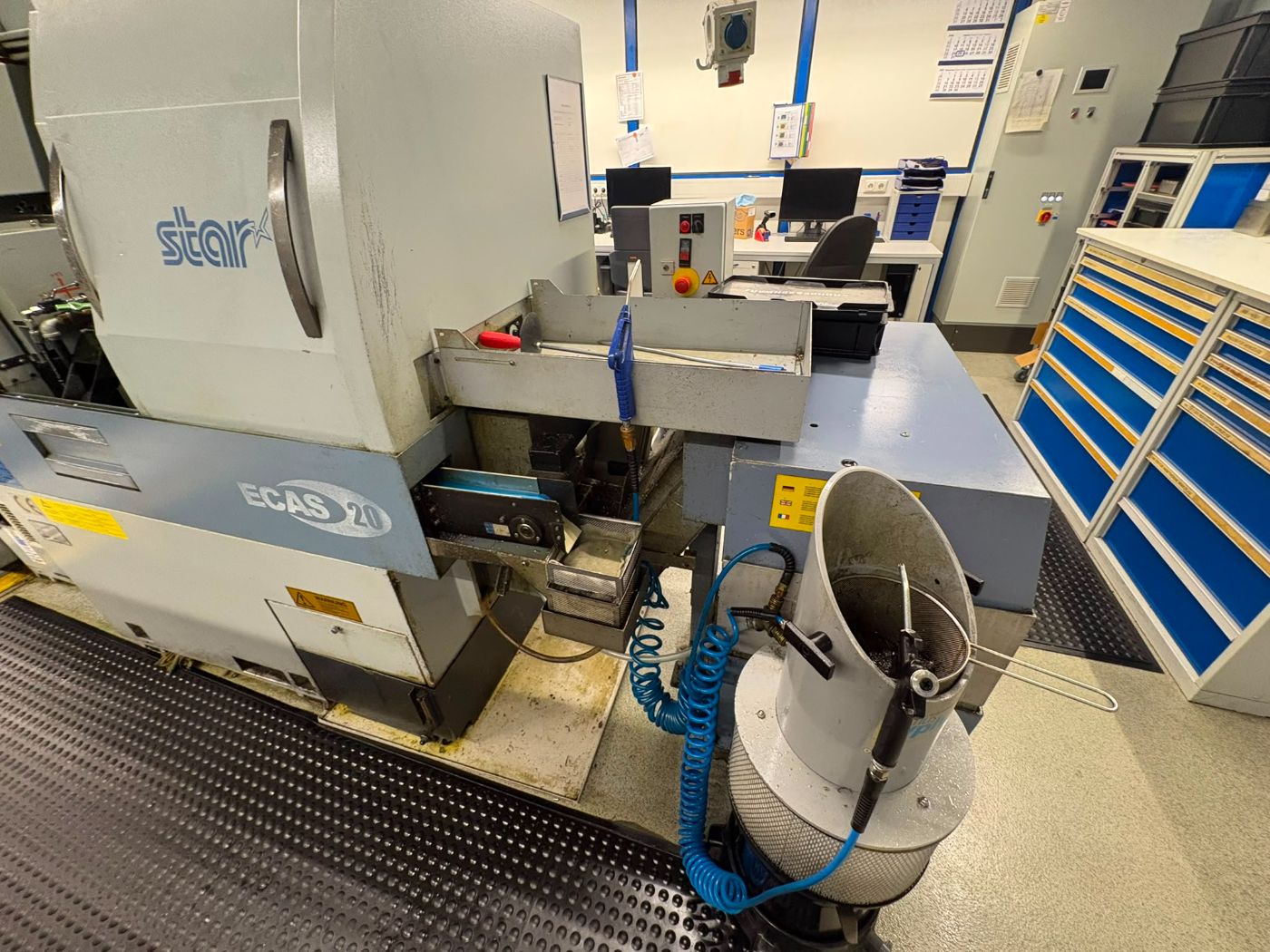

Star Micronics ECAS-20 CNC Swiss-type sliding-headstock automatic lathe, manufactured March 2011 in Japan. Bar capacity and machining diameter Ø20 mm, headstock stroke and turning length 205 mm, main spindle 500 to 10,000 rpm with 2.2 kW continuous / 3.7 kW (30 min) motor, sub-spindle, C axis on main and sub-spindle with 0.001° indexing, driven tools up to approx. 8,000 rpm, up to 16 tool positions depending on configuration. Drilling up to approx. Ø10 mm and tapping up to M8 with fixed tools. Machine weight 3,500 kg, dimensions approx. 2,588 x 1,150 x 1,765 mm. Location Germany, inspection possible.
available

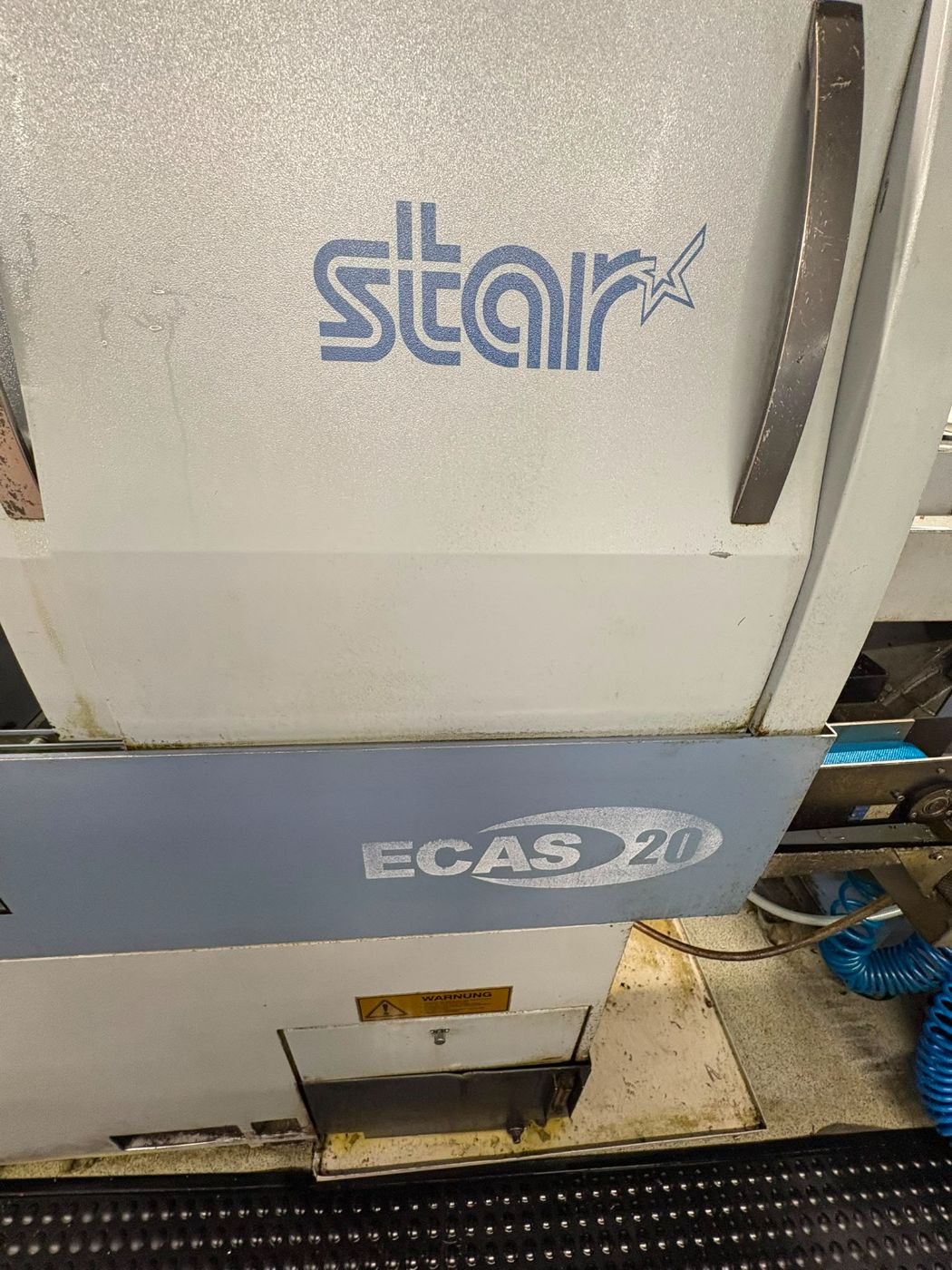

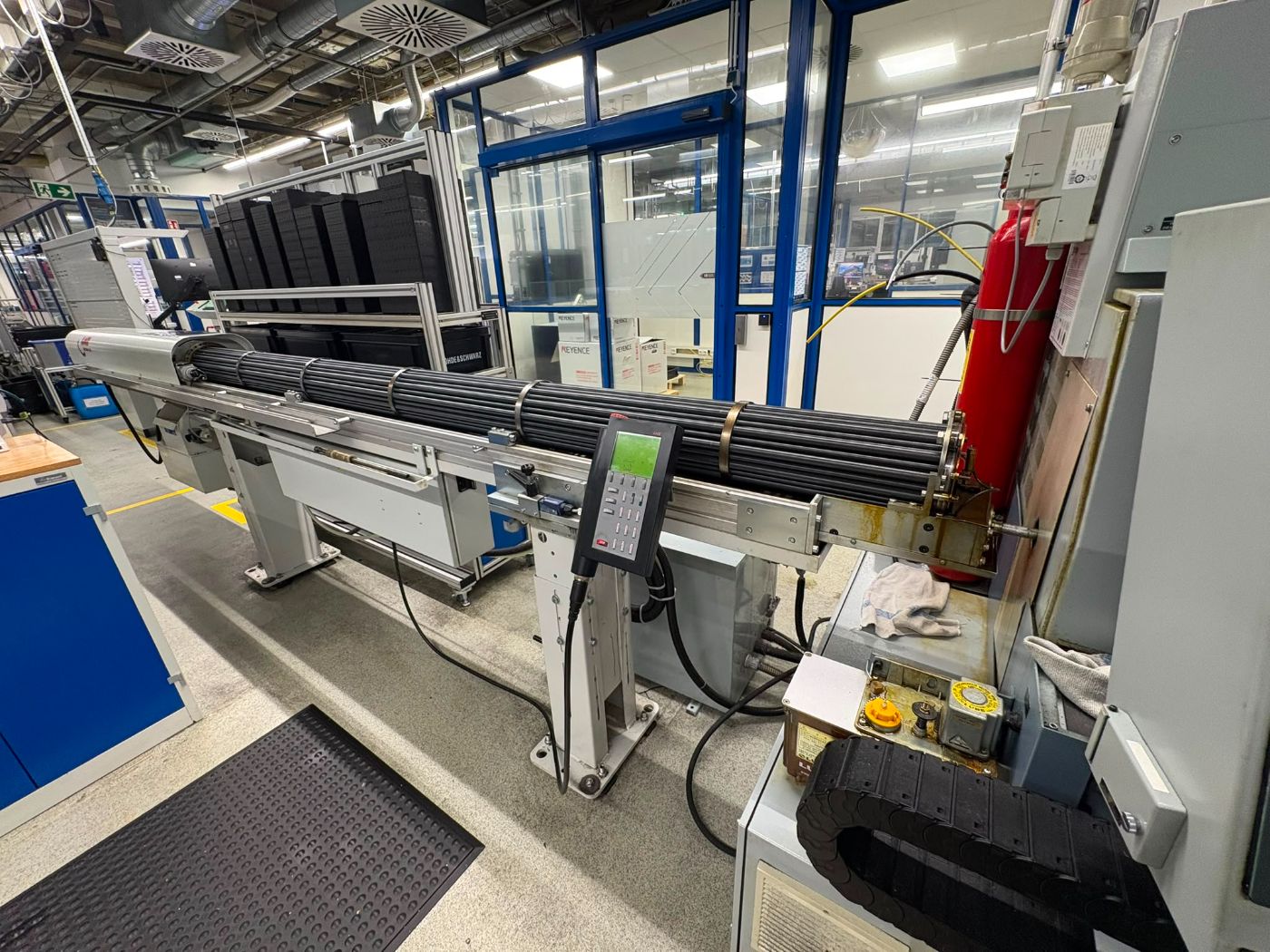

STAR MICRONICS ECAS-20
| Manufacturer | Star Micronics |
| Model | Ecas-20 |
| Year | 2011 |
| Location | Germany |

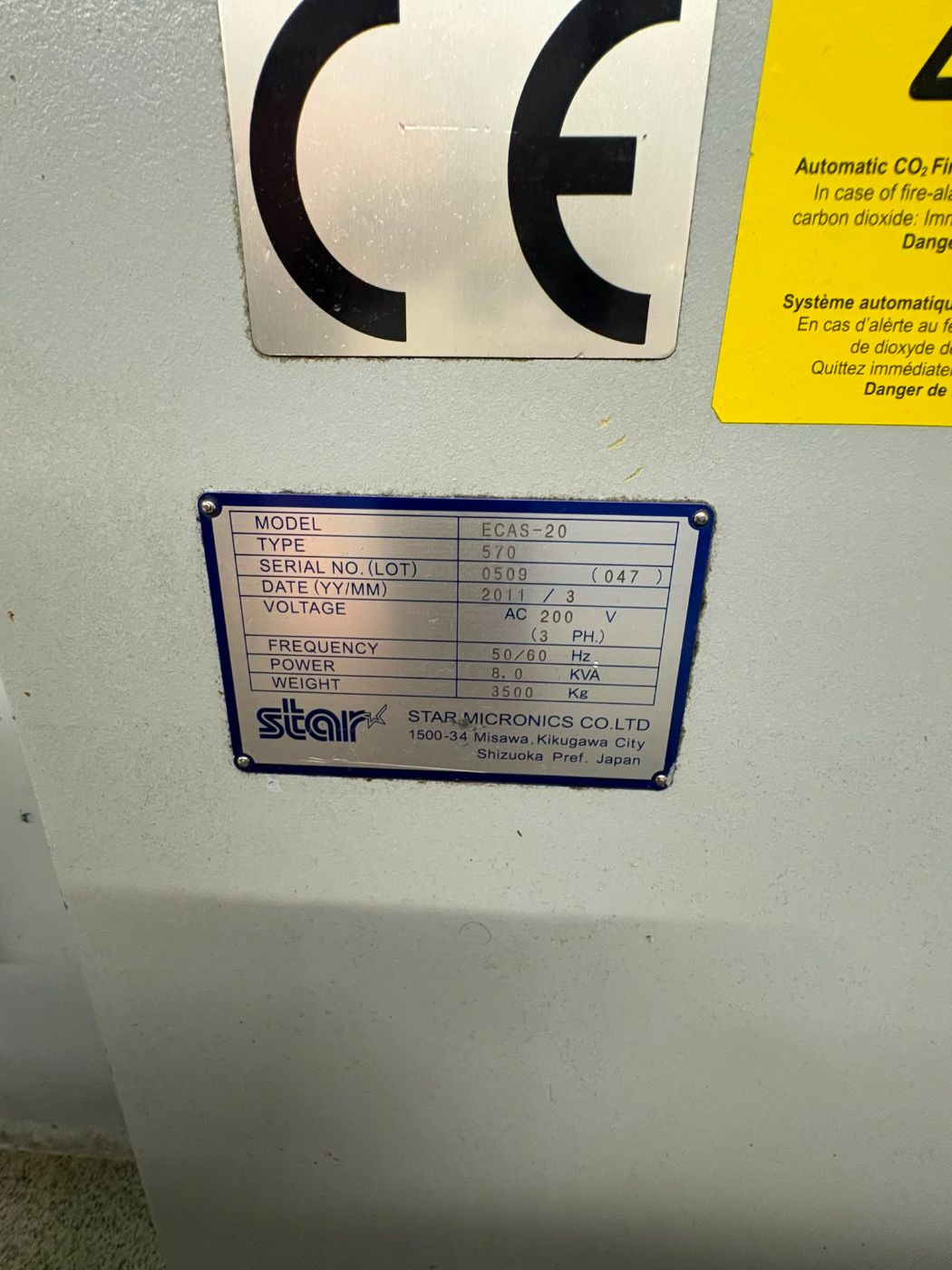

| Manufacturer | STAR Micronics Co., Ltd., Japan |
| Model | ECAS-20 |
| Type | 570 |
| Year of Manufacture | 2011 |
| Manufacturing Date | March 2011 |
| Serial / Lot No. | 0509 (047) |
| Machine Type | CNC Swiss-Type / Sliding-Headstock Automatic Lathe |
| Country of Manufacture | Japan |
| Maximum Bar Capacity | Ø20 mm |
| Maximum Machining Diameter | Ø20 mm |
| Maximum Headstock Stroke | 205 mm |
| Maximum Turning Length | 205 mm |
| Main Spindle Speed | 500–10,000 rpm |
| Main Spindle Motor | 2.2 kW continuous / 3.7 kW (30 min rating) |

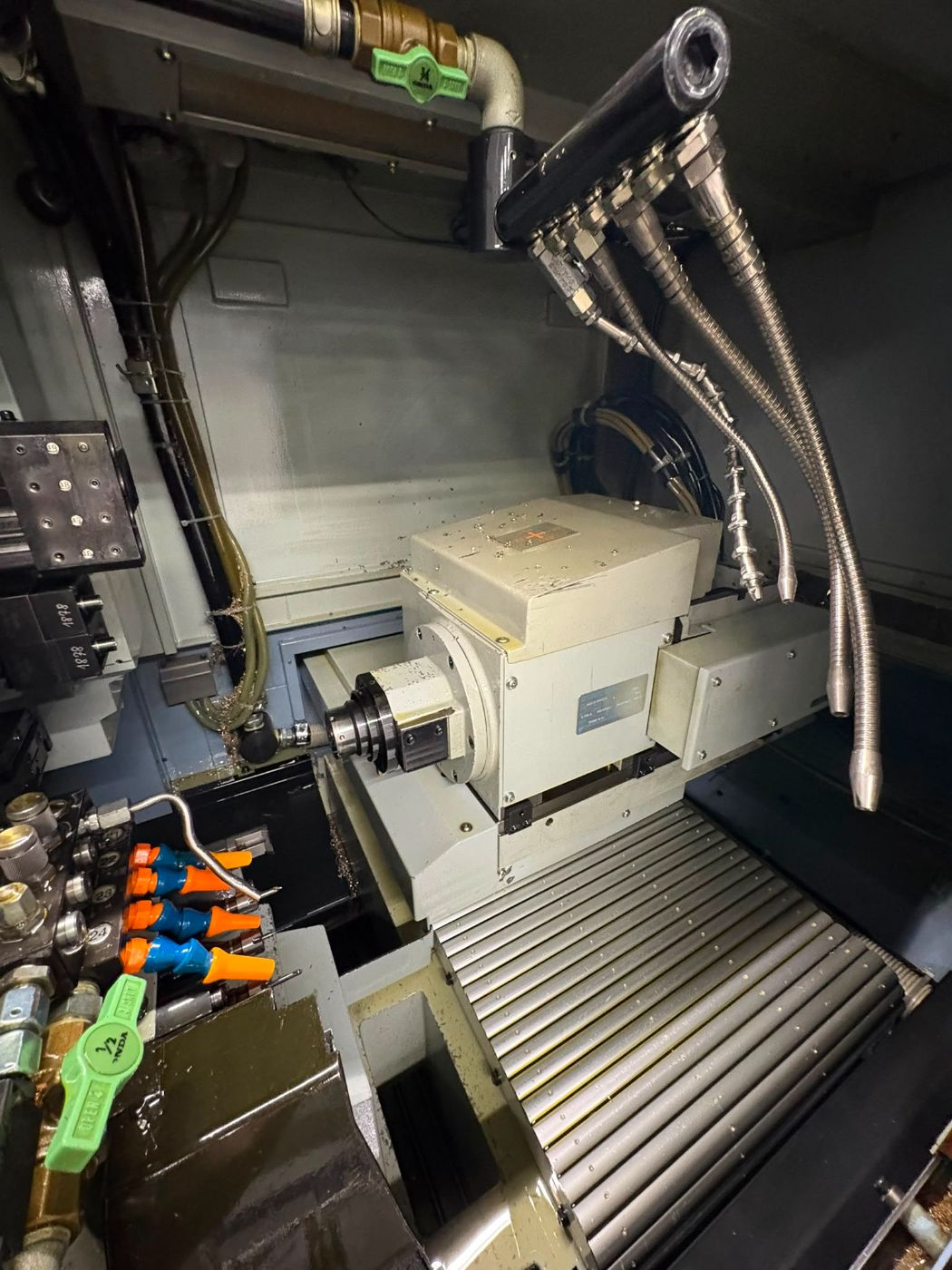

| Sub-Spindle | Yes |
| Main Spindle C-Axis | Yes |
| Sub-Spindle C-Axis | Yes |
| C-Axis Minimum Indexing | 0.001° |
| Driven Tooling | Yes |
| Maximum Driven Tool Speed | Approx. 8,000 rpm |

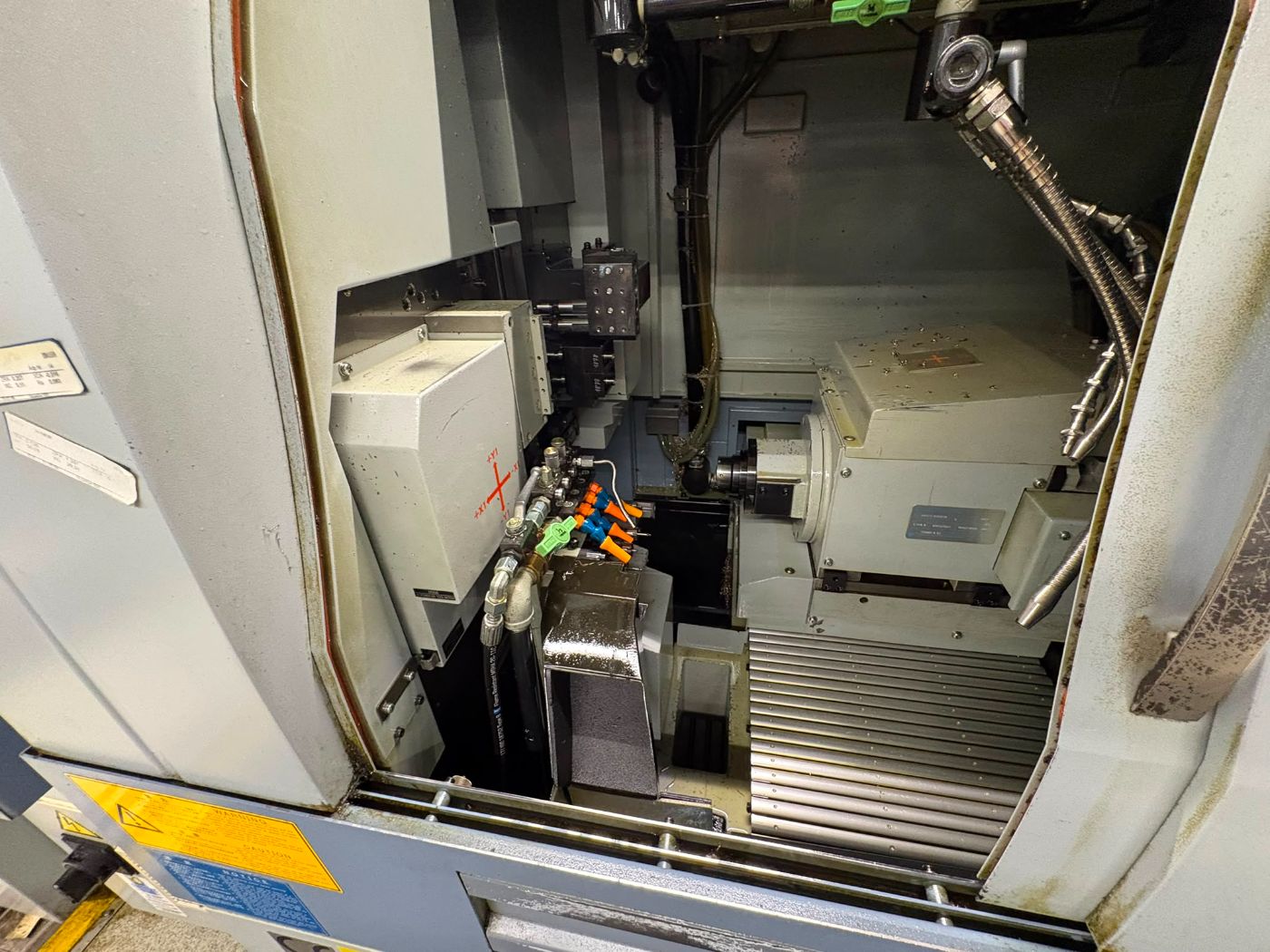

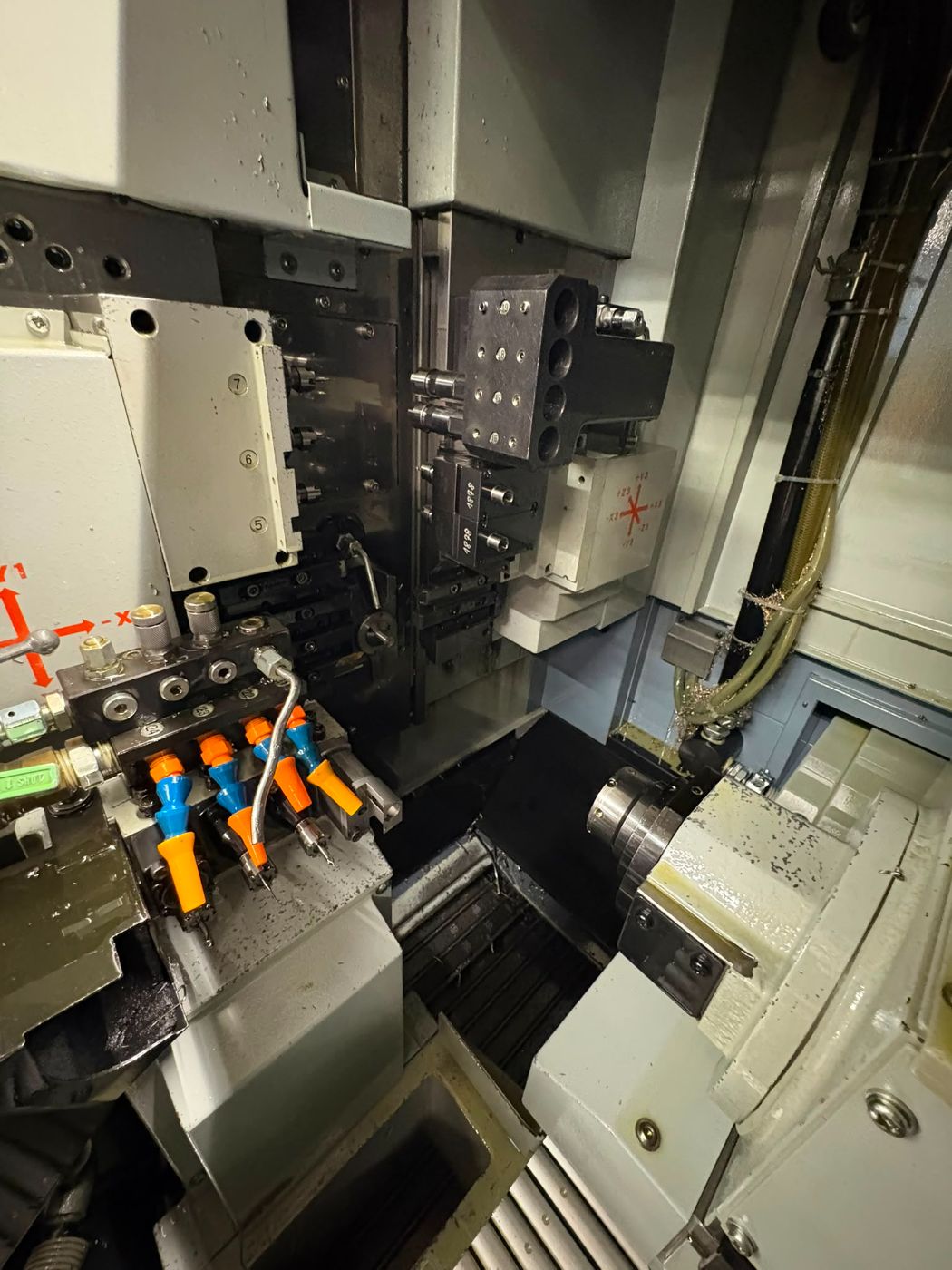

| Tool Positions | Up to 16, depending on configuration |
| Fixed Tool Drilling Capacity | Approx. Ø10 mm |
| Fixed Tool Tapping Capacity | Approx. M8 × 1.25 |
| Driven Tool Drilling Capacity | Approx. Ø8 mm |
| Driven Tool Tapping Capacity | Approx. M6 × 1.0 |
| Driven Tool Milling Capacity | Approx. Ø10 mm |
| Slotting Capacity | Approx. 1.5 mm width × 4 mm depth |

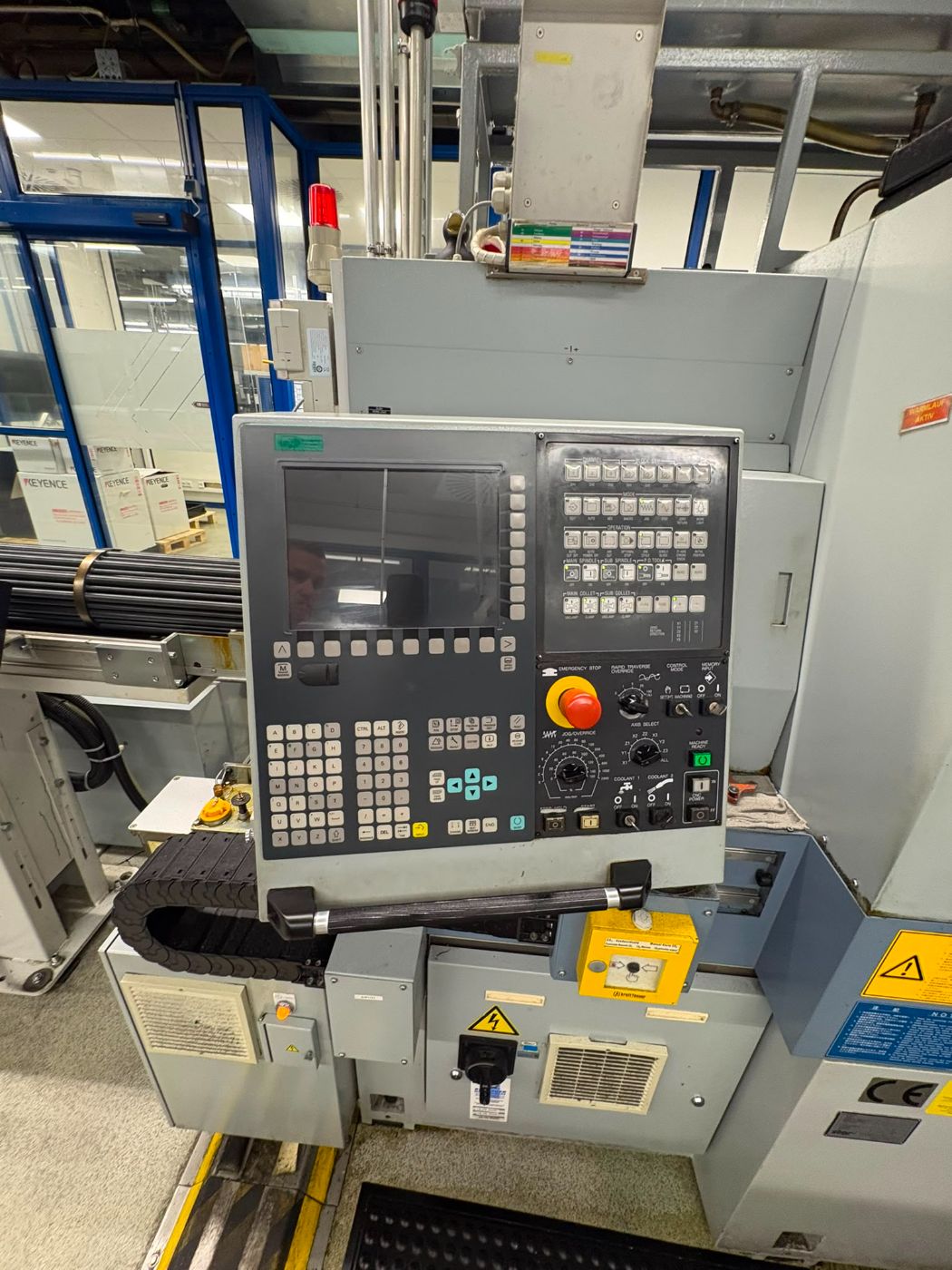

| CNC Control | STAR NICS / Siemens-Yaskawa CNC |
| Control Type | CNC automatic production control |
| Power Supply | AC 200 V |
| Phase | 3 Phase |
| Frequency | 50 / 60 Hz |
| Power Rating | 8.0 kVA |
| Approx. Machine Dimensions | 2,588 × 1,150 × 1,765 mm (W × D × H) |
| Machine Weight | 3,500 kg |
Price on request · Inspection possible
