Home / Machinery / CNC lathes and turning centres / Boehringer VDF 250 Cm
Boehringer VDF 250 Cm, year of manufacture 1997. Technical data: Manufacturer VDF Boehringer, Model VDF 250 Cm, Type CNC slant bed turning center, chuck work, Year 1997, Serial no. 1114.3705-24, Control Siemens Sinumerik 840C, Location Korschenbroich, Germany, Swing over bed 550 mm. Used cnc lathe offered by BIA GmbH, Düsseldorf, location Germany. Inspection possible, worldwide shipping.
available
Boehringer VDF 250 Cm
| Manufacturer | Boehringer |
| Model | VDF 250 Cm |
| Year | 1997 |
| Location | Germany |
| Manufacturer | VDF Boehringer |
| Model | VDF 250 Cm |
| Type | CNC slant bed turning center, chuck work |
| Year | 1997 |

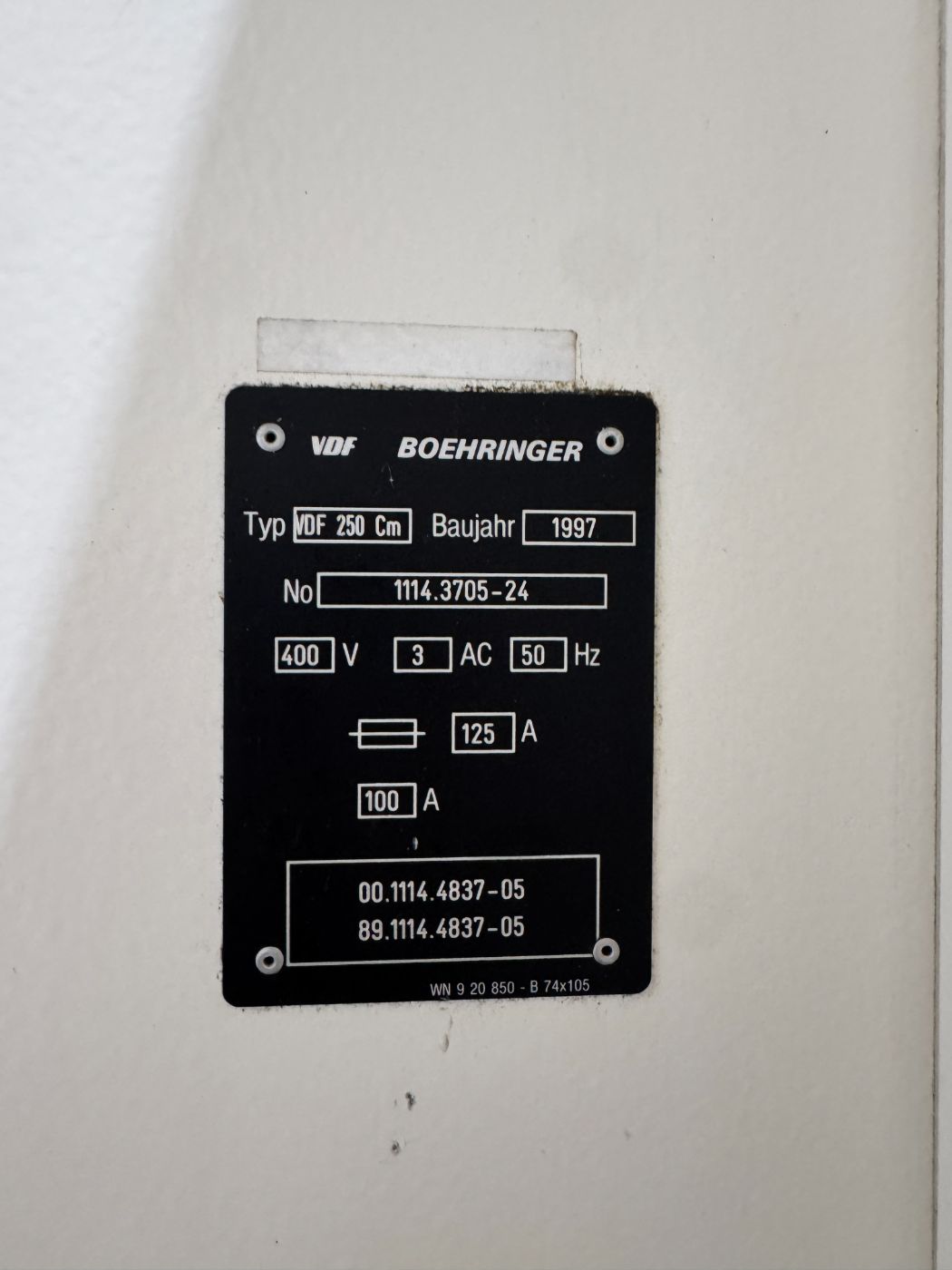

| Serial no. | 1114.3705-24 |

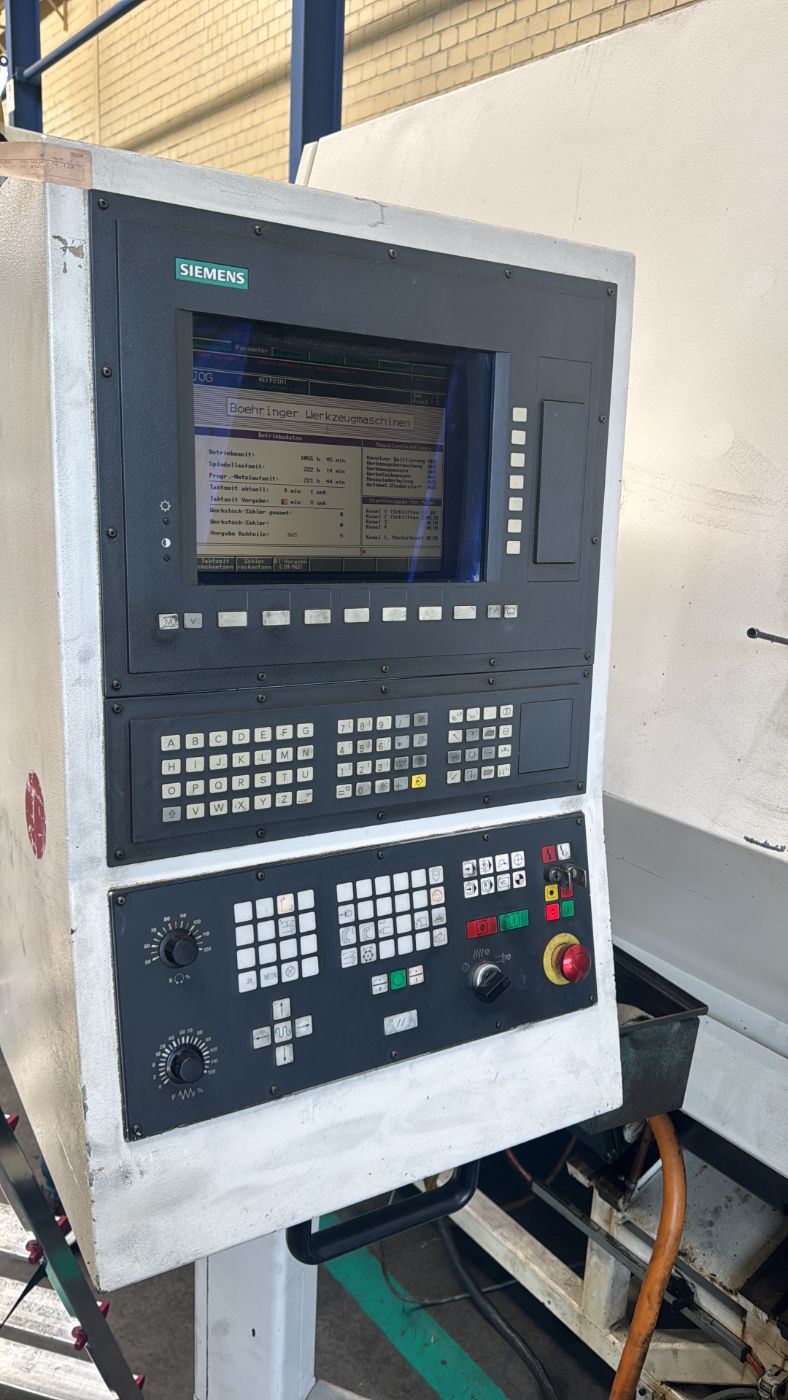

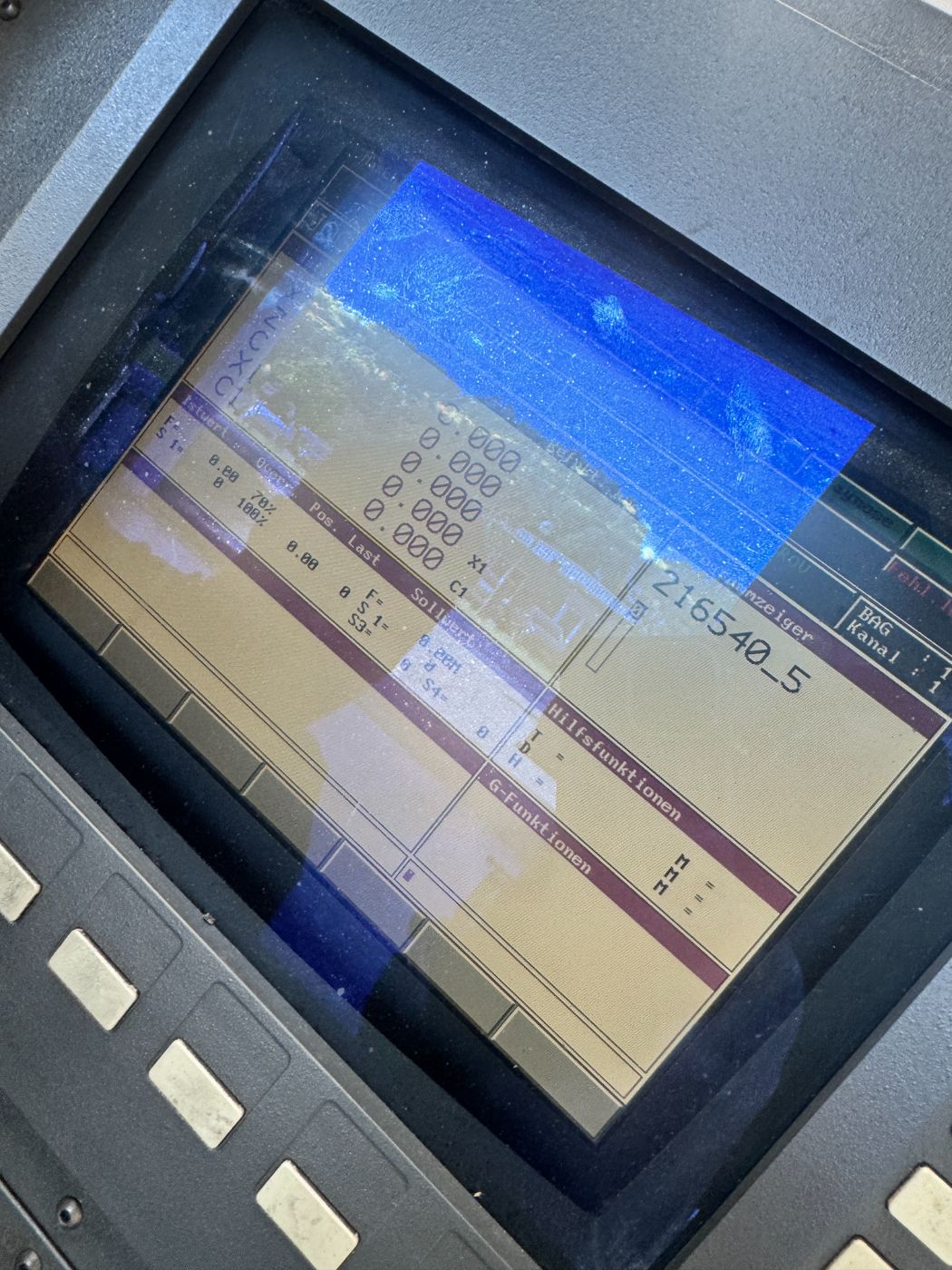

| Control | Siemens Sinumerik 840C |
| Location | Korschenbroich, Germany |
| Swing over bed | 550 mm |
| Swing over cross slide | 480 mm |
| Max. turning length | 1,000 mm |
| Tailstock | none (chuck work only) |

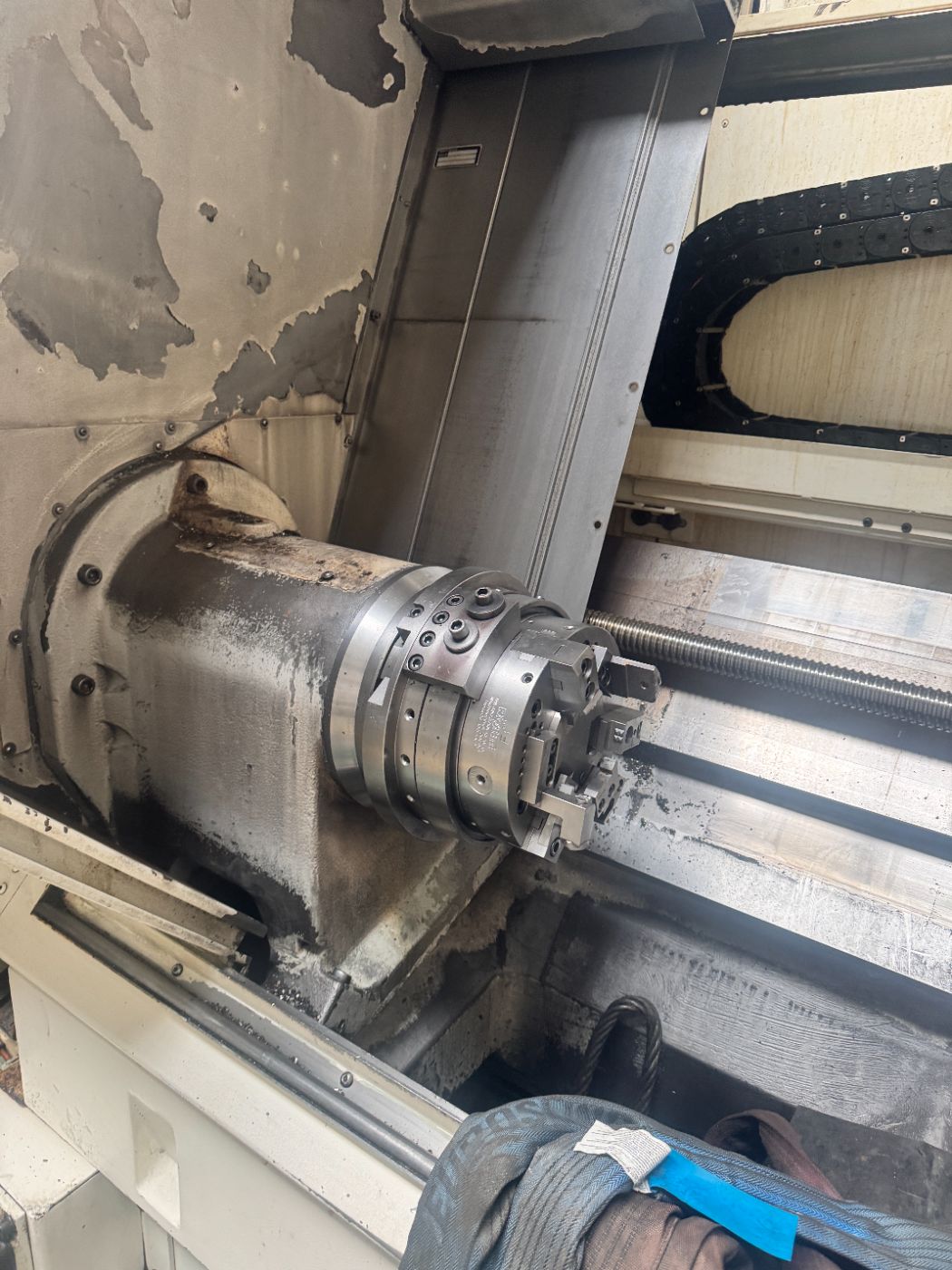

| Spindle nose | size 8, DIN 55026 |
| Spindle bore | 103 mm |
| Max. speed | 4,500 rpm |
| C-axis | yes |
| X travel | 405 mm |
| Z travel | 1,099 mm |
| Rapid traverse | 10 m/min |
| Feed range | 0.1 to 10,000 mm/min |

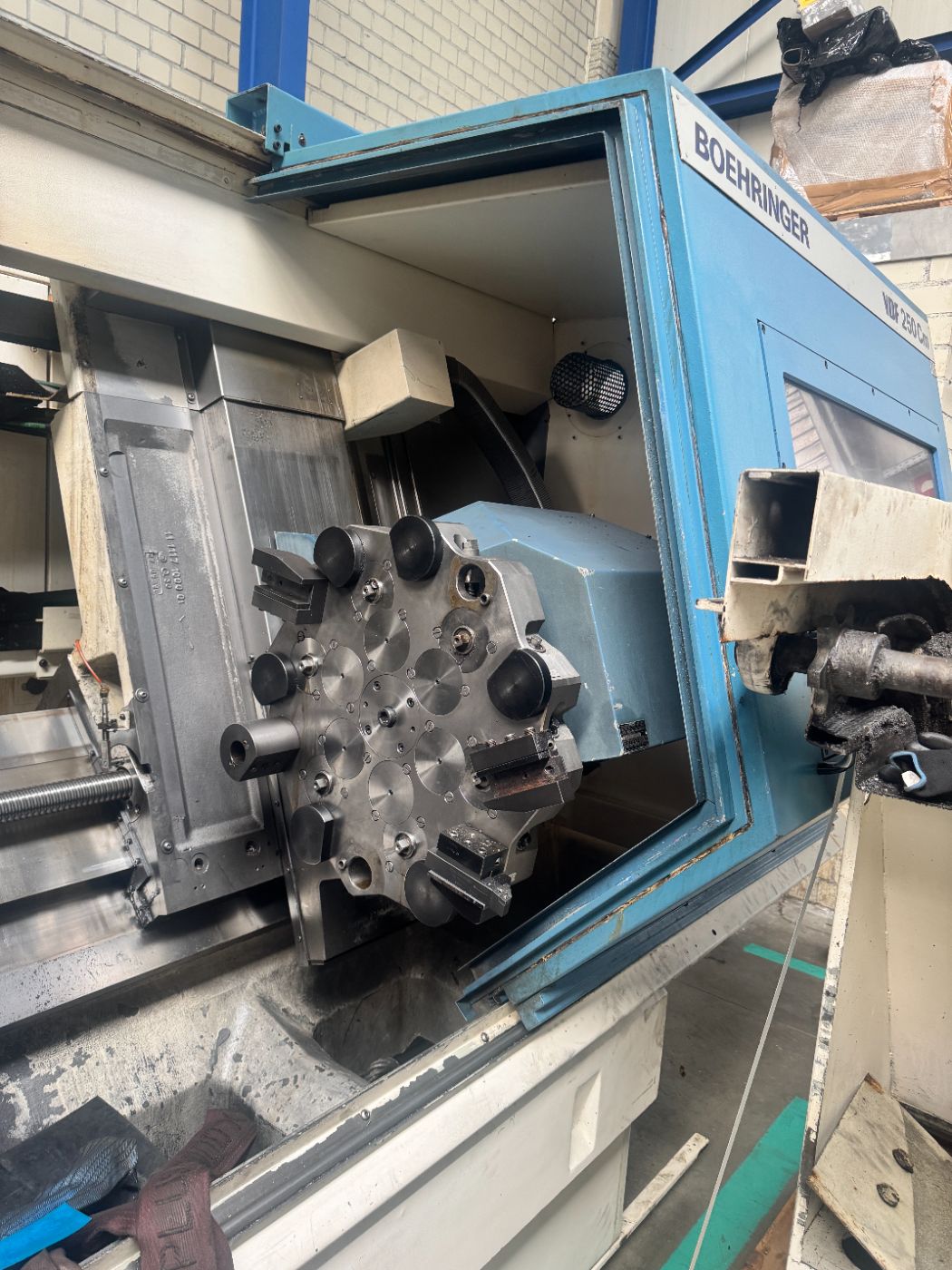

| Driven tools | yes, up to 2,500 rpm, 5.4 kW |
| Driven tool torque | 25 Nm (standard), 100 Nm (low range) |
| Coolant system | 600 l tank, 5.5 bar, 60 l/min |
| Chip conveyor | right-hand discharge |
| Hydraulic unit | Hydrokraft |
| Control cabinet | Rittal, with cooling unit |
| Oil mist extractor | yes |
| Main fuse | 125 A |
| Operating current | 100 A |
| Total connected load | approx. 50 kW |
| Weight | approx. 10,500 kg |
| Points to check before sending |
€8,500 · Inspection possible
