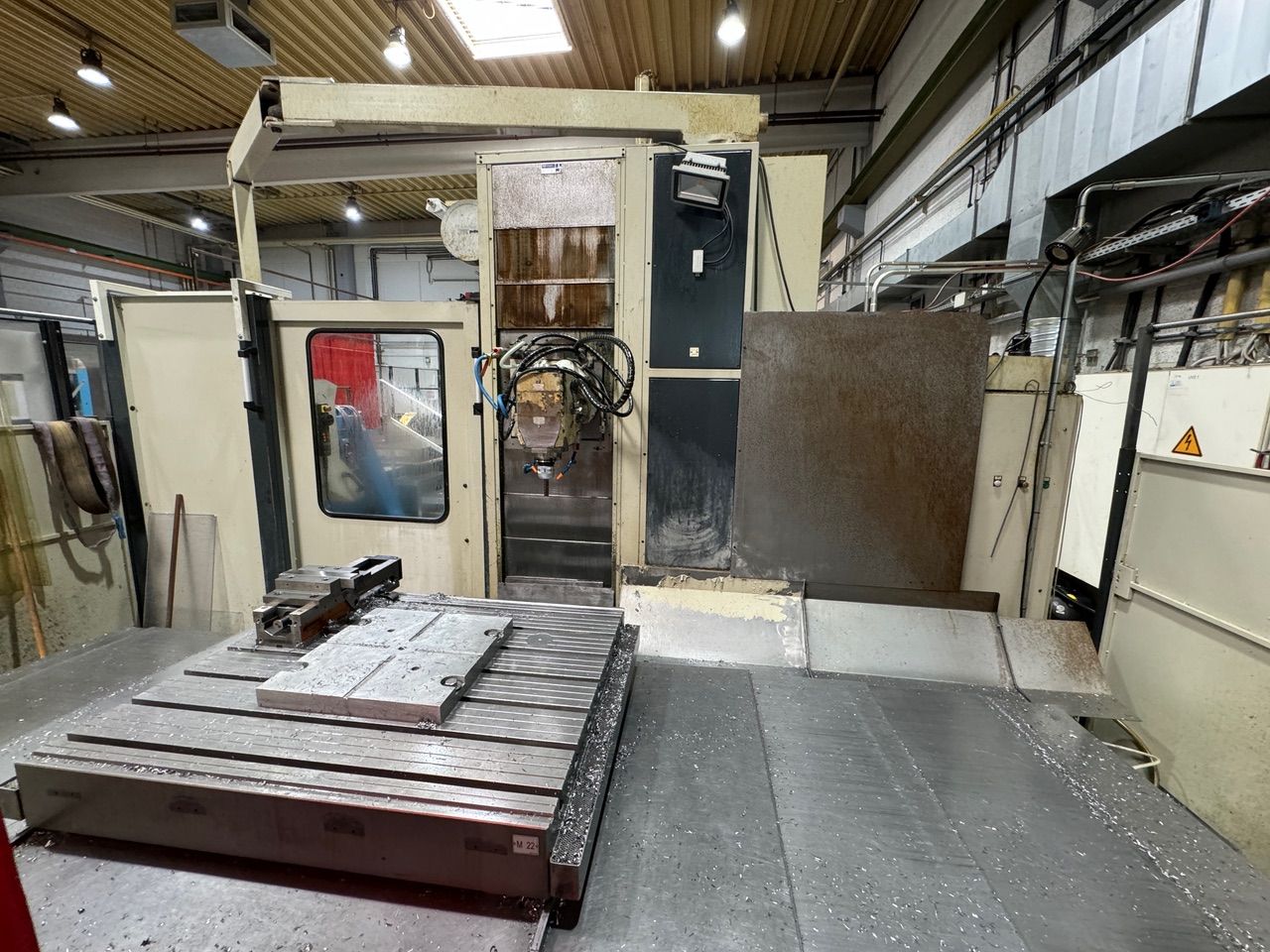

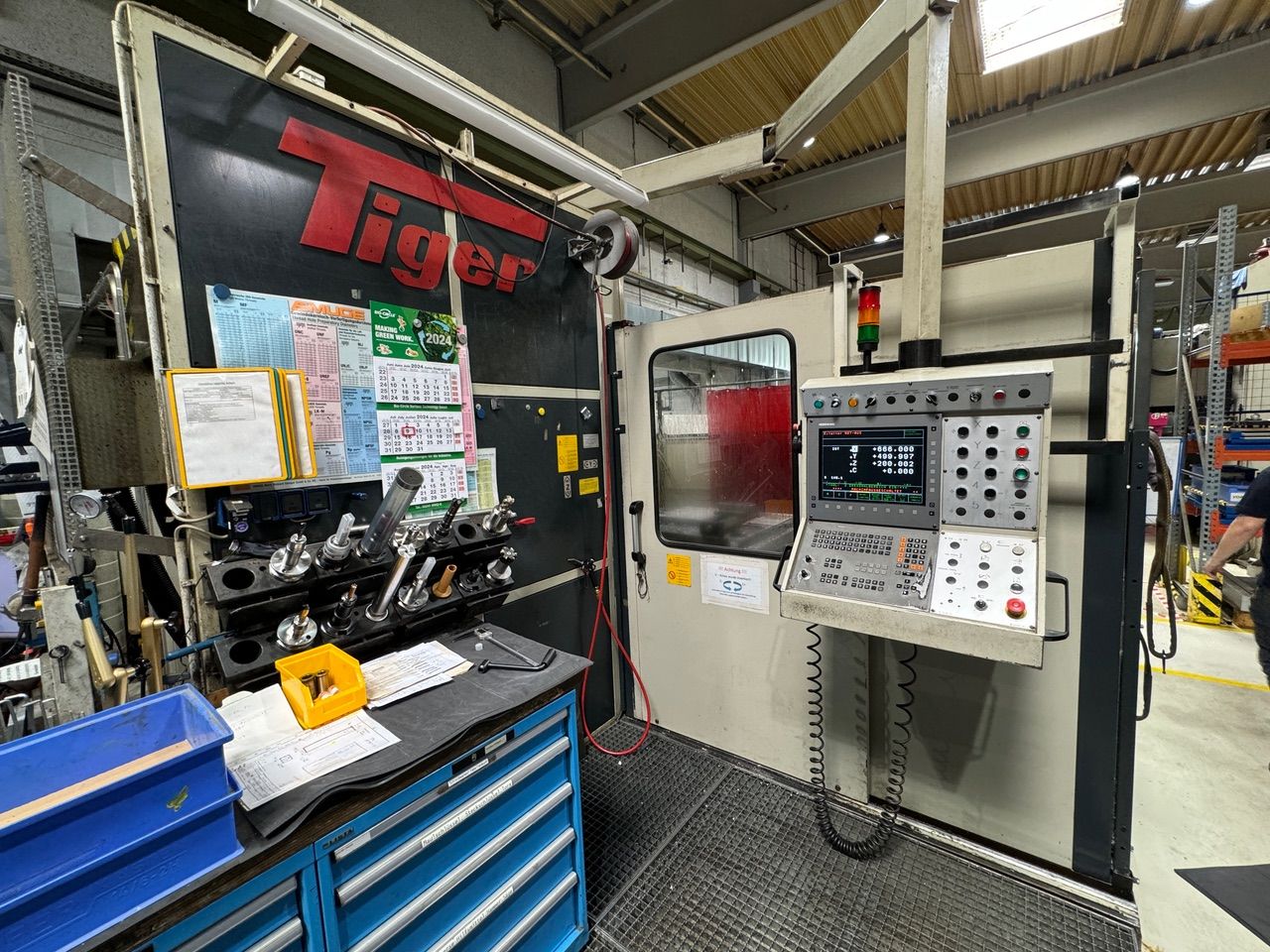

Tiger TFA 5 RT bed-type CNC milling machine (Tiger S.p.A., Italy), year of manufacture 2002, with rotary table. Traverses of 1,500 / 800 / 1,300 mm in X / Y / Z and a 1,020 × 1,200 mm rotary table rated to 5,500 kg. ISO 50 spindle driven by a 20 kW motor up to 2,500 rpm, rapid traverse 12,000 mm/min. Machine weight approx. 12,000 kg. Available for inspection in Düsseldorf.
available

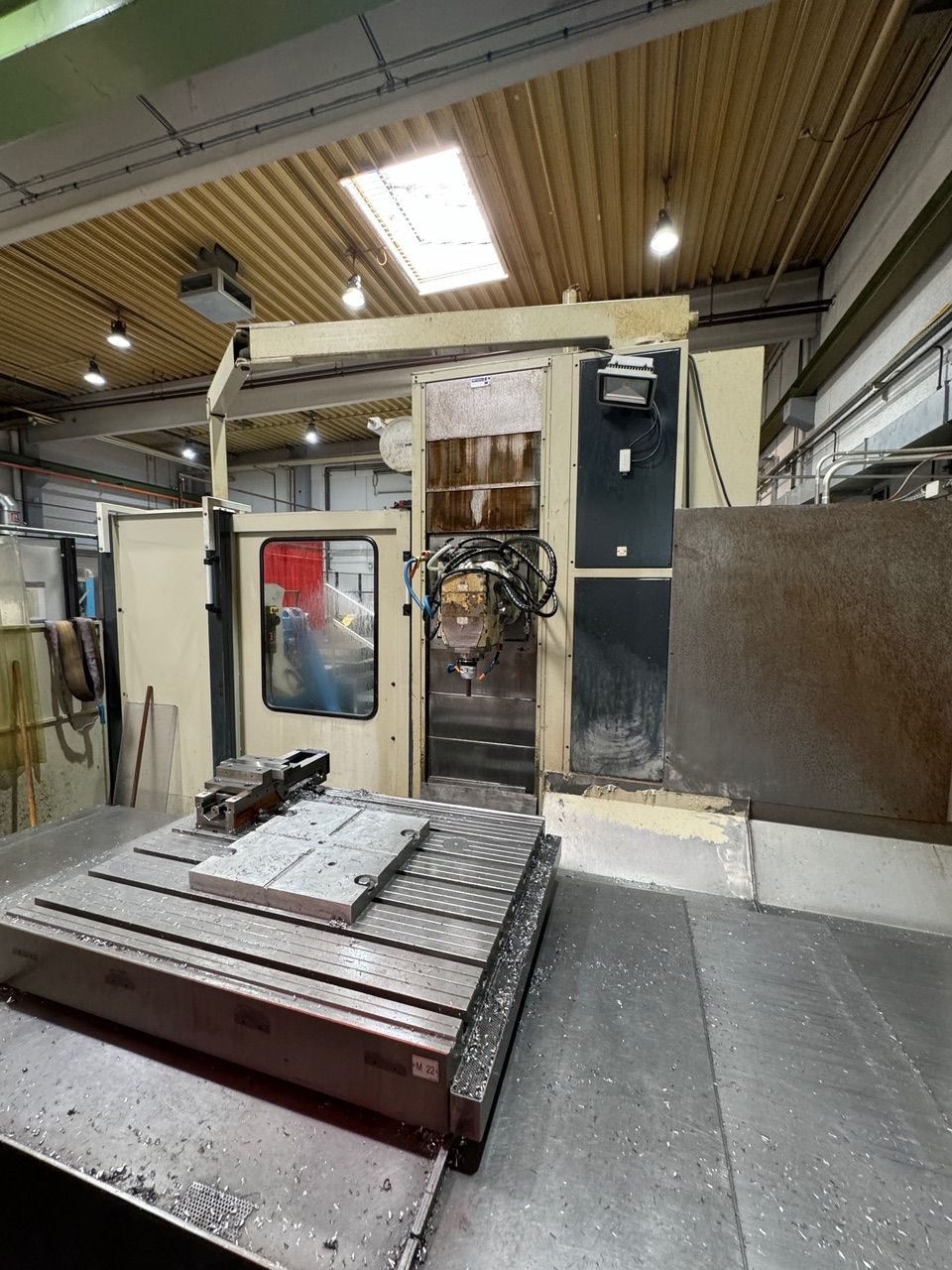

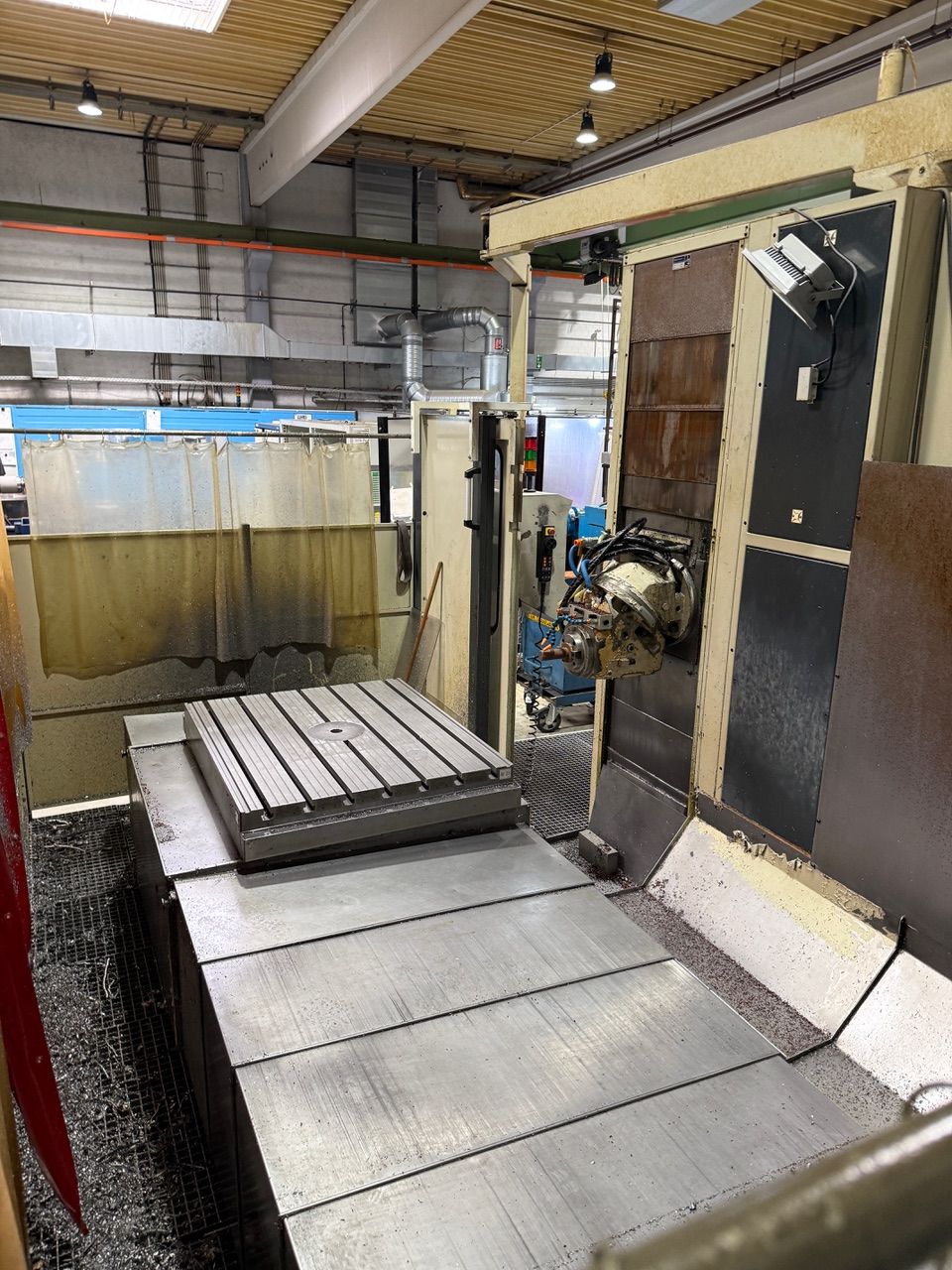

TIGER TFA 5RT CNC Bed Milling Machine
| Manufacturer | TIGER (Tiger S.p.A., Italy) |
| Model | TFA 5RT |
| Year | 2002 |
| Location | Düsseldorf, Germany |
| Machine type | CNC bed milling machine with rotary table |

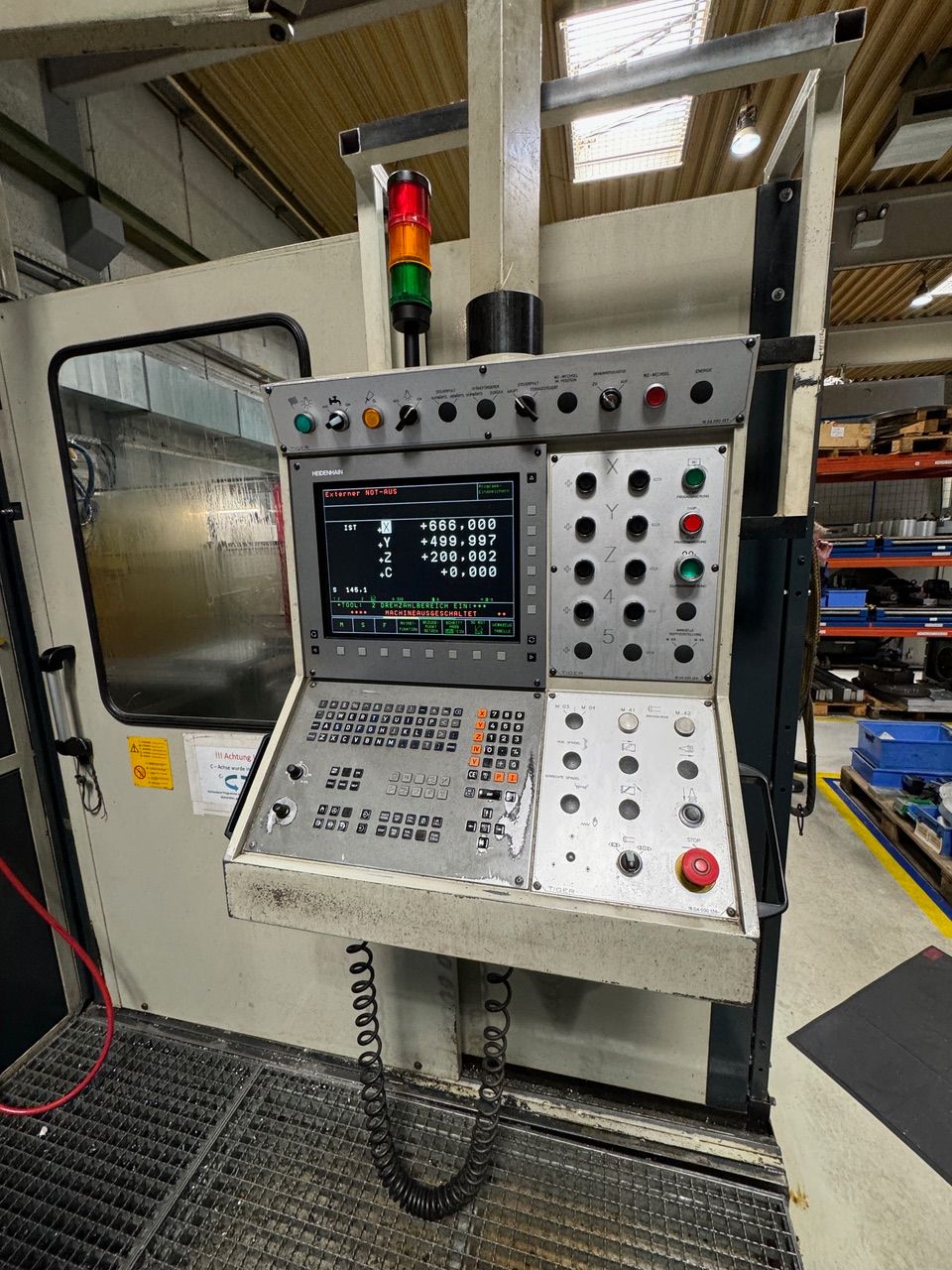

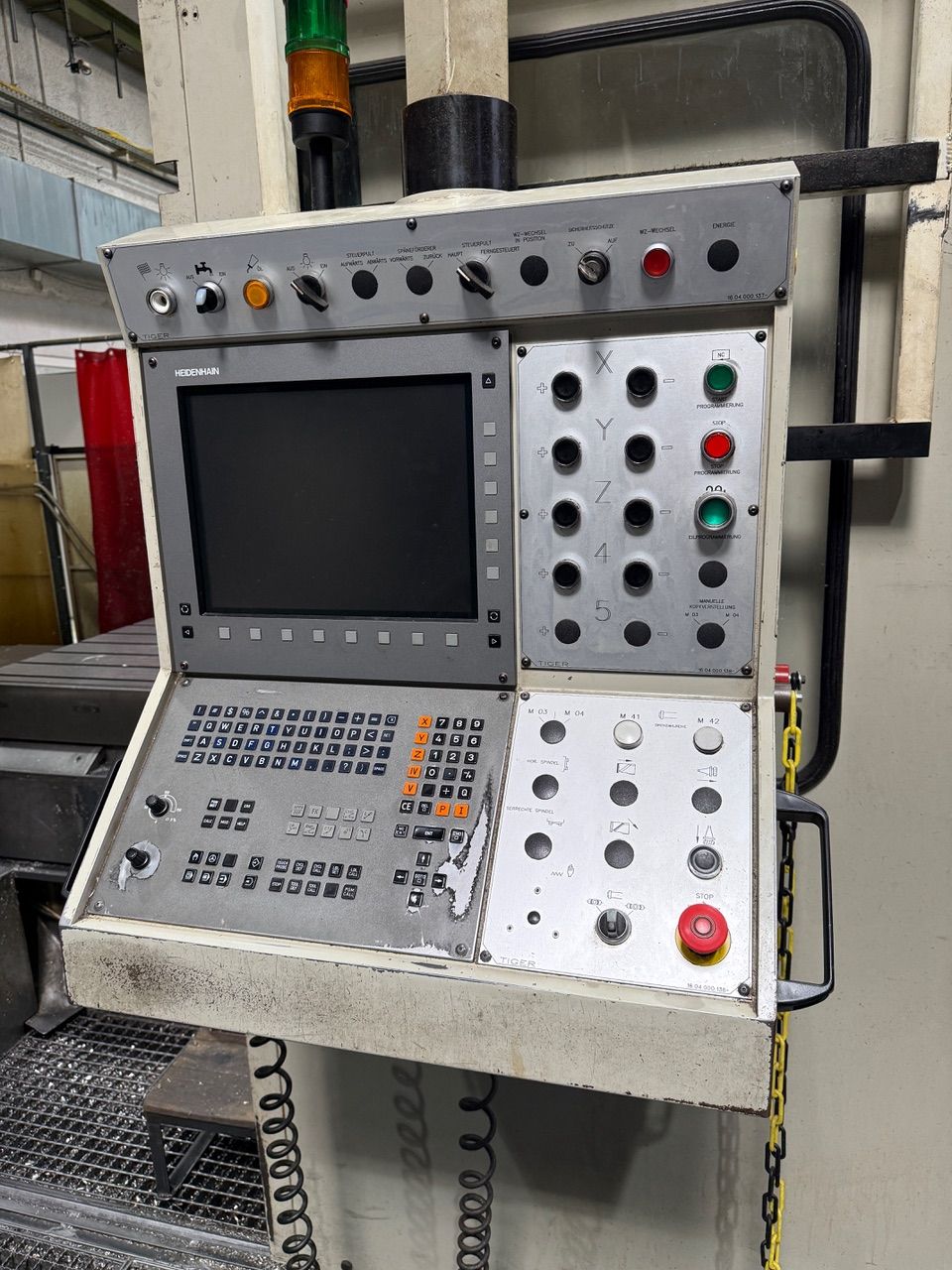

| Control | Heidenhain CNC |
| Travel X / Y / Z | 1,500 / 800 / 1,300 mm |

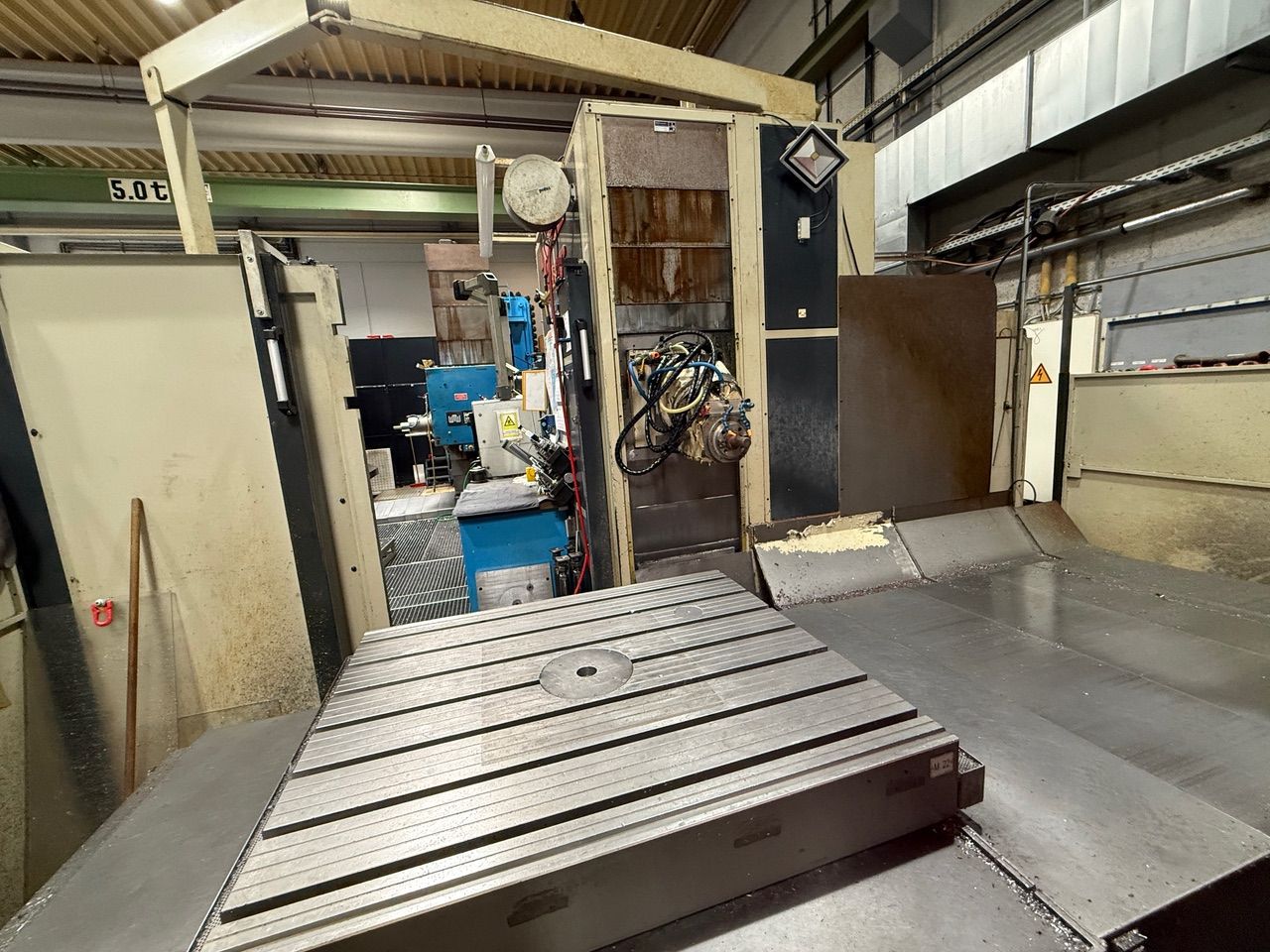

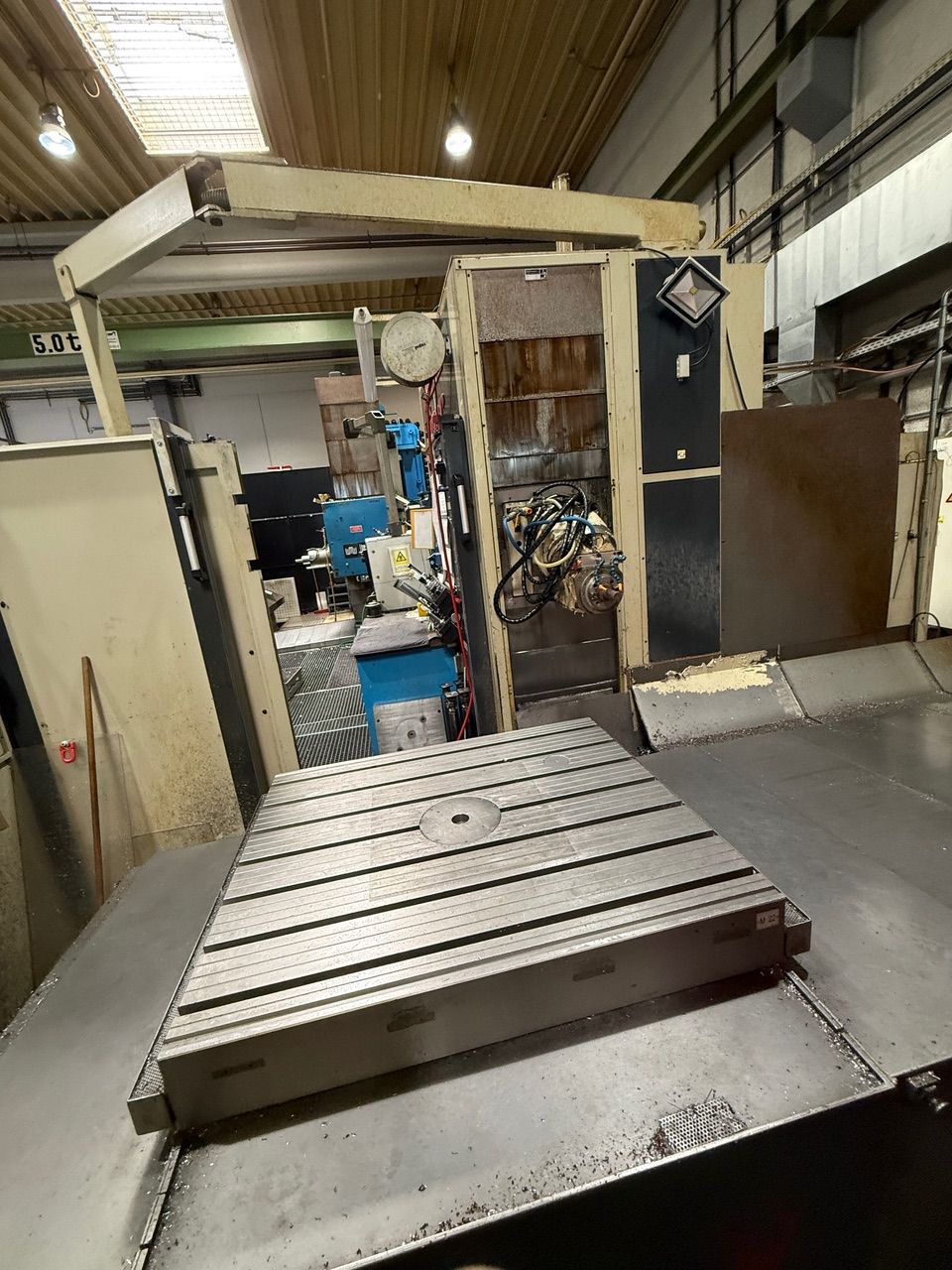

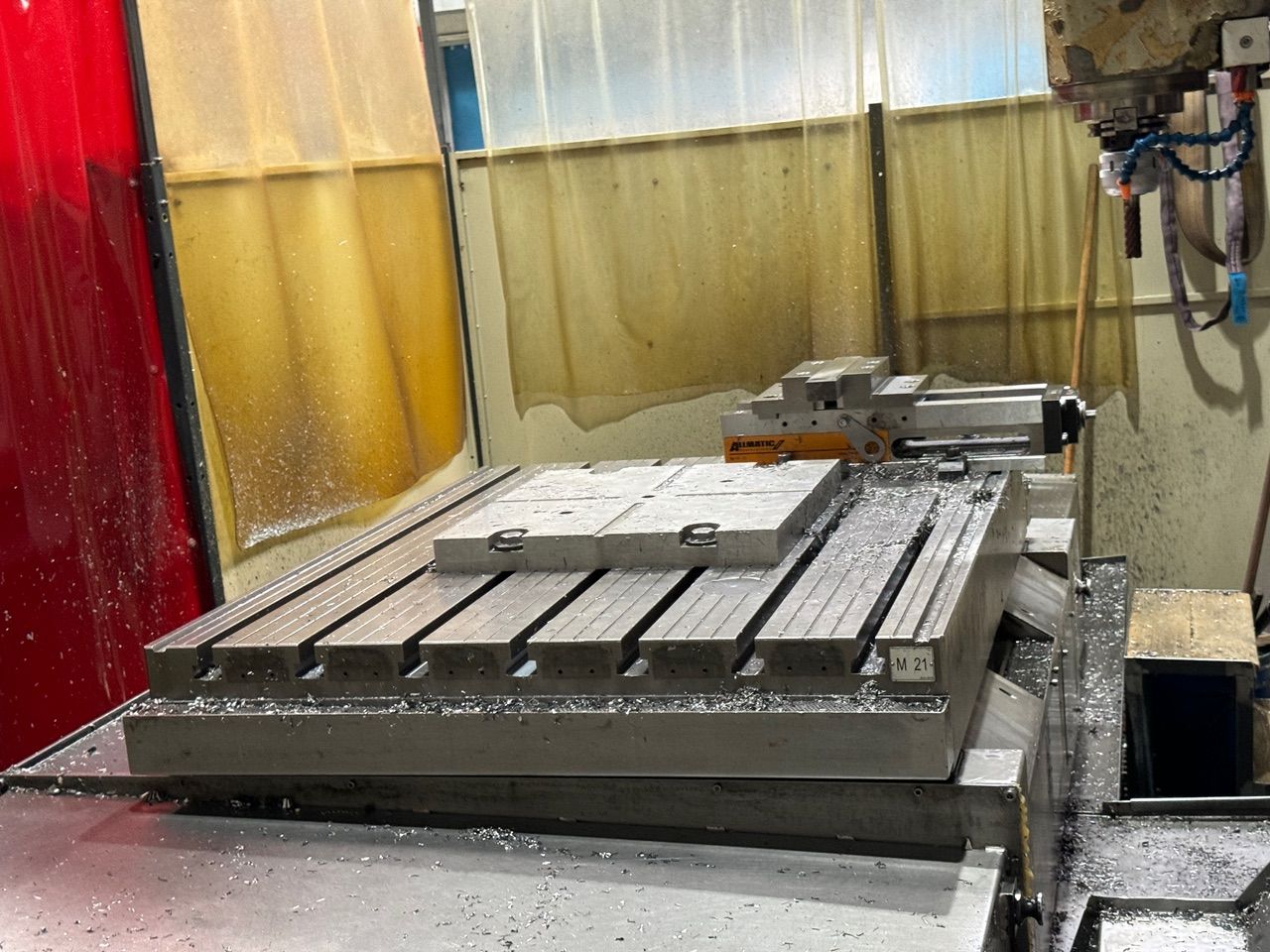

| Rotary table | 1,020 × 1,200 mm · max load 5,500 kg |

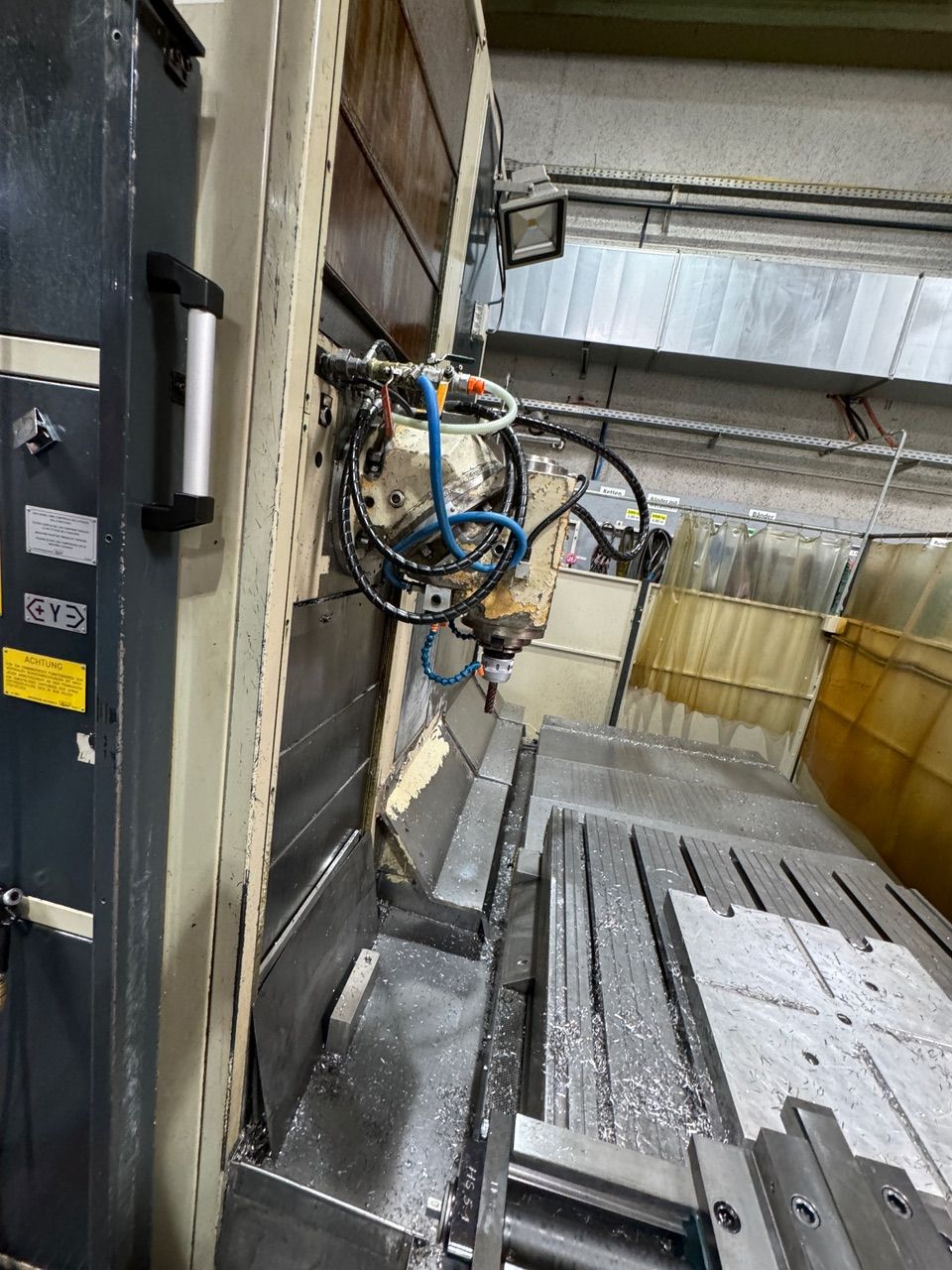

| Spindle | ISO 50 · 20 kW · up to 2,500 rpm |
| Rapid traverse | 12,000 mm/min |

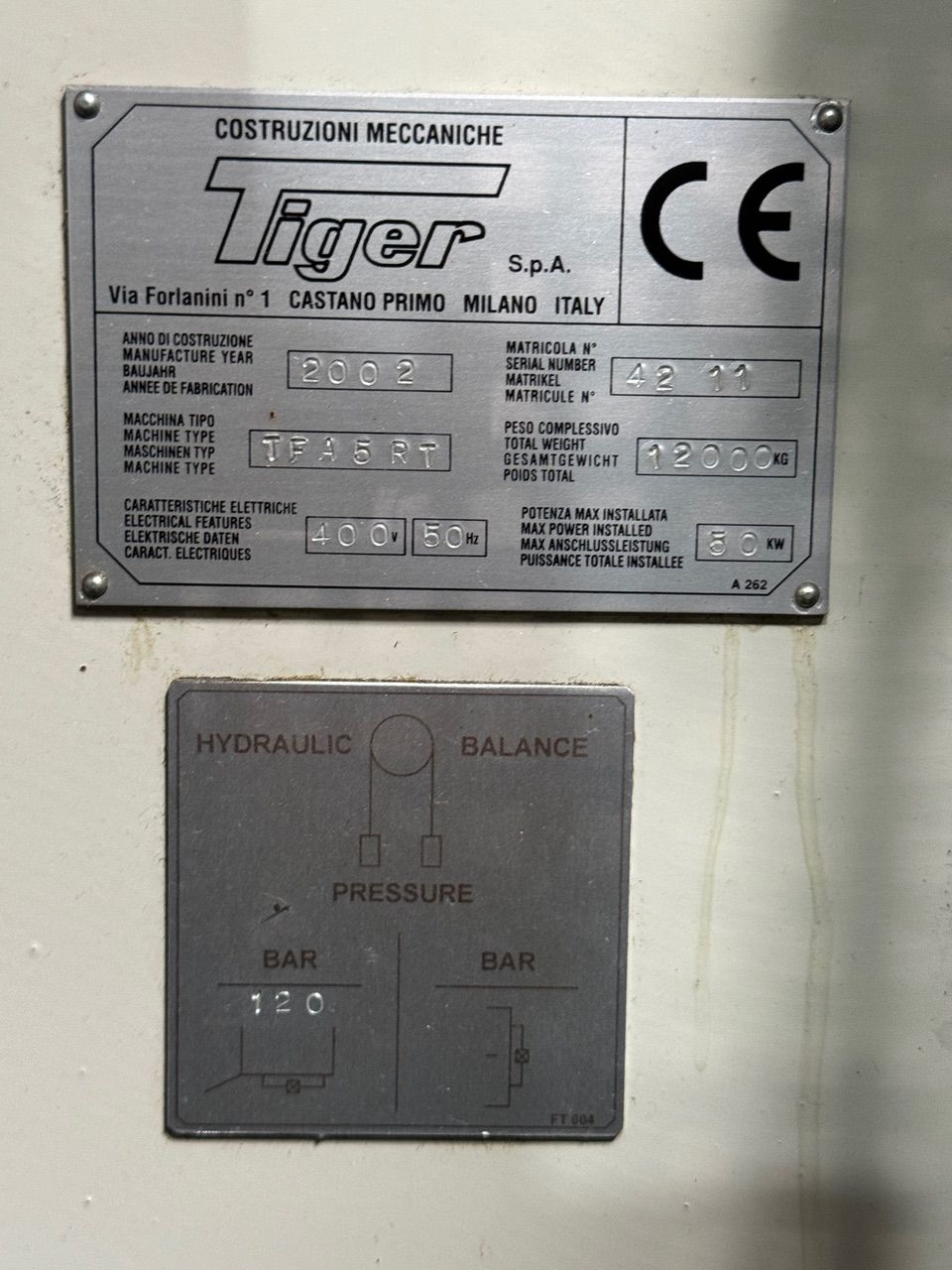

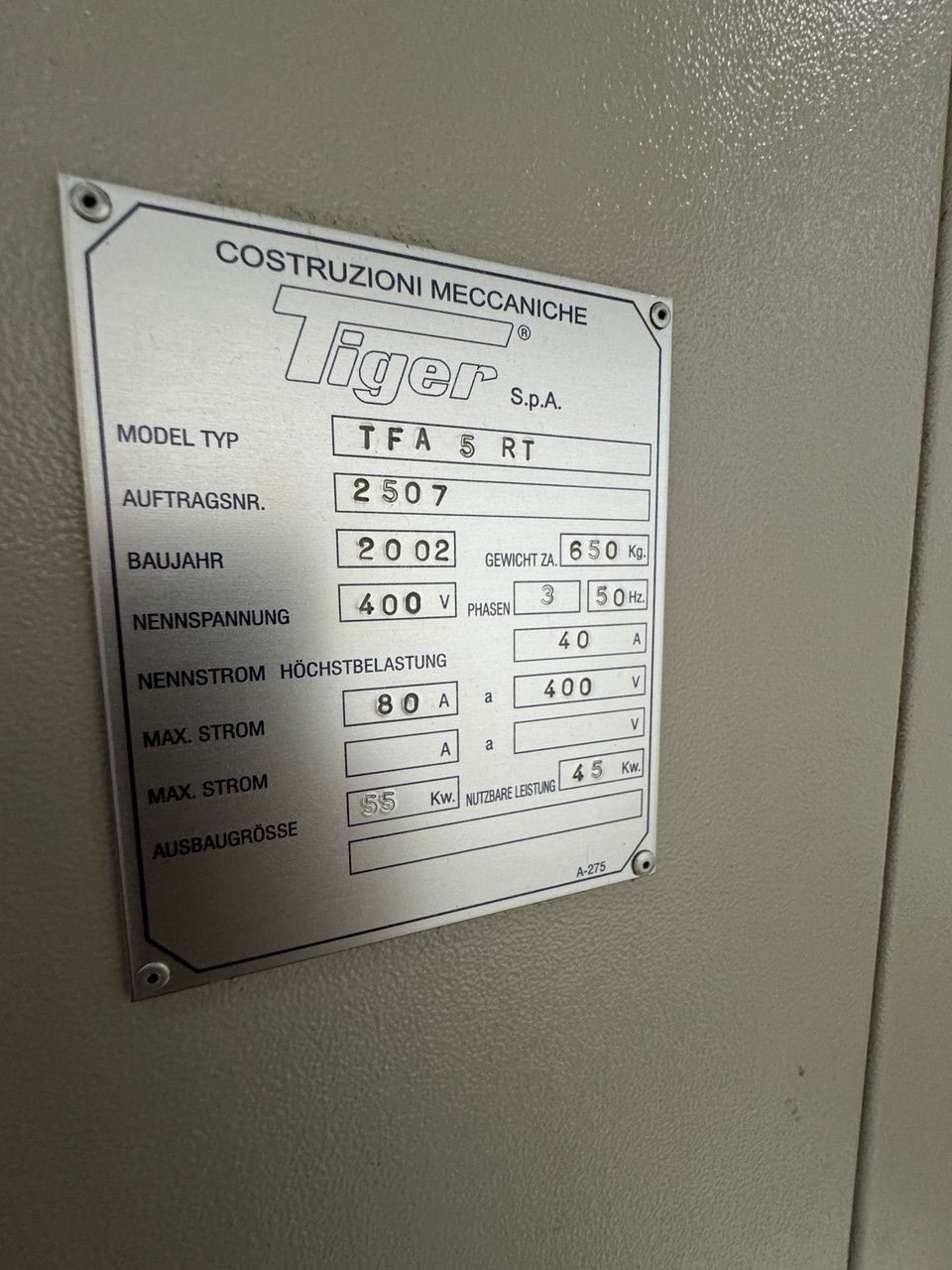

| Installed power | 30 kW (nameplate max 50 kW) |
| Machine weight | approx. 12,000 kg |

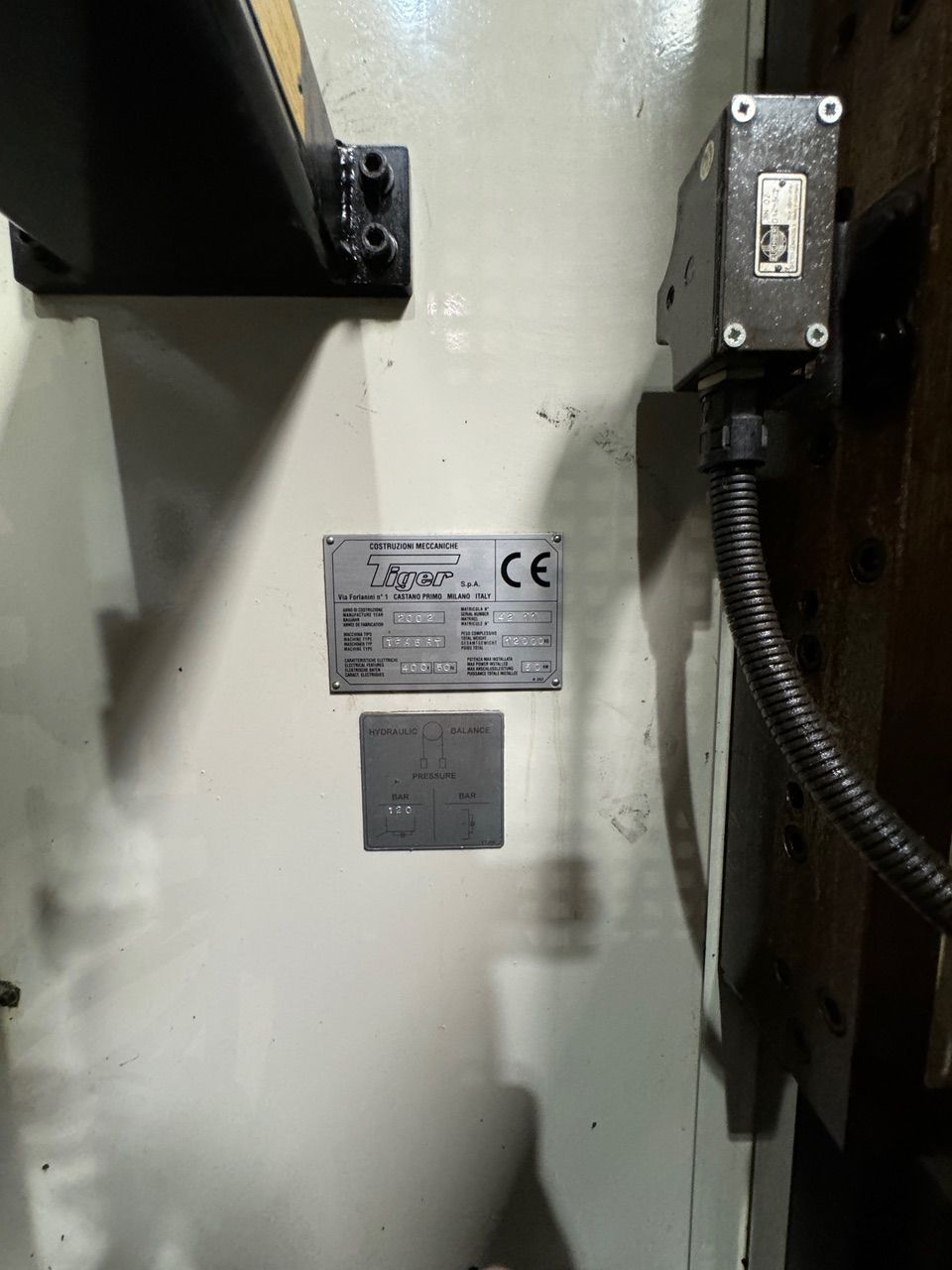

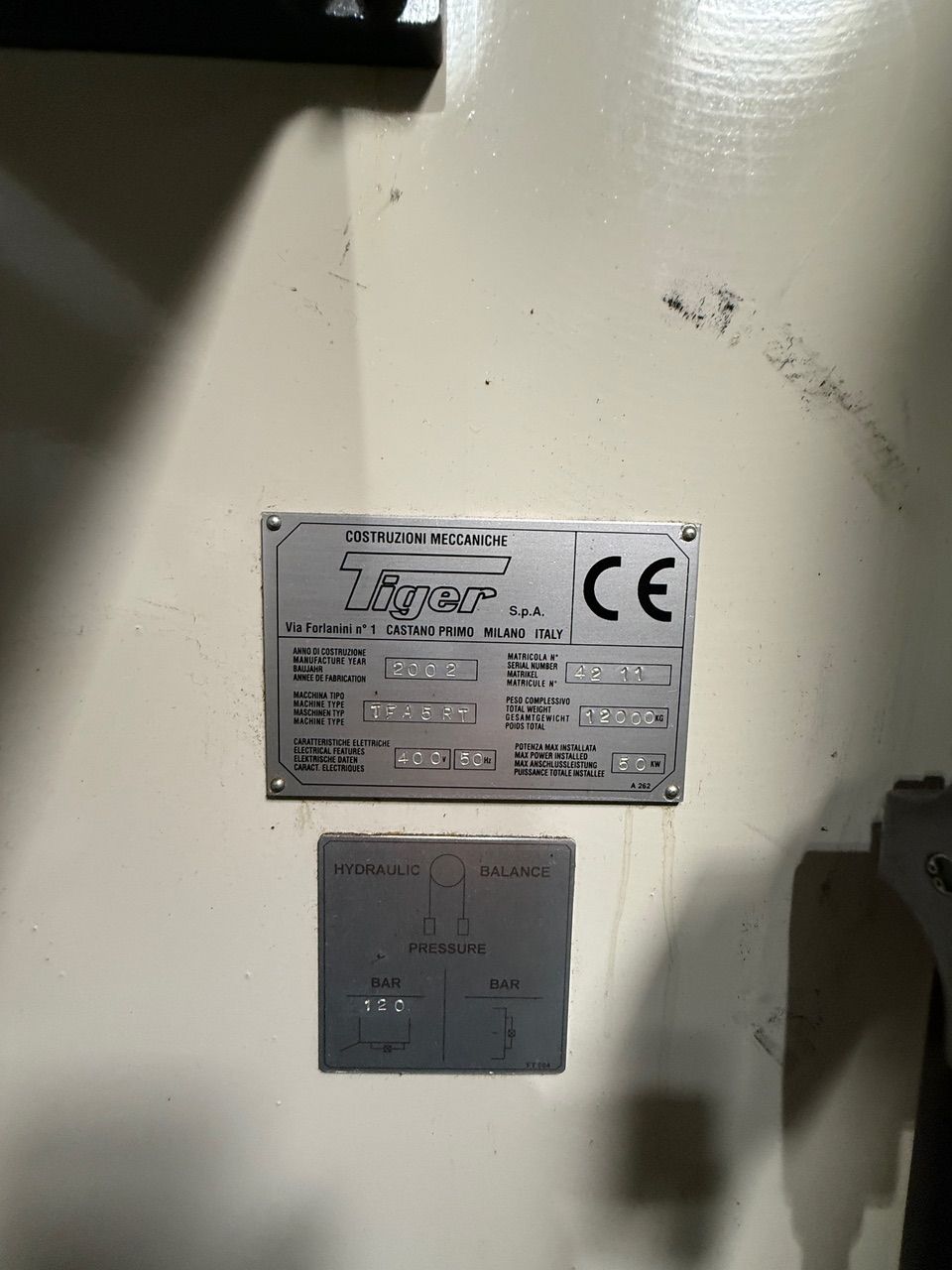

| Serial no. | 4211 |
€ 23,500 · Inspection possible
