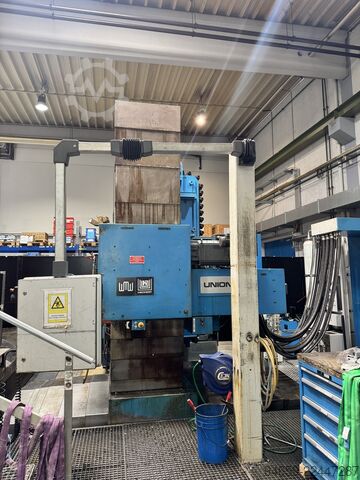

Union CBFK 130/2 CNC table-type horizontal boring & milling machine (VEB Werkzeugmaschinenfabrik Union Gera) with Heidenhain CNC control, generally overhauled in 2007. Traverses of 3,000 / 1,600 / 1,275 mm in X / Y / Z, 400 mm spindle quill (W-axis) and a 360° rotary table of 1,600 × 2,000 mm rated to 7,000 kg. 32.4 kW main spindle drive, connected load 80 kW. Machine weight approx. 28.3 t. Video available on request. Available for inspection in Düsseldorf.
sold
Union CBFK 130/2 Table-Type Horizontal Boring & Milling Machine
| Manufacturer | Union (VEB Werkzeugmaschinenfabrik Gera) |
| Model | CBFK 130/2 |
| Year | 2007 |
| Location | Düsseldorf, Germany |
| Machine type | CNC table-type horizontal boring & milling machine |

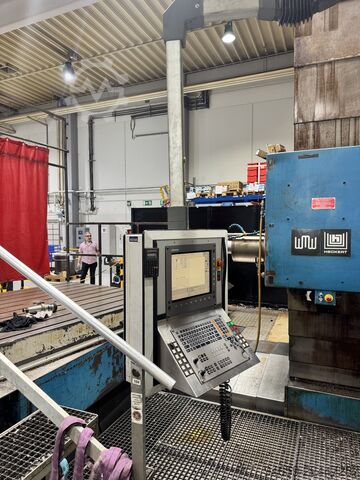

| Control | Heidenhain CNC |
| Travel X / Y / Z | 3,000 / 1,600 / 1,275 mm |

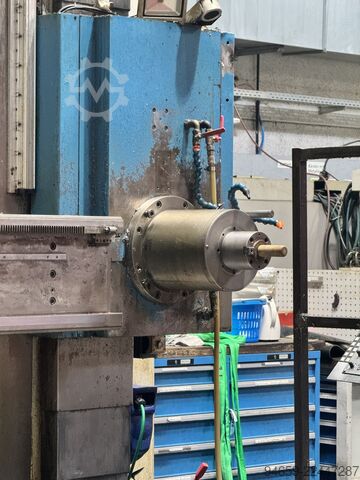

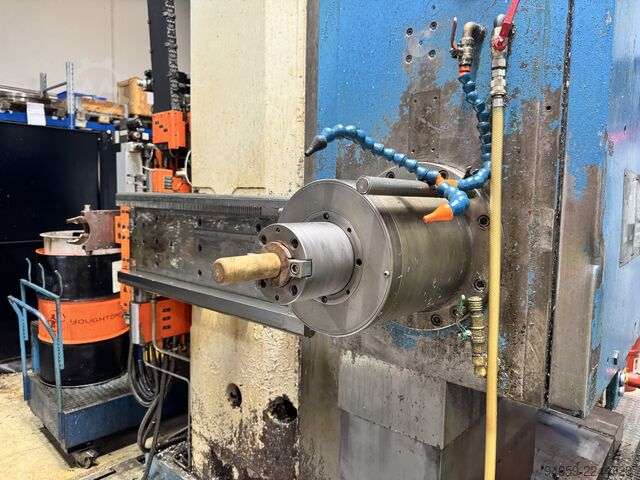

| Spindle quill (W) | 400 mm |
| Rotary table (B) | 360° · 1,600 × 2,000 mm |
| Max. workpiece weight | 7,000 kg |
| Main spindle motor | 32.4 kW |
| Connected load | 80 kW · 380 V · 150 A |
| Machine weight | approx. 28.3 t |
| Serial no. | 12266 (overhaul 2007) |
€ 79,000 · Inspection possible
